1. Important Safety Instructions
Always read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Keep this manual for future reference.
- Double Safety Protection: This electric hedge trimmer includes a blade cover and safety lock. The safety switch must be pressed before the power button to prevent accidental start-ups.
- Wear appropriate personal protective equipment, including eye protection, gloves, and sturdy footwear.
- Keep hands and feet away from the cutting blade.
- Ensure the work area is clear of bystanders, children, and pets.
- Do not operate the trimmer in wet conditions or near electrical wires.
- Always remove the battery when cleaning, performing maintenance, or when the tool is not in use.
2. Package Contents
Verify that all items are present and in good condition upon unpacking.
- 1 x SEESII Cordless Hedge Trimmer Head
- 1 x Telescopic Pole
- 1 x Power Grip with Battery Slot
- 2 x 4.0Ah Batteries
- 1 x Fast Charger
- 1 x Shoulder Strap
- 1 x Blade Cover
- 1 x User Manual
Image: Complete package contents of the SEESII Cordless Pole Hedge Trimmer.
3. Setup
3.1 Assembly
Follow these steps to assemble your pole hedge trimmer:
- Insert the handle into the hedge trimmer head.
- Tighten the collar by turning it clockwise to secure the connection.
- Insert the power grip into the telescopic pole.
- Tighten the collar securely to lock the power grip in place.
Video: Detailed instructions on how to install the Seesii Cordless Pole Hedge Trimmer components.
3.2 Battery Installation and Charging
The trimmer comes with dual 4.0Ah batteries for extended runtime. Ensure batteries are fully charged before use.
- Slide a charged battery into the power grip until it clicks into place.
- To charge, connect the fast charger to the battery and a power outlet.

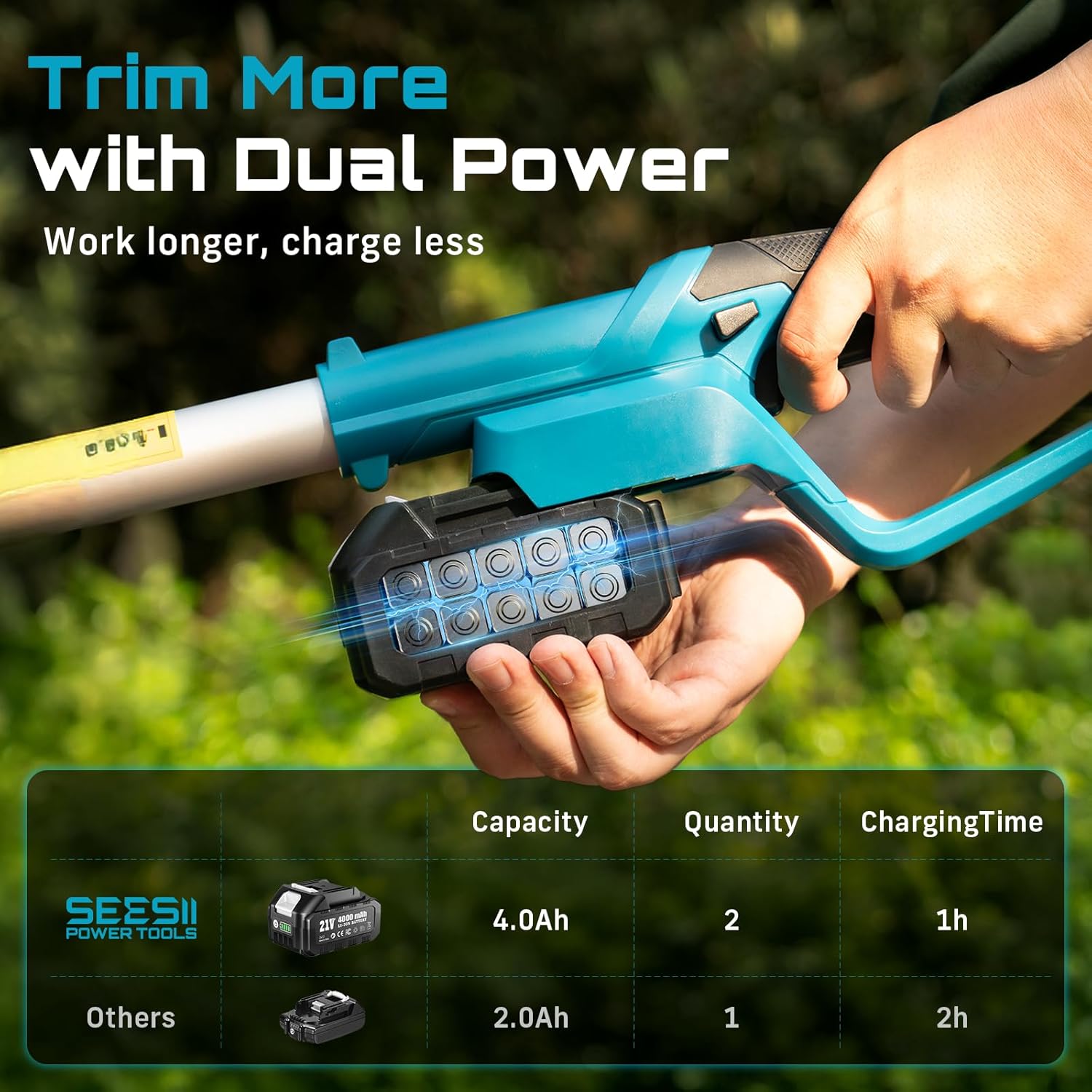

Image: The SEESII pole hedge trimmer utilizes dual 4.0Ah batteries for extended operation.
Video: Demonstrates the battery installation and highlights the dual 4.0Ah battery feature of the Seesii Pole Hedge Trimmer.
3.3 Shoulder Strap Adjustment
Attach the ergonomic shoulder strap to balance the trimmer and reduce arm and shoulder strain.
- Loosen the screw counterclockwise on the strap loop.
- Adjust the strap loop to a comfortable position on the pole.
- Tighten the screw clockwise to secure the loop.
- Attach the shoulder strap to the loop.
Image: The shoulder strap provides support and reduces fatigue during operation.
Video: Instructions on how to adjust the position of the shoulder strap for optimal comfort and balance.
4. Operating Instructions
4.1 General Operation
The 16-inch dual-action blade ensures smooth, precise cuts with reduced vibration. With a 5/8-inch cutting capacity, it can trim overgrown shrubs efficiently.
Image: The 16-inch dual-action blade provides a wide cutting path for efficient trimming.
Video: Demonstrates the Seesii Pole Hedge Trimmer in action, trimming low shrubs effectively.
Video: Shows the electric pole hedge trimmer with its 16-inch dual-action blade in use.
4.2 Adjustable Telescoping Pole
The telescopic pole extends from 7ft to 8.5ft, providing extra reach for high branches without a ladder. It is detachable for compact storage and easy transport. Note that this model is not a 2-in-1 design and can only be used with the extension pole.
Image: The versatile pole allows for trimming at various heights.
Video: Illustrates the Seesii Pole Hedge Trimmer trimming tall trees with its extended pole.
4.3 Adjustable Head for Precision Trimming
The trimmer head rotates 135 degrees with 6 positions, allowing for easy trimming at any angle. This feature helps reach high branches, shape sides, and trim low shrubs effortlessly, reducing arm fatigue.
Image: The 6-position adjustable head allows for precise trimming at various angles.
4.4 Powerful Motor
Equipped with a 1500 SPM high-speed motor, this battery hedge trimmer delivers strong, consistent power for smooth, efficient cutting. It can tackle thick branches and dense hedges.
Image: The powerful motor ensures efficient and smooth cutting performance.
Video: A comprehensive overview of the SEESII Pole Hedge Trimmer, demonstrating its features and operation.
5. Maintenance
5.1 Blade Care
Always ensure the blade cover is in place when the trimmer is not in use or during storage to protect the blade and prevent accidental injury.
Image: The blade cover and safety lock provide double safety protection.
5.2 General Cleaning and Storage
- After each use, clean the blades and housing with a dry cloth.
- Store the trimmer in a dry, secure location out of reach of children.
- Remove batteries before long-term storage.
6. Troubleshooting
If you encounter issues with your SEESII L98 Cordless Pole Hedge Trimmer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | Battery not installed correctly or discharged; Safety switch not engaged. | Ensure battery is fully charged and properly inserted. Press the safety switch before the power button. |
| Reduced cutting performance | Blades are dull or dirty; Overloading the motor. | Clean blades and remove debris. Avoid cutting branches thicker than 5/8 inch. Consider sharpening blades if necessary. |
| Excessive vibration | Loose components; Damaged blade. | Check all connections for tightness. Inspect blades for damage and replace if needed. |
If the problem persists, please contact customer support.
7. Specifications
- Brand: Seesii
- Model Number: L98
- Power Source: Battery Powered
- Product Dimensions: 94"L x 5.9"W x 5.7"H
- Item Weight: 7.6 Pounds
- Blade Length: 16 Inches
- Material: Alloy Steel, Aluminum
- Blade Material: Alloy Steel
- Cutting Width: 0.63 Inches (5/8")
- Speed: 1500 RPM (1500 SPM)
- Voltage: 18 Volts (21V Max)
- Batteries: 2 x 4.0Ah Li-ion batteries (included)
8. Warranty and Support
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Seesii website. Keep your purchase receipt as proof of purchase for any warranty claims.
