VASAGLE LBC169L01 6-Tier Bookshelf Instruction Manual

Introduction

Thank you for choosing the VASAGLE LBC169L01 6-Tier Bookshelf. This manual provides detailed instructions for assembly, safe operation, and maintenance to ensure optimal use and longevity of your product. Please read these instructions carefully before beginning assembly and retain them for future reference.

Safety Information

• Anti-Tipping Kit: Always install the included anti-tipping kit to securely fasten the bookshelf to the wall. This is crucial for preventing accidents and ensuring stability, especially in households with children or pets.
• Weight Capacity: Each shelf is designed to support a maximum weight of 10 kg (22 lbs). Do not exceed this limit to prevent structural damage or collapse. The total static load capacity for the entire unit is 70 kg (154 lbs).
• Even Weight Distribution: Distribute weight evenly across all shelves. Avoid placing heavy items exclusively on upper shelves.
• Material Safety: This product is constructed from E1 grade engineered wood, which meets safety standards for formaldehyde emissions.
• Assembly: Follow all assembly steps precisely. Do not skip steps or use unauthorized parts.

Image: Safety features including the anti-tipping kit for wall mounting, the H-shaped structure to prevent deformation, and reinforced brackets for enhanced stability.

Package Contents

Before assembly, verify that all components are present and undamaged. Refer to the illustrated instructions provided in the package for a complete list of numbered parts and hardware.

• Bookshelf panels (engineered wood)
• Assembly hardware (screws, dowels, etc.)
• Anti-tipping kit
• Assembly instructions (illustrated)
• Small tools for assembly (e.g., screwdriver)

Setup (Assembly Instructions)

Assembly is designed to be straightforward with numbered parts and clear, illustrated instructions. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Match each part to the corresponding number in the instruction manual.
2. Assemble Frame: Follow the step-by-step diagrams to connect the main frame pieces using the provided hardware. Ensure all connections are secure but do not overtighten screws initially.
3. Install Shelves: Insert the adjustable shelves into your desired positions. The shelves offer 3 different height options, allowing for flexible storage.
4. Attach Back Panel: Secure the back panel to the frame. This contributes to the overall stability of the unit.
5. Final Tightening: Once the entire unit is assembled, gently tighten all screws to ensure maximum stability.
6. Install Anti-Tipping Kit: Crucially, attach the anti-tipping kit to the top rear of the bookshelf and secure it to a solid wall stud or appropriate wall anchor.

Image: Adjustable shelves feature, allowing for customization of shelf heights to accommodate various item sizes. Shelves can be adjusted to 3 different heights.

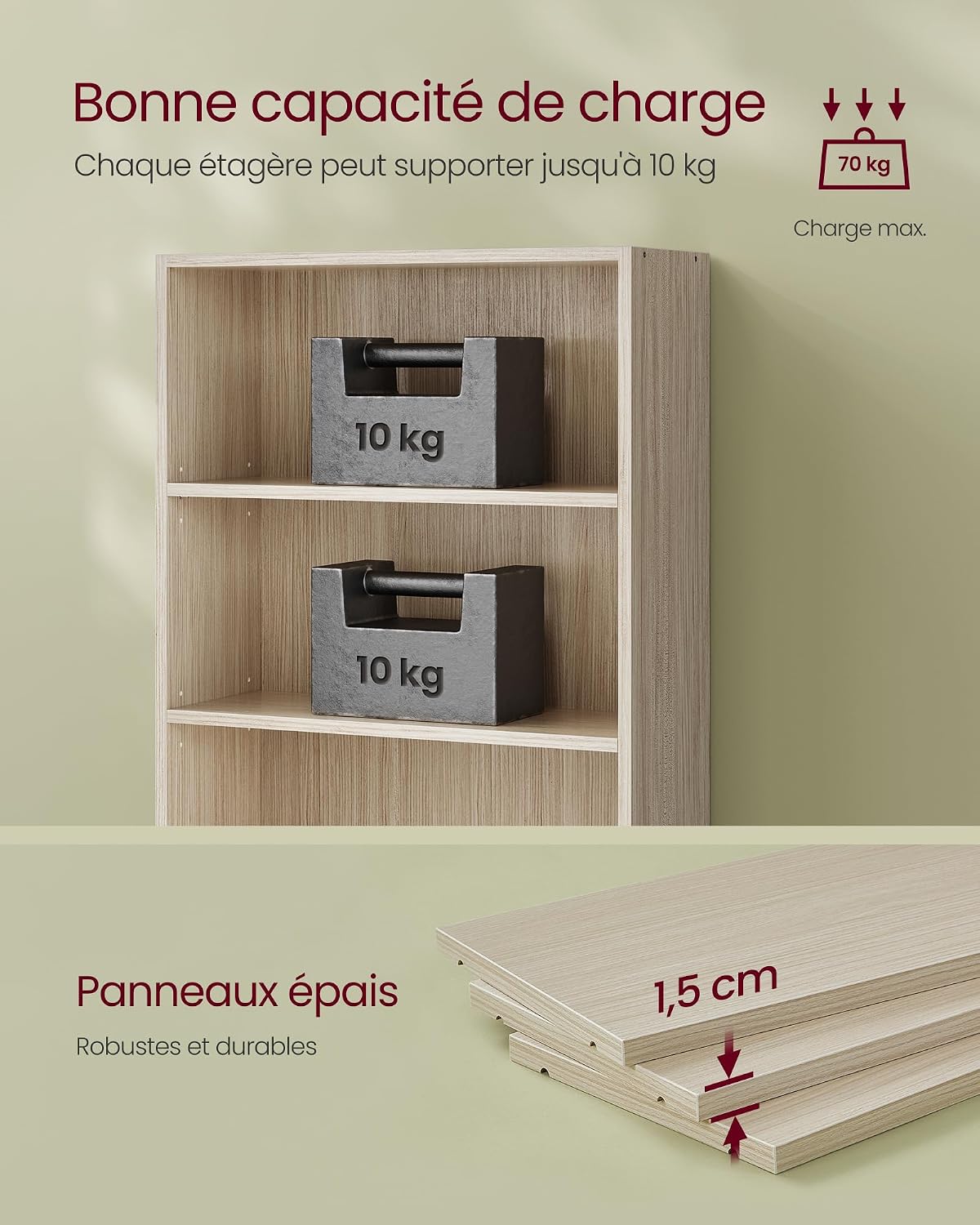

Image: Demonstration of the 10 kg load capacity per shelf and the robust 1.5 cm thick engineered wood panels.

Operating (Usage)

The VASAGLE LBC169L01 bookshelf is designed for versatile storage and display in various rooms.

• Placement: Suitable for living rooms, dining rooms, offices, or bedrooms.
• Storage: Use the open compartments to store books, decorative items, plants, or personal belongings.
• Adjustable Shelves: Utilize the adjustable shelves to customize storage space for items of different heights.
• Compatible Storage: The lower compartments are compatible with storage boxes up to 40 cm in height, providing additional organized storage.

Image: The bookshelf is compatible with storage boxes up to 40 cm in height, offering flexible organization solutions.

Maintenance

• Cleaning: Wipe the surface with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Dusting: Regularly dust the shelves and surfaces to maintain appearance.
• Stability Check: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Avoid Moisture: Keep the bookshelf away from excessive moisture or direct sunlight to prevent warping or discoloration.

Troubleshooting

• Wobbling/Instability: Ensure all screws are fully tightened. Verify that the anti-tipping kit is correctly installed and secured to the wall. Check that the bookshelf is placed on a level surface.
• Missing Parts: If any parts are missing upon unpacking, refer to the package contents list in your assembly manual and contact customer support for assistance.
• Difficulty Assembling: Review the illustrated instructions carefully. Ensure parts are oriented correctly. Do not force components together. If issues persist, contact customer support.

Specifications

Image: Detailed dimensions of the bookshelf and its maximum static load capacity.

Warranty & Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly. Ensure you have your model number (LBC169L01) and proof of purchase available when contacting support.
