Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your HERO® Maintenance Filter Kit. This kit is specifically designed for the Toro 74914 TITAN ZX5400 Zero-Turn Mower with a Kawasaki FS691V-BS50 24HP Engine. Regular maintenance using this kit will help ensure the longevity and optimal performance of your equipment.
Product Overview
The HERO® Maintenance Filter Kit is a comprehensive solution for routine servicing of your zero-turn mower's engine and hydraulic system. It includes high-quality replacement components engineered for superior filtration efficiency and durability.
Kit Contents:
- (1) Primary Air Filter: Part Number 110130752
- (1) Pre-Cleaner: Part Number 110137046
- (1) Engine Oil Filter: Part Number 490650721
- (1) In-Line Fuel Filter: Part Number 490190031
- (2) Spark Plugs: Type BPR4ES
- (2) Hydraulic Oil Filters: Part Number 1093321

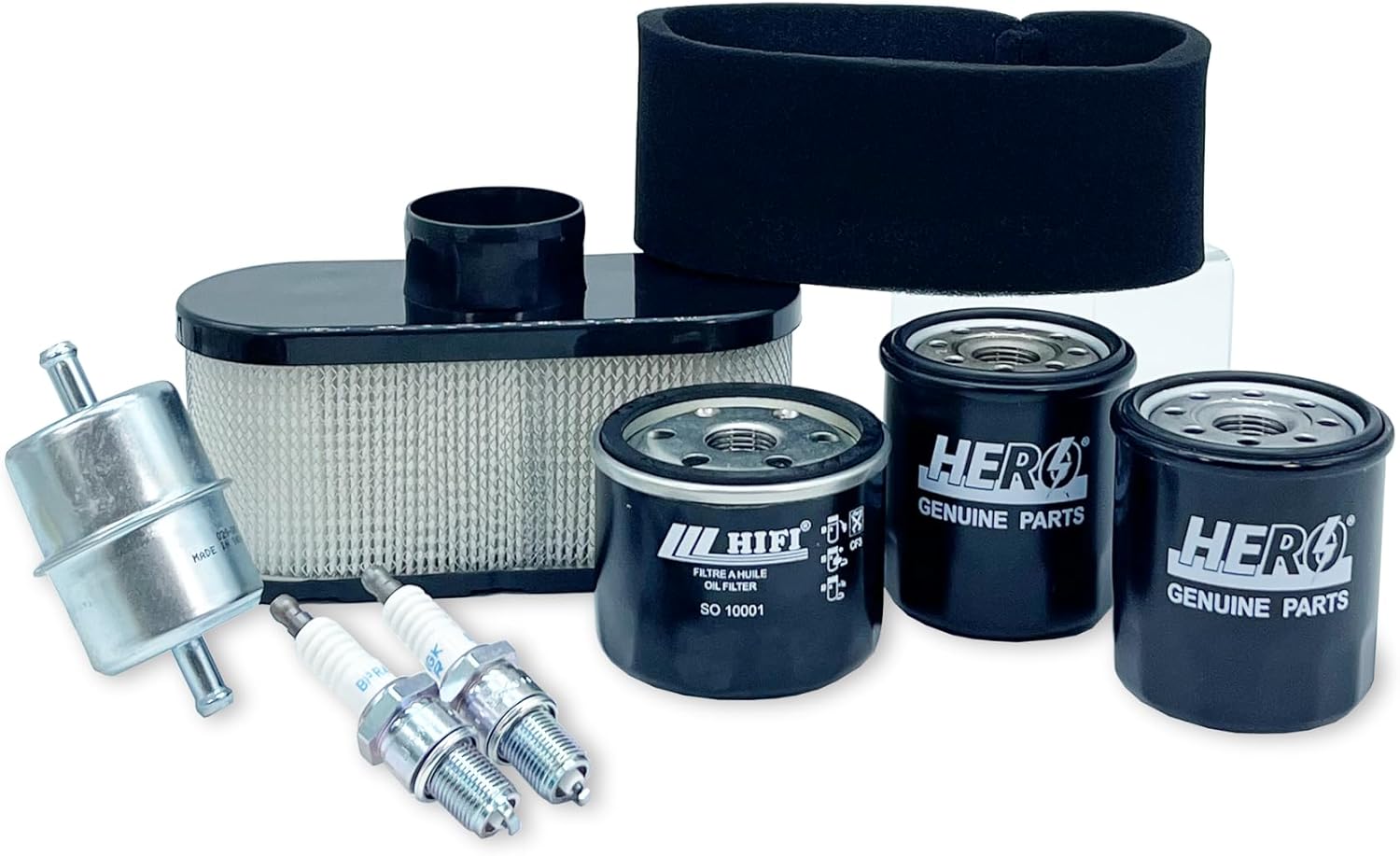

Image: All components included in the HERO Maintenance Filter Kit, laid out for clear visibility. This includes the primary air filter, pre-cleaner, engine oil filter, in-line fuel filter, spark plugs, and hydraulic oil filters.
Installation Guide
General Safety Precautions:
- Always turn off the engine and remove the spark plug wires before performing any maintenance.
- Allow the engine and hydraulic system to cool down before working on them.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Refer to your Toro 74914 TITAN ZX5400 Zero-Turn Mower's owner's manual for specific torque specifications and detailed procedures.
- Dispose of used filters and fluids responsibly according to local regulations.
Component Installation:
- Air Filter and Pre-Cleaner:
- Locate the air filter housing on your engine.
- Open the housing and carefully remove the old primary air filter and pre-cleaner.
- Clean the inside of the air filter housing.
- Install the new pre-cleaner over the new primary air filter.
- Insert the assembled filter into the housing, ensuring a proper seal, and close the housing securely.
- Engine Oil Filter:
- Place a drain pan beneath the engine oil filter.
- Unscrew the old oil filter counter-clockwise.
- Apply a thin film of new engine oil to the gasket of the new oil filter.
- Screw on the new oil filter clockwise until snug, then tighten an additional 1/2 to 3/4 turn (refer to mower manual for exact torque).
- Refill engine oil to the recommended level.
- In-Line Fuel Filter:
- Locate the in-line fuel filter between the fuel tank and the carburetor.
- Use clamps to pinch the fuel lines on both sides of the filter to prevent fuel leakage.
- Carefully remove the old filter, noting the direction of fuel flow (usually indicated by an arrow).
- Install the new fuel filter, ensuring the arrow points towards the engine.
- Secure the fuel lines with clamps and remove the pinching clamps.
- Spark Plugs:
- Carefully remove the spark plug wires.
- Use a spark plug wrench to remove the old spark plugs.
- Inspect the new spark plugs for correct gap (refer to engine manual for specification).
- Thread the new spark plugs by hand to avoid cross-threading, then tighten with a wrench to the recommended torque.
- Reattach the spark plug wires firmly.
- Hydraulic Oil Filters:
- Locate the hydraulic oil filters on your mower's hydraulic system.
- Place a drain pan underneath each filter.
- Unscrew and remove the old hydraulic filters.
- Apply a thin film of new hydraulic fluid to the gasket of the new filters.
- Screw on the new filters clockwise until snug, then tighten an additional 1/2 to 3/4 turn (refer to mower manual for exact torque).
- Check and top off hydraulic fluid as needed.
Operation and Performance
The filters in this kit play a critical role in the efficient and reliable operation of your zero-turn mower. Clean filters ensure proper airflow to the engine, clean fuel delivery, effective lubrication, and optimal hydraulic system function. This leads to:
- Enhanced Engine Performance: A clean air filter ensures the engine receives sufficient clean air for combustion, leading to better power and fuel efficiency.
- Extended Engine Life: The oil filter removes contaminants from the engine oil, preventing wear on internal components.
- Reliable Fuel Delivery: The fuel filter protects the fuel system from debris, ensuring consistent fuel flow to the carburetor.
- Smooth Hydraulic Operation: Hydraulic filters keep the hydraulic fluid clean, protecting pumps and motors from wear and ensuring precise control.
Maintenance Schedule
Regular replacement of filters is crucial for maintaining the performance and extending the lifespan of your Toro zero-turn mower. The frequency of replacement depends on operating conditions, hours of use, and environmental factors.
Recommended Replacement Intervals:
- Air Filter & Pre-Cleaner: Inspect frequently, replace every 25-50 hours or annually, or more often in dusty conditions.
- Engine Oil Filter & Oil: Replace every 50-100 hours or annually, whichever comes first.
- In-Line Fuel Filter: Replace every 100-200 hours or annually.
- Spark Plugs: Replace every 100-200 hours or annually.
- Hydraulic Oil Filters: Replace every 200-400 hours or annually, or as recommended by your mower's manufacturer.
Always refer to your specific Toro 74914 TITAN ZX5400 Zero-Turn Mower owner's manual for the most accurate and detailed maintenance schedule.
Troubleshooting Common Issues
If you experience performance issues with your mower, a clogged or faulty filter could be a contributing factor. Below are some common issues and potential solutions related to filter maintenance.
| Problem | Possible Cause (Filter Related) | Solution |
|---|---|---|
| Loss of Engine Power / Rough Running | Clogged Air Filter, Clogged Fuel Filter, Worn Spark Plugs | Inspect and replace air filter/pre-cleaner. Replace fuel filter. Replace spark plugs. |
| Engine Overheating | Clogged Air Filter (restricts cooling airflow) | Inspect and replace air filter/pre-cleaner. Ensure cooling fins are clean. |
| Difficulty Starting Engine | Clogged Fuel Filter, Worn Spark Plugs | Replace fuel filter. Replace spark plugs. |
| Hydraulic System Sluggish / Noisy | Clogged Hydraulic Oil Filters | Replace hydraulic oil filters. Check hydraulic fluid level. |
| Excessive Fuel Consumption | Clogged Air Filter | Inspect and replace air filter/pre-cleaner. |
If problems persist after performing these checks, consult a qualified service technician or your mower's owner's manual for further diagnostics.
Product Specifications
The following specifications pertain to the HERO® Maintenance Filter Kit and its compatibility.
| Specification | Detail |
|---|---|
| Brand | HERO |
| Model Compatibility | Toro 74914 TITAN ZX5400 Zero-Turn Mower |
| Engine Compatibility | Kawasaki FS691V-BS50 24HP Engine |
| Kit Part Number | MSU-TORO-0056 |
| UPC | 840474300110 |
| Fit Type | Vehicle Specific Fit |
| Manufacturer | Maintenance Solutions Unlimited |
Warranty and Support
Specific warranty information for the HERO® Maintenance Filter Kit is not provided in this manual. For details regarding product warranty, returns, or technical support, please contact the seller or manufacturer directly. You can typically find their contact information on your purchase receipt or the product packaging.
For general inquiries or assistance with installation, please refer to the detailed instructions in your Toro 74914 TITAN ZX5400 Zero-Turn Mower's owner's manual or consult a certified service technician.
