Cangaroo Hoku i-Size Car Seat Instruction Manual

1. Introduction and Overview

Thank you for choosing the Cangaroo Hoku i-Size Car Seat. This manual provides essential information for the correct installation, safe use, and maintenance of your car seat. Please read this manual thoroughly before using the product and keep it for future reference. Incorrect installation or use can compromise your child's safety.

The Cangaroo Hoku i-Size Car Seat is designed for children from 40 to 150 cm in height, covering Group 0+/1/2/3. It features an Isofix system with a support leg for enhanced stability and a 360° swivel function for ease of use.

2. Safety Information

Your child's safety is paramount. Always adhere to the following safety guidelines:

• Always read and follow all instructions in this manual and those provided by your vehicle manufacturer.
• Never leave your child unattended in the car seat.
• Ensure the car seat is correctly installed and secured before every journey.
• The 5-point harness must be properly adjusted and snug against your child's body.
• Do not use the car seat if it has been involved in an accident, even if there is no visible damage. Internal damage may compromise its safety.
• Only use original Cangaroo replacement parts and accessories.
• The car seat is equipped with Side Impact Protection (SIP) for enhanced safety in case of a side collision.

3. Product Features

• i-Size Compliance: Suitable for children from 40 to 150 cm.
• Age/Weight Range: Approximately from birth up to 12 years, maximum weight 36 kg.
• Rear-Facing Installation: For children 40 to 105 cm.
• Forward-Facing Installation: For children 76 to 150 cm.
• Isofix System: Secure and easy installation with vehicle's Isofix anchor points.
• Support Leg: Provides additional stability and reduces rotation in case of impact.
• Top Tether: Offers extra security by limiting forward movement of the car seat.
• Side Impact Protection (SIP): Integrated protection for enhanced safety during side collisions.
• 360° Swivel Function: Allows easy rotation of the seat for placing and removing the child.
• 5-Point Safety Harness: Adjustable harness with anti-slip pads for secure restraint.
• Adjustable Backrest: 4 recline positions for optimal comfort.
• Adjustable Headrest: Multiple positions to adapt to your child's growth.
• Removable and Washable Cover: For easy cleaning and hygiene.
• Newborn Insert: Provides additional comfort and support for infants.

4. Setup and Installation

4.1 Preparing the Car Seat

Before installation, ensure all components are present and undamaged. If using for a newborn, install the newborn insert.

Image: The newborn insert provides extra cushioning and support for infants.

4.2 Isofix Installation

1. Extend Isofix Connectors: Locate the Isofix release buttons on the car seat base. Extend the Isofix connectors until they click into place.
2. Attach to Vehicle: Align the Isofix connectors with your vehicle's Isofix anchor points. Push the car seat firmly against the vehicle seat back until both connectors click securely into place. Green indicators should appear on both sides.
3. Push Back: Push the car seat firmly towards the vehicle seat back to ensure a tight fit.
4. Adjust Support Leg: Extend the support leg until it firmly touches the vehicle floor. Ensure the indicator on the support leg turns green, confirming correct contact.
5. Attach Top Tether (if applicable): For forward-facing installation (76-150 cm), attach the Top Tether strap to the designated anchor point in your vehicle and tighten it until the indicator turns green.

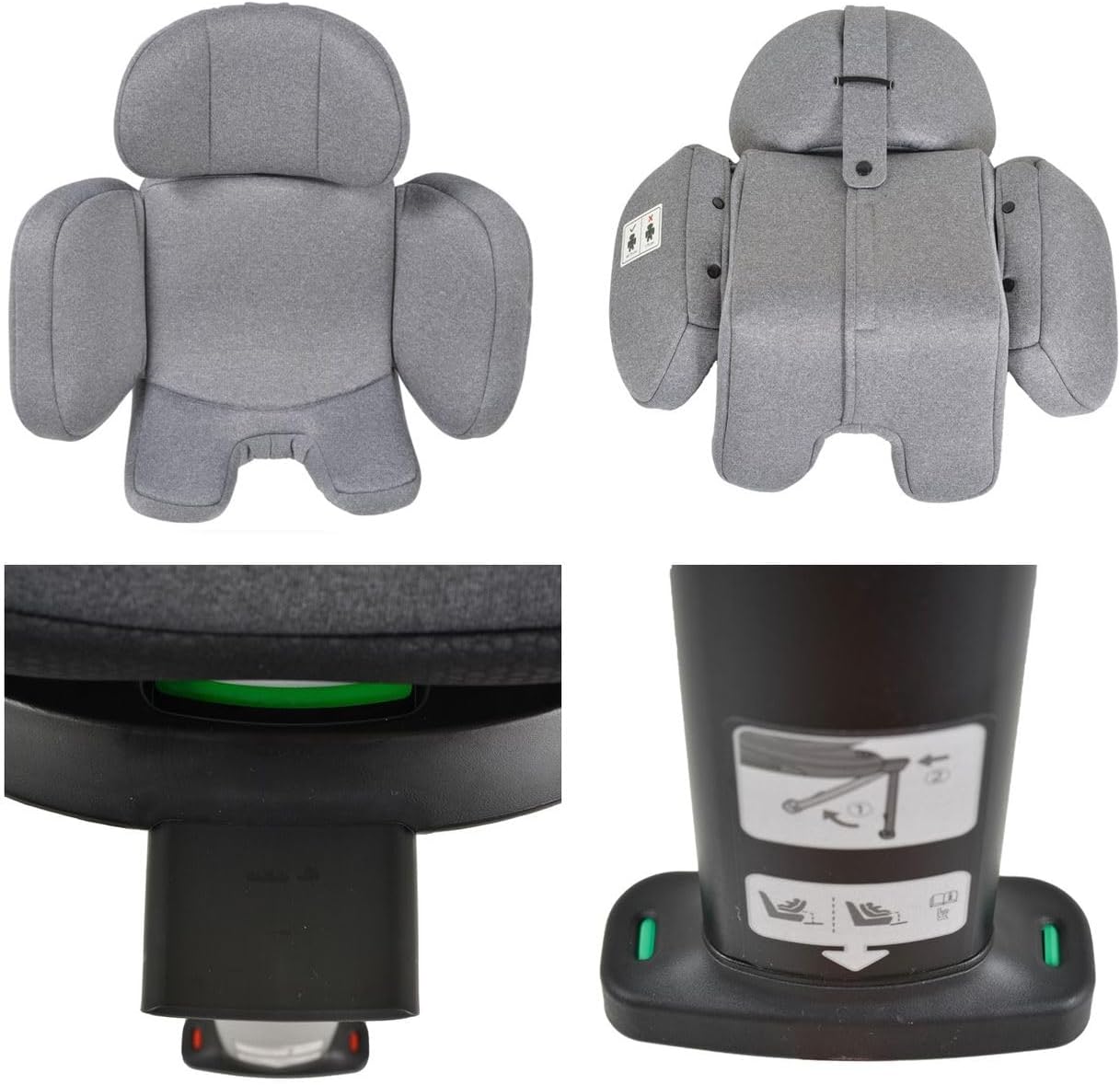

Image: Close-up view of the Isofix connectors and support leg mechanism on the car seat base, showing indicators for correct installation.

4.3 Rear-Facing Installation (40-105 cm)

For children from 40 to 105 cm, the car seat must be installed in a rear-facing position. Ensure the 5-point harness is used and adjusted correctly. The 360° swivel function allows easy rotation to the rear-facing position after Isofix installation.

4.4 Forward-Facing Installation (76-150 cm)

For children from 76 to 150 cm, the car seat can be installed in a forward-facing position. For children up to 105 cm, the 5-point harness should still be used. For children above 105 cm, the vehicle's 3-point seat belt is used to secure the child and the car seat, and the 5-point harness should be removed or stowed away according to the instructions.

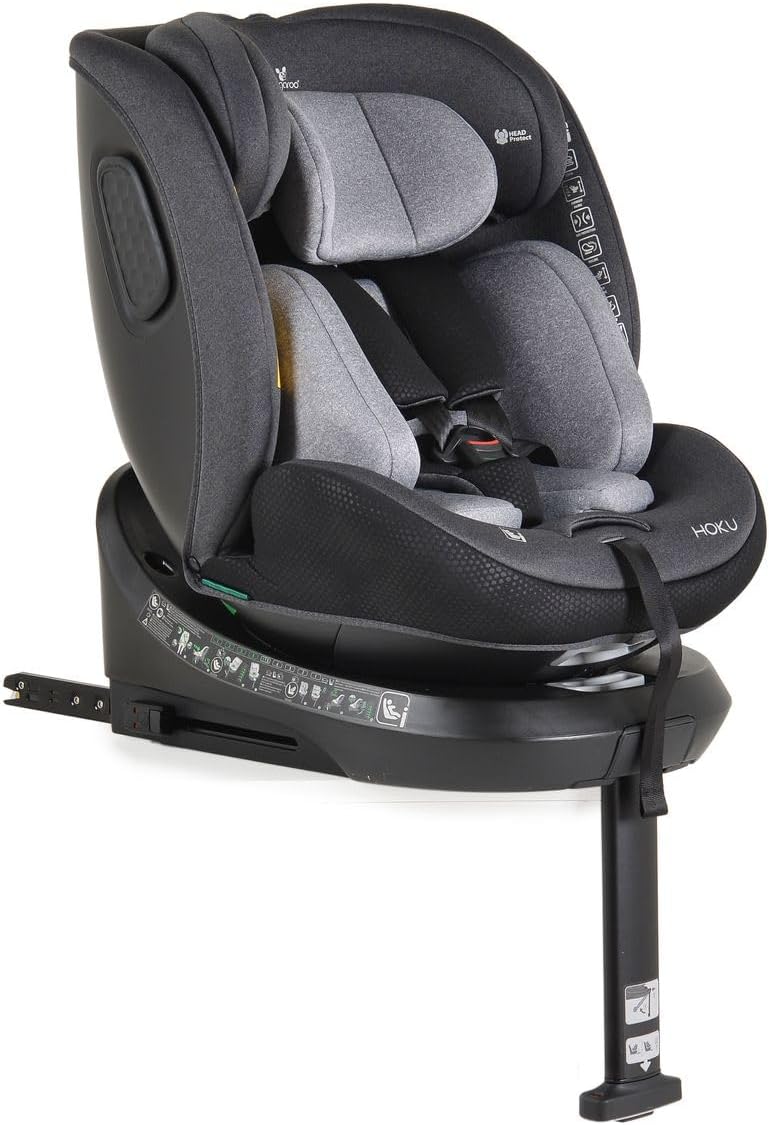

Image: The Cangaroo Hoku i-Size car seat shown installed with Isofix and support leg, ready for use.

5. Operating Instructions

5.1 360° Swivel Function

To rotate the car seat, locate the swivel release lever (usually at the front of the base). Press the lever and rotate the seat to the desired position (rear-facing, forward-facing, or side-facing for child placement). Ensure the seat locks securely into place before driving.

5.2 Adjusting the Harness

The 5-point harness height should be adjusted so that the shoulder straps are at or slightly below your child's shoulders when rear-facing, and at or slightly above when forward-facing. To tighten the harness, pull the adjustment strap at the front of the seat. To loosen, press the release button (usually under a flap) and pull the shoulder straps outwards.

Image: Detailed view of the 5-point safety harness, buckle, and anti-slip pads, designed for secure child restraint.

5.3 Adjusting the Headrest and Backrest

The headrest and backrest are adjustable to accommodate your child's growth and comfort. Locate the adjustment lever (usually at the top of the headrest or back of the seat) and move the headrest up or down. The backrest recline positions can be adjusted using a separate lever, typically found under the front edge of the seat. Ensure the chosen position is secure before driving.

Image: The car seat demonstrated in different recline angles, highlighting the adjustable backrest feature for child comfort.

6. Maintenance

6.1 Cleaning the Cover

The car seat cover is removable and washable. Refer to the care label on the cover for specific washing instructions. Typically, it can be machine washed on a gentle cycle with mild detergent. Do not tumble dry or iron. Allow to air dry completely before reattaching.

6.2 Cleaning the Harness and Plastic Parts

Wipe the harness straps with a damp cloth and mild soap. Do not immerse the harness in water. Clean plastic parts with a damp cloth and mild soap. Avoid using abrasive cleaners or solvents.

6.3 Storage

When not in use, store the car seat in a clean, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Difficulty with Isofix Installation: Ensure the Isofix connectors are fully extended and aligned with the vehicle's anchor points. Push firmly until you hear a click and see green indicators.
• Harness Too Tight/Loose: Check that the harness straps are not twisted. Adjust the harness height to match your child's shoulders. Use the adjustment strap to tighten and the release button to loosen.
• Seat Not Swiveling: Ensure the swivel release lever is fully engaged. Check for any obstructions around the base.
• Support Leg Not Stable: Ensure the support leg is fully extended and makes firm contact with the vehicle floor. The indicator should be green.
• Cover Difficult to Remove/Reattach: Follow the specific instructions in the full product manual for cover removal and reattachment. Take note of how it is attached before removal.

If you encounter issues not covered here, please refer to the comprehensive manual or contact Cangaroo customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or further assistance, please contact Cangaroo customer service through their official website or the contact details provided with your product.
