1. Introduction
Thank you for choosing the Duronic DW5 WE Compact Tabletop Dishwasher. This appliance is designed to provide efficient and convenient dishwashing for small households, apartments, dorms, and RVs. Please read this manual thoroughly before operating the dishwasher to ensure safe and optimal performance. Keep this manual for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the dishwasher is properly grounded.
- Do not operate the dishwasher if it is damaged or malfunctioning.
- Keep children away from the dishwasher, especially during operation.
- Use only detergents and rinse aids specifically designed for dishwashers.
- Do not touch the heating element during or immediately after use. <
- Avoid opening the door during a wash cycle, as hot water may spray out.
3. Product Overview
The Duronic DW5 WE is a compact tabletop dishwasher featuring multiple wash cycles and flexible water input options.
Image: Duronic DW5 WE Compact Tabletop Dishwasher showing its overall dimensions (42.8cm/16.9in width, 45.8cm/18in height, 42.5cm/16.7in depth) and included accessories like a fruit basket, 1.8L water jug, 1.57m inlet hose, and 1.6m drain hose. The interior is shown loaded with dishes, including plates up to 27cm/10.6in.

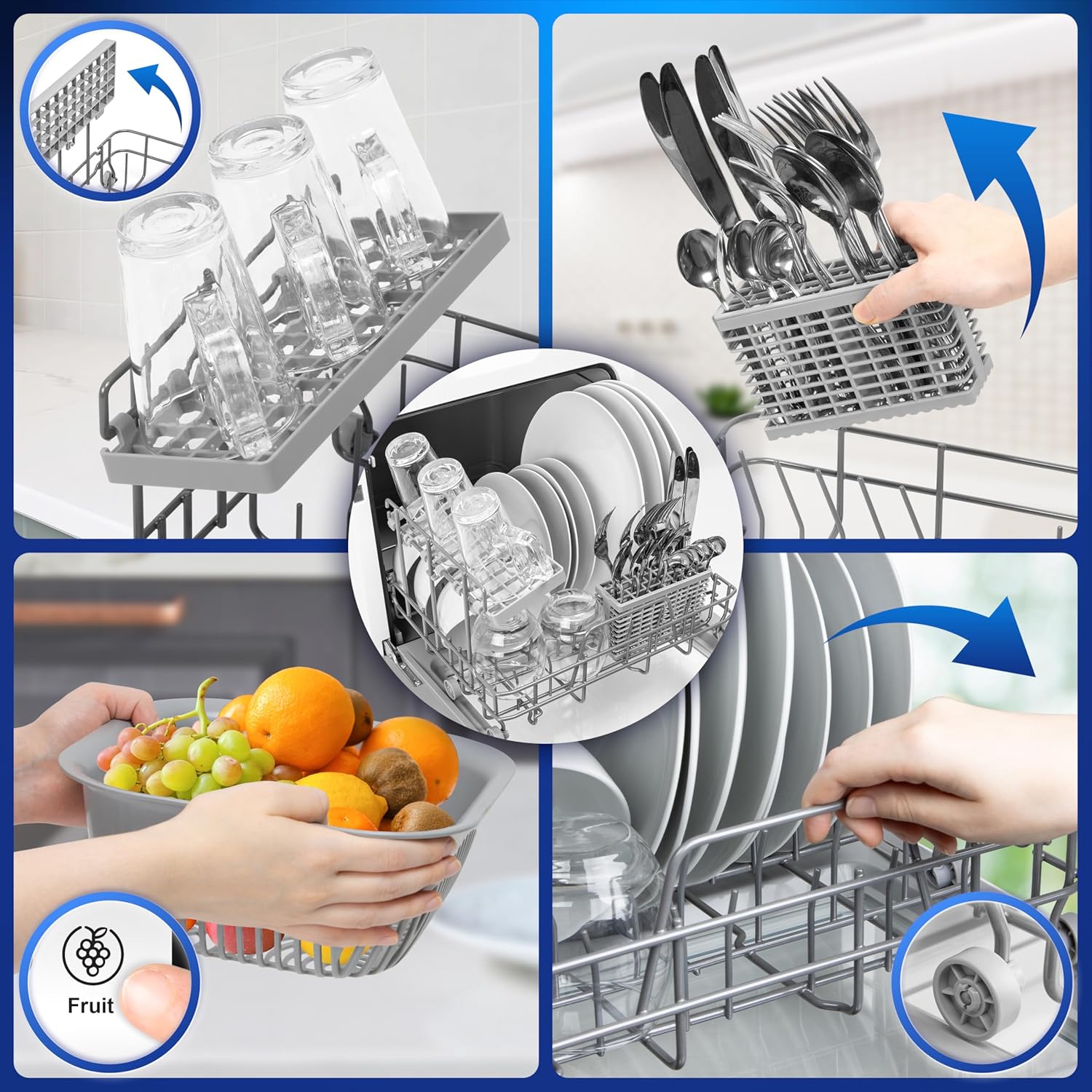

Image: Detailed view of the dishwasher interior, illustrating how to load glasses, cutlery in the removable holder, and the included fruit basket for washing produce. The adjustable rack allows for flexible loading.
4. Setup
4.1 Unpacking and Placement
Carefully remove all packaging materials. Place the dishwasher on a stable, level surface near a water source and drain. Ensure adequate ventilation around the unit.
4.2 Water Connection
The DW5 WE offers two methods for water supply:
- Manual Fill: Use the provided 1.8L jug to pour water directly into the top opening of the dishwasher. The dishwasher requires approximately 5 liters of water per cycle. You will need to fill the jug three times.
- Direct Plumbing: Connect the inlet hose (provided) to a water tap with a 2.5cm (1 inch) connection. Ensure all connections are secure to prevent leaks. A plumber may be required for initial installation.
4.3 Drainage
Connect the drain hose (provided) to the dishwasher's drain outlet. Route the hose to a sink or a dedicated drain pipe, ensuring it is securely positioned to prevent dislodgement during operation.
Image: Illustration of the two water input methods. Step 1 shows manual filling using a jug, requiring three fills for a total of 5 liters. Step 2 shows the direct plumbing connection for the inlet hose and the drain hose setup.
5. Operating Instructions
5.1 Control Panel Overview
The dishwasher features a sleek touch panel for easy operation.
Image: The control panel displaying various wash cycle options: Normal, ECO, Quick, Intensive, Glass, and Fruit. A digital display shows the remaining time, and indicators for Light, Dry, Delay, and Lock functions are visible.
5.2 Loading Dishes
Load dishes efficiently to ensure optimal cleaning. Scrape off large food particles before loading. Place larger items at the back and sides, and smaller items in the front or cutlery basket. Ensure spray arms are not obstructed.
5.3 Adding Detergent
Add the recommended amount of dishwasher detergent to the dispenser. Refer to your detergent's instructions for proper dosage.
5.4 Selecting a Wash Cycle
Choose from the following wash cycles based on your needs:
- Normal: 69 minutes, 55-68°C. For everyday dishware with normal soil.
- ECO: 68 minutes, 46-62°C. Energy-efficient cycle for standard loads.
- Quick: 29 minutes, 50-62°C. For lightly soiled dishes that need a fast wash.
- Intensive: 89 minutes, 55-75°C. For heavily soiled pots and pans.
- Glass: 50 minutes, 55-68°C. Gentle cycle for delicate glassware.
- Fruit: 19 minutes, Cold. For hygienic cleaning of fruits and vegetables.
5.5 Starting a Wash Cycle
After loading dishes and adding detergent, select your desired wash cycle using the touch controls. Press the Start/Pause button to begin the cycle.
5.6 Delay Start Function
The dishwasher includes an 18-hour delay timer. Press the 'Delay' button repeatedly to set the desired delay time before the cycle begins.
5.7 Child Lock
Activate the child lock to prevent accidental operation. Refer to the control panel for specific instructions on engaging and disengaging the child lock.
5.8 Drying Cycle
The dishwasher features a 60-minute drying cycle to ensure dishes are dry and ready for storage after washing.
Image: The dishwasher door slightly open, indicating the completion of a cycle and the drying function. The 'Dry' indicator is visible on the control panel, along with a '60min' label, signifying the 60-minute drying cycle.

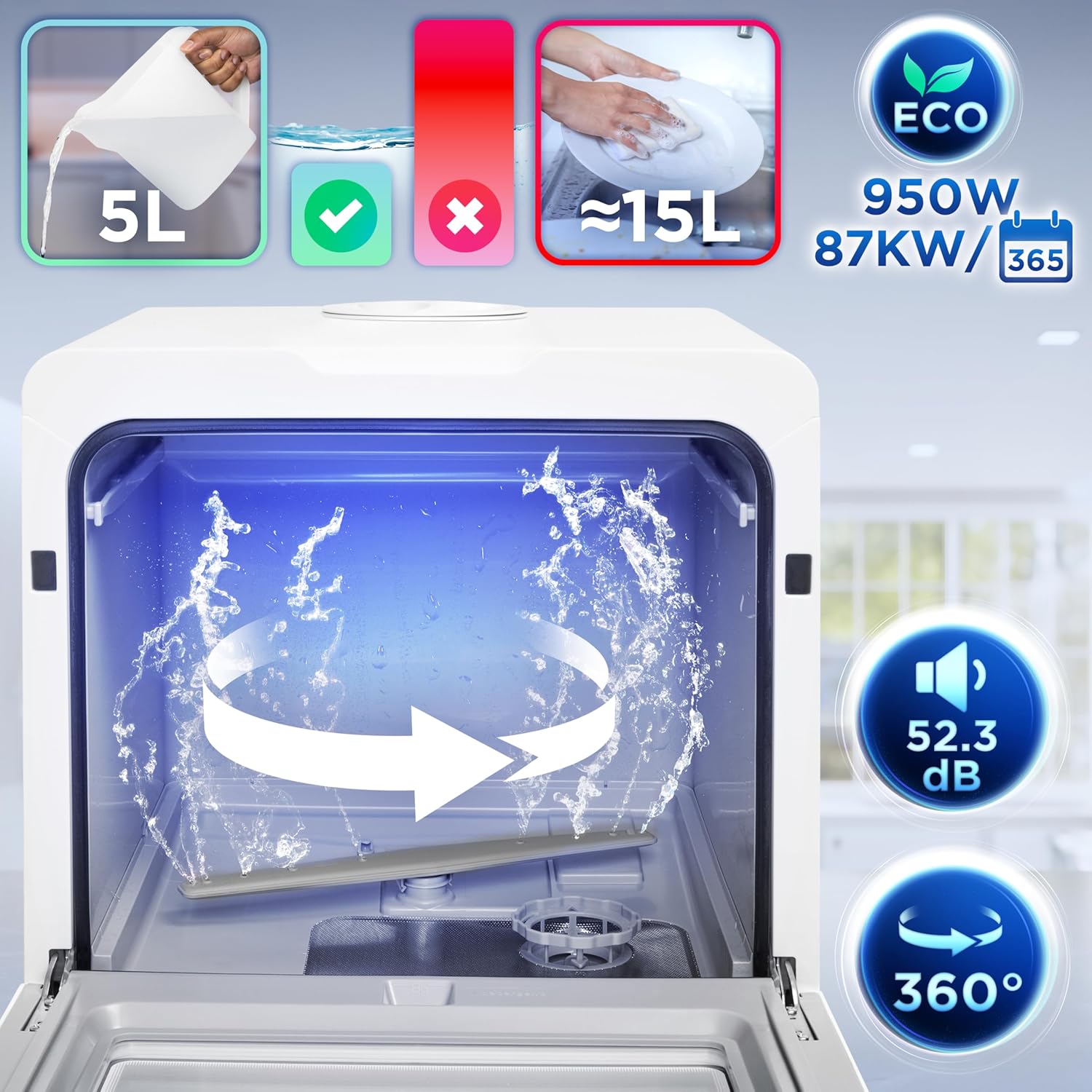

Image: An internal view of the dishwasher showing water being sprayed, illustrating the 360-degree cleaning action. Icons indicate 5 liters of water consumption, 950W power, 52.3 dB noise level, and 360-degree spray coverage.
6. Maintenance
6.1 Cleaning Filters
Regularly clean the filter system located at the bottom of the dishwasher tub. Remove food particles and rinse under running water. Reassemble correctly before next use.
6.2 Cleaning Spray Arms
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clear any debris from the holes using a thin wire.
6.3 Exterior Cleaning
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
7. Troubleshooting
If you encounter issues with your dishwasher, refer to the following common problems and solutions:
- Dishwasher not starting: Check power connection, ensure door is fully closed, and verify water supply.
- Dishes not clean: Ensure proper loading, check detergent levels, clean filters and spray arms, select appropriate wash cycle.
- Water leaking: Check hose connections for tightness, ensure door seal is clean and intact, verify proper drainage setup.
- Unusual noise: Check for foreign objects inside the dishwasher, ensure dishes are not obstructing spray arms.
For persistent issues, contact Duronic customer support.
8. Specifications
| Parameter | Value |
|---|---|
| Model Info | DW5 WE |
| Item Weight | 15.6 Kilograms (34.3 pounds) |
| Product Dimensions (L x W x H) | 18.9 x 20.08 x 18.03 inches |
| Voltage | 220 Volts |
| Wattage | 950 watts |
| Capacity | 5 Liters |
| Noise Level | 52.3 Decibels |
| Material | Stainless Steel |
| Controls Type | Touch |
| Certification | ENERGY EFFICIENT |
| Included Components | Fruit Basket, Cutlery Holder |
Image: Energy label for Duronic DW5, showing energy class D, 35 kWh/100 cycles, 4.5L water consumption, 60dB noise level, and a 2:14 eco program duration.
Image: Technical parameters table for the Duronic DW5 WE model, detailing values such as rated capacity (3 place settings), eco program energy consumption (0.348 kWh/cycle), water consumption (4.5 L/cycle), cleaning and drying performance indices, eco program duration (2:14 h:min), power consumption in off-mode (0.00 W), standby mode (0.35 W), and airborne acoustical noise emissions (60 dB(A) re 1 pW).
For more product details, visit the official Duronic product page: Duronic DW5 Product Page
9. Warranty and Support
Your Duronic DW5 WE dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact Duronic customer service through their official website or the contact information provided in your warranty documentation.
