1. Introduction
Welcome to the BNCF Bpad 10 Tablet user manual. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your new device. The BNCF Bpad 10 is designed for a seamless user experience, powered by a Snapdragon 685 processor and running Android 14.

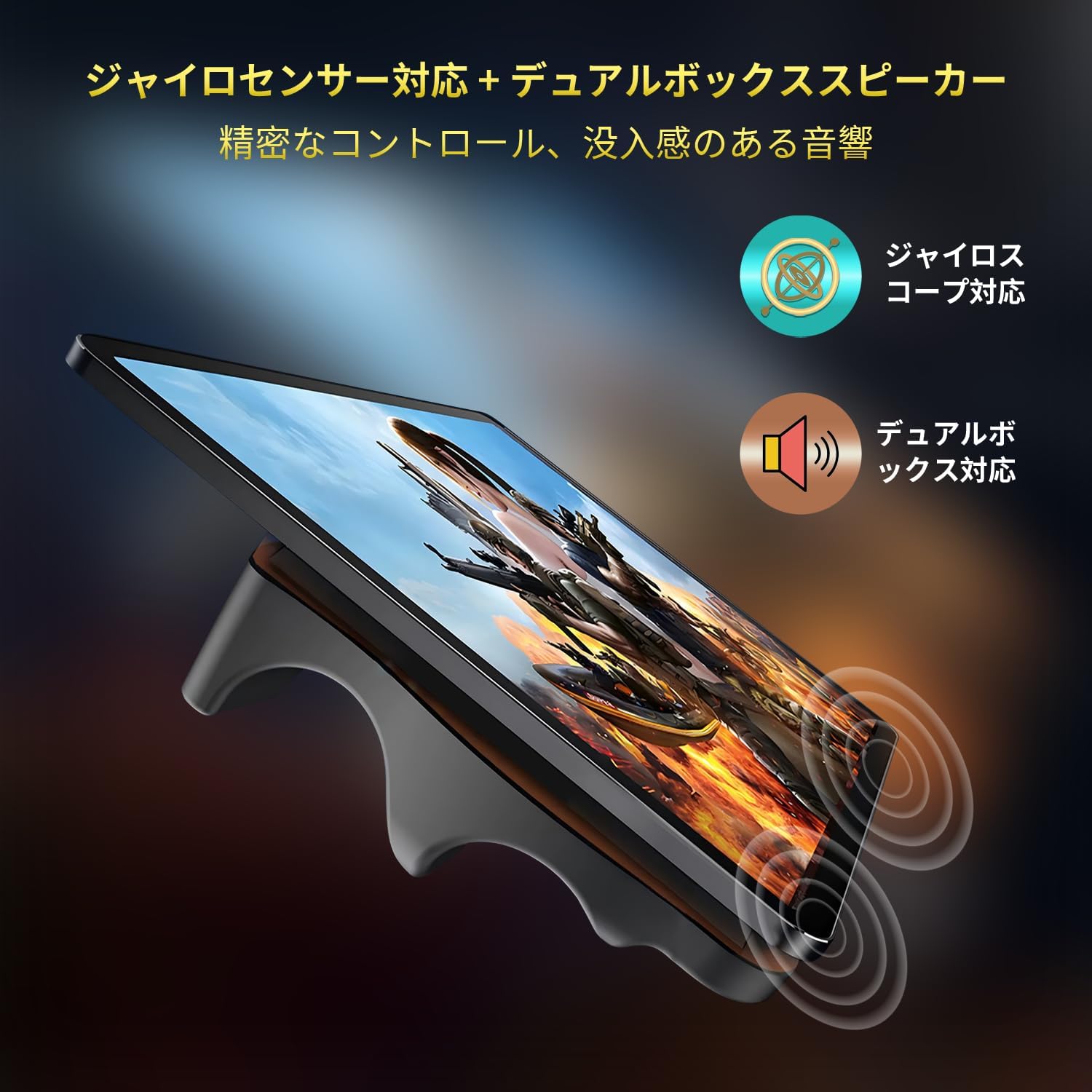

Figure 1: BNCF Bpad 10 Tablet
2. Initial Setup
2.1. Package Contents
Before you begin, ensure all items are present in the package:
- BNCF Bpad 10 Tablet
- User Manual
- Type-C Charging Cable (5V/2A)
- Charge Adapter (5V/2A)
- SIM Card Ejector Pin
Figure 2: BNCF Bpad 10 Tablet Package Contents
2.2. Charging the Tablet
For first-time use, fully charge the tablet. Connect the provided Type-C cable to the tablet's Type-C port and the other end to the power adapter. Plug the adapter into a wall outlet. The battery indicator on the screen will show charging status.
Figure 3: Charging the Bpad 10 Tablet
2.3. Powering On/Off
- To Power On: Press and hold the Power button until the BNCF logo appears.
- To Power Off: Press and hold the Power button until the power options appear, then select 'Power off'.
- To Restart: Press and hold the Power button until the power options appear, then select 'Restart'.
2.4. Initial Configuration
Upon first power-on, follow the on-screen prompts to:
- Select your language.
- Connect to a Wi-Fi network.
- Set up your Google account.
- Configure date and time.
- Set up screen lock (PIN, pattern, password, or facial recognition).
3. Operating the Tablet
3.1. Android 14 Features
The BNCF Bpad 10 runs on Android 14, offering enhanced multitasking, security, and user-friendly features:
- Facial Recognition: Unlock your device securely using your face.
- Split-Screen: Use two applications simultaneously side-by-side for improved productivity.
- Smart Projection: Cast your tablet's screen to compatible external displays.
- Three-Finger Screenshot: Quickly capture screenshots by swiping down with three fingers.
- Parental Controls: Manage and monitor device usage for children.
Figure 4: Android 14 User Interface Features
3.2. Display and Visuals
The tablet features a 10.1-inch FHD IPS display with 1920x1200 resolution and 60Hz refresh rate. It supports Widevine L1 for high-definition streaming on platforms like Netflix and Prime Video.
Figure 5: 10.1-inch FHD IPS Display
3.3. Cameras
Equipped with 5MP front and 5MP rear cameras, the Bpad 10 allows for capturing photos, 4K videos, and conducting HD video calls.
Figure 6: Dual 5MP Cameras
3.4. Audio
The tablet features dual speakers for immersive audio. For private listening, connect headphones via the Type-C port using an appropriate adapter if needed.
Figure 7: Immersive Cinematic Sound
3.5. Connectivity
The Bpad 10 supports 2.4G/5G WiFi and Bluetooth 5.0 for seamless wireless connections. GPS is also integrated for navigation.
Figure 8: Dual WiFi and Bluetooth 5.0
4. Maintenance
4.1. Battery Care
To prolong battery life:
- Avoid extreme temperatures.
- Do not let the battery drain completely before recharging regularly.
- Use the original charger and cable for optimal charging.
4.2. Storage Management
The tablet comes with 128GB of UFS storage, expandable up to 1TB via a MicroSD card. Regularly manage your storage by:
- Deleting unnecessary files and applications.
- Moving large media files to an external MicroSD card.
- Utilizing cloud storage services.
Figure 9: Storage and RAM Configuration
5. Troubleshooting
This section addresses common issues you might encounter with your BNCF Bpad 10 tablet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tablet does not power on | Low battery; System crash | Charge the tablet for at least 30 minutes. If unresponsive, press and hold the Power button for 10-15 seconds to force a restart. |
| Slow performance/App crashes | Too many apps running; Low storage; Software glitch | Close background apps. Clear cache. Free up storage space. Restart the tablet. Update apps and Android OS. |
| Wi-Fi connection issues | Incorrect password; Router issue; Signal interference | Verify Wi-Fi password. Restart router and tablet. Ensure tablet is within Wi-Fi range. |
| Low audio volume | Volume settings; App specific volume; Speaker obstruction | Increase system volume. Check in-app volume settings. Ensure speakers are not covered. |
| GPS signal loss | Poor satellite reception; Software issue | Ensure you have a clear view of the sky. Restart GPS. Check location settings and permissions for apps. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | BNCF |
| Model Name | Bpad 10 |
| Operating System | Android 14 |
| Processor | Snapdragon 685 (2.8 GHz) |
| RAM | 12GB (4GB + 8GB Virtual) |
| Internal Storage | 128GB UFS |
| Expandable Storage | Up to 1TB via MicroSD |
| Screen Size | 10.1 Inches |
| Screen Resolution | 1920 x 1200 pixels (FHD IPS) |
| Refresh Rate | 60Hz |
| Widevine Support | L1 |
| Front Camera | 5MP |
| Rear Camera | 5MP |
| Battery Capacity | 6500mAh |
| Charging | 18W PD Fast Charging (Type-C) |
| Wireless Connectivity | 2.4G/5G WiFi, Bluetooth 5.0 |
| Sensors | Gyroscope, Light Sensor, Hall Sensor |
| Item Weight | 1.07 pounds (approx. 485g) |
| Product Dimensions | 9.45 x 6.14 x 0.31 inches (approx. 240 x 156 x 7.8 mm) |
7. Warranty and Support
BNCF is committed to providing high-quality products and excellent customer service. For tablets purchased from the BNCF Official Flagship Store, customers benefit from a 12-month free repair warranty and lifetime technical support.
7.1. Warranty Policy
We offer a one-year warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.
7.2. Customer Support
If you encounter any issues or have questions regarding your BNCF Bpad 10 tablet, please contact our customer support. We aim to respond to all inquiries within 24 hours.
- Online Support: Visit the BNCF Official Store on Amazon for FAQs and contact options.
- Email Support: Refer to the contact information provided in your product packaging or on the official BNCF website.
Figure 10: BNCF One-Year Warranty & Support
