1. Introduction
Thank you for choosing the PERLEGEAR PGFS14W TV Stand. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new TV stand. Please read these instructions carefully before installation and keep them for future reference.
This freestanding TV stand is designed to accommodate most 30-60 inch flat-panel TVs, offering flexibility with its hidden casters, adjustable height, swivel, and tilt functions. Its sleek design integrates well into various living spaces.
2. Safety Information
WARNING:
This TV stand poses a risk of tipping if not used correctly. It features hidden casters, so please handle with care during movement. Ensure correct assembly and usage to prevent accidents. Always verify that your TV's weight and VESA pattern are within the stand's specifications before installation.
Do not exceed the maximum load capacity of 40 kg (88 lbs). Overloading can result in serious injury or product damage.
Keep children away from the assembly area. Small parts may be a choking hazard.
3. Package Contents
Please check that all components are present and undamaged. If any parts are missing or defective, contact customer service immediately.
- Base Plate
- Support Column
- TV Mounting Bracket
- Adjustable Media Shelf
- Hidden Casters (pre-installed or to be installed)
- Hardware Kit (screws, washers, spacers, tools)
- Instruction Manual
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | PGFS14W |
| Compatible TV Sizes | 30 - 60 inches |
| Maximum Load Capacity | 40 kg (88 lbs) |
| VESA Compatibility | 75x75mm to 400x400mm |
| Height Adjustment | 8 levels (tool-free adjustment for TV bracket) |
| Swivel Angle | ±40 degrees |
| Tilt Angle | ±5 degrees |
| Product Dimensions (LxWxH) | 35 x 55 x 128 cm (13.8 x 21.7 x 50.4 inches) |
| Product Weight | 8.5 kg (18.7 lbs) |
| Color | White (Wood Grain Finish) |
5. Setup Instructions
Follow these steps carefully for proper assembly. It is recommended to have two people for certain steps, especially when mounting the TV.
- Assemble the Base: Attach the support column to the base plate using the provided screws and tools. Ensure all connections are secure.
- Install the Media Shelf: Secure the adjustable media shelf to the support column at your desired height. This shelf can be repositioned later if needed.
- Attach TV Brackets to TV: Identify the correct screws, washers, and spacers for your TV's VESA mounting holes. Attach the TV mounting brackets to the back of your TV. Ensure they are level and securely fastened.
- Mount TV to Stand: With assistance, carefully lift your TV and hook the TV brackets onto the mounting plate of the stand. Secure the TV to the stand using the safety screws or locking mechanisms provided.
- Cable Management: Utilize the cable management clips or channels on the support column to organize and conceal TV and device cables for a tidy appearance.
6. Operating Instructions
The PERLEGEAR PGFS14W TV Stand offers several adjustment features for optimal viewing comfort.
6.1 Height Adjustment
The TV mounting bracket allows for 8 levels of height adjustment. To adjust the height, remove the TV from the stand (with assistance), reposition the TV brackets on the support column to the desired height, and then re-mount the TV. The media shelf can also be adjusted independently.

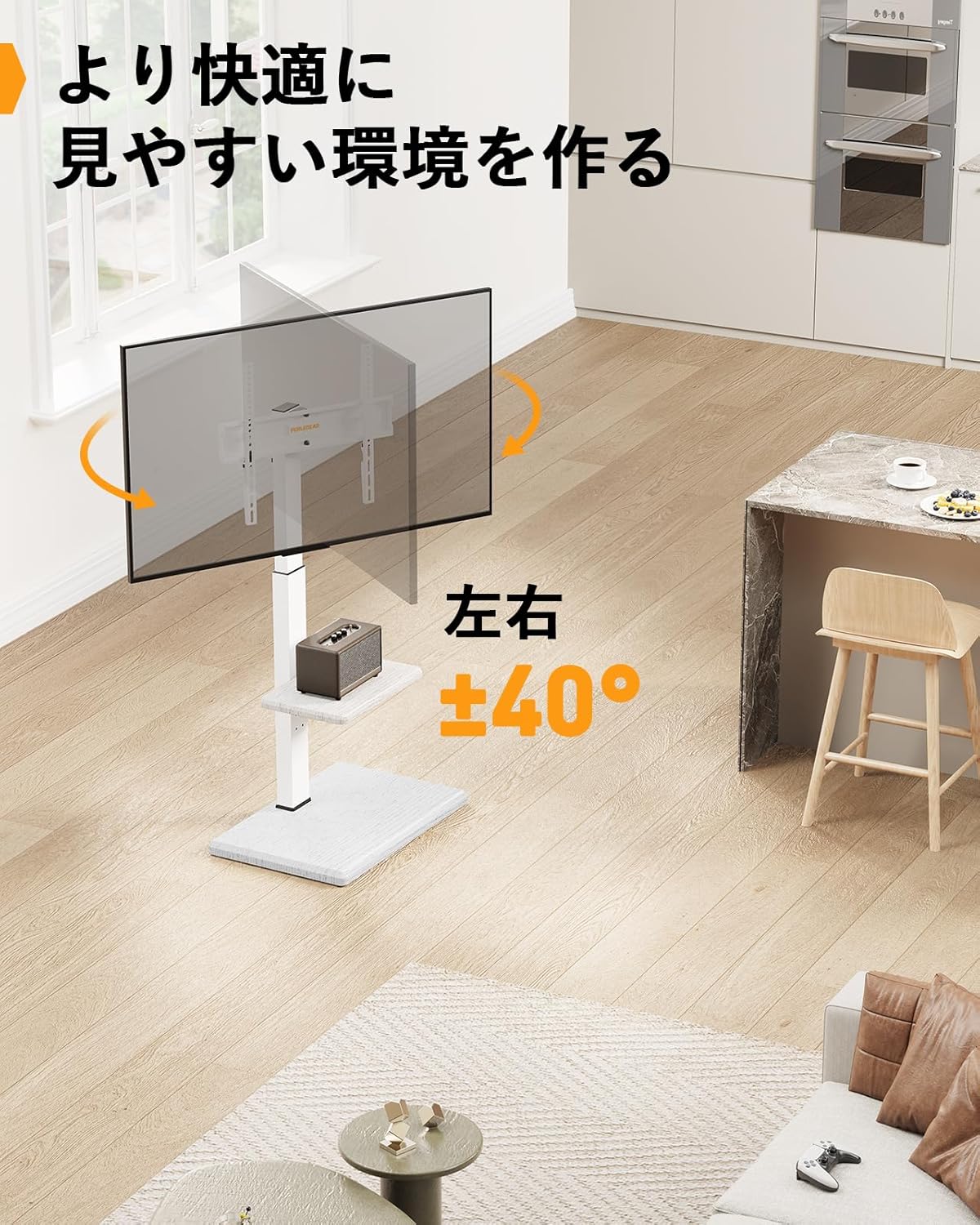

6.2 Swivel Function
The TV can be swiveled up to ±40 degrees left or right. Gently push the TV to the desired angle. This allows for flexible viewing from different positions in a room.

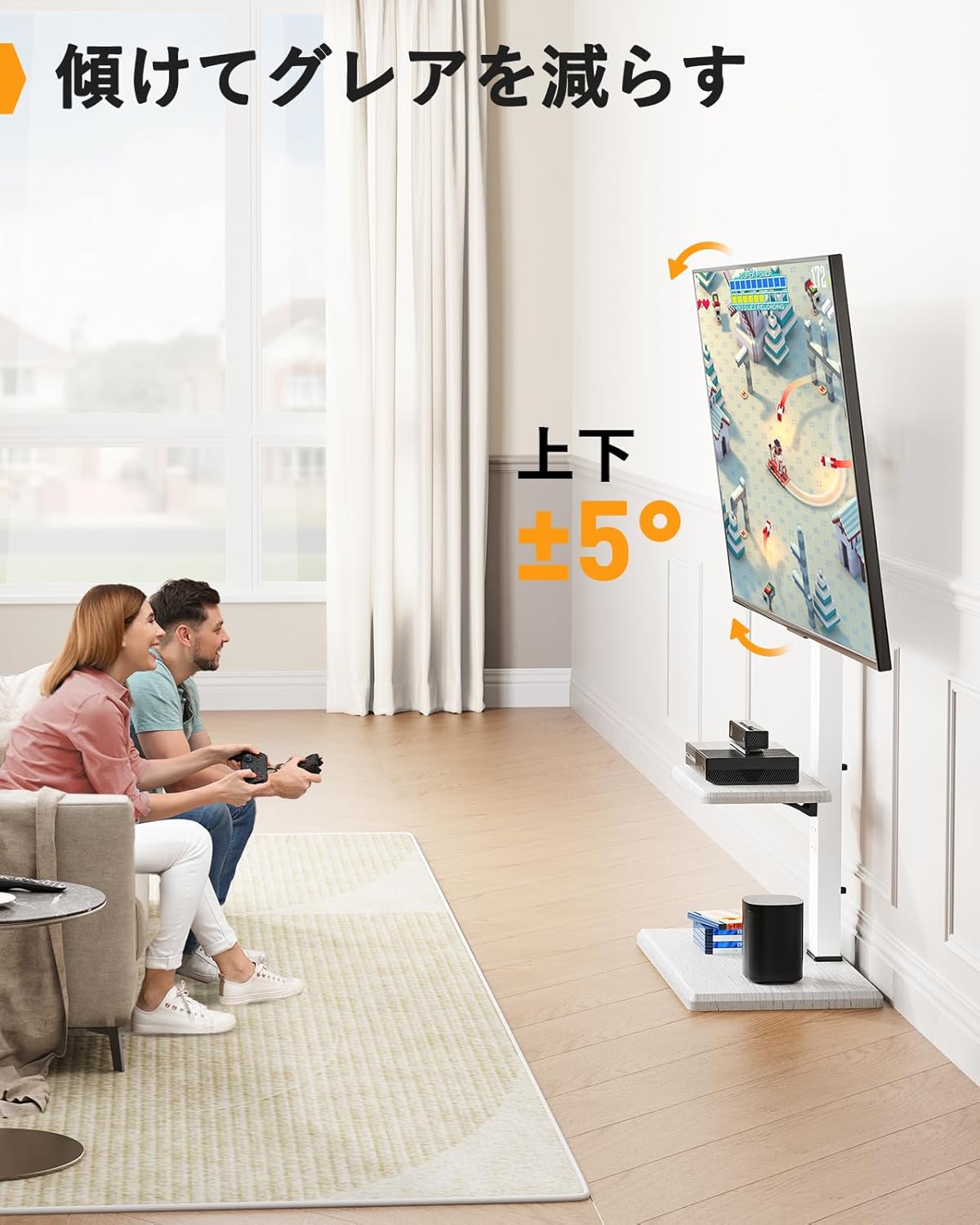

6.3 Tilt Function
The TV can be tilted up to ±5 degrees vertically. This feature helps reduce glare and optimize viewing angles. Loosen the tilt adjustment knobs on the TV brackets, adjust to the desired angle, and then tighten the knobs securely.
6.4 Mobility with Hidden Casters
The stand is equipped with hidden casters on the base, allowing for easy movement of the TV stand. To move the stand, ensure the TV is securely mounted and any cables are managed to prevent snagging. Gently push the stand to its new location. For stationary use, ensure the casters are locked if they have a locking mechanism, or position the stand carefully to prevent unintended movement.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your TV stand.
- Cleaning: Wipe the stand with a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the finish.
- Hardware Check: Periodically check all screws and connections to ensure they remain tight and secure. Re-tighten if necessary.
- Caster Inspection: Ensure casters are free of debris and roll smoothly. Clean as needed.
8. Troubleshooting
If you encounter any issues with your TV stand, refer to the following common problems and solutions:
- Stand feels unstable:
- Ensure all screws are tightened according to the assembly instructions.
- Verify the TV weight does not exceed the maximum load capacity.
- Place the stand on a flat, level surface.
- Difficulty adjusting height/swivel/tilt:
- For height adjustment, ensure the TV is removed before repositioning the brackets.
- For tilt adjustment, ensure the knobs are loosened before adjusting and tightened afterward.
- Ensure no cables are obstructing movement.
- Casters not rolling smoothly:
- Check for debris (hair, dust) caught in the casters and clean them.
- Ensure the floor surface is clean and free of obstructions.
If problems persist, please contact PERLEGEAR customer support.
9. Warranty and Support
PERLEGEAR stands behind the quality of its products. This TV stand comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official PERLEGEAR website.
For technical support, missing parts, or any questions regarding your PERLEGEAR PGFS14W TV Stand, please contact our customer service team:
- Email: support@perlegear.com
- Website: www.perlegear.com
Please have your model number (PGFS14W) and purchase date ready when contacting support.
