LESU AOUE 1050 4x4 1/14 Hydraulic RC Tractor XE Lite User Manual

Introduction

This manual provides essential information for the safe and effective operation, setup, and maintenance of your LESU AOUE 1050 4x4 1/14 Hydraulic RC Tractor XE Lite. Please read this manual thoroughly before operating the model to ensure proper function and longevity.

Safety Information

• This product is designed for hobby model enthusiasts and is not suitable for children under 14 years of age.
• Always operate the model in a safe environment, away from people, pets, and obstacles.
• Ensure all components are securely fastened before operation.
• Use only the specified battery and charger. Improper charging or battery use can lead to fire or injury.
• Keep hands and loose clothing away from moving parts.
• Do not modify the model. Unauthorized modifications can compromise safety and performance.

Package Contents

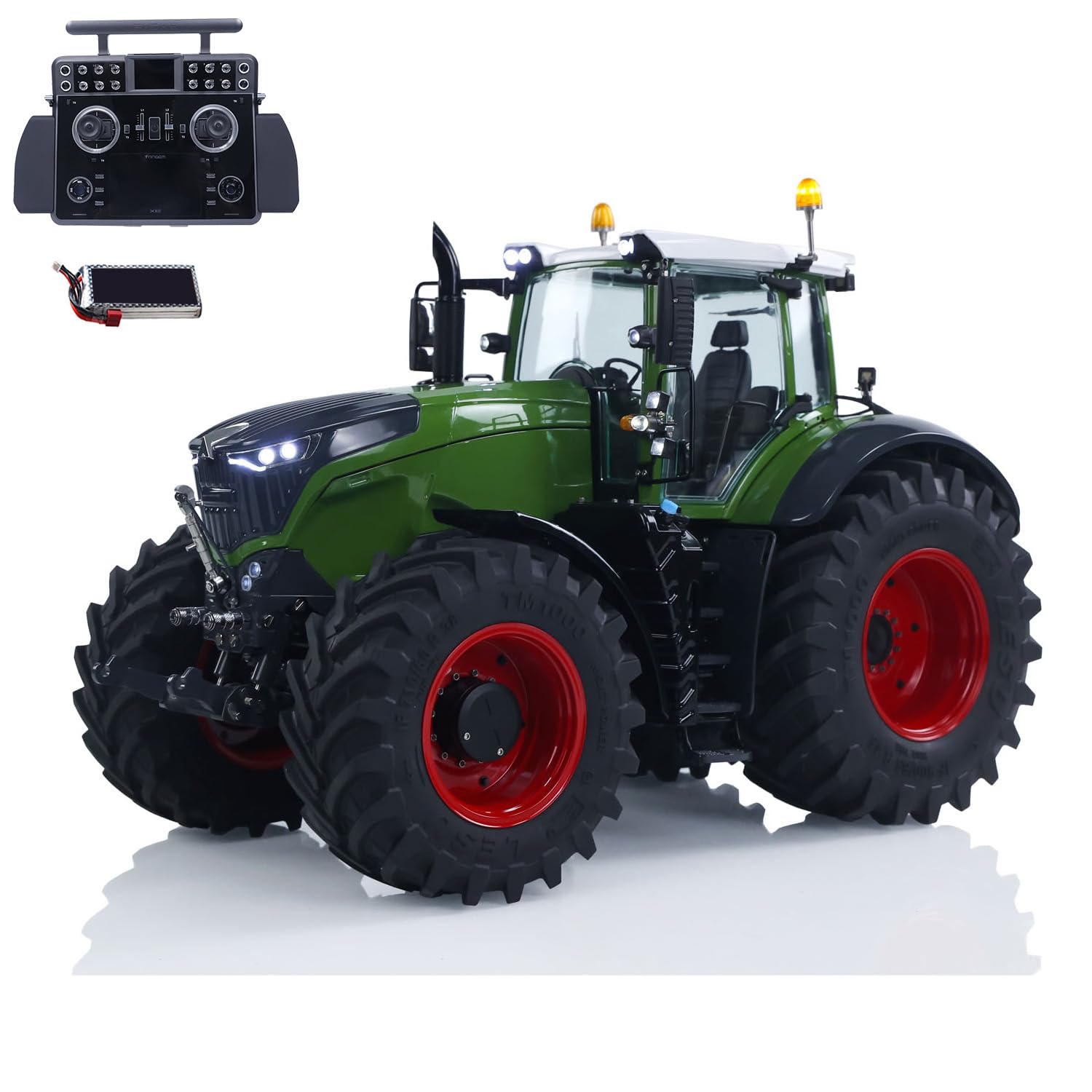

The following items are included with your LESU AOUE 1050 4x4 1/14 Hydraulic RC Tractor XE Lite:

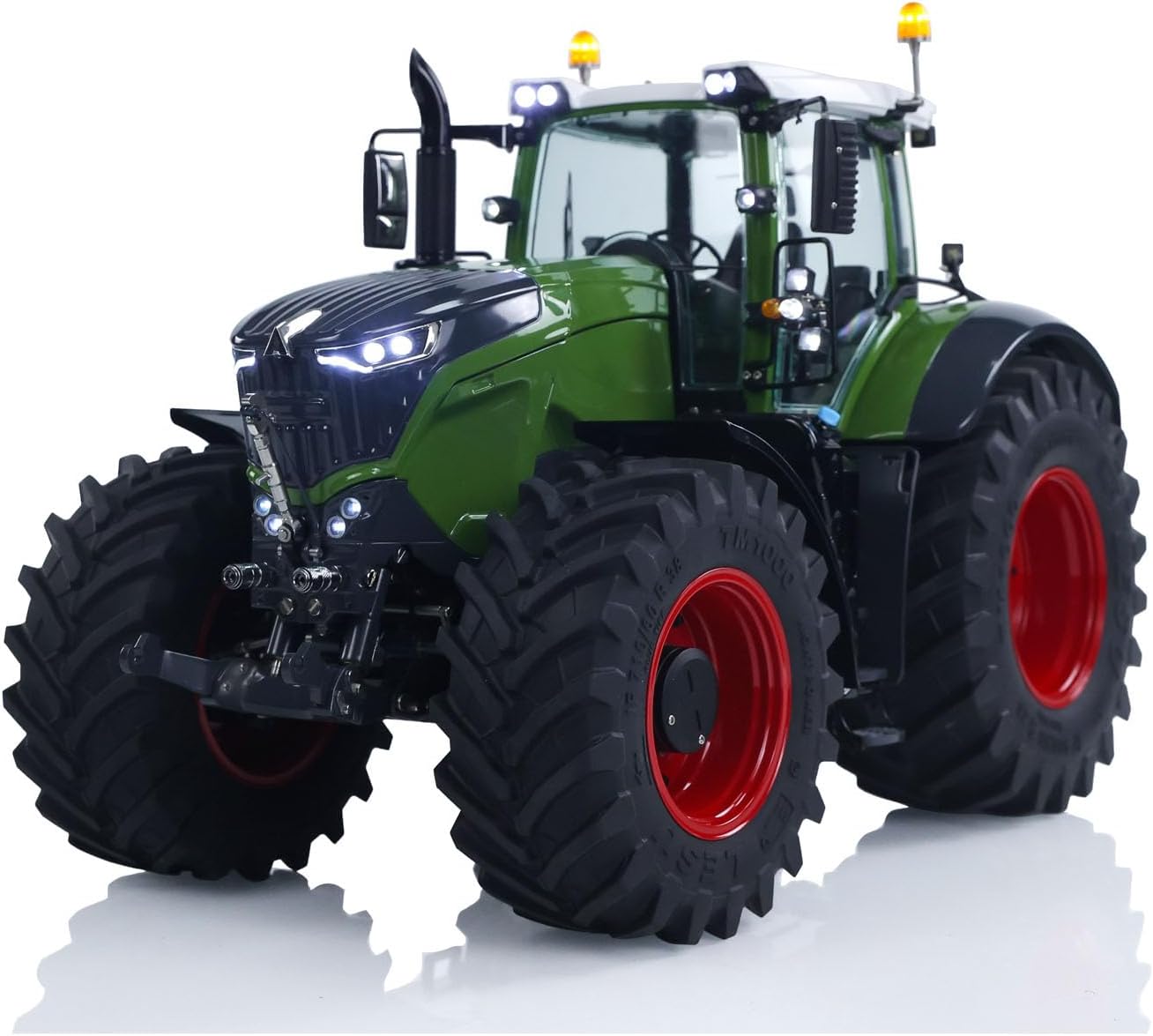

• 1/14 Painted and Assembled Metal Hydraulic Tractor
• Motor
• Servo
• ESC (Electronic Speed Controller)
• Light System
• Sound System
• Frsky XE Lite Radio System (Remote Control)
• Battery

Items Not Included:

• Charger
• Hydraulic Oil

Features Overview

The LESU AOUE 1050 tractor incorporates advanced design and engineering for a realistic and robust hobby experience:

• Precision Hydraulic System: Designed for coordinated, smooth, and linear movements. The integrated hydraulic oil circuit minimizes the need for external oil pipes.
• Automatic Centering Hydraulic Steering Valve: Ensures precise steering and smoother operation.
• Hydraulic Lifting Hooks: Features front and rear hydraulic lifting hooks for flexible and convenient control of attachments.
• Durable Metal Construction: Approximately 90% of the parts are metal, contributing to a full-metal body for enhanced durability.
• Steering Gear Protection: Includes a newly designed protection device for the steering gear.
• Advanced Lighting and Sound System: Equipped with 38 LED lights, 2 warning lights, and a sound system to simulate realistic effects.
• Independent Front Suspension: Features a newly designed double wishbone independent suspension system on the front axle.
• Planetary Reduction and Differential Locks: Both front and rear axles are equipped with planetary reduction and differential locks, enabling the tractor to handle various terrains.
• Power Take-Off (PTO) and Expansion Capabilities: Includes power take-off and reserved 5-channel hydraulic pressure (1 front, 4 rear) and 12-channel circuits (rear plug-in) for quick-release attachments. Two front and one rear oil line pressure end interfaces are reserved for rich expansion capabilities.
• Brushless Motor Power Drive: ESC integrated brushless motor power drive with planetary deceleration, utilizing FOC drive mode for high efficiency, low heat generation, large low-speed torque, smooth, and quiet operation.

Setup

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage during transit.
2. Battery Installation: Connect the included battery to the tractor's ESC. Ensure the connection is secure. Refer to the battery and ESC manuals for specific connection details if needed.
3. Radio System Setup:
   • Install batteries into the Frsky XE Lite Radio System (remote control).
   • Power on the remote control, then power on the tractor. The remote control and tractor should automatically bind. If not, refer to the Frsky XE Lite manual for binding instructions.
4. Hydraulic Oil (Not Included): Fill the hydraulic system with appropriate hydraulic oil (not included). Consult the specific hydraulic system instructions for the correct type and filling procedure.
5. Initial Checks: Before first use, verify that all moving parts operate freely and that all connections are secure. Test steering, throttle, and hydraulic functions at a low speed in a clear area.

Operating Instructions

1. Power On: Turn on the remote control first, then the tractor.
2. Driving: Use the joystick on the remote control to control forward/backward movement and steering. Start with slow movements to familiarize yourself with the controls.
3. Hydraulic Functions: Utilize the designated channels on your Frsky XE Lite radio system to operate the front and rear hydraulic lifting hooks. Refer to your radio system's manual for channel assignments.
4. Lights and Sound: Activate the light and sound systems using the corresponding switches or channels on your remote control.
5. Attachments: If using compatible LESU trailers or other attachments, ensure they are securely connected to the tractor's hitch points and hydraulic lines (if applicable).
6. Power Off: Always turn off the tractor first, then the remote control, to prevent unintended movements.

Maintenance

• Cleaning: After each use, clean the tractor to remove dirt, dust, and debris. Use a soft brush or cloth. Avoid using water directly on electronic components.
• Lubrication: Periodically lubricate moving parts, such as linkages and gears, with appropriate RC-grade lubricant.
• Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replenish hydraulic oil as needed.
• Battery Care: Store batteries in a cool, dry place. Follow battery manufacturer guidelines for charging and storage to maximize lifespan.
• Inspection: Routinely inspect all screws, nuts, and connections to ensure they are tight. Check for any signs of wear or damage on tires, suspension, and body.

Troubleshooting

Specifications

Warranty and Support

For any issues or damage upon arrival, wheelfun offers a free replacement part. For technical assistance or maintenance guidance, a professional after-sales and technical maintenance team is available to provide support in English via video or text.

For further assistance, please contact wheelfun customer support through the retailer where the product was purchased or visit the official wheelfun store page: wheelfun Store
