1. Important Safety Information
Read this entire manual before assembling or operating the NEWQIDA 4 Seater Electric Golf Cart. Failure to follow these safety instructions may result in serious injury or death.
- Adult Supervision Required: This product is intended for children aged 36 months and older. Always supervise children during operation.
- Weight Limit: The maximum weight capacity for this vehicle is 220 pounds (approximately 100 kg). Do not exceed this limit.
- Seating Capacity: This vehicle is designed for up to four children. Ensure all occupants are seated properly with seatbelts fastened.
- Safe Operating Environment: Operate the vehicle on flat, dry surfaces away from traffic, swimming pools, or other hazards. Avoid steep inclines (maximum 20° climb slope).
- Protective Gear: Always ensure children wear appropriate safety gear, such as helmets, when operating the vehicle.
- Battery Safety: Only use the provided 24V 7Ah rechargeable battery and charger. Do not modify the electrical system.
- Remote Control: Parents can use the remote control to override manual driving for added safety, especially for younger children.
Image 1.1: The NEWQIDA 4 Seater Electric Golf Cart, highlighting its capacity and safety features like the removable roof and anti-tilt support bar.
2. Setup and Assembly
Assembly of the NEWQIDA 4 Seater Electric Golf Cart is required. Follow the detailed instructions provided in the included assembly manual. Ensure all parts are present and undamaged before beginning assembly.
2.1. Assembly Video Guide
For visual assistance during assembly, please refer to the official installation video below. This video demonstrates the step-by-step process for setting up your golf cart.
Video 2.1: Official installation guide for the NEWQIDA 4 Seater Kids Golf Cart. This video provides a detailed walkthrough of the assembly process.
2.2. Initial Charging
Before first use, fully charge the 24V 7Ah battery for the recommended duration as specified in the assembly manual. Ensure the charger is connected correctly and the vehicle is turned off during charging.
3. Operating Instructions
The NEWQIDA Electric Golf Cart offers two primary driving modes: manual operation by the child and parental remote control.
3.1. Driving Modes
- Kids Manual Driving: The child can operate the vehicle using the steering wheel and foot pedal.
- Parental Remote Control: Parents can control the vehicle's movement (forward, reverse, steering) and speed using the included remote control. This mode overrides manual child input for safety.
Image 3.1: Demonstrates both manual driving by children and parental remote control operation.
3.2. Controls and Features
Familiarize yourself with the vehicle's controls for optimal operation:
- Power Button: Turns the vehicle on/off.
- Forward/Stop/Back Switch: Selects driving direction.
- High/Low Speed Switch: Adjusts the vehicle's speed setting. The vehicle can reach speeds of up to 5 MPH.
- Horn Button: Activates the horn sound.
- Music Button: Cycles through pre-loaded music tracks.
- Music Player with USB/Bluetooth: Allows connection of external devices via USB or Bluetooth to play custom music.
- Headlight Switch: Controls the vehicle's headlights and taillights.
- Gas Pedal: Engages forward or reverse motion when pressed.
Image 3.2: Overview of the dashboard controls and multimedia features.
3.3. Terrain Capability
Equipped with 4WD and EVA tires, along with full shock suspension, this golf cart is designed for smooth operation on various surfaces, including grass, asphalt, pavement, and gravel.

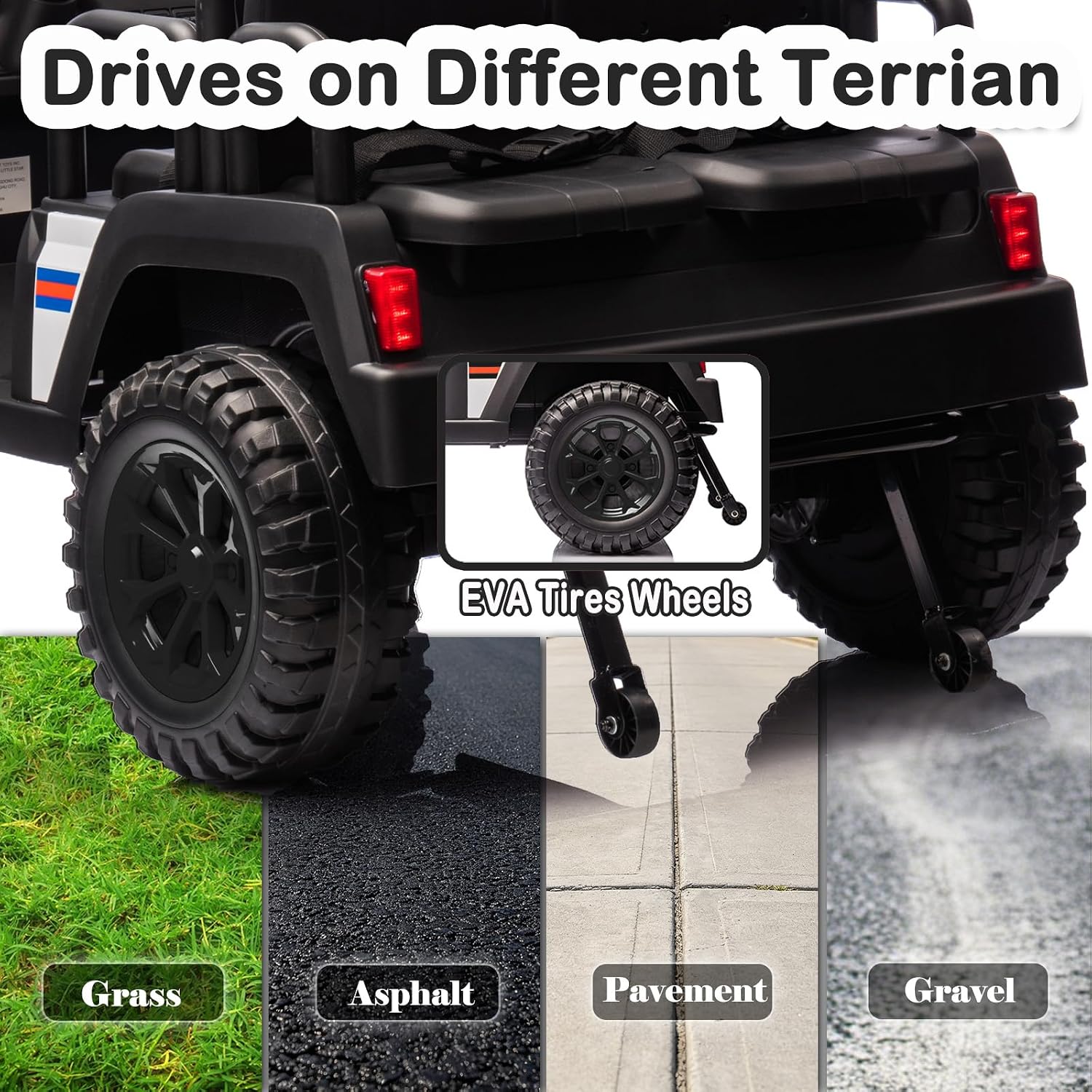

Image 3.3: The vehicle's capability to drive on multiple terrain types.
3.4. Product Overview Video
Watch this video for a general overview of the NEWQIDA 4 Seater Electric Golf Cart for Kids, showcasing its features and operation.
Video 3.4: A brief overview of the NEWQIDA 4 Seater Electric Golf Cart for Kids.
4. Maintenance
Regular maintenance ensures the longevity and safe operation of your electric golf cart.
- Battery Care: Recharge the battery after each use. Do not allow the battery to fully discharge. Store the vehicle with a fully charged battery if not used for extended periods.
- Cleaning: Wipe the vehicle with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not spray water directly onto electrical components.
- Storage: Store the vehicle in a dry, covered area away from direct sunlight and extreme temperatures.
- Inspection: Periodically check all screws, nuts, and connections to ensure they are secure. Inspect tires for wear and tear.
5. Troubleshooting
If you encounter issues with your NEWQIDA Electric Golf Cart, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery charge Loose battery connection Power switch off | Charge the battery fully Check and secure battery terminals Ensure power switch is ON |
| Remote control not working | Remote batteries low/dead Remote not paired | Replace remote batteries Refer to assembly manual for pairing instructions |
| Vehicle moves slowly | Low battery charge Operating on an incline Overloaded vehicle | Charge the battery Move to a flatter surface Reduce load to within weight capacity |
| Unusual noises | Loose parts Debris in wheels/motors | Inspect and tighten all connections Clear any obstructions from wheels and motor areas |
If the problem persists after attempting these solutions, please contact NEWQIDA customer support.
6. Specifications
Key technical specifications for the NEWQIDA 4 Seater Electric Golf Cart (Model GOLF-XMX650A):
- Brand: NEWQIDA
- Model Number: GOLF-XMX650A
- Battery: 24V 7Ah Rechargeable
- Motors: 4 x 24V Motors (4WD)
- Maximum Speed: Up to 5 MPH
- Weight Capacity: 220 pounds (approximately 100 kg)
- Seating Capacity: 4 children
- Recommended Age: 36 months and up
- Material: Metal, Polypropylene
- Tires: EVA Tires
- Suspension: Full Shock Suspension
- Overall Dimensions (L x W x H): 51.38 x 28.35 x 45.12 inches
- Item Weight: 58 pounds
- Features: Remote Control, Plastic Roof, Music Player (USB/Bluetooth), Headlights/Taillights, Horn, Engine Sound
Image 6.1: Visual representation of the 24V performance and capabilities.
Image 6.2: Feature comparison highlighting the advanced specifications of the NEWQIDA golf cart.
7. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact NEWQIDA customer service directly. For any questions, technical support, or assistance with parts, please reach out to the manufacturer.
Manufacturer: NEWQIDA
Please retain your proof of purchase for warranty claims.
