YESHOMY Corner Fireplace TV Stand Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your YESHOMY Corner Fireplace TV Stand. Designed to accommodate televisions up to 55 inches, this unit features an integrated electric fireplace, ample storage, and a space-saving corner design. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

Image: The YESHOMY Corner Fireplace TV Stand with a television.

Important Safety Information

• Always follow the assembly instructions carefully.
• Do not operate the fireplace without proper ventilation.
• Keep the product away from flammable materials.
• Do not attempt to move the product when it is in use.
• Always unplug the product before cleaning or performing any maintenance.
• Keep the product out of reach of children and pets.

Package Contents

Your YESHOMY Corner Fireplace TV Stand package includes the following items:

• One (1) TV Stand
• One (1) Electric Fireplace insert
• One (1) Technical Manual (this document)
• All necessary assembly hardware (screws, connectors, etc.)

Note: The item is delivered in two separate packages, which may arrive at different times. Please ensure both packages have arrived before beginning assembly.

Image: Illustration showing the product being shipped in two separate packages.

Assembly Instructions (Setup)

Assembly of the YESHOMY Corner Fireplace TV Stand is designed to be straightforward. Please follow the detailed, step-by-step instructions provided in the separate assembly manual included with your package. Ensure all parts are present and undamaged before starting.

• Preparation: Clear a spacious area for assembly. Lay out all components and hardware.
• Tools Required: A Phillips head screwdriver is typically required (not included).
• Step-by-Step Guide: Refer to the included assembly manual for diagrams and specific instructions for each step.
• Fireplace Installation: The electric fireplace insert is installed into the central opening. Ensure it is securely fastened according to the manual.
• Detachable Fireplace Feature: The fireplace is detachable. If not needed, it can be removed and replaced with a board to create additional shelf space.

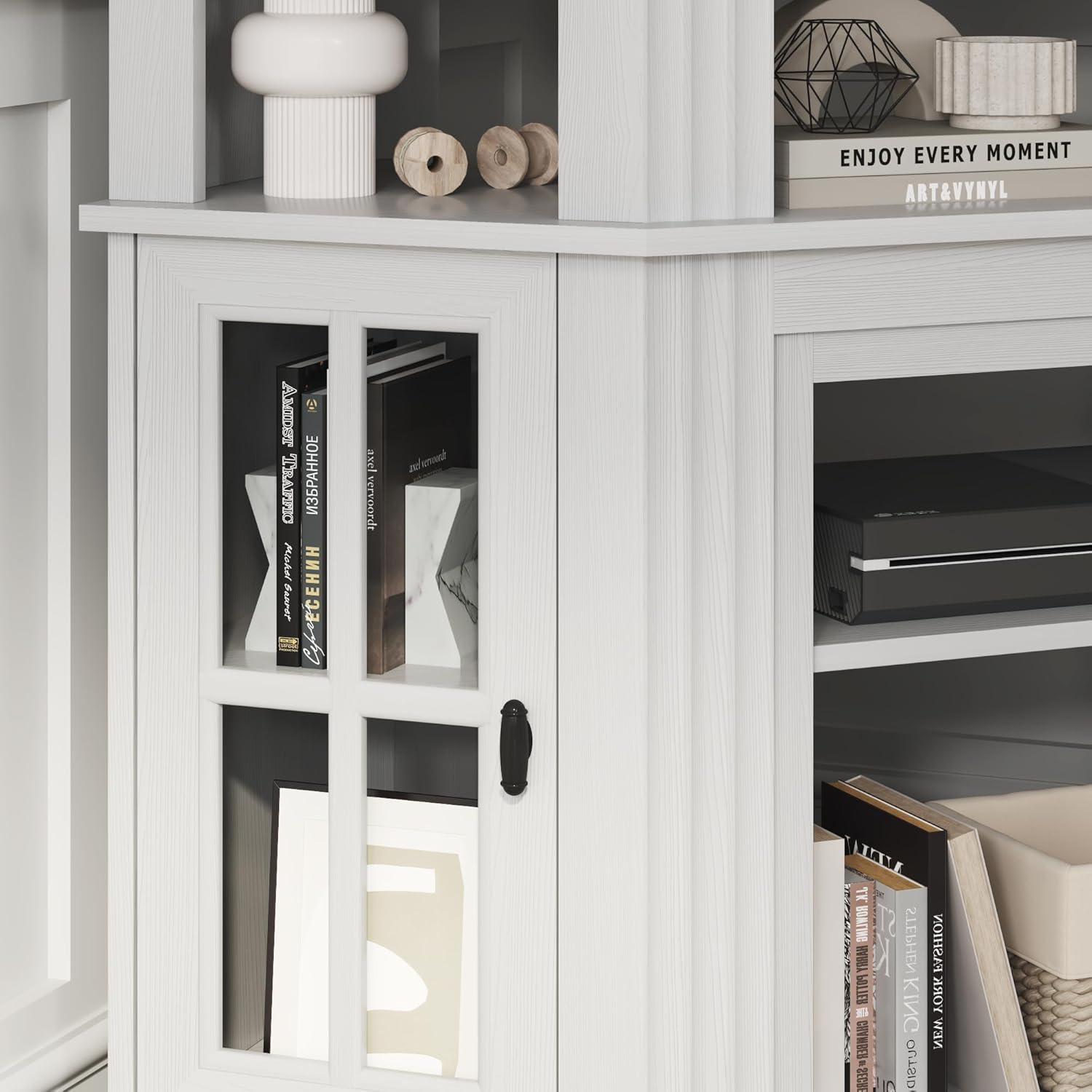

Image: Close-up of the TV stand's side cabinet, illustrating construction details.

Image: Close-up of the open central shelf, highlighting storage potential.

Image: Close-up of the top surface and open side shelf, demonstrating design and utility.

Image: Another close-up of the side cabinet, emphasizing its design.

Image: Comparison showing the TV stand with the fireplace installed and with the fireplace removed and replaced by a shelf.

Operating Instructions (Electric Fireplace)

The integrated electric fireplace provides both aesthetic flame effects and supplemental heating. It can be controlled via the unit's panel or the included remote control.

Fireplace Features:

• Heating Function: Operates as a space heater with adjustable temperatures ranging from 60-82°F (16-28°C).
• 3D Realistic Flame Effect: Provides a visual flame display.
• Timer Function: Set the fireplace to operate for 0.5 to 9 hours.
• 3-Levels Brightness: Adjust the intensity of the flame effect.
• Overheat Protection: Automatically shuts off if it detects overheating.
• Cool to Touch: The exterior remains cool during operation.

Controls:

Image: Close-up of the fireplace control panel.

• Timer Button: Press to set the operating duration (0.5-9 hours).
• Heater Button: Activates the heating function and adjusts temperature.
• Flame Effect Button: Cycles through different flame brightness levels.
• Control Switch (Power): Turns the fireplace on or off.
• Remote Control: All functions can also be operated using the provided remote control.

Image: Detailed features of the electric fireplace insert.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your TV stand and fireplace.

• Cleaning the Stand: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Cleaning the Fireplace: Ensure the fireplace is unplugged and cool before cleaning. Gently wipe the exterior with a soft, dry cloth. Do not spray liquids directly onto the unit.
• Dusting: Regularly dust all surfaces, including vents on the fireplace, to prevent dust buildup.
• Inspections: Periodically check all screws and connections to ensure they remain tight.

Troubleshooting

If you encounter issues with your YESHOMY Corner Fireplace TV Stand, refer to the following common solutions:

• Fireplace Not Turning On:
  • Ensure the power cord is securely plugged into a functional outlet.
  • Check if the main power switch on the fireplace unit is in the "ON" position.
  • Verify that the circuit breaker has not tripped.
• No Heat Output:
  • Confirm the heater function is activated and the temperature setting is above the ambient room temperature.
  • Check for any obstructions around the heater's air intake or output vents.
• Remote Control Not Working:
  • Replace the batteries in the remote control.
  • Ensure there are no obstructions between the remote and the fireplace sensor.
• Loose Components:
  • Carefully re-tighten any loose screws or connections. Do not overtighten.

For further assistance, please contact YESHOMY customer support.

Specifications

Image: Dimensional diagram of the TV stand.

Image: Visual representation of TV size compatibility up to 55 inches.

Warranty and Support

For warranty information, product support, or to order replacement parts, please refer to the contact details provided in your original purchase documentation or visit the official YESHOMY website. Keep your purchase receipt for warranty claims.

Customer Support: For any questions or concerns, please contact YESHOMY customer service through the retailer where you purchased the product or via the brand's official channels.
