ForeverPRO W11528353 Control Electronic Module Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the ForeverPRO W11528353 Control Electronic Module. This component is designed as a replacement part for various Whirlpool appliances. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and safety.

2. Safety Information

WARNING: Before attempting any installation or repair, ensure the appliance is completely disconnected from its power source. Failure to do so can result in electric shock, injury, or death.

• Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.
• If you are unsure about any step, consult a qualified technician.
• Keep children and pets away from the work area.
• Handle electronic components with care to avoid damage from static electricity.

3. Product Overview

The ForeverPRO W11528353 is a replacement control electronic module for Whirlpool appliances. It is designed to meet or exceed OEM specifications, ensuring reliable performance. This module is crucial for the proper functioning of your appliance's electronic controls.

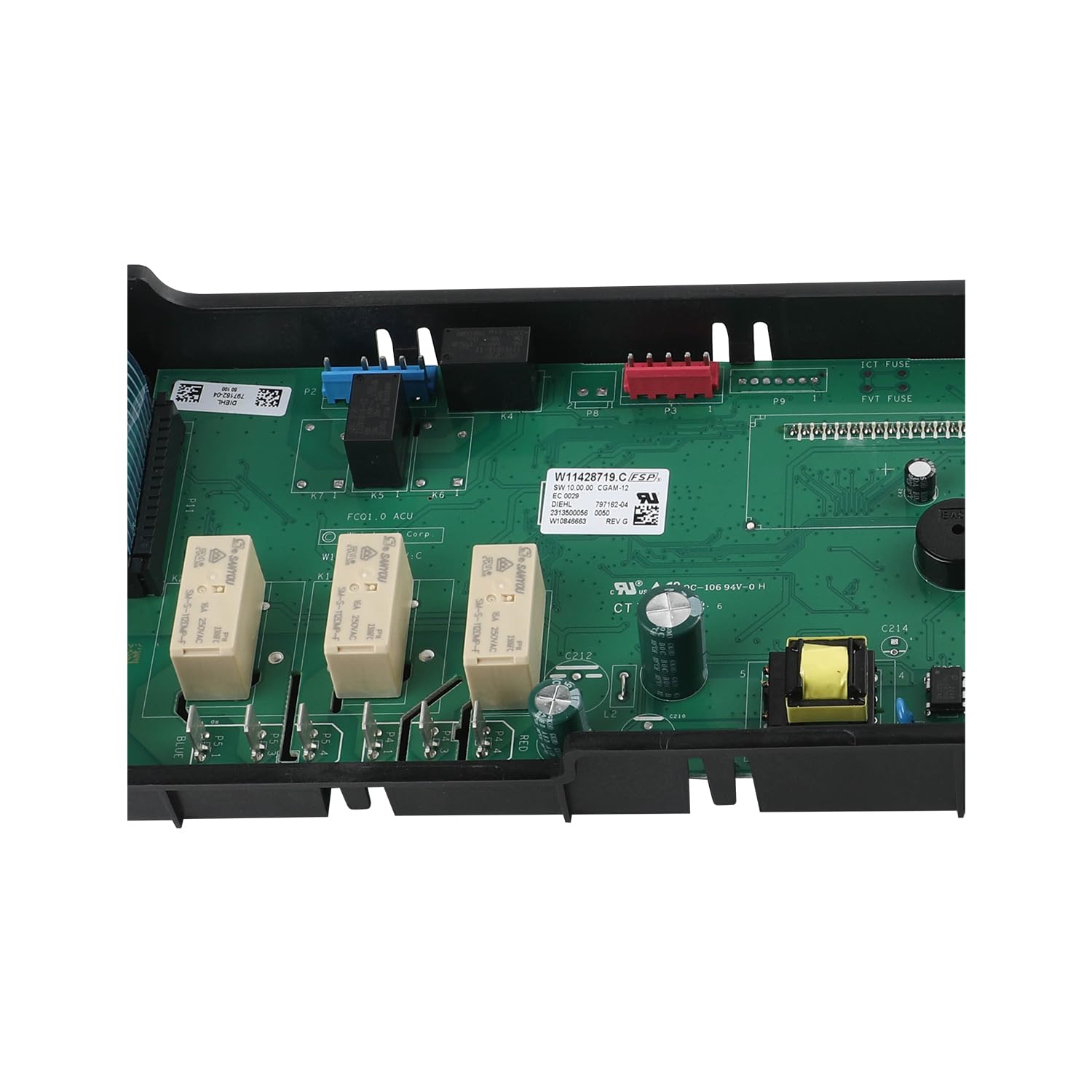

Figure 1: ForeverPRO W11528353 Control Electronic Module. This image shows the electronic control board with various connectors and components.

4. Compatibility

This ForeverPRO W11528353 Control Electronic Module is compatible with a range of Whirlpool appliances. It replaces part numbers W11342886, W11428719, W11435999, and W11511590.

Known compatible models include, but are not limited to:

• WFC315S0JB0
• WFC315S0JB1
• WFC315S0JW0
• WFC315S0JW1
• YWFC315S0JW0
• YWFC315S0JW1

Always verify the part number required for your specific appliance model before purchase and installation.

5. Installation / Setup

Installation of the control electronic module typically involves replacing an existing faulty unit. Due to the complexity of appliance electronics, professional installation is recommended if you are not experienced with appliance repair.

General Installation Steps (Consult Appliance Service Manual for Specifics):

1. Disconnect Power: Ensure the appliance is unplugged or the circuit breaker is turned off.
2. Access Control Panel: Carefully open or remove the appliance's control panel to access the existing electronic module. This may involve removing screws or clips.
3. Document Connections: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the old module. This is critical for correct reassembly.
4. Disconnect Wires: Carefully disconnect all wire harnesses and connectors from the old module. Note any specific locking mechanisms.
5. Remove Old Module: Unmount the old control electronic module from its housing.
6. Install New Module: Mount the ForeverPRO W11528353 module in the same position as the old one.
7. Reconnect Wires: Using your photos or diagram, carefully reconnect all wire harnesses and connectors to the new module. Ensure all connections are secure.
8. Reassemble Appliance: Close and secure the control panel and any other parts removed during access.
9. Restore Power: Plug the appliance back in or turn on the circuit breaker.
10. Test Functionality: Perform a test cycle or function check to ensure the appliance operates correctly with the new module.

6. Operation

The ForeverPRO W11528353 Control Electronic Module is a functional component that enables the operation of your appliance. Once correctly installed, the appliance should resume its normal functions as per its original design. Refer to your appliance's specific user manual for detailed operating instructions.

• Ensure all settings on your appliance are correctly configured after installation.
• Monitor the appliance during its first few cycles after replacement to confirm stable operation.

7. Maintenance

The control electronic module itself requires no routine maintenance. To ensure its longevity and the overall health of your appliance:

• Keep the appliance and its surrounding area clean and free from dust and debris.
• Avoid exposing the appliance to extreme temperatures or humidity.
• Ensure proper ventilation for the appliance to prevent overheating of electronic components.
• If any issues arise, address them promptly to prevent further damage to the module or other appliance parts.

8. Troubleshooting

If your appliance is not functioning correctly after replacing the control electronic module, consider the following troubleshooting steps:

• No Power: Check if the appliance is properly plugged in and if the circuit breaker is on. Verify all wire connections to the module are secure.
• Incorrect Function: Double-check all wire connections against your diagram or photos. Ensure no wires are loose or connected incorrectly.
• Error Codes: If the appliance displays an error code, consult your appliance's specific service manual for the meaning of the code and recommended solutions.
• Intermittent Operation: Inspect for any signs of damage to the module or wiring, such as bent pins or frayed wires.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

9. Specifications

10. Warranty Information

This ForeverPRO W11528353 Control Electronic Module comes with a 90 Days Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims.

For specific terms and conditions, or to initiate a warranty claim, please contact ForeverPRO customer support.

11. Support

For further assistance, technical support, or inquiries regarding the ForeverPRO W11528353 Control Electronic Module, please contact ForeverPRO directly. Refer to the packaging or the official ForeverPRO website for contact details.

When contacting support, please have your product model number (W11528353) and purchase information readily available.
