VEILZOR Ergonomic Backlit Keyboard User Manual

Introduction

This manual provides detailed instructions for the VEILZOR Ergonomic Backlit Keyboard, Model KG812D. This keyboard is designed to enhance typing comfort and efficiency with its wave-shaped key layout and integrated wrist rest. It features customizable backlighting and broad compatibility with various operating systems.

Figure 1: Overview of the VEILZOR Ergonomic Backlit Keyboard, showcasing its wave-shaped design, integrated wrist rest, and vibrant RGB backlighting.

Product Features

• Ergonomic Wave Design: Features a wave-shaped key layout that aligns with natural hand positions, reducing strain during extended use. UV-coated keycaps enhance durability.
• Integrated Wrist Rest: A comfortable leather wrist rest provides essential support, minimizing wrist fatigue.
• Customizable RGB Backlighting: Offers 7 distinct colors and 4 brightness levels, allowing users to personalize their typing environment.
• Built-in Device Holder: A convenient groove accommodates phones, tablets, or other devices, aiding in multitasking.
• Wired USB-A Connection: Ensures a stable and lag-free connection with a 5.2 ft braided cable, eliminating battery concerns.
• Multifunctional Keys & Dual System Compatibility: Supports FN key combinations and multimedia shortcuts. Seamlessly switches between Windows and Mac operating systems.

Figure 2: The keyboard's wave ergonomic design, shown with a tablet positioned in the integrated holder, illustrating how it keeps fingers comfortable and natural.

Figure 3: Detailed view of the wrist rest construction, highlighting its comfort leather surface, high-density foam support, and strong plastic base, designed to relieve pressure on the wrist.

Setup

1. Unpack the Keyboard: Carefully remove the keyboard from its packaging.
2. Connect to Computer: Locate the USB-A connector at the end of the keyboard's braided cable. Insert the USB-A connector into an available USB port on your computer (PC or Mac).
3. System Recognition: The keyboard is plug-and-play and should be automatically recognized by your operating system. No additional drivers are typically required.
4. Initial Backlight Check: Upon connection, the backlight should illuminate. If not, refer to the "Operating Instructions" section for backlight control.

Figure 4: The keyboard's dimensions and its 5.2ft USB wired connection, illustrating its compact yet full-sized design for easy setup.

Operating Instructions

Backlight Control

• Turn Backlight On/Off: Press FN + Del to toggle the backlight on or off.
• Change Backlight Mode: Press FN + M1/M2/M3 to cycle through the 3 available light modes:
  • M1: RGB Rainbow Wave Effect
  • M2: Solid Color Static Backlit
  • M3: Cycle Ripple Backlit
• Adjust Brightness: Press FN + ↑ to increase brightness or FN + ↓ to decrease brightness. There are 4 levels of lighting.

Figure 5: Visual guide to backlight control, showing key combinations for turning the backlight on/off, changing modes, and adjusting brightness levels.

Figure 6: Illustration of the three distinct light modes: RGB Rainbow Wave Effect (M1), Solid Color Static Backlit (M2), and Cycle Ripple Backlit (M3).

Dual System Switching

The keyboard supports seamless switching between Windows and Mac operating systems.

• Switch to Windows System: Press FN + A.
• Switch to Mac System: Press FN + S.
• Note: Pressing the Win key opens the Start menu on Windows systems; the opposite is true for Mac systems.

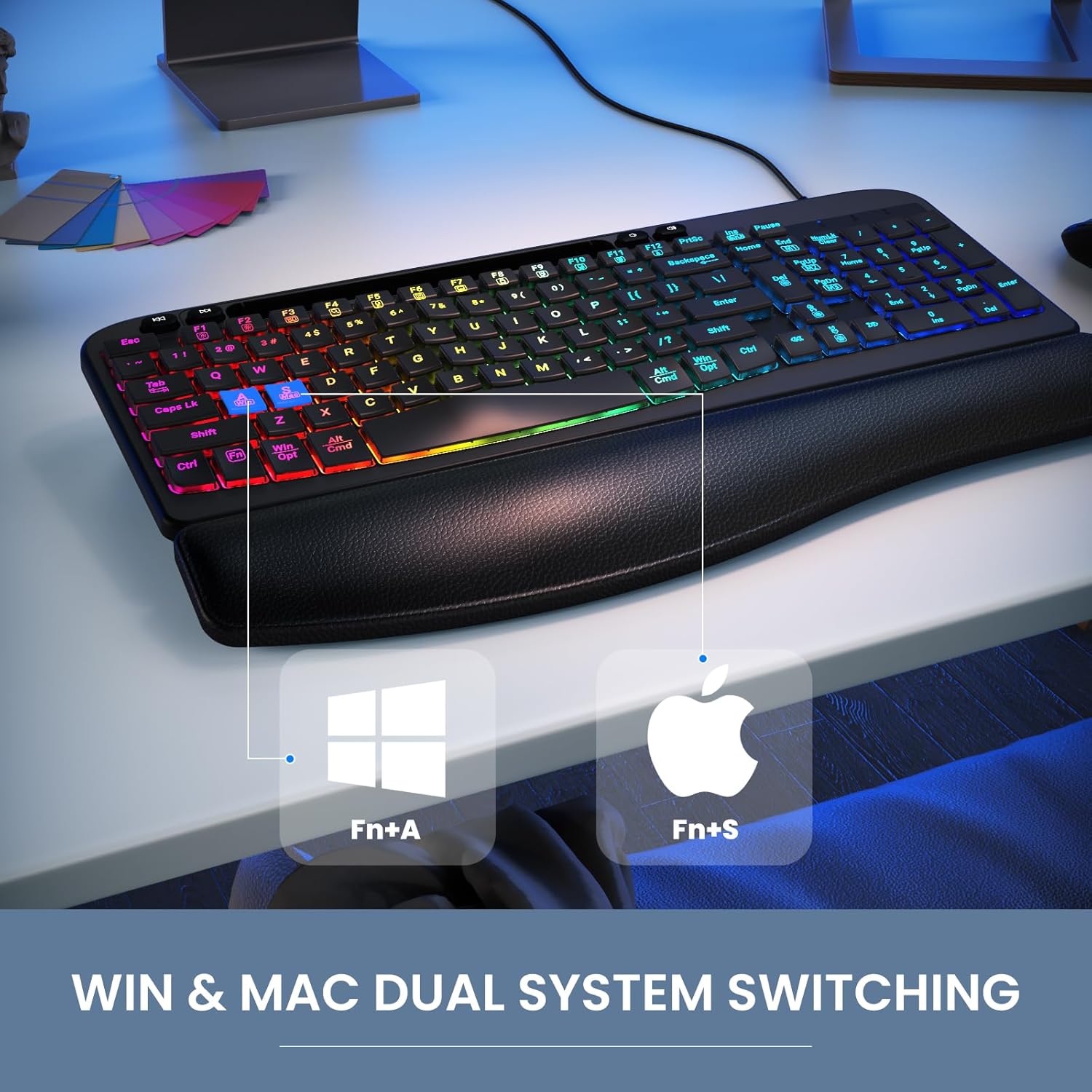

Figure 7: The keyboard's capability for dual system switching between Windows and Mac, activated by specific FN key combinations.

Multimedia and Function Keys

The keyboard includes 4 independent multimedia keys and 12 FN combination keys for enhanced functionality. Refer to the table below for common multimedia functions:

Figure 8: A diagram highlighting the 4 independent multimedia keys, 12 FN combination keys, and 4 navigation keys for various functions.

Using the Device Holder

The keyboard features a built-in groove at the top to securely hold your smartphone or tablet, allowing for convenient viewing and multitasking.

Figure 9: Close-up view of the integrated phone/tablet holder, indicating its dimensions (7.28 in x 0.59 in) and the presence of 2 foldable stands and 6 non-slip rubber pads for stability.

Maintenance

To ensure the longevity and optimal performance of your VEILZOR keyboard, follow these maintenance guidelines:

• Regular Cleaning: Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe down the keycaps and surfaces. Avoid harsh chemicals or abrasive materials.
• Dust Removal: Use compressed air to remove dust and debris from between the keys.
• Wrist Rest Care: The leather wrist rest can be wiped clean with a damp cloth. Avoid prolonged exposure to direct sunlight or extreme temperatures.
• Cable Management: Avoid sharp bends or excessive pulling on the USB cable to prevent damage.
• Storage: When not in use for extended periods, store the keyboard in a clean, dry environment away from direct sunlight.

Troubleshooting

If you encounter any issues with your keyboard, please refer to the common problems and solutions below:

• Backlight Not Working:

  Please check whether the light switch is turned on. Press FN + Del keys to turn on the backlight switch. If the backlight is too dim, press FN + ↑/↓ keys to adjust the brightness of the light.

• Number Keys on Right Side Not Working:

  Please try pressing the Num Lock key (alphabetic lock key) to activate the number pad.

• Keyboard Not Recognized by Computer:

  Ensure the USB cable is securely plugged into both the keyboard and the computer. Try plugging the keyboard into a different USB port. Restart your computer.
• Keys Not Responding or Sticky:

  Clean the keyboard thoroughly, especially around the affected keys, to remove any debris or spills. Avoid eating or drinking directly over the keyboard.

If you encounter other problems and cannot solve them, please contact our customer service. We will provide assistance and do our best to reply within 24 hours.

Specifications

Warranty and Support

VEILZOR offers a one-year unconditional return and exchange policy for this product. Additionally, you will receive lifetime after-sales service.

For any inquiries, technical support, or warranty claims, please contact our customer service team:

• Email: veilzorcustomer@gmail.com

We are committed to providing prompt assistance and will do our best to reply within 24 hours.
