1. Product Overview
The Vortopt Faucet Water Filter provides a certified 5-stage filtration system, designed to deliver clean and healthy water directly from your tap. It effectively reduces 99% of impurities such as rust, sediments, chlorine, and odor, while improving water taste. This system is built with upgraded 304 food-grade stainless steel for enhanced durability and to prevent leakage, cracks, corrosion, or odd smells.
It features a rapid water flow of 0.5 GPM average, allowing quick access to purified water. One filter can process up to 400 gallons (or 500 gallons as per some specifications) of water, with a service life of 4-5 months. The filter offers two water modes: purified water and raw tap water, to extend filter life and meet various needs.
The Vortopt faucet water purifier is an ideal choice for daily drinking, cooking, cleaning, and skincare, suitable for installation in kitchens, bathrooms, or utility sinks.
2. Important Safety Information
- This filter system is designed to filter cold water only. Do not use with hot water, as it may damage the filter and affect performance.
- The filter is not for reducing TDS (Total Dissolved Solids). It focuses on removing harmful impurities like chlorine, rust, and sediments.
- Ensure all connections are secure to prevent leaks.
- Do not expose the filter unit to freezing temperatures.
- Keep out of reach of children.
3. Package Contents
Please verify that all items are included in your package:
- 1 x Faucet Filter Unit
- 1 x Activated Carbon Block Filter (pre-installed or separate)
- 3 x Adapters (M24 internal thread & seal fitting 0.94", M22 external thread & seal fitting 0.87", M24 external thread fitting 0.94")
- 1 x Universal Joint
4. Setup and Installation
Installation of the Vortopt Faucet Water Filter is designed to be straightforward and typically requires no tools. Please follow these steps carefully:
4.1. Faucet Compatibility Check
Before installation, ensure your faucet is compatible with the filter. The filter fits most standard faucets but is NOT suitable for pull-out, hand-held, spray-style, square/oval irregular, or faucets with interior aerators.
Image: Faucet Compatibility Guide. This image illustrates which faucet types are compatible (standard external/internal threaded faucets) and which are not (spray-style, irregular, or integrated aerator faucets).
4.2. Adapter Selection
Your package includes various adapters to ensure a perfect fit for different faucet types:
- M24 internal thread fitting (0.94")
- M22 external thread fitting (0.87")
- M24 external thread fitting (0.94")
- Universal joint (0.59"-0.94")
Image: Four Types of Adapters. This image displays the different adapters provided to ensure compatibility with various faucet threads and sizes.
4.3. Installation Steps
Follow these general steps for installation. Refer to the diagram for visual guidance:
Image: Detailed Installation Steps. This diagram provides visual instructions for installing the filter on external thread, internal thread, and conventional faucets, emphasizing the importance of gaskets to prevent leakage.
- Prepare Faucet: Unscrew and remove the existing aerator from your faucet.
- Select Adapter: Choose the appropriate adapter that matches your faucet's thread type and size.
- Attach Adapter: Screw the selected adapter onto your faucet. Ensure a tight fit. For some installations, you may need to add gaskets to prevent leakage.
- Attach Filter Unit: Screw the main filter unit onto the adapter. Hand-tighten until secure. Do not overtighten.
- Flush Filter: Before first use, turn on the cold water and let it run through the filter for 5-10 minutes to flush out any carbon fines and prepare the filter for use.
5. Operating Instructions
The Vortopt Faucet Water Filter features a simple lever or switch to toggle between filtered and unfiltered water modes.
5.1. Purified Water Mode
To access purified water, simply switch the lever on the filter unit to the 'Purified Water' position. Water will flow through the internal filtration system, providing clean water suitable for drinking, cooking, and washing fruits and vegetables.
Image: Purified Water Mode. This image demonstrates the filter in operation, providing purified water for cooking and washing produce.
5.2. Tap Water Mode
For tasks that do not require filtered water, such as washing kitchen utensils or hands, switch the lever to the 'Tap Water' position. This bypasses the filter, allowing unfiltered water to flow directly from the faucet. This mode helps to prolong the life of your filter cartridge.
Image: Tap Water Mode. This image shows the filter in bypass mode, allowing unfiltered tap water to flow for general use like washing kitchen utensils.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your Vortopt Faucet Water Filter.
6.1. Filter Replacement
The activated carbon block filter has a service life of approximately 4-5 months or 400-500 gallons, depending on water quality and usage. It is crucial to replace the filter regularly to maintain filtration effectiveness.

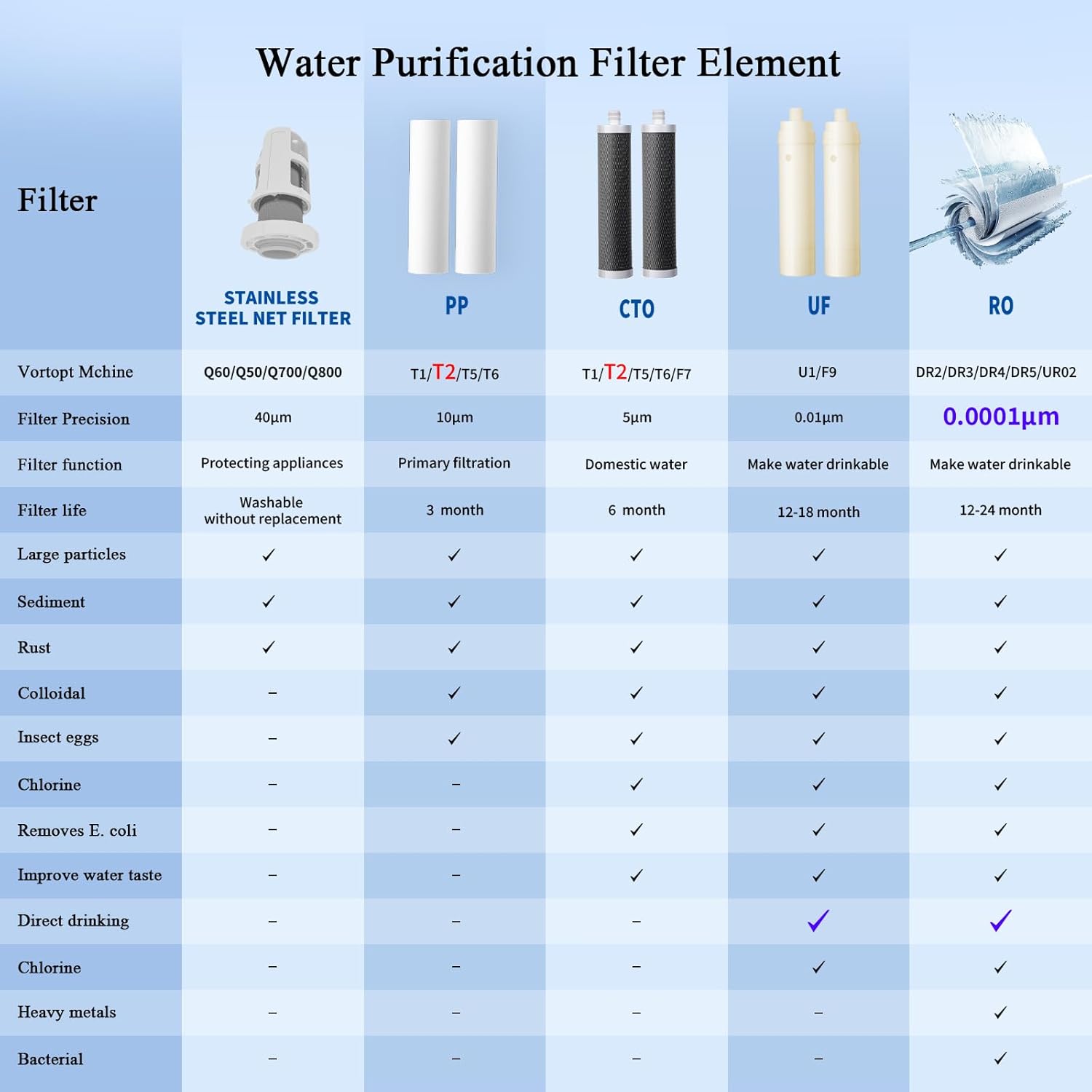

Image: Water Purification Filter Element Lifespan. This table provides an overview of various filter types and their typical lifespans, indicating the 6-month lifespan for the CTO (Activated Carbon Block) filter used in this system.
To replace the filter:
- Turn off the water supply to the faucet.
- Unscrew the bottom part of the filter housing.
- Remove the old filter cartridge.
- Insert a new filter cartridge, ensuring it is properly seated.
- Screw the bottom housing back onto the unit.
- Turn on the water supply and flush the new filter for 5-10 minutes before use.
6.2. Cleaning the Unit
Wipe the exterior of the filter unit with a soft, damp cloth as needed. Do not use abrasive cleaners or solvents.
7. Troubleshooting
If you encounter issues with your Vortopt Faucet Water Filter, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from connections | Loose connections or missing/damaged gaskets. | Ensure all connections are hand-tight. Check that gaskets are properly seated and not damaged. Replace if necessary. |
| Reduced water flow (filtered mode) | Filter cartridge is clogged or nearing end of life. | Replace the filter cartridge. Ensure the filter was properly flushed after installation/replacement. |
| Unpleasant taste or odor in filtered water | Filter cartridge is exhausted or not properly flushed. | Replace the filter cartridge. Flush the new filter for 5-10 minutes. |
| Diverter valve is stiff or binding | Mineral buildup or wear over time. | Try gently wiggling the lever. If persistent, contact customer support for assistance. |
| Filter does not fit faucet | Incompatible faucet type or incorrect adapter used. | Review the 'Faucet Compatibility Check' section. Ensure you are using the correct adapter for your faucet's thread. If still incompatible, the product may not fit your specific faucet. |
8. Specifications
- Brand: Vortopt
- Model Name: T2
- Item Model Number: T1T2-1-FU
- Product Dimensions: 5.1"L x 2.2"W x 4.3"H
- Item Weight: 13.44 ounces
- Installation Type: Countertop (Faucet Mount)
- Filter Capacity: Approximately 400-500 Gallons
- Filter Life: 4-5 months (depending on water quality and usage)
- Material: 304 Food Grade Stainless Steel
- Special Feature: Obtained CEC Certification
- Country of Origin: China
- First Available Date: January 10, 2022
9. Warranty and Support
Vortopt is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical support, troubleshooting assistance, or to inquire about replacement filters, please contact Vortopt customer service through the retailer where you purchased the product or visit the official Vortopt website for contact information.
We value your feedback and are here to help ensure you have the best experience with your Vortopt Faucet Water Filter.
