uxcell Gauge Narrow Crown Staples 1-3/8"x3/4" Instruction Manual

1. Introduction

This manual provides essential information for the proper use and maintenance of uxcell Gauge Narrow Crown Staples. These staples are designed for use with compatible pneumatic and electric staplers in various carpentry and finishing applications. Adhering to these instructions will help ensure optimal performance and longevity of the product.

The uxcell Narrow Crown Staples are constructed from electroplated steel, offering enhanced rust and corrosion resistance. Their precision-drawn wire ensures consistent and accurate placement, while the optimized tensile strength contributes to reliable fastening.

2. Product Features

• Material: Electroplated steel for improved rust and corrosion resistance.
• Design: Precision-drawn wire for consistent and accurate pin placement.
• Efficiency: T-shaped head and chisel point design facilitate efficient stapling, reducing jams and buckles.
• Compatibility: Suitable for most brands of 18 gauge pneumatic and electric narrow crown staplers.

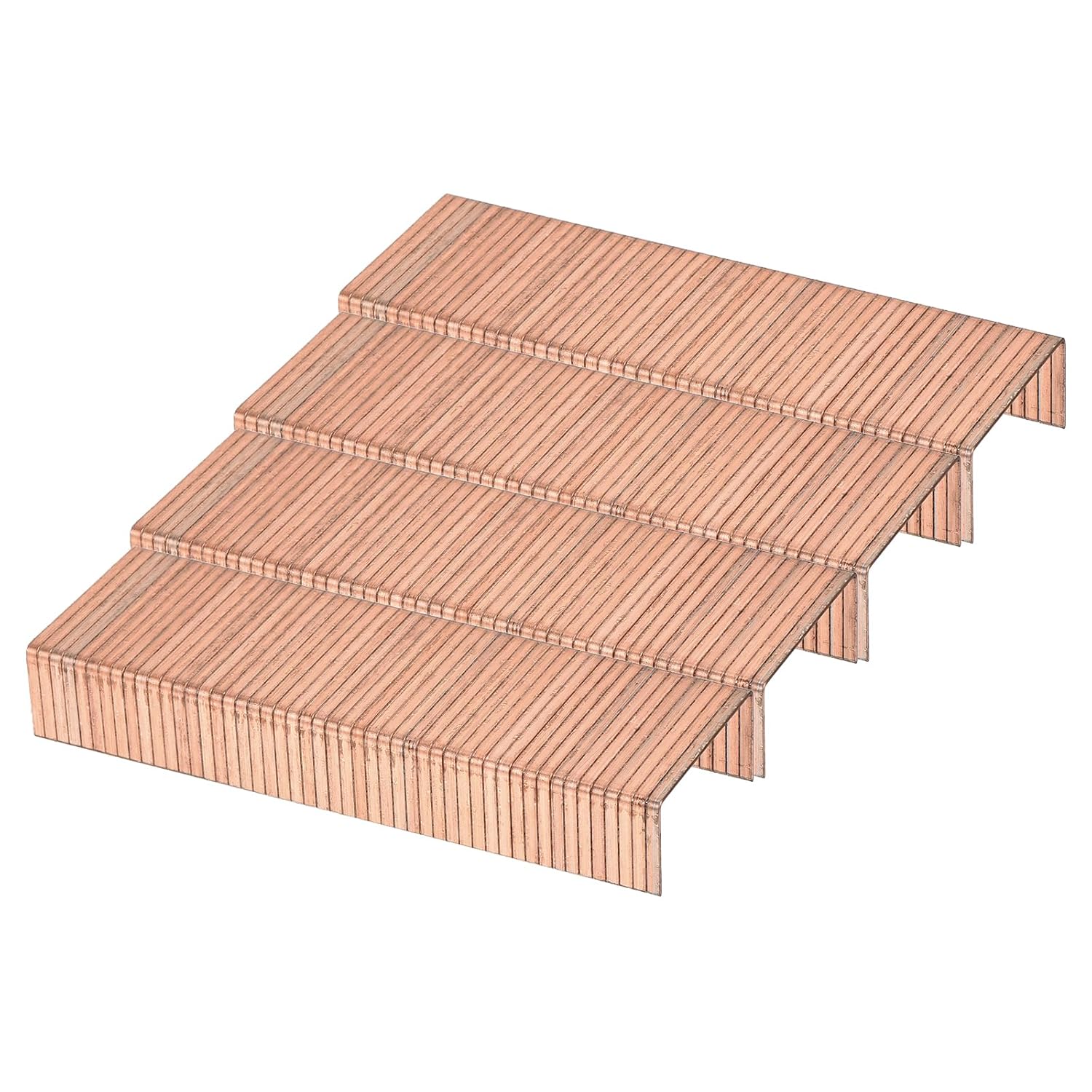

Image 2.1: Overview of uxcell electroplated narrow crown staples, showing their uniform rows and copper-like finish.

3. Setup and Compatibility

These staples are specifically designed for 18 gauge pneumatic and electric narrow crown staplers. Before use, always verify that your stapler is compatible with staples of 1-3/8 inch crown width and 3/4 inch leg length.

3.1 Loading Staples

1. Ensure the stapler is disconnected from its power source (air compressor for pneumatic, unplugged for electric) before loading.
2. Open the stapler's magazine according to its manufacturer's instructions.
3. Insert the strip of uxcell narrow crown staples into the magazine, ensuring the staple points face forward.
4. Close the magazine securely.

3.2 Safety Precautions

• Always wear appropriate personal protective equipment, including safety glasses, when operating a stapler.
• Never point a stapler at yourself or others.
• Keep hands and fingers clear of the stapler's firing mechanism and work area.
• Read and understand your stapler's instruction manual before use.

Image 3.1: A pneumatic stapler shown with staples, illustrating the type of tool compatible with these narrow crown staples.

4. Operating Instructions

Once the staples are loaded and safety precautions are observed, you can begin operation. The T-shaped head and chisel point design of these staples are engineered for smooth penetration and secure fastening.

4.1 General Usage

1. Connect your stapler to its power source (air hose for pneumatic, plug in for electric).
2. Position the stapler's nose firmly against the workpiece where the staple is to be driven.
3. Activate the stapler according to its specific operating mechanism (e.g., trigger pull, contact actuation).
4. Ensure staples are driven flush with the surface for a clean finish. Adjust stapler depth settings if necessary.

4.2 Applications

These uxcell narrow crown staples are suitable for a wide range of tasks, including:

• Photo frame assembly
• Repairing art crafts
• Cabinet construction
• Various DIY home improvement projects requiring fine fastening.

Image 4.1: Examples of common applications for narrow crown staples, such as assembling photo frames and constructing cabinets.

5. Maintenance

Proper storage and handling will help maintain the quality and performance of your staples.

• Store staples in their original packaging in a cool, dry environment to prevent moisture exposure, which can lead to corrosion.
• Avoid dropping or bending staple strips, as this can cause them to break apart or deform, leading to stapler jams.
• Periodically inspect staples for any signs of damage or corrosion before loading them into your stapler.

Image 5.1: The packaging for uxcell narrow crown staples, designed for safe storage and transport.

6. Troubleshooting

While uxcell staples are designed for reliable performance, issues can occasionally arise. Most problems are related to the stapler itself or improper loading.

6.1 Common Issues

• Stapler Jams: If staples are jamming, first ensure they are loaded correctly and are not bent or broken. Verify that the staples match the exact specifications required by your stapler. Refer to your stapler's manual for jam clearing procedures.
• Staples Not Driving Fully: This is often a stapler issue. Check the air pressure for pneumatic staplers or the power supply for electric staplers. Adjust the depth setting on your stapler if available.
• Staples Buckling: Ensure the stapler is held firmly and squarely against the workpiece. Buckling can occur if the staple is not entering the material straight or if the material is too hard for the staple length.

For persistent issues, consult the instruction manual for your specific stapler model or contact the stapler manufacturer's support.

7. Specifications

8. Warranty and Support

For specific warranty information or product support, please refer to the product packaging or contact uxcell customer service directly. Keep your purchase receipt as proof of purchase.

You can often find additional support and product information by visiting the official uxcell store or website.
