1. Introduction
Thank you for choosing the EMKE Oval Countertop Basin. This manual provides essential information for the safe installation, operation, and maintenance of your new ceramic basin. Please read these instructions carefully before installation and retain them for future reference.
2. Safety Information
- Always handle the basin with care to prevent damage or injury. Ceramic can be heavy and fragile.
- Ensure all plumbing connections are secure and watertight to prevent leaks.
- If you are unsure about any installation steps, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the basin surface, as this may damage the finish.
3. Package Contents
The EMKE Oval Countertop Basin package includes:
- 1 x EMKE Oval Countertop Basin (Matte Black)
Note: Faucet, drain, and mounting hardware are typically sold separately unless specified.
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | CB20601MB-FRADR |
| Dimensions (L x W x H) | 60 x 41.5 x 13.5 cm |
| Weight | 10.4 Kilograms |
| Color | Matte Black |
| Finish | Matte |
| Shape | Oval |
| Material | Ceramic |
| Installation Type | Countertop |
| Number of Drain Holes | 1 |
| Drain Type | Central Drain |
5. Setup and Installation
The EMKE basin is designed for easy countertop installation with pre-drilled connections conforming to DIN standards for drains. Ensure your countertop is prepared with the necessary openings for the drain and faucet (if applicable).
5.1. Pre-Installation Measurement
Before purchasing and installing, carefully measure the dimensions of your installation area. Pay attention to the distance from any obstacles and ensure adequate height for your chosen faucet.
Image 1: Size guide and faucet compatibility. This image illustrates the basin's dimensions (595mm length, 415mm width, 146mm height) and provides a step-by-step measurement plan. It also shows compatibility with both wall-mounted and countertop faucets, indicating a minimum distance of 50mm from obstacles and ensuring the faucet height is greater than the ceramic basin height.
5.2. Faucet Compatibility
The basin is compatible with various faucet types. Ensure your chosen faucet's spout reach and height are appropriate for the basin's dimensions to prevent splashing and ensure comfortable use.
Image 2: Faucet compatibility diagram. This image details the compatibility with wall-mounted and countertop faucets, showing the required clearance (greater than 50mm from the basin edge to the obstacle) and the internal basin dimensions (208mm from the drain to the front edge).
5.3. Installation Steps (General)
- Position the basin on the countertop, ensuring it is centered and level.
- Install the drain assembly according to the manufacturer's instructions, ensuring a watertight seal.
- Connect the faucet (if applicable) and water supply lines.
- Apply a silicone sealant around the base of the basin where it meets the countertop to secure it and prevent water ingress.
- Allow the sealant to cure completely before using the basin.
6. Operating the Basin
The EMKE Oval Countertop Basin functions as a standard bathroom sink. Turn on the faucet to fill the basin with water. The basin features a central drain, often compatible with a push-pop drain mechanism for easy water release.

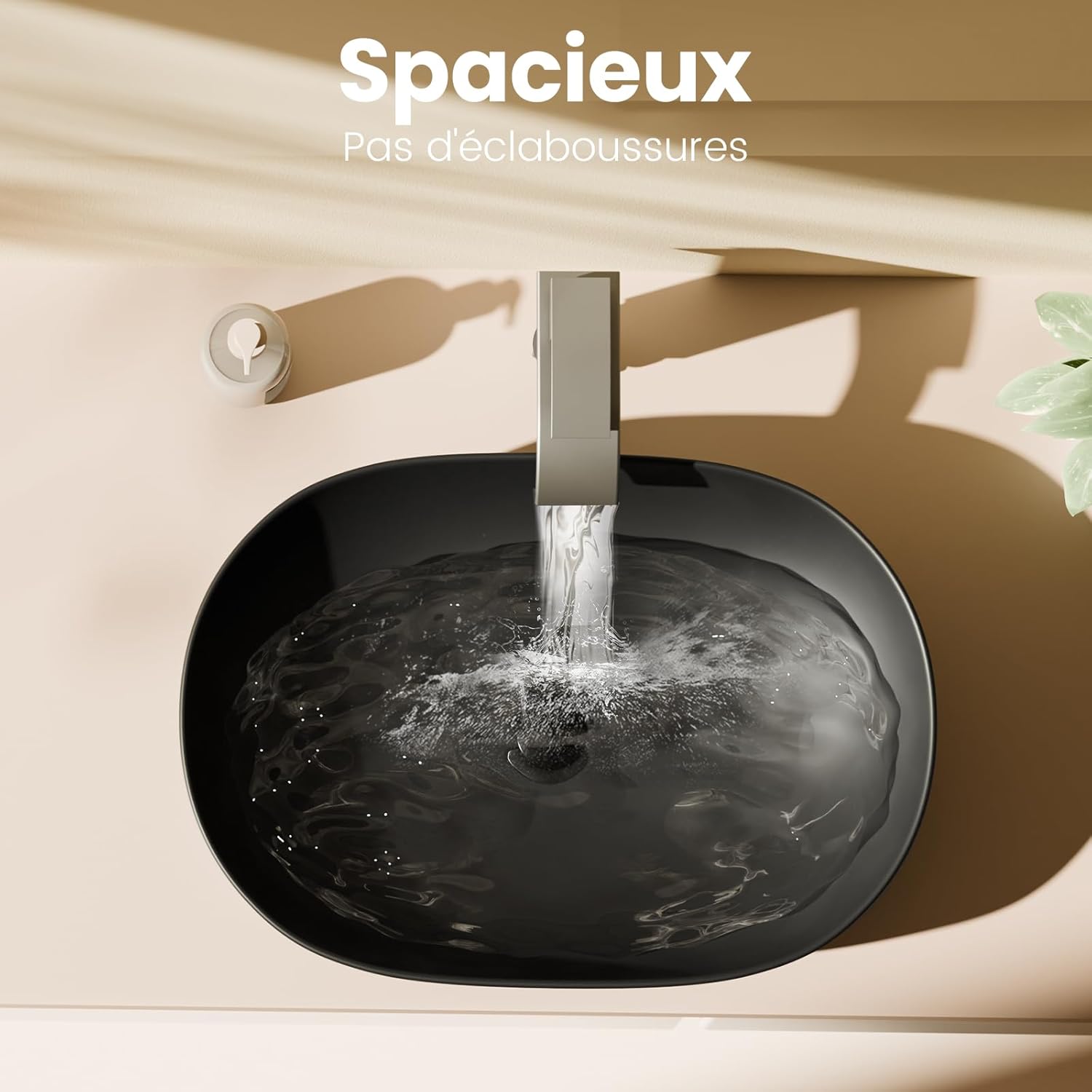

Image 3: Water flowing into the basin. This image highlights the spacious design of the basin and its ability to prevent splashes during use.
7. Maintenance
The EMKE ceramic basin is designed for easy maintenance due to its smooth, dirt-repellent, and scratch-resistant surface. Regular cleaning will keep it looking new.
7.1. Cleaning Instructions
- For daily cleaning, use a soft cloth or sponge with mild soap and water.
- Wipe the surface dry after cleaning to prevent water spots, especially in hard water areas.
- Avoid abrasive cleaners, scouring pads, or harsh chemical detergents, as these can damage the matte finish and ceramic surface.
- The smooth surface allows water droplets to bead off, significantly reducing cleaning time.
Image 4: Basin features. This image emphasizes the basin's easy-to-clean surface, ultra-thin edge, and antibacterial properties, contributing to a refreshing and hygienic experience.
Image 5: Maintenance and design details. This collage illustrates the ease of cleaning, the safe rounded edges, the simple push-drain mechanism, and the overall elegant design that promotes a healthy lifestyle.
8. Troubleshooting
8.1. Leaks Around the Drain
- Cause: Improperly sealed drain assembly.
- Solution: Tighten drain nuts and ensure plumber's putty or silicone sealant is correctly applied around the drain flange.
8.2. Slow Draining
- Cause: Partial clog in the drain pipe or pop-up assembly.
- Solution: Remove and clean the pop-up drain stopper. If the issue persists, a drain cleaner may be needed, or consult a plumber.
8.3. Water Spots/Stains
- Cause: Hard water deposits or residue from soap/cosmetics.
- Solution: Clean regularly with a mild, non-abrasive cleaner. For stubborn hard water spots, a diluted vinegar solution can be used, followed by thorough rinsing.
9. Warranty Information
EMKE products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact EMKE customer service for specific warranty terms and conditions.
10. Customer Support
If you have any questions, require assistance with installation, or need to report a defect, please contact EMKE customer support. Contact details can typically be found on the EMKE official website or your purchase receipt.
