1. Important Safety Information
Read and understand all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always keep hands and body away from rotating parts.
- Wear appropriate protective gear, including gloves and eye protection.
- Be aware of surroundings when operating to prevent injury from thrown snow.
- Store the snow shovel in a dry place, away from heat sources and out of reach of children.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
2. Product Overview
The WORX Nitro 40V 12-inch Cordless Electric Snow Shovel (Model WG460) is designed for efficient snow removal from stairs, decks, patios, and driveways. It features a brushless motor for extended runtime and power, and is powered by two WORX Power Share™ PRO 20V 4.0Ah batteries.
Front view of the WORX Nitro 40V 12-inch Cordless Electric Snow Shovel.
Key Features:
- 12-inch Clearing Width: Clears a 12-inch wide and 6-inch deep path per pass.
- 25-foot Snow Throw Distance: Throws snow up to 25 feet away to prevent pile-up.
- 3 Adjustable Throwing Directions: Allows control over where snow is discharged.
- Brushless Motor: Provides increased efficiency, longer runtime, and extended motor life.
- Lightweight and Ergonomic Design: Ensures comfortable handling and reduced strain.
- 2-Speed Variable Trigger: Adjusts to different snow types and conditions.
- Foldable Handle: For easy storage and portability.
- WORX Power Share™ PRO Batteries: Utilizes two 20V 4.0Ah batteries for 40V power.
The lightweight design makes the snow shovel easy to handle.
Optimized balanced control for comfortable operation and low recoil.
The snow shovel operates quietly, allowing for early morning snow clearing without disturbance.
3. Setup
3.1 Unboxing and Assembly
The WORX Nitro snow shovel comes partially assembled. Follow these steps to complete the assembly:
- Carefully remove all components from the packaging.
- Unfold the shaft of the snow shovel. Ensure the wires are properly tucked in and not pinched.
- Secure the shaft connection point using the provided bolt and Allen wrench.
- Adjust the auxiliary handle to a comfortable operating position and tighten it securely.
Video demonstrating the unboxing and assembly process of the WORX Nitro 40V 12-inch Electric Snow Shovel.
3.2 Battery Installation and Charging
The snow shovel requires two 20V Power Share™ PRO batteries for 40V operation. Ensure batteries are fully charged before first use.
- Insert the two 20V 4.0Ah batteries into the designated battery slots on the snow shovel until they click into place.
- To charge the batteries, remove them from the snow shovel and place them into the dual-port fast charger. The indicator lights on the batteries and charger will show the charging status.
The snow shovel is powered by two 20V Power Share™ PRO batteries, combining for 40V of power.
4. Operating Instructions
Before operating, ensure all safety precautions are understood and followed. Wear appropriate safety gear, including eye protection and gloves.
4.1 Starting and Stopping
- Ensure batteries are fully charged and securely installed.
- Press the safety button located on the handle.
- Squeeze the trigger to start the snow shovel.
- Release the trigger to stop the snow shovel.
4.2 Clearing Snow
The snow shovel clears a 12-inch wide and 6-inch deep path. It can effectively clear snow from various surfaces.
The snow shovel clears a 12-inch wide and 6-inch deep path with each pass.
Video demonstrating the WORX Cordless Snow Shovel clearing a path on a driveway.
Video showing the snow shovel effectively clearing stairs, sidewalks, and small driveways.

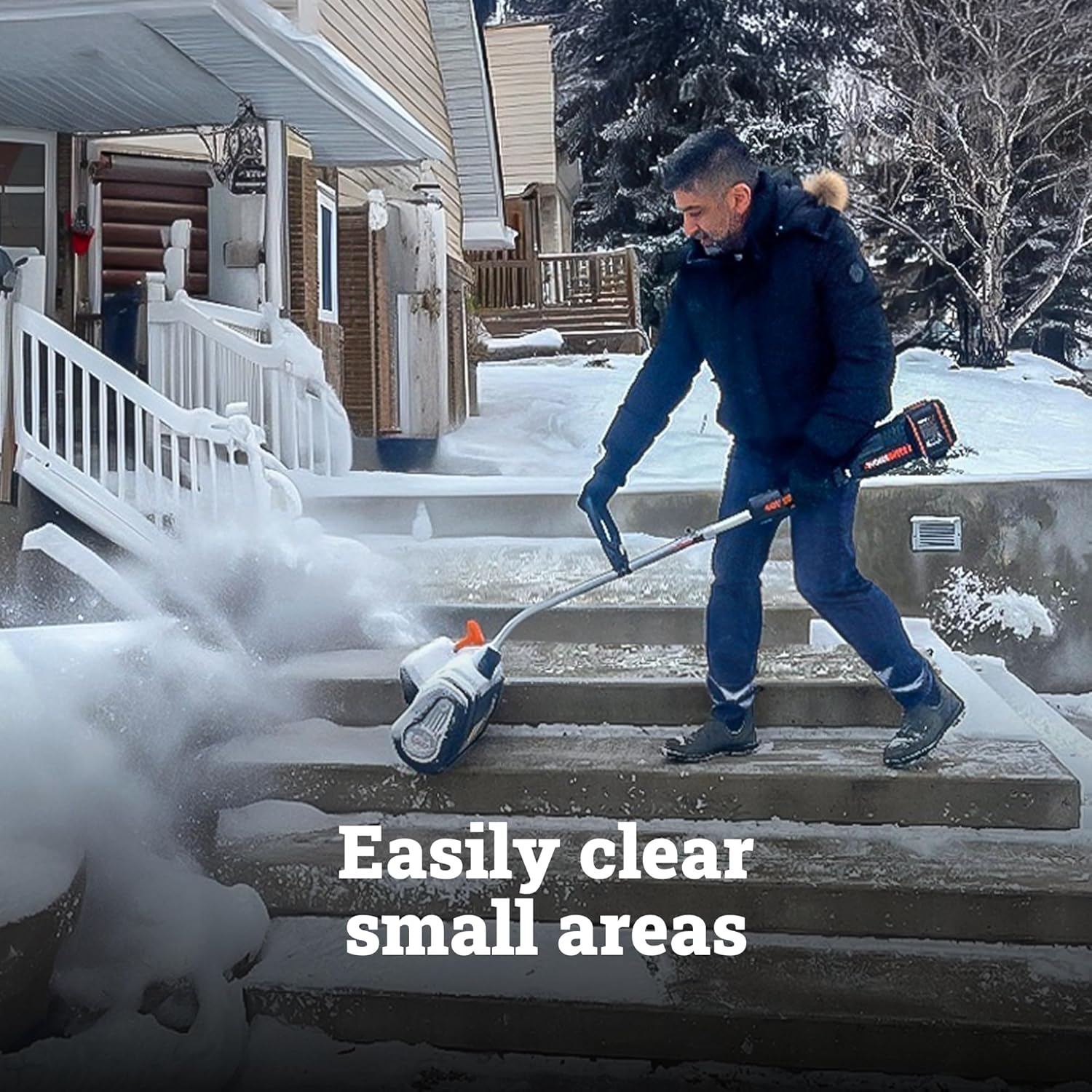

The compact design allows for easy snow clearing on stairs, decks, and other small areas.
4.3 Snow Throwing Distance and Direction
The snow shovel can throw snow up to 25 feet. Use the adjustable chute to direct the snow away from cleared areas.
The snow shovel can throw snow up to 25 feet, keeping cleared areas free of new piles.
Video showcasing the 40V power and 25-foot snow throwing capability of the WORX Snow Shovel.
The snow shovel features 3 adjustable throwing directions for precise snow placement.
The 3-way adjustable chute allows you to throw snow 30 degrees to either side, preventing obstructive piles.
4.4 Speed Control
The snow shovel features a 2-speed variable trigger to adapt to different snow conditions.
The 2-speed control allows adjustment for varying snow types and densities.
Detailed view of the 2-speed control switch for optimal performance.
4.5 Battery Runtime
With two 4.0Ah batteries, the snow shovel can clear a 2-4 car driveway on a single charge, depending on snow depth and density.
Clear a 4-car driveway on a single charge with the efficient battery system.
A single charge provides sufficient runtime to clear key areas, from driveways up to 4 cars wide to sidewalks, all in one session.
5. Maintenance and Storage
5.1 Cleaning
- After each use, disconnect the batteries.
- Remove any snow, ice, or debris from the auger and chute using a non-metallic tool.
- Wipe down the exterior of the snow shovel with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
5.2 Storage
The snow shovel features a foldable handle for compact storage.
- Ensure the snow shovel is clean and dry before storing.
- Fold the handle for compact storage.
- Store the snow shovel in a dry, secure location, away from direct sunlight and extreme temperatures.
- Remove batteries before long-term storage. Store batteries in a cool, dry place.
The snow shovel folds for easy and compact storage in a garage or shed.
The foldable design simplifies storage and portability.
6. Troubleshooting
If you encounter issues with your WORX Nitro snow shovel, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Snow shovel does not start. | Batteries not installed correctly or not charged. | Ensure batteries are fully charged and securely inserted. Check battery indicator lights. |
| Reduced snow throwing distance. | Wet, heavy snow; clogged chute; low battery charge. | Clear any clogs from the chute. Ensure batteries are fully charged. Adjust speed setting for heavier snow. |
| Motor stops during operation. | Overload due to excessive snow; low battery charge. | Reduce the amount of snow being cleared per pass. Check battery charge and recharge if necessary. |
| Unusual noise or vibration. | Debris in the auger; loose components. | Disconnect batteries and inspect the auger for debris. Ensure all connections are tight. If problem persists, contact customer support. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | WORX |
| Model Number | WG460 |
| Power Source | Battery Powered (2 x 20V Lithium Ion) |
| Voltage | 40 Volts (DC) |
| Item Weight | 17.21 Pounds |
| Product Dimensions | 65"D x 14.4"W x 15"H |
| Clearing Width | 12 Inches |
| Ideal Snow Depth | Up to 6 Inches |
| Number of Speeds | 2 |
| Engine Type | Electric Brushless Motor |
8. Warranty Information
WORX products are built to last and come with a limited warranty. Please retain your proof of purchase for warranty claims.
- Tool Warranty: 3 Years Limited Warranty for the tool.
- Battery Warranty: 2 Years Limited Warranty for the batteries.
WORX offers a 3-year limited warranty for the tool and a 2-year limited warranty for the batteries.
9. Support
For further assistance, technical support, or to order replacement parts, please visit the official WORX website or contact customer service.
Official Website: www.worx.com
