EvoNook 6-in-1 Convertible Mini Crib User Manual

1. Introduction

Thank you for choosing the EvoNook 6-in-1 Convertible Mini Crib. This versatile crib is designed to adapt to your child's growth, offering multiple configurations from infancy through toddlerhood. Constructed from 100% New Zealand Wood, it features easy assembly, portability with wheels, and four adjustable mattress heights to ensure safety and comfort at every stage.

Please read this manual thoroughly before assembly and use to ensure proper setup, safe operation, and optimal maintenance of your crib.

Image: The EvoNook Mini Crib, showcasing its assembled form with mattress and its compact folded state, highlighting its portability.

2. Safety Information

Your child's safety is paramount. Always adhere to the following safety guidelines:

• Always ensure all parts are correctly assembled and securely fastened before placing a child in the crib.
• Do not use the crib if any parts are missing, damaged, or broken. Contact customer support for replacement parts.
• Do not substitute parts. Use only manufacturer-supplied components.
• The mattress used with this crib must be at least 38 inches (96.5 cm) long by 24 inches (61 cm) wide and no more than 6 inches (15 cm) thick.
• To prevent falls, when the child is able to pull to a standing position, set the mattress to the lowest position.
• Do not place the crib near windows where cords from blinds or drapes could strangle a child.
• Do not place items with a string around a child's neck, such as hood strings or pacifier cords.
• Do not suspend strings over a crib or attach strings to toys.
• Periodically check all fasteners for tightness. Do not overtighten.
• Keep all small parts out of reach of children during assembly.

Image: The EvoNook Mini Crib highlighting its adherence to safety standards and use of certified materials, including OEKO-TEX, ASTM International, CertiPUR-US, eco-friendly paint, and sustainable New Zealand pine wood.

3. Setup and Assembly

The EvoNook Mini Crib is designed for easy assembly. Follow these steps carefully:

3.1 Unpacking and Parts Identification

Carefully remove all components from the packaging. Verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly; contact customer support.

• Front Rail
• Back Rail
• Side Rails (2)
• Mattress Support
• Legs with Wheels (4)
• Hardware Pack (screws, bolts, Allen wrench)
• Mattress

3.2 Assembly Steps

1. Attach the side rails to the front and back rails using the provided hardware. Ensure all connections are secure but do not overtighten.
2. Insert the mattress support into the designated slots on the side rails. Choose the desired mattress height (see Section 4.1 for guidance on height adjustments).
3. Attach the legs with wheels to the bottom of the crib frame. Ensure the wheels are securely locked if you do not intend to move the crib.
4. Place the mattress onto the mattress support.
5. Perform a final check to ensure all screws and bolts are tightened and the crib is stable.

3.3 Folding for Portability

The EvoNook Mini Crib is designed to fold for easy storage and transport. To fold the crib, follow the instructions in the video below. Ensure the mattress is removed before folding.

Video: This video demonstrates the process of easily folding the EvoNook Mini Crib for storage or transport. It shows how the crib's sides can be collapsed inward, making it compact.

4. Operating and Configurations

The EvoNook Mini Crib offers 6-in-1 convertibility to grow with your child.

Image: A visual guide illustrating the seven different configurations of the EvoNook Mini Crib, including crib, toddler bed, cradle, sofa, playpen, day bed, and twin-size bed headboard.

4.1 Adjustable Mattress Heights

The crib features four adjustable mattress height positions to accommodate your child's developmental stages and ensure safety.

• Highest Position: For newborns and infants who cannot push up on hands and knees.
• Mid-High Position: For infants who are beginning to sit up.
• Mid-Low Position: For infants who can pull themselves to a standing position.
• Lowest Position: For toddlers who can stand and are at risk of climbing out.

To adjust the mattress height, carefully remove the mattress, unfasten the mattress support from its current position, and re-secure it at the desired height. Always ensure all fasteners are tight before placing your child back in the crib.

Image: A detailed view of the crib's side, illustrating the four distinct mattress height settings suitable for different stages of a baby's development, from napping to standing.

4.2 2-in-1 Adaptable Legs

The crib's legs can be configured for either stable stationary use or a gentle rocking motion.

• Stable Stay: For a fixed position, ensure the leg extensions are flat on the floor.
• Cradles at 9.8°: For a gentle rocking motion, adjust the leg extensions to the curved position. This mimics a natural cradling feel.

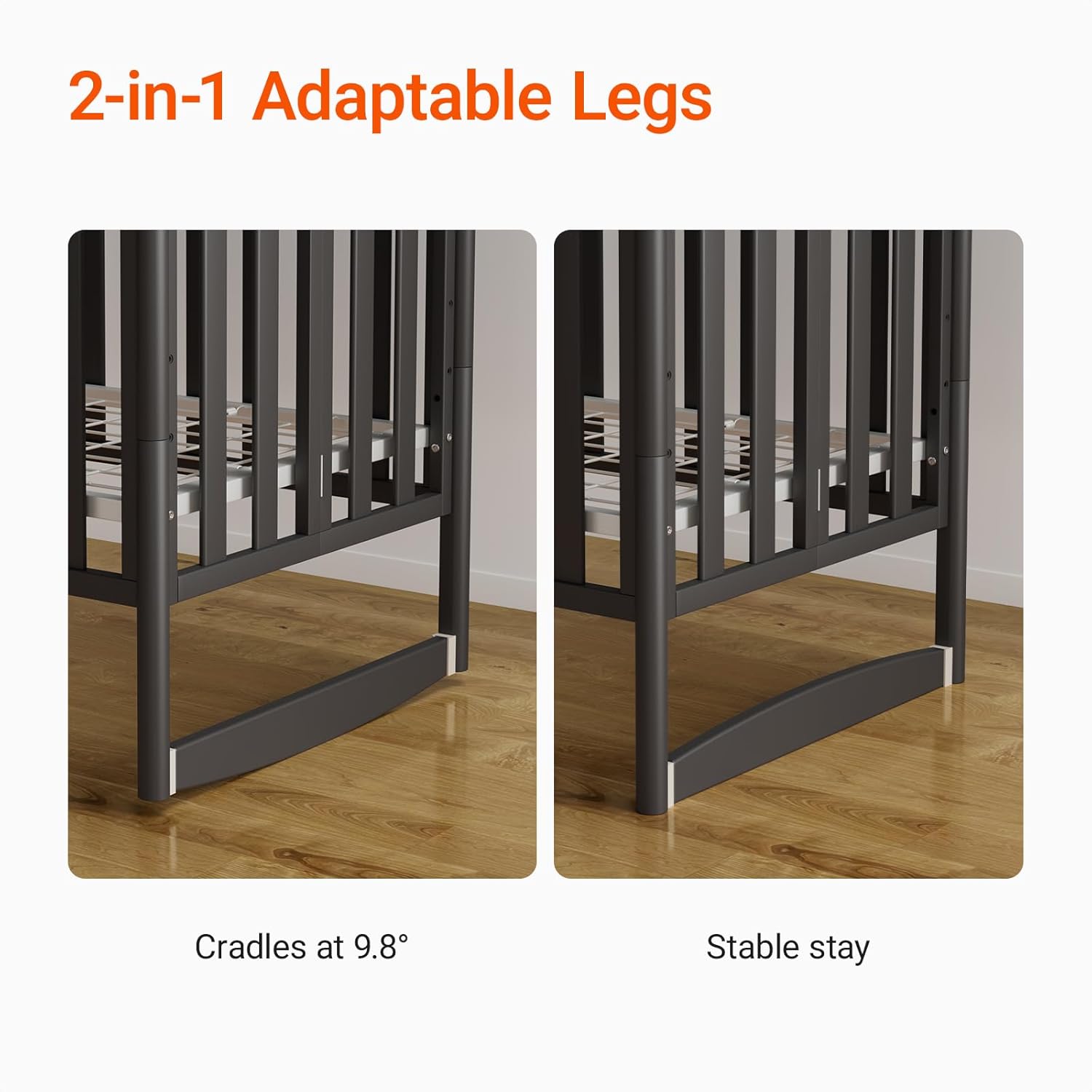

Image: A comparison showing the crib's legs configured in two ways: one for a gentle 9.8-degree rocking motion and the other for a stable, stationary position.

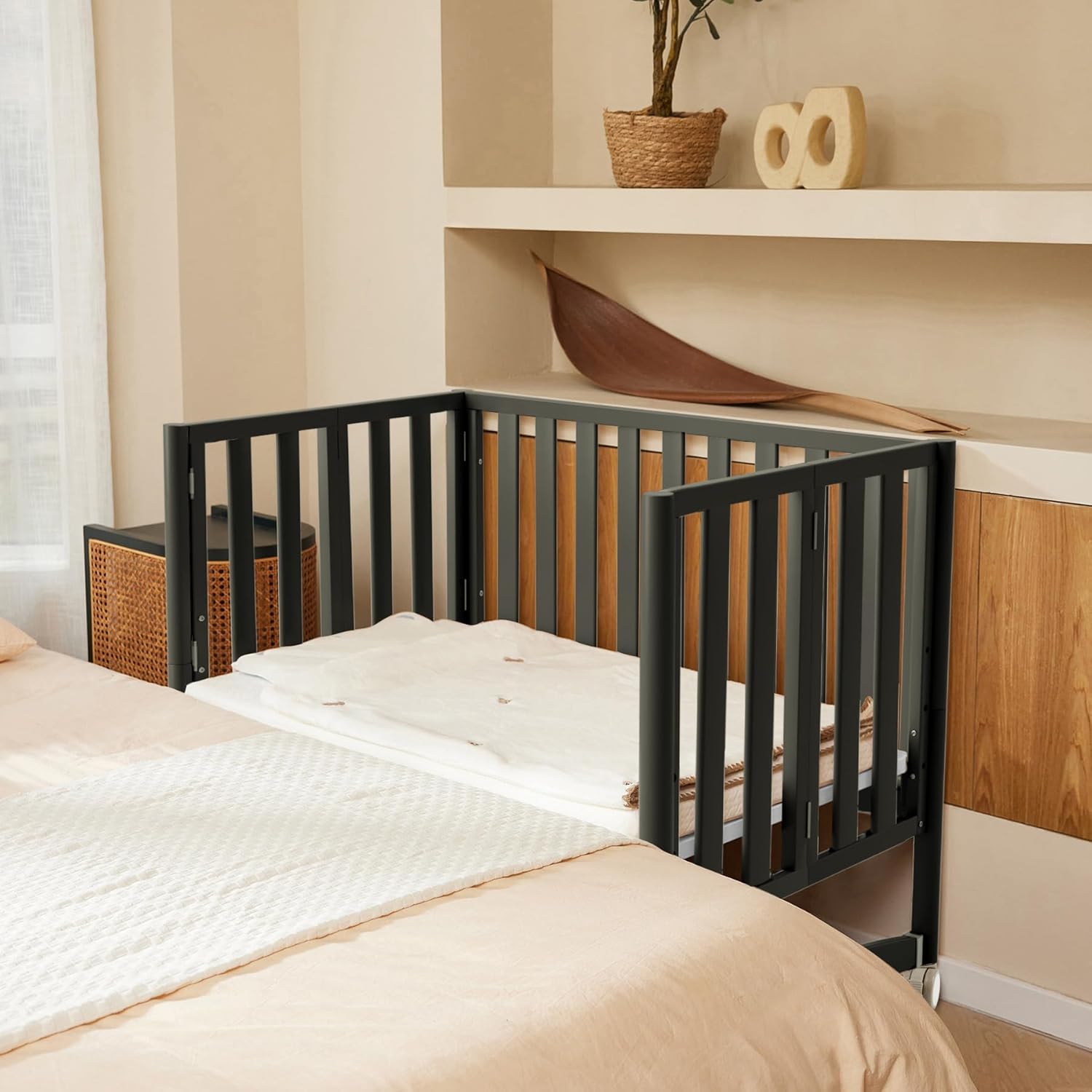

Image: The EvoNook Mini Crib placed alongside a larger adult bed, illustrating its use as a co-sleeper or bedside bassinet.

5. Maintenance

Proper maintenance will extend the life of your EvoNook Mini Crib.

• Cleaning: Wipe the crib surfaces with a dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then wipe dry immediately. Avoid abrasive cleaners or strong chemicals.
• Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they are tight. Loose hardware can compromise the crib's stability and safety.
• Storage: If storing the crib for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter any issues with your EvoNook Mini Crib, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact MAMAZING customer support.

7. Specifications

Image: The EvoNook Mini Crib with its key dimensions clearly marked: 41 inches in length, 27 inches in width, and 34 inches in height.

8. Warranty and Support

MAMAZING stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official MAMAZING website.

For customer support, replacement parts, or any inquiries, please contact:

• Brand: MAMAZING
• Website: Visit the MAMAZING Store on Amazon
• Manufacturer: Mamazing

Please have your model number (#89188) and purchase date available when contacting support.
