1. Introduction
Thank you for choosing the EUGAD 0245WY Tall Bathroom Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.
Safety Warning: Always secure the cabinet to the wall using the provided anti-tip safety device to prevent tipping and ensure stability. Failure to do so may result in serious injury.

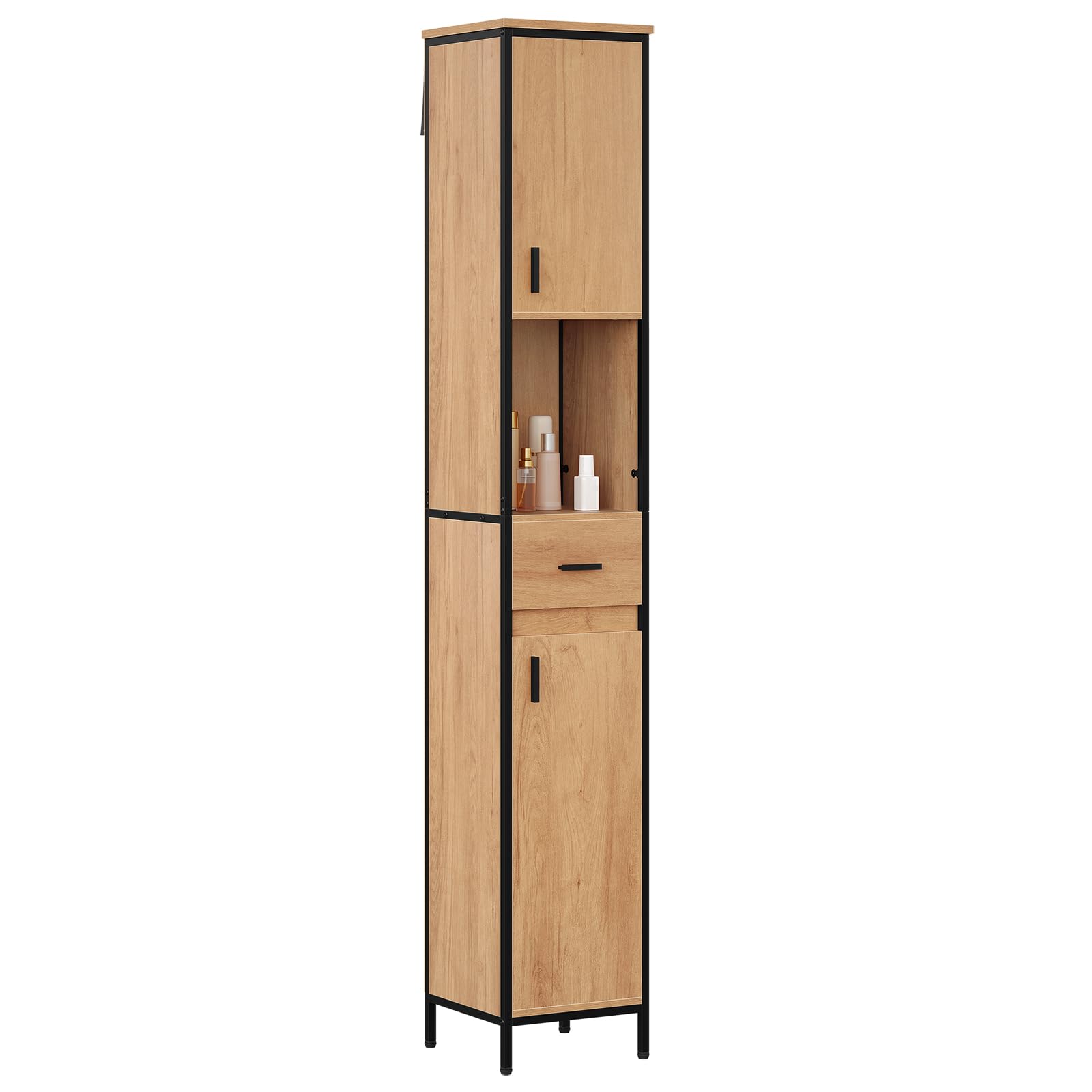

Image 1: The EUGAD 0245WY Tall Bathroom Cabinet, showcasing its design and potential use in a home office environment.
2. Product Features
- High-Quality Materials: Constructed from E1 grade wood with melamine veneer, offering wear-resistance, durability, waterproofing, and easy cleaning. Features a black lacquered iron frame for enhanced stability and rust prevention. Durable metal hinges ensure smooth door operation.
- Multiple Storage Options: This tall cabinet (30 x 180 x 30 cm) includes two cabinets with doors, an open compartment, and a drawer (23.5 x 7.5 x 21 cm), making it versatile for use in bathrooms, living rooms, or kitchens.
- Adjustable Shelves: Equipped with two movable and removable shelves that can be adjusted by 6.4 cm up or down, allowing for flexible storage of items of various sizes.
- Simple Design: The light oak finish combined with straight handles provides a modern and fashionable aesthetic that integrates well into diverse interior spaces.
- Easy Assembly: Comes with detailed assembly instructions and all necessary accessories for straightforward setup. Includes an anti-tip safety device for secure wall mounting.

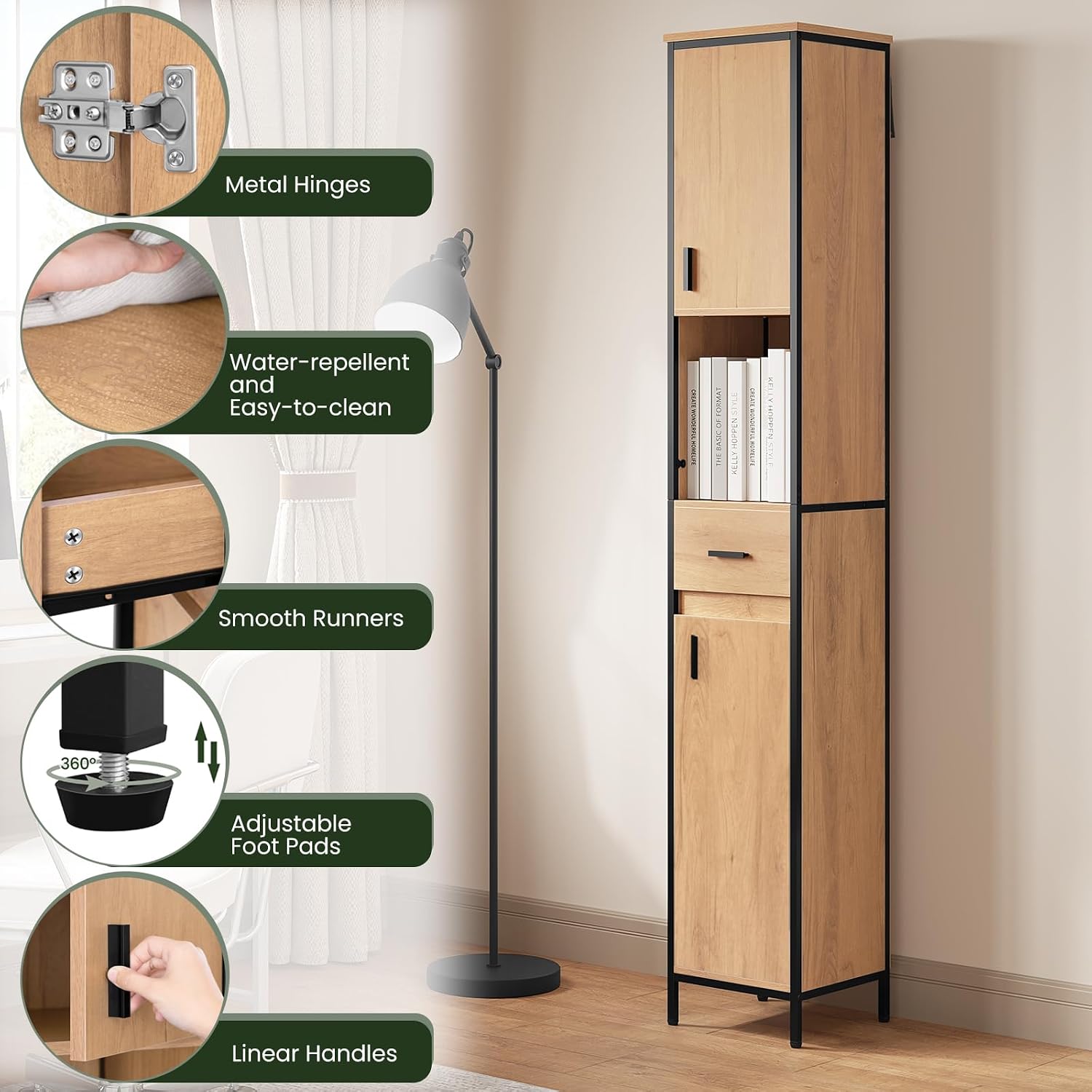

Image 2: Detailed view of key features including metal hinges, water-repellent surface, smooth drawer runners, adjustable foot pads, and linear handles.
3. Package Contents
Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Cabinet Panels (Top, Bottom, Sides, Back)
- Cabinet Doors (x2)
- Drawer Components
- Adjustable Shelves (x2)
- Iron Frame Components
- Accessory Kit (screws, dowels, hinges, drawer runners, handles, adjustable foot pads, anti-tip strap)
- Assembly Instructions Manual
4. Specifications
| Product Dimensions (L x W x H) | 30 x 30 x 180 cm |
| Weight | 20.13 kg |
| Material | E1 Grade Wood, Melamine Veneer, Iron Frame |
| Color | Black + Light Oak |
| Number of Doors | 2 |
| Number of Drawers | 1 |
| Number of Adjustable Shelves | 2 |
| Assembly Required | Yes |
| Mounting Type | Floor Mount (with wall anti-tip fixation) |
Image 3: Comprehensive diagram showing the external and internal dimensions of the cabinet and its components.
5. Setup and Assembly
Follow the detailed assembly instructions provided in the package. Ensure you have all tools ready before starting. A Phillips head screwdriver and a hammer are typically required.
5.1 General Assembly Steps
- Unpack all components and verify against the package contents list.
- Identify each panel and hardware piece using the labels or diagrams in the separate instruction sheet.
- Assemble the main frame structure according to the step-by-step diagrams.
- Install drawer runners and assemble the drawer.
- Attach hinges to the doors and then to the cabinet frame.
- Insert adjustable shelves into desired positions.
- Attach handles to the doors and drawer.
- Install adjustable foot pads at the base of the cabinet.
5.2 Anti-Tip Safety Device Installation
It is crucial to install the anti-tip safety device to prevent accidental tipping, especially in households with children or pets. This device must be securely fastened to a solid wall stud or using appropriate wall anchors for your wall type.
- Position the cabinet in its final desired location.
- Mark the wall where the anti-tip strap will attach, ensuring it aligns with the pre-drilled holes on the cabinet's back panel.
- Drill a pilot hole in the wall at the marked spot. Insert a wall anchor if necessary.
- Secure one end of the strap to the cabinet and the other end to the wall using the provided screws.
- Ensure the strap is taut and the cabinet is stable.
Image 4: Visual guide for installing the anti-tip safety strap to secure the cabinet to the wall.
6. Operating Instructions
6.1 Using Adjustable Shelves
The cabinet features two adjustable shelves, allowing you to customize storage space. To adjust a shelf:
- Empty the shelf of all contents.
- Carefully lift the shelf and remove it from its current support pins.
- Relocate the support pins to the desired height. Ensure all four pins are at the same level for stability.
- Place the shelf back onto the support pins, ensuring it is level and secure.
Image 5: Illustration of the adjustable shelf mechanism, showing the 6.5 cm increments for height customization.
6.2 Drawer and Door Usage
The drawer operates on smooth runners for easy opening and closing. The cabinet doors are equipped with durable metal hinges for reliable function. Avoid forcing the drawer or doors if they encounter resistance; check for obstructions.
Image 6: The cabinet with its doors open, displaying the internal layout, including the adjustable shelves and the open compartment above the drawer.
7. Maintenance
Proper care will extend the life and appearance of your EUGAD cabinet.
- Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the melamine veneer or lacquered frame.
- Spills: Immediately wipe up any spills, especially water, to prevent moisture damage to the wood.
- Hardware: Periodically check all screws and fittings to ensure they are tight. Retighten if necessary to maintain structural integrity.
- Environment: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause fading or warping.
8. Troubleshooting
If you encounter any issues with your cabinet, refer to the following common solutions:
- Cabinet is Wobbly:
- Ensure all assembly screws are tightened securely.
- Adjust the foot pads at the bottom of the cabinet to level it on uneven floors.
- Verify the anti-tip strap is correctly installed and taut.
- Doors Do Not Close Smoothly or Are Misaligned:
- Check the hinge screws; they may need tightening or adjustment.
- Ensure the cabinet is level.
- Inspect for any obstructions preventing the door from closing.
- Drawer Sticks or Is Difficult to Open/Close:
- Ensure the drawer runners are correctly installed and free of debris.
- Check that the drawer is not overloaded or unbalanced.
9. Safety Information
Your safety is paramount. Please adhere to the following safety guidelines:
- Anti-Tip Device: Always install and properly use the provided anti-tip safety device to prevent the cabinet from falling over. This is especially important in homes with young children.
- Weight Limits: Do not exceed the recommended weight limits for shelves and the drawer. Overloading can compromise stability and cause damage.
- Assembly: Ensure all parts are correctly assembled and tightened before use. Regularly check fittings for tightness.
- Placement: Place the cabinet on a level, stable surface. Avoid placing heavy items on the top edge of the cabinet.
- Children: Do not allow children to climb on or play with the cabinet. Keep small parts and assembly hardware out of reach of children.
10. Warranty and Support
EUGAD products are manufactured to high-quality standards. For any questions regarding assembly, missing parts, or product defects, please contact EUGAD customer support. Please have your model number (0245WY) and purchase information ready when contacting support.
For further assistance, please visit the EUGAD Brand Store or refer to your purchase documentation for contact details.
