Ecomobi MS01F Lightweight Foldable Mobility Scooter Instruction Manual

1. Introduction and Overview

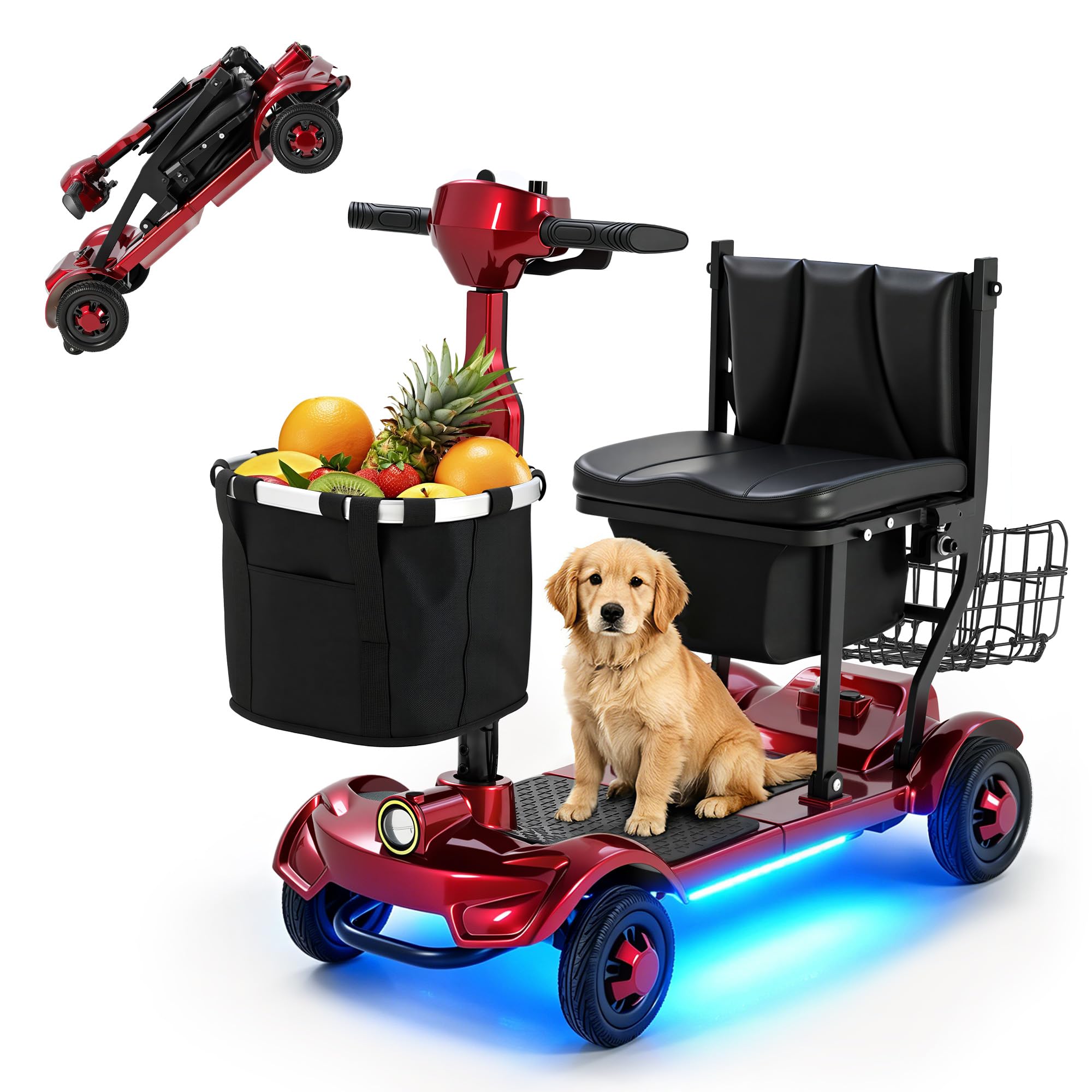

The Ecomobi MS01F Lightweight Foldable Mobility Scooter is designed for seniors and adults seeking enhanced mobility and independence. This ultra-lightweight scooter, weighing only 41 lbs, offers quick folding for easy transport and storage. It features multiple battery options for extended range, a powerful 350W motor for various terrains, and comprehensive safety features. Enjoy comfort with a spacious, adjustable seat and ample storage for daily essentials.

Image: The Ecomobi MS01F scooter, folded compactly, is shown stored in the trunk of a car, highlighting its portability.

2. Setup and Assembly

2.1 Unboxing and Initial Setup

Your Ecomobi MS01F scooter arrives mostly pre-assembled. Carefully remove all packaging materials. The scooter is designed for easy one-step unfolding. Ensure all components are present as listed in the packing slip.

Video: This video demonstrates the unboxing process, one-step unfolding, and initial adjustments of the M3 lightweight mobility scooter, including backrest, seat cushion, and handlebar height.

2.2 Battery Installation and Charging

The scooter features a dual battery slot system. Ensure the battery is placed in the front active battery slot with the connector properly aligned and fully inserted. For initial use, charge the battery for 12 hours. The removable lithium battery is FAA & airline-approved.

• 12Ah Battery Version: Includes one 12Ah lithium battery. A placeholder is installed in the second compartment.
• Dual 12Ah Batteries Version: Includes two 12Ah lithium batteries, both installed.
• Dual Batteries (12Ah + 20Ah) Version: Includes one 12Ah lithium battery with an additional 20Ah lithium battery shipped separately.

Note: Only one battery operates at a time. When one battery is depleted, manually switch to the second battery. Failure to place the battery in the correct slot or fully connect it may result in the scooter not powering on.

Video: This video illustrates the assembly of the Ecomobi MS02 scooter, including seat installation, armrest adjustment, basket attachment, battery connection, and charging port usage.

2.3 Attaching Accessories

Attach the front and rear baskets as desired. The scooter comes with a front basket, a rear basket, an under-seat bag, and a rear pocket for ample storage. Install rearview mirrors by turning them clockwise into the handlebar holes. Ensure all attachments are secure before operation.

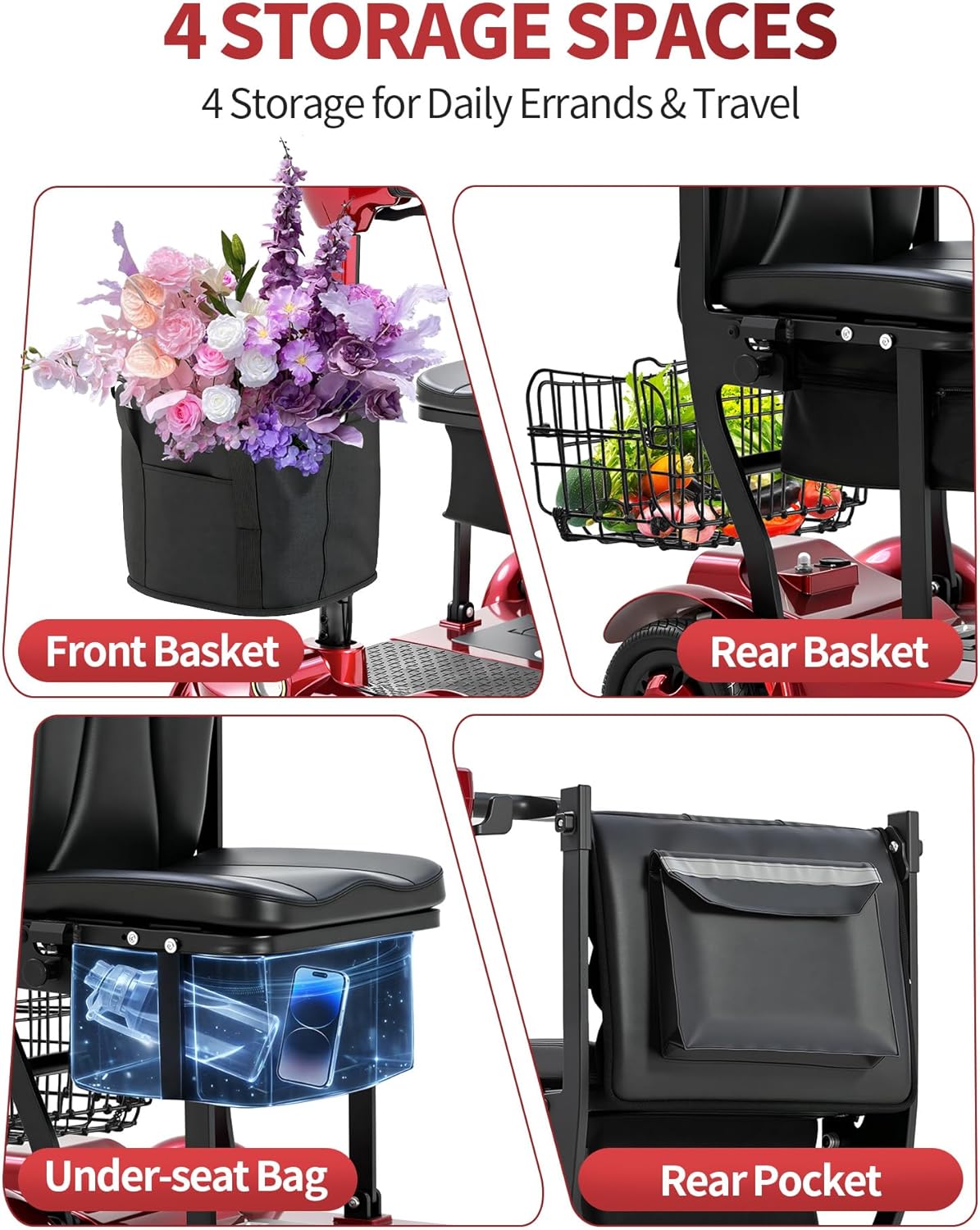

Image: This image displays the four storage spaces available on the scooter: a front basket, a rear basket, an under-seat bag, and a rear pocket, highlighting their utility for daily errands and travel.

3. Operating Instructions

3.1 Control Panel Overview

The easy-to-use control panel features clear buttons and a digital display screen. Insert the key and turn it to the 'ON' position. The display shows speed and battery level. Adjust speed using the speed control knob, offering 7 adjustable speed levels.

Image: A detailed view of the scooter's control panel, indicating the digital display for speed and battery, speed adjustment knob, power switch, horn button, headlight button, and throttle levers.

3.2 Driving the Scooter

To move forward, gently twist the throttle lever. To reverse, use the reverse lever. The scooter has a compact 55-inch turning radius, allowing for easy maneuvering in tight spaces. The 350W brushless motor supports up to 300 lbs and handles slopes up to 15 degrees.

Video: This video showcases the MS01F scooter's features, including its folding mechanism, ease of use, maneuverability, and suitability for various activities like shopping and park visits.

3.3 Safety Features

The MS01F is equipped with an automatic electromagnetic braking system that engages when the throttle is released. It also features a bright LED headlight, rear safety light, and blue ambient lighting for enhanced visibility. Anti-tip wheels and front bumper protection further ensure a safe ride.

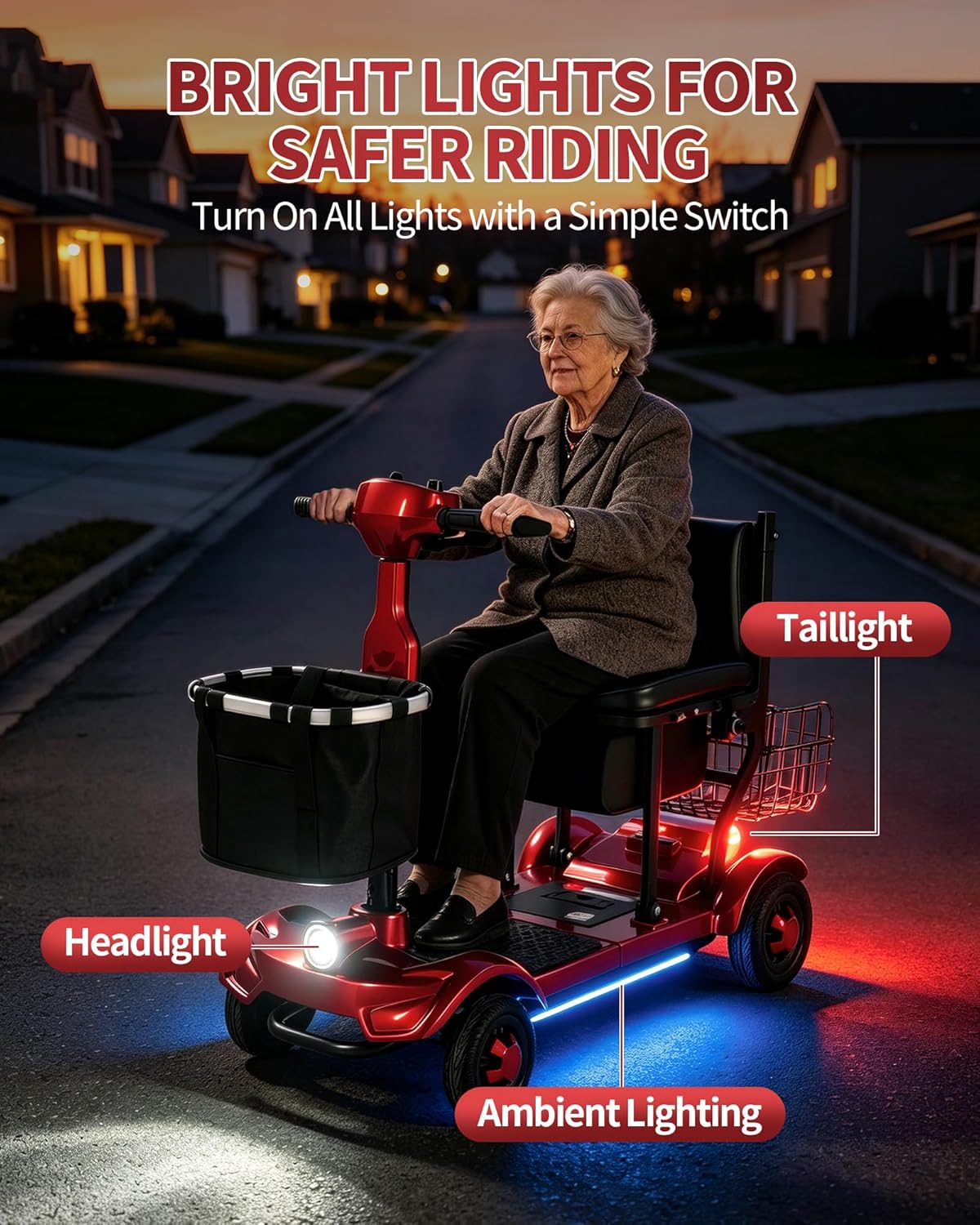

Image: The scooter is shown in a nighttime setting with its bright LED headlight, rear safety light, and blue ambient lighting fully active, emphasizing enhanced visibility for safer riding.

4. Maintenance

To ensure the longevity and optimal performance of your Ecomobi MS01F scooter, regular maintenance is recommended. Keep the scooter clean by wiping it with a damp cloth. Avoid using harsh chemicals. Regularly check tire pressure (if applicable, though these are solid tires) and the tightness of all fasteners. Store the scooter in a dry, cool place when not in use, and ensure the battery is charged as per instructions to maintain its health.

5. Troubleshooting

If your scooter experiences issues, consider the following basic troubleshooting steps:

• Scooter not powering on: Check if the battery is fully charged and correctly installed in the active (front) slot with the connector securely inserted.
• Reduced range/power: Ensure the battery is fully charged. If using dual batteries, confirm both are charged and properly connected. Battery performance can decrease in cold weather.
• Unusual noises: Inspect for any loose parts or obstructions around the wheels and motor. Tighten any loose fasteners.

For persistent issues, please refer to the Warranty & Support section for contact information.

6. Specifications

7. Warranty and Support

The Ecomobi MS01F Lightweight Foldable Mobility Scooter comes with a 1 Year Manufacturer Warranty. For any product inquiries, technical assistance, or warranty claims, please contact Ecomobi customer service.

Seller: Ecomobi

Online Mail Service: ECOMOBICLUB@OUTLOOK.COM

Service Tel: +1(833)866-8282 (Available Mon-Fri, 9AM-6PM EST)
