Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Masterpart Refrigerator Door Handle. This white replacement door handle is compatible with various AEG Electrolux refrigerator models, including ER, ERB, ERC, ERD, and ERT series. It is an equivalent to manufacturer part number 2062728015. Please read this manual thoroughly before proceeding with installation to ensure proper fit and function.
Product Overview
Figure 1: Front view of the Masterpart refrigerator door handle. This image shows the main design and color of the handle.
Figure 2: Side view of the handle, highlighting the two pre-drilled mounting holes for installation.

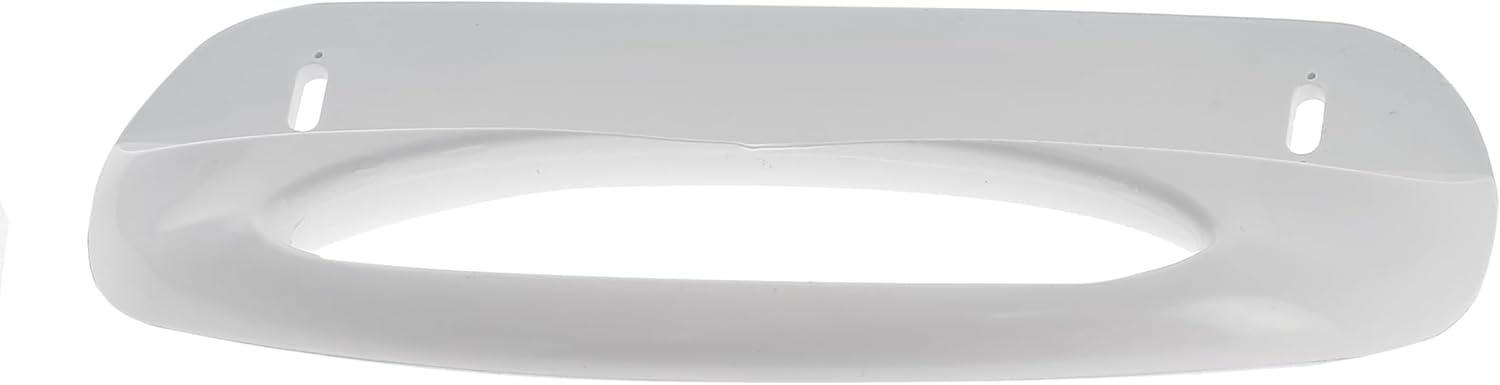

Figure 3: Top-down view of the handle, showing its curved profile and attachment points.

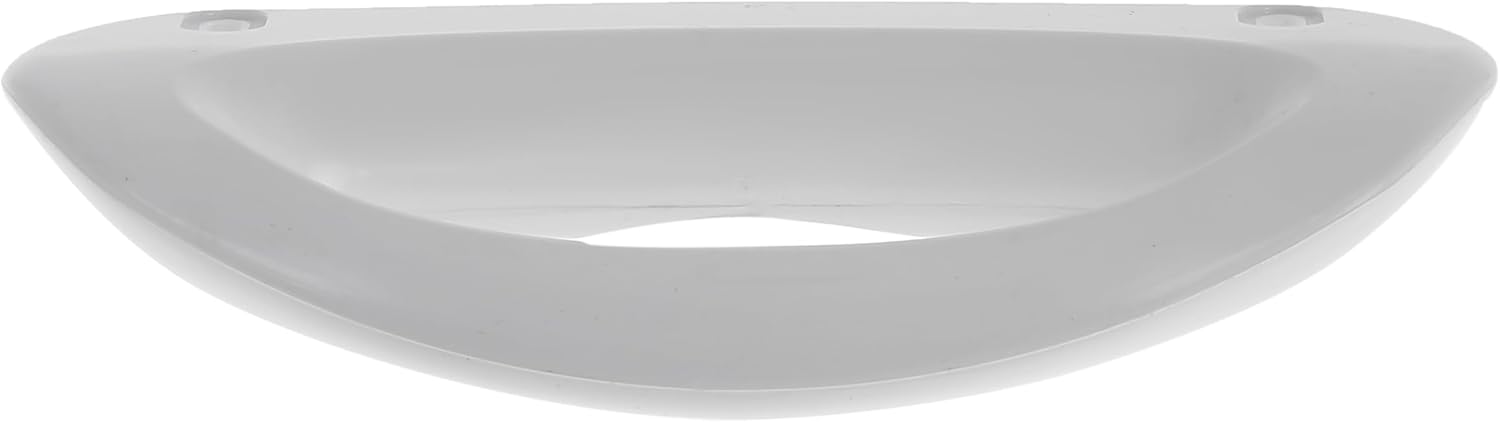

Figure 4: Bottom view of the handle, providing another perspective of its shape and mounting areas.
Figure 5: Angled side view, showing the ergonomic design of the handle for comfortable grip.
Figure 6: Another side view, emphasizing the smooth finish and precise contours of the handle.
Setup and Installation
Before beginning installation, ensure the refrigerator is unplugged from the power outlet for safety. Gather the necessary tools, which typically include a screwdriver (Phillips or flathead, depending on existing screws) and potentially a small pry tool if the old handle is difficult to remove.
Steps for Replacement:
- Remove the Old Handle: Locate the screws securing the existing door handle. These are usually found on the inside edge of the handle or under decorative caps. Unscrew them carefully. If the handle is clipped on, gently pry it off.
- Clean the Mounting Area: Once the old handle is removed, clean the surface of the refrigerator door where the new handle will be attached. Remove any residue or dirt to ensure a secure fit.
- Align the New Handle: Position the Masterpart replacement handle over the existing screw holes on the refrigerator door. Ensure the handle is oriented correctly (as shown in Figure 1).
- Secure the New Handle: Insert the screws into the mounting holes of the new handle and tighten them securely. Do not overtighten, as this can damage the handle or the door.
- Test the Handle: Gently pull on the newly installed handle to ensure it is firmly attached and does not wobble.
- Restore Power: Plug the refrigerator back into the power outlet.
Note: This handle is designed for easy replacement and typically does not require specialized tools or professional assistance.
Operating the Handle
The Masterpart refrigerator door handle functions as a standard pull handle. To open the refrigerator door, simply grasp the handle firmly and pull outwards. Ensure a smooth, consistent pull to avoid unnecessary strain on the handle or door hinges.
When closing the door, gently push it until it seals completely. Avoid slamming the door, as this can cause wear and tear on the handle and other refrigerator components over time.
Maintenance
Regular maintenance of your refrigerator door handle will ensure its longevity and appearance.
- Cleaning: Wipe the handle regularly with a soft cloth dampened with mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the white finish.
- Inspection: Periodically check the handle for any signs of looseness. If the handle feels wobbly, gently tighten the mounting screws. Do not overtighten.
- Avoid Excessive Force: Do not hang items on the handle or apply excessive force when opening or closing the door, as this can lead to breakage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle is loose or wobbly. | Mounting screws are loose. | Gently tighten the mounting screws. Do not overtighten. |
| Handle appears discolored or stained. | Accumulation of dirt or use of harsh cleaners. | Clean with a soft cloth and mild soap and water. Avoid abrasive cleaners. |
| Difficulty opening the door after handle replacement. | Handle not aligned correctly or refrigerator door seal is too strong. | Re-check handle alignment. If the issue persists, the problem may be with the refrigerator door seal, not the handle. |
Specifications
- Brand: Masterpart
- Model Number: HAN104
- Color: White
- Dimensions (L x W x H): Approximately 18.5 x 9 x 9 cm (7.3 x 3.5 x 3.5 inches)
- Weight: 94 Grams (0.21 lbs)
- Manufacturer Part Number Equivalent: 2062728015
- Compatibility: AEG Electrolux ER, ERB, ERC, ERD, ERT series refrigerators.
- Included Components: 1 x White Refrigerator Door Handle
Compatible Models (Partial List):
ER8126B, ER8196B, ER8199B, ER8222D, ER8230B, ER8260D1, ER8262D, ER8306B, ER8313B, ER8316B, ER8360B, ER8361B, ER8366B, ER8369B, ER8391B, ER8394B, ER8397B, ER8398B, ER8406B, ER8490B, ER8492B, ER8494B, ER8495B, ER8548B, ER8606B, ER8620D, ER8620H, ER8625D, ER8625DX, ER8666B, ER8760B, ER8761B, ER8769B, ER8906B, ER8907B, ER8992B, ER8993B, ER8998B, ER9092B, ER9101B, ER9192B, ERB2643, ERB2644, ERB2645, ERB2646, ERB3040, ERB3043, ERB3044, ERB3045, ERB3046, ERB3048, ERB3360, ERB3369, ERB3543, ERB3544, ERB3545, ERB3546, ERB3769, ERB7525, ERC1943, ERC2043, ERC2443, ERC2450, ERC2543, ERD1843, ERD2343, ERD2743, ERD7444, ERD7446, ERD7448, ERD7848, ERT1372, ERT1374, ERT1379, ERT1474, ERT1540, ERT1543, ERT1546, ERT1574, ERT1575, ERT1640, ERT1643, ERT1646, ERT1674, ERT1675, ERT1676, ERT1776, EU 1241 T, EU 6241 T, EU0946T, EU0948T, EU1030T, EU1038T, EU1238T, EU1241T, EU1323T, EU1327T, EU1337T, EU1341T, EU1421T, EU1428T, EU1437T, EU1438T, EU1448T, EU1630C, EU1931C, EU2120C, EU6021T, EU6030T, EU6038T, EU6131T, EU6138T, EU6139T, EU6230T, EU6240T, EU6241T, EU6245T, EU6321T, EU6323T, EU6328T, EU6337T, EU6338T, EU6420C, EU6421C, EU6427C, EU6430C, EU6438T, EU6630C, EU6830C, EU6835C, EU6921C, EU6931C, EU6932C, EU6938C, EU7120/1C, EU7120C, EU7326C, EUF1073, EUF1074, EUT1143, EUT1173, EUT1245, SK231, ST230, TC136, TC150, TC153, TG098, TG100, TK120, TK144.
Please note that this is a partial list. Refer to the manufacturer's specifications or your appliance's manual to confirm compatibility.
Warranty and Support
This product is a replacement part and may not come with a separate manufacturer's warranty. Please refer to the retailer's return policy or contact Masterpart directly for any warranty-related inquiries.
For technical support or further assistance, please contact Masterpart customer service through their official website or the retailer from whom you purchased the product. Always provide your product model number (HAN104) and any relevant purchase details when seeking support.
