Introduction
This manual provides essential instructions for the setup, operation, and maintenance of your NKOK Mean Machines R/C Toyota Tacoma. Please read this manual thoroughly before operating the vehicle to ensure safe and correct usage.
The NKOK Mean Machines R/C Toyota Tacoma is an officially licensed remote control monster truck. It features an ergonomic 2.4GHz pistol grip transmitter, allowing control up to 150 feet (approximately 45 meters) and supporting up to 16 players simultaneously without interference. The vehicle is designed with rear-wheel drive for enhanced maneuverability and is equipped with bouncy, grippy tires suitable for various terrains.
Safety Information
- WARNING: Contains small parts. Not suitable for children under 3 years of age.
- Recommended age for operation is 6 years and above.
- Always operate the vehicle in open areas, away from people, pets, and obstacles.
- Do not operate near water or in wet conditions to prevent damage to electronic components.
- Ensure all batteries are inserted with correct polarity.
- Do not mix old and new batteries, or different types of batteries.
Package Contents
Verify that all items listed below are present in your package:
- 1 x NKOK Mean Machines R/C Toyota Tacoma Vehicle
- 1 x 2.4GHz Pistol Grip Transmitter
- Instruction Manual (this document)
Figure 1: The NKOK Mean Machines R/C Toyota Tacoma as it appears in its retail box, showcasing the truck and controller.
Setup
1. Battery Installation (Vehicle)
- Locate the battery compartment on the underside of the R/C Toyota Tacoma vehicle.
- Use a screwdriver to open the battery compartment cover.
- Insert the required AA alkaline batteries (not included) into the compartment, ensuring correct polarity (+/-). The vehicle requires 6 AA batteries.
- Replace the battery compartment cover and secure it with the screw.
2. Battery Installation (Transmitter)
- Locate the battery compartment on the back of the pistol grip transmitter.
- Open the battery compartment cover.
- Insert the required AA alkaline batteries (not included) into the compartment, ensuring correct polarity (+/-). The transmitter typically requires 2 AA batteries (refer to the compartment for exact number).
- Replace the battery compartment cover.
3. Pairing the Vehicle and Transmitter
The 2.4GHz system automatically pairs the vehicle and transmitter. Follow these steps:
- Ensure fresh batteries are installed in both the vehicle and the transmitter.
- Turn on the vehicle's power switch (usually located on the chassis).
- Turn on the transmitter's power switch.
- The indicator light on the transmitter should blink and then become solid, indicating a successful connection. If it continues to blink, turn both off and repeat the process.

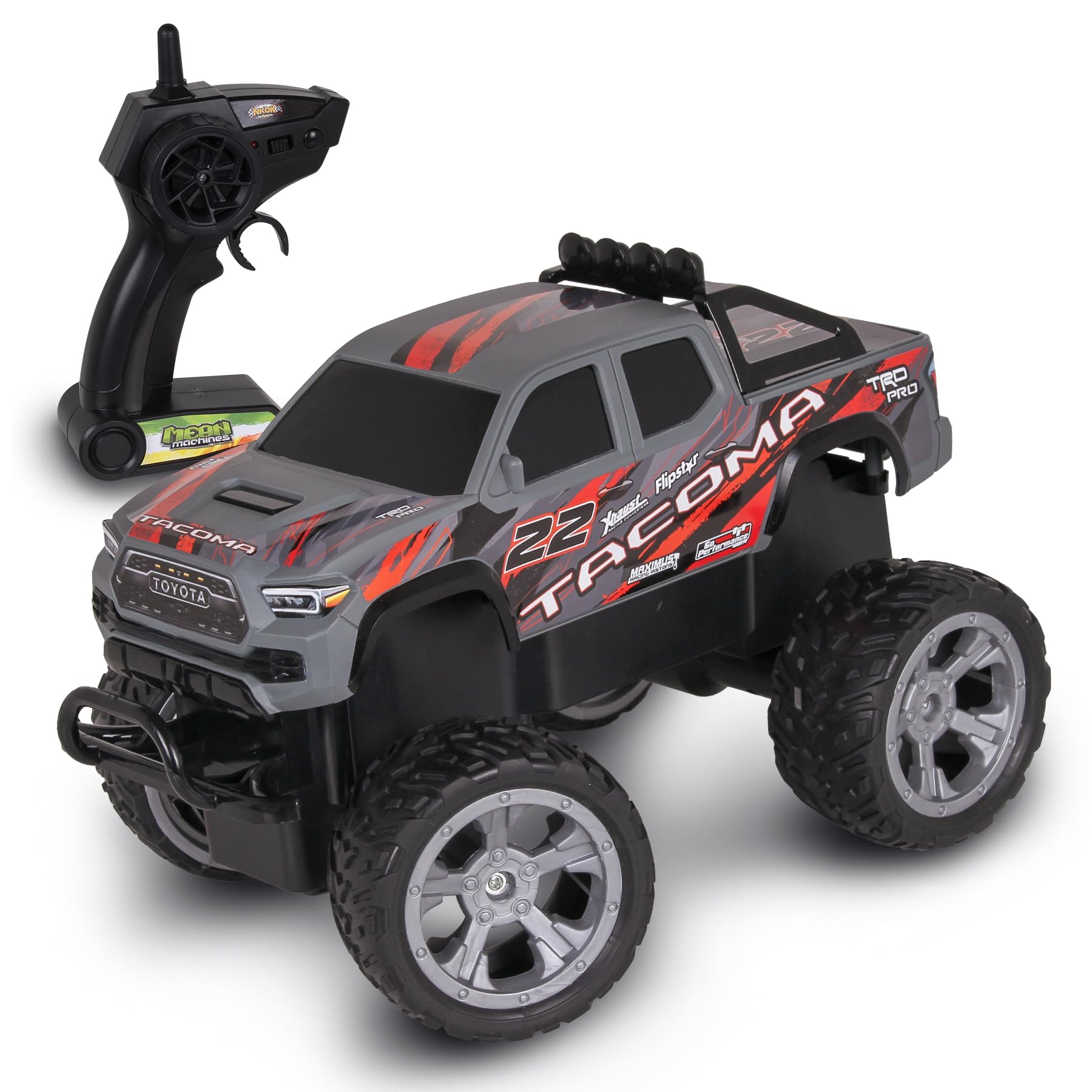

Figure 2: The R/C Toyota Tacoma truck positioned next to its 2.4GHz pistol grip remote control, illustrating the main components.
Operating Instructions
Transmitter Controls
- Steering Wheel: Rotate left or right to control the vehicle's direction.
- Trigger: Pull the trigger to move forward. Push the trigger forward to reverse or brake.
- Power Switch: Turns the transmitter on/off.
- Trim Adjustments (if present): Small dials or sliders to fine-tune steering or throttle if the vehicle pulls to one side or moves without input.
Driving Tips
- Starting: Always start with slow movements to get a feel for the controls.
- Rear-Wheel Drive: The vehicle's rear-wheel drive configuration allows for controlled drifting on suitable surfaces. Practice gentle steering and throttle inputs to initiate and maintain drifts.
- Terrain: The bouncy and grippy tires are designed to tackle various terrains. Avoid extremely rough or sharp surfaces that could damage the tires or chassis.
- Range: Maintain a clear line of sight between the transmitter and the vehicle. The maximum control range is approximately 150 feet (45 meters). Operating beyond this range may result in loss of control.
- Multi-Player: The 2.4GHz frequency allows up to 16 players to operate their R/C vehicles simultaneously without interference.
Figure 3: The R/C Toyota Tacoma truck navigating a rocky outdoor environment, demonstrating its off-road capability.
Figure 4: The R/C Toyota Tacoma truck positioned on mossy ground with tree roots, highlighting its ability to traverse varied surfaces.
Maintenance
General Care
- After each use, turn off both the vehicle and the transmitter.
- Clean the vehicle with a soft, dry cloth. Do not use water or chemical cleaners.
- Remove any debris (dirt, grass, hair) from the wheels and axles to ensure smooth operation.
- Store the vehicle and transmitter in a cool, dry place, away from direct sunlight and extreme temperatures.
Battery Care
- Always remove batteries from the vehicle and transmitter if they will not be used for an extended period.
- Dispose of used batteries responsibly according to local regulations.
- Do not attempt to recharge non-rechargeable batteries.

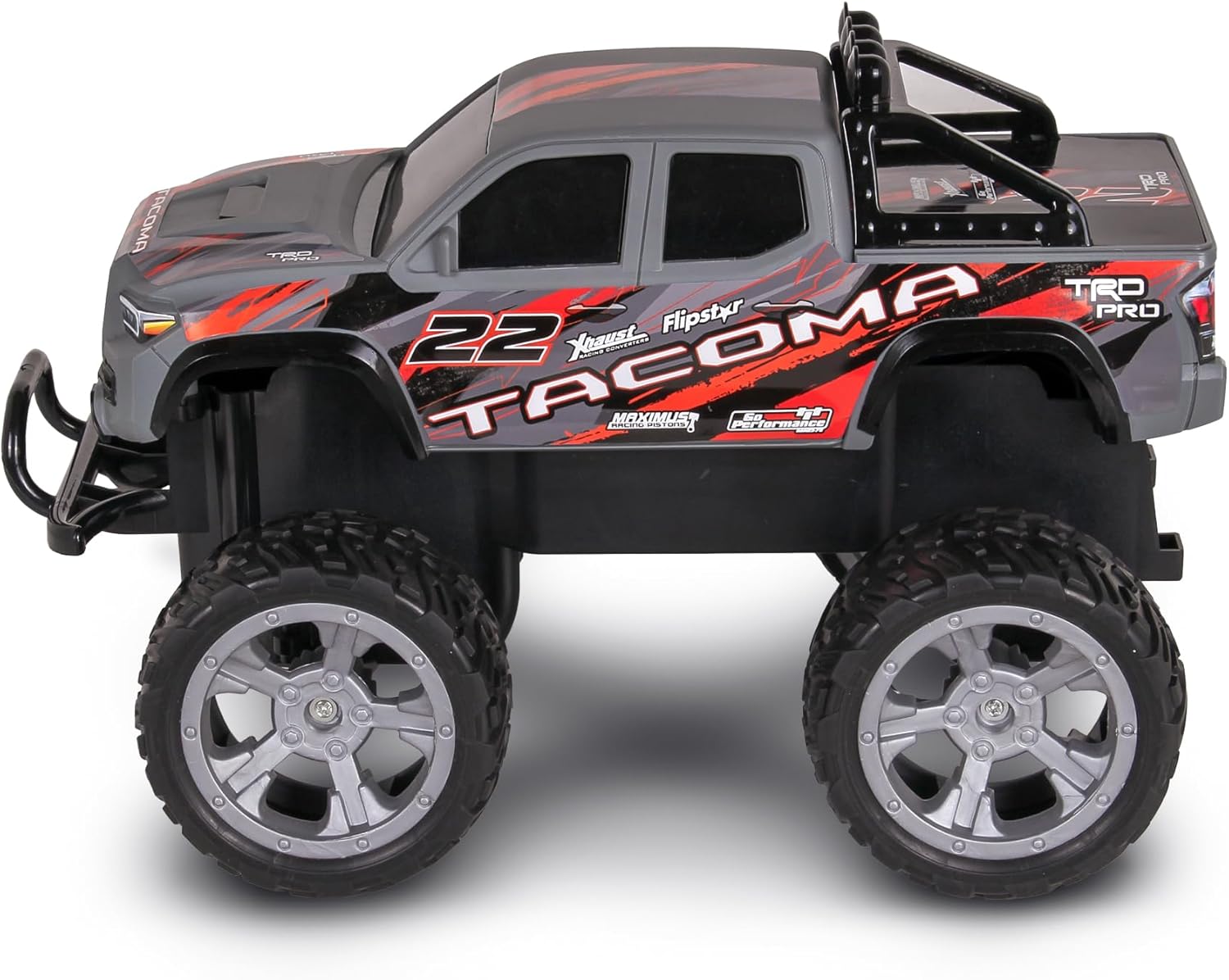

Figure 5: A detailed side view of the R/C Toyota Tacoma truck, showing its chassis and wheel design.
Troubleshooting
If you encounter issues with your R/C Toyota Tacoma, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not respond to transmitter. | Low batteries in vehicle or transmitter; vehicle/transmitter not paired; power switches off. | Replace batteries in both units. Ensure both power switches are ON. Re-attempt pairing procedure. |
| Vehicle has limited range or intermittent control. | Low batteries; interference from other 2.4GHz devices; operating beyond range. | Replace batteries. Move to an area with less interference. Operate within the specified 150-foot range. |
| Vehicle pulls to one side. | Steering trim needs adjustment; damaged steering components. | Adjust the steering trim dial/slider on the transmitter. Inspect for physical damage. |
| Vehicle moves slowly or not at all. | Low batteries; debris in wheels/axles; motor issue. | Replace batteries. Clear any obstructions from moving parts. If problem persists, contact customer support. |
Specifications
- Model Number: 81865
- Brand: NKOK
- Material: Plastic
- Vehicle Battery Requirement: 6 x AA Alkaline batteries (not included)
- Transmitter Battery Requirement: AA Alkaline batteries (number varies, typically 2, not included)
- Radio Frequency: 2.4GHz
- Control Range: Up to 150 feet (approx. 45 meters)
- Multi-Player Support: Up to 16 players simultaneously
- Recommended Age: 6 years and above
- Product Dimensions: 25.4 x 17.15 x 15.24 cm (10 x 6.75 x 6 inches)
- Educational Objectives: Hand/eye coordination
Figure 6: A clear front view of the R/C Toyota Tacoma truck, highlighting its detailed design.
Figure 7: A clear rear view of the R/C Toyota Tacoma truck, showing the back details and roll bar.
Warranty and Support
Specific warranty information for the NKOK Mean Machines R/C Toyota Tacoma is not provided within this manual. For warranty details, product support, or replacement parts, please refer to the manufacturer's official website or contact their customer service directly.
Manufacturer: NKOK Toys
