BNEHS 1 Person Full Spectrum Infrared Sauna

1. Important Safety Information

Please read all instructions carefully before assembly and operation. Failure to follow these safety guidelines may result in injury, electric shock, fire, or property damage.

• Electrical Safety: This sauna operates on 120V. Ensure your electrical outlet and circuit can support the sauna's power requirements (approximately 1400W-1500W). Do not overload circuits. Always unplug the sauna from the power source before cleaning or maintenance.
• Ventilation: Ensure adequate ventilation around the sauna. Do not block air vents.
• Temperature: The sauna can reach temperatures up to 149°F (65°C). Use caution to avoid burns. Do not touch heating elements directly.
• Hydration: Drink plenty of water before, during, and after sauna sessions to prevent dehydration.
• Medical Conditions: Consult a physician before using the sauna if you have any medical conditions, are pregnant, or are taking medication. Discontinue use if you feel dizzy, nauseous, or unwell.
• Children and Pets: Keep children and pets away from the sauna, especially during operation.
• Flammable Materials: Do not place flammable materials inside or near the sauna.
• Glass Components: The sauna features 8mm tempered glass. While durable, avoid striking or applying excessive force to the glass.

2. Package Contents

Verify all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact BNEHS customer support.

• Front Panel with Glass Door
• Back Panel with Heating Elements
• Side Panels (2) with Heating Elements and Glass Windows
• Base Panel
• Roof Panel
• Adjustable Backrest Chair
• Control Panel
• Carbon Heating Panels (7 total)
• Back Heating Tube (1)
• Accessories: Cup Holder, Oxygen Device, Reading Light, Bluetooth Speaker, Air Vent
• Assembly Hardware (screws, clips, etc.)
• Power Cord

3. Assembly Instructions

Assembly typically requires two people due to the weight and size of the panels. Have a sturdy drill/driver with appropriate bits ready.

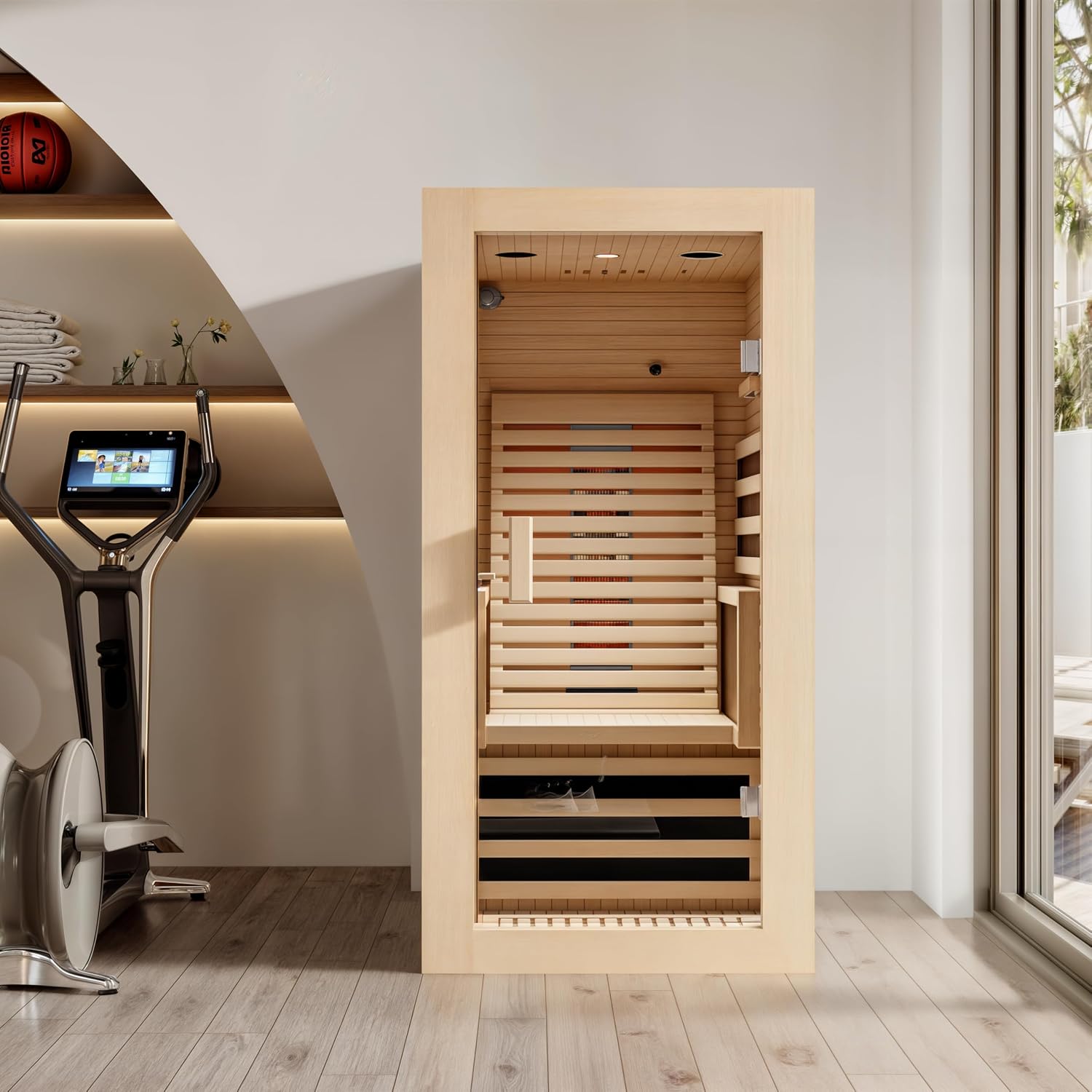

Image: Fully assembled BNEHS 1 Person Full Spectrum Infrared Sauna, showcasing its compact design suitable for home use.

1. Prepare the Area: Choose a flat, stable, and dry location for the sauna. Ensure sufficient space around the unit for assembly and ventilation.
2. Base Panel Placement: Place the base panel in the desired location.
3. Assemble Side and Back Panels: Carefully connect the side panels to the back panel, ensuring all electrical connections for the heating elements are properly aligned and secured. The Canadian Hemlock wood panels are designed for a tight fit.
4. Install Front Panel: Attach the front panel, including the glass door, to the assembled side panels. Ensure the door swings freely and latches securely.
5. Roof Panel Installation: Place the roof panel on top, aligning it with the pre-drilled holes. Secure it with the provided hardware.
6. Internal Components: Install the adjustable backrest chair, ensuring it can be moved to its three positions. Connect the control panel, reading light, Bluetooth speaker, oxygen device, and cup holder as per the diagrams.
7. Final Checks: Double-check all connections, screws, and panel alignments. Ensure no wires are pinched.

Image: The sauna features additional glass windows on both sides of the top, made from 6mm tempered glass for insulation, explosion-proof properties, and scratch resistance.

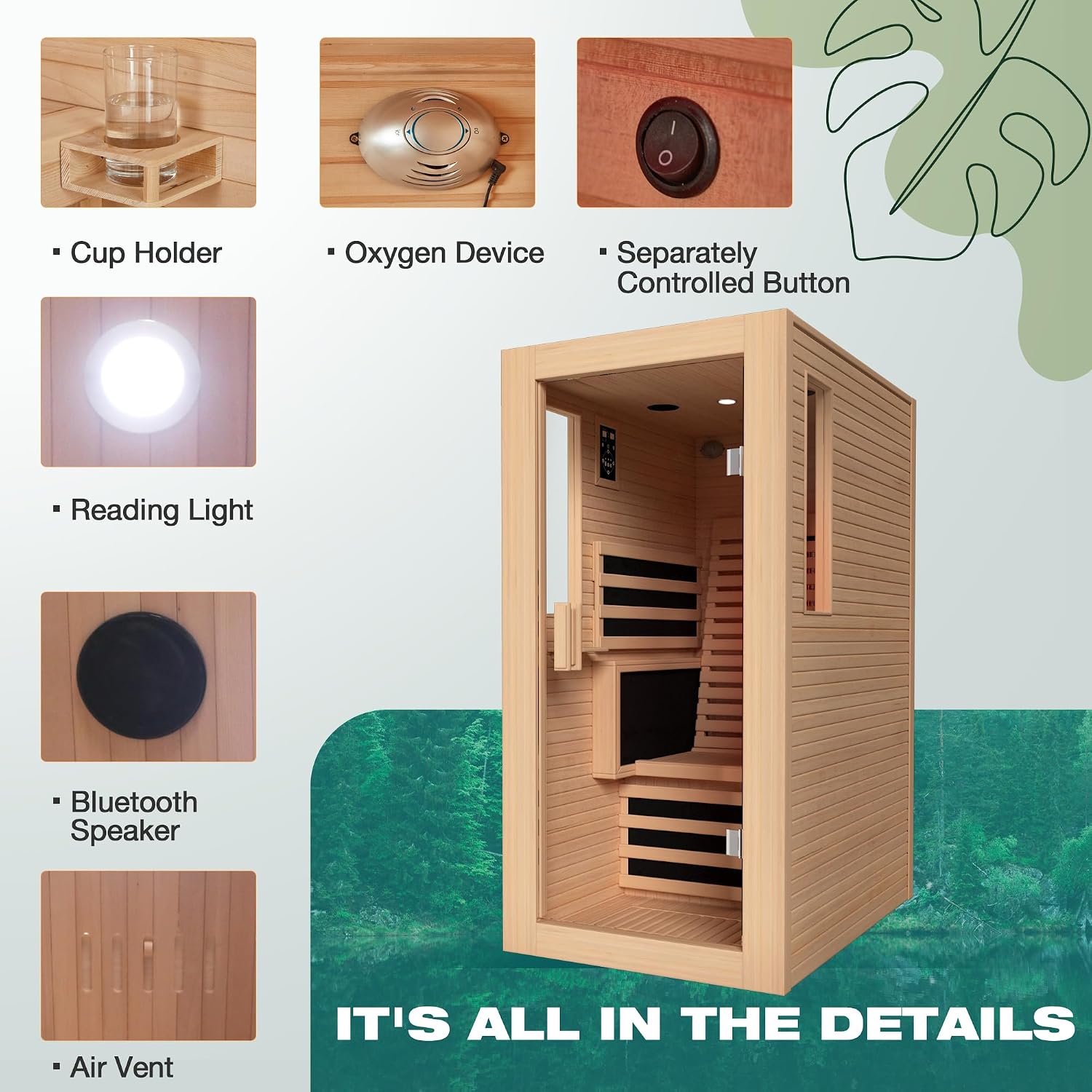

Image: Detailed view of sauna features including cup holder, oxygen device, separately controlled button, reading light, Bluetooth speaker, and air vent.

4. Operating Instructions

Familiarize yourself with the control panel for optimal sauna experience.

Image: Diagram of the sauna's control panel, showing buttons for ON/OFF, Temperature Setting, Timing, Bluetooth/FM conversion, Music Play/Pause, and Full Star Open/Adjust.

1. Power On: Plug the sauna into a dedicated 120V outlet. Press the 'ON/OFF' button on the control panel to power on the unit.
2. Set Temperature: Use the 'TEMP +/-' buttons to adjust the desired temperature. The range is 64.4°F (18°C) to 149°F (65°C).
3. Set Time: Use the 'TIME +/-' buttons to set your desired session duration.
4. Preheating: Allow 10-15 minutes for the sauna to reach the set temperature. The 7 carbon panels and back heating tube provide rapid 3D fast heating.
5. Adjust Backrest: The chair features three adjustable back positions for personalized comfort.
6. Special Features:
   • Red Light Therapy: Activate the anti-aging red light therapy feature via the control panel.
   • Negative Ion Generator: Turn on the negative ion generator for enhanced air quality.
   • Bluetooth Speaker: Connect your device via Bluetooth to play music or audio.
   • Reading Light: Use the internal reading light for illumination.
   • Oxygen Device: Utilize the built-in oxygen bar for fresh air.
7. Session End: The sauna will automatically turn off after the set time. You can also manually turn it off by pressing the 'ON/OFF' button.

Image: Illustration of the sauna's heating system, showing 7 carbon panels and 1 heater tube for rapid 3D heating up to 149°F (65°C), providing a far infrared heat therapy effect.

Image: The adjustable recliner with two handles, offering 3-levels height adjustment and ergonomic design for a more comfortable experience.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your sauna.

• Cleaning: Wipe down the interior and exterior surfaces with a clean, damp cloth after each use. Do not use harsh chemicals or abrasive cleaners, as they can damage the wood or heating elements.
• Wood Care: The Canadian Hemlock wood is naturally resistant to warping and cracking. Avoid excessive moisture. If desired, you can lightly sand any rough spots that may develop over time.
• Glass Cleaning: Use a standard glass cleaner for the tempered glass panels.
• Air Circulation: Keep the air vent clear of obstructions.
• Storage: If storing for an extended period, ensure the sauna is clean, dry, and stored in a climate-controlled environment.

6. Troubleshooting

If you encounter issues with your sauna, refer to the following common problems and solutions. For persistent issues, contact BNEHS customer support.

7. Specifications

Detailed technical specifications for the BNEHS 1 Person Full Spectrum Infrared Sauna.

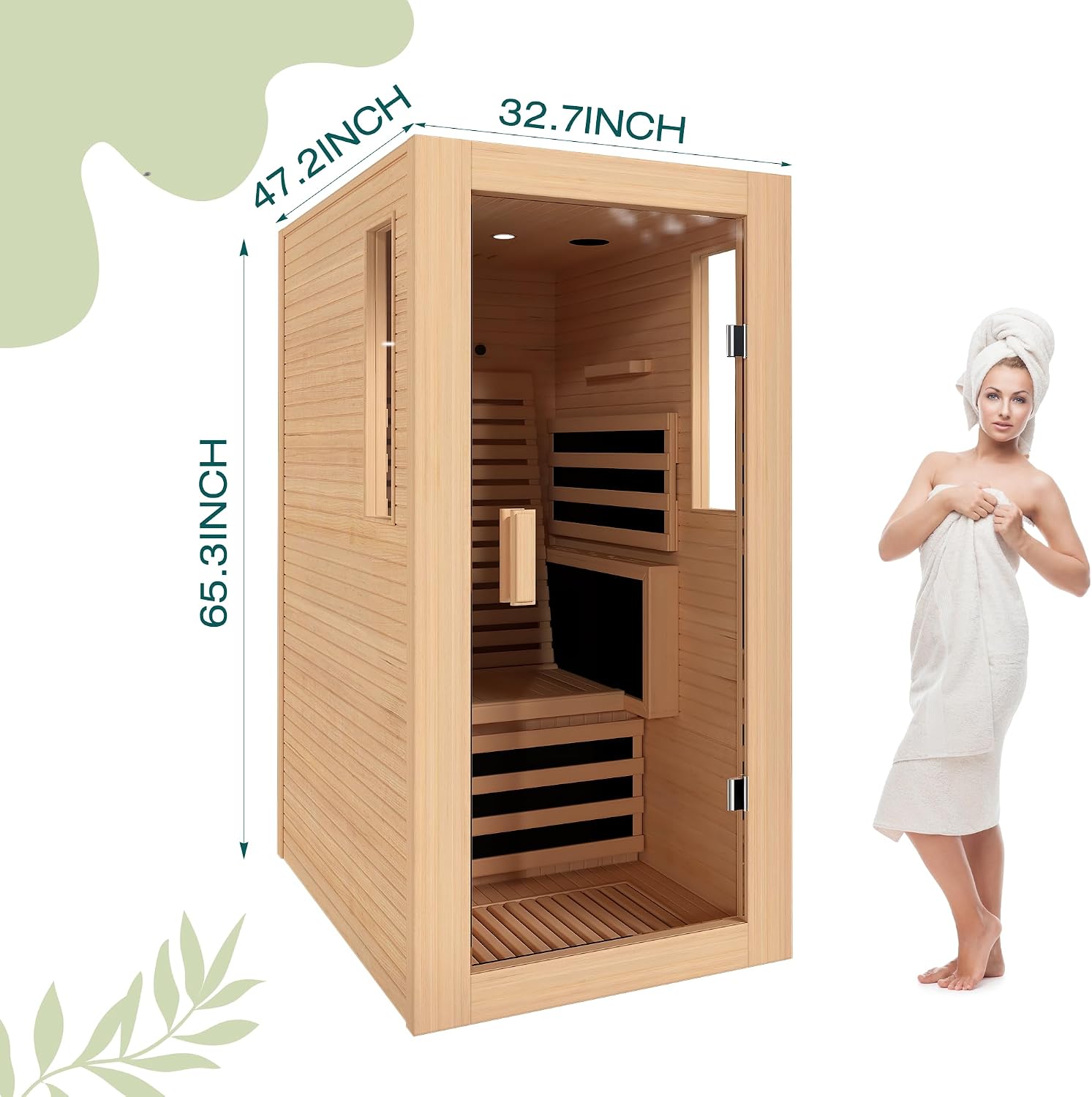

Image: Diagram illustrating the dimensions of the BNEHS 1 Person Full Spectrum Infrared Sauna: 47.2 inches (width), 32.7 inches (depth), and 65.3 inches (height).

• Model: JFPL062MS
• Product Dimensions: 47.2 x 32.7 x 65.3 inches (Width x Depth x Height)
• Item Weight: Approximately 309 pounds
• Material: Triple-layer Canadian Hemlock wood, 8mm explosion-proof tempered glass
• Heating Elements: 7 Mica Plates, 1 Back Heating Tube
• Heating Technology: Full Spectrum Infrared, 3D Fast Heating
• Temperature Range: 64.4°F - 149°F (18°C - 65°C)
• Power Requirement: 120V (approx. 1400W-1500W)
• Features: Adjustable Backrest Chair, Red Light Therapy, Negative Ion Generator, Bluetooth Speaker, Reading Light, Cup Holder, Towel Rack, Built-in Oxygen Bar
• Country of Origin: China

8. Warranty and Support

For any questions, concerns, or warranty claims, please contact BNEHS Direct customer support. Refer to your purchase documentation for specific warranty terms and conditions.

• Returns: This product is eligible for 30-day easy returns.
• Customer Service: For assistance, please reach out to the seller, BNEHS Direct, through the platform where you made your purchase.
