Kimpex 2-Piece Coupler Lock Screw Type Instruction Manual

Introduction

The Kimpex 2-Piece Coupler Lock Screw Type is designed to provide security for your trailer by preventing unauthorized detachment from the towing vehicle. This robust lock features a solid, heat-treated construction that resists corrosion and rust, ensuring long-lasting performance. It utilizes a key-based unlocking system for reliable operation.

Package Contents

• 1 x Kimpex 2-Piece Coupler Lock (Screw Type)
• 2 x Keys

Setup and Installation

Follow these steps to properly install your Kimpex Coupler Lock:

1. Identify the Coupler: Ensure your trailer coupler is clean and free from debris.
2. Insert the Pin: Take the smaller, cylindrical pin component of the lock. Insert it through the latch mechanism of your trailer coupler. The pin should pass completely through the coupler's locking hole.
3. Attach the Lock Body: Align the main lock body with the exposed end of the pin. The screw mechanism within the lock body should engage with the threaded end of the pin.
4. Tighten the Lock: Turn the lock body clockwise to screw it onto the pin. Continue tightening until the lock is snug against the coupler, ensuring there is no excessive play. This secures the coupler and prevents it from being opened.

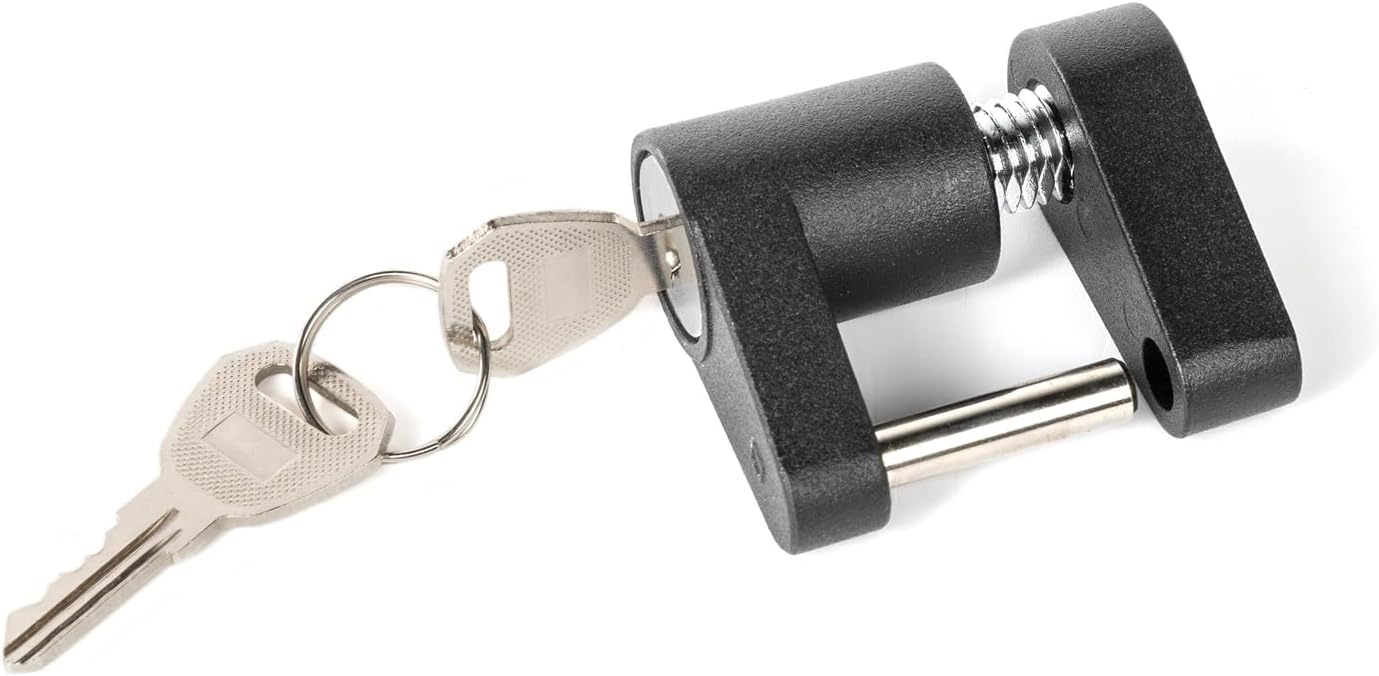

Image: The Kimpex 2-Piece Coupler Lock with a key inserted, illustrating its operational state. This image shows the lock's two components: the main body with the keyhole and the threaded pin, ready to be secured.

Operating Instructions

To operate your Kimpex Coupler Lock:

1. Locking: After installing the lock as described in the "Setup and Installation" section, ensure it is tightened securely. Remove the key by turning it counter-clockwise and pulling it out. The lock is now engaged.
2. Unlocking: Insert one of the provided keys into the keyhole of the lock body. Turn the key clockwise to loosen the screw mechanism. Continue turning until the lock body can be separated from the pin. Remove the pin from the coupler.

Image: The Kimpex 2-Piece Coupler Lock disassembled, showing the main lock body and the separate threaded pin, alongside the two included keys. This illustrates all components of the product.

Maintenance

To ensure the longevity and smooth operation of your coupler lock:

• Cleaning: Periodically clean the lock mechanism and keyhole with a soft cloth to remove dirt and debris.
• Lubrication: Apply a small amount of graphite lubricant or a silicone-based spray to the keyhole and the screw threads once or twice a year, or more frequently if exposed to harsh weather conditions. This will help prevent sticking and ensure smooth key operation.
• Storage: When not in use, store the lock in a dry place to further protect it from environmental elements, although it is designed to resist corrosion and rust.

Troubleshooting

If you encounter issues with your coupler lock, consider the following:

• Key is Stiff or Won't Turn:
  • Ensure the key is fully inserted into the keyhole.
  • Apply a small amount of graphite lubricant into the keyhole and try again.
  • Check for any visible debris obstructing the keyway.
• Lock Body is Difficult to Screw/Unscrew:
  • Check the threads on both the pin and the lock body for dirt or damage. Clean if necessary.
  • Apply lubricant to the screw threads.
  • Ensure the pin is correctly aligned with the lock body before attempting to screw it on.

Specifications

Warranty and Support

For warranty information or technical support regarding your Kimpex 2-Piece Coupler Lock, please refer to the official Kimpex website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Kimpex Official Website: www.kimpex.com
