1. Introduction
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your EGGKING V8 Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and safety.
2. Safety Information
Operating an electric scooter carries inherent risks. Adhere to all local laws and regulations. Always wear a helmet and appropriate safety gear. Ensure the scooter is in good working condition before each ride. Avoid riding in wet conditions, on uneven surfaces, or at excessive speeds. Do not allow children under the recommended age to operate the scooter. Maintain a safe distance from other vehicles and pedestrians.
3. Package Contents
Verify that all items are present in the package:
- EGGKING V8 Electric Scooter
- Charger
- User Manual
4. Product Overview
Front view of the EGGKING V8 Electric Scooter, showcasing the handlebars, stem, and front wheel.
Side view of the EGGKING V8 Electric Scooter, highlighting its overall profile and deck.
Key Features:
- Unmatched Safety & Comfort: Equipped with 8.5-inch honeycomb tires that are 100% puncture-proof, shock-absorbent, and maintenance-free. Features dual front and rear shock absorption for a stable and comfortable ride.
- Long-Lasting 21-Mile Range: Powered by a reliable 7.8Ah lithium battery, offering a range of up to 21 miles per full charge.
- Safe and Responsive Dual Braking: Combines a front electronic brake and rear drum brake for balanced, immediate stopping performance.
- Portable Foldable Design: Weighs 12.5kg (27.5 lbs) and features a one-click quick-folding mechanism for easy transport and storage.
- Smart LCD Display and App Control: Track real-time speed, battery level, and riding mode on the clear LCD screen. Customize settings, track ride history, and unlock extra features via the dedicated app.
Close-up of the 8.5-inch honeycomb tire, designed for puncture resistance and shock absorption.
A person demonstrating the quick-folding mechanism of the scooter for portability.

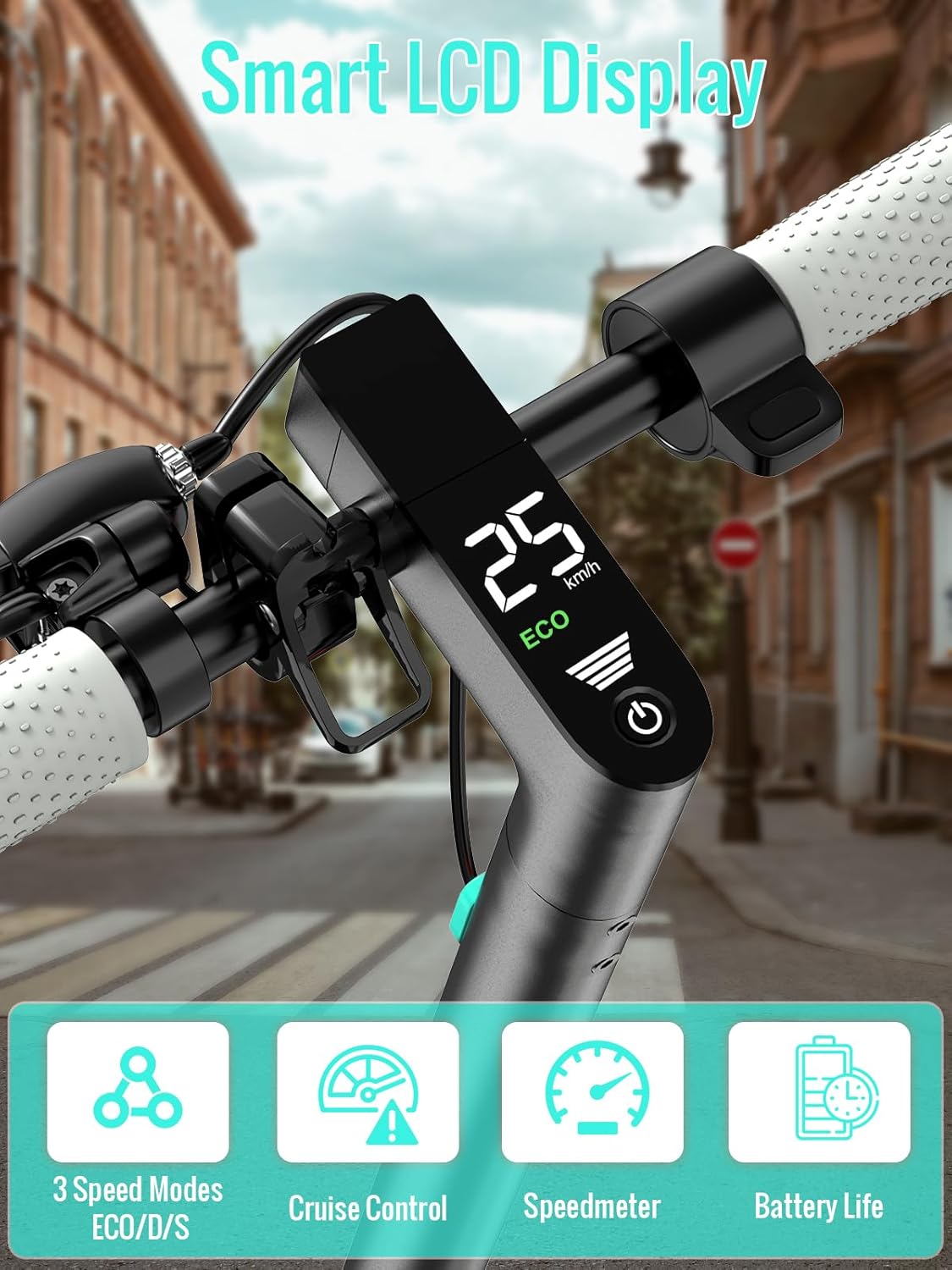

The Smart LCD Display showing speed, battery level, and riding mode.
A smartphone screen showing the dedicated app for controlling and monitoring the scooter.
An illustration highlighting the internal components of the 350W brushless motor.
The scooter's bright lighting system, including the front LED headlight and rear brake light for night visibility.
5. Setup
5.1 Unfolding the Scooter
- Place the scooter on a flat surface.
- Release the folding latch located at the base of the handlebar stem.
- Carefully lift the handlebar stem until it locks into the upright position. Ensure the latch is securely engaged.
5.2 Charging the Battery
Before first use, fully charge the scooter's battery. The charging port is typically located on the side of the deck. Connect the charger to the scooter and then to a standard power outlet. The indicator light on the charger will change (e.g., from red to green) when charging is complete. Charging time is approximately 5 hours.
6. Operating Instructions
6.1 Power On/Off
Press and hold the power button on the display to turn the scooter on or off.
6.2 Riding Modes
The EGGKING V8 features multiple riding modes. Press the power button briefly to cycle through modes (e.g., ECO, Drive, Sport). Each mode offers different speed limits and power delivery:
- ECO Mode: Lower speed, optimized for maximum range.
- Drive Mode: Balanced speed and range for everyday commuting.
- Sport Mode: Highest speed and acceleration for dynamic riding.
6.3 Starting and Accelerating
To start, kick off with one foot while simultaneously pressing the throttle lever. The scooter will accelerate to the selected mode's speed. To maintain speed, engage cruise control if available by holding the throttle for a few seconds.
6.4 Braking
To slow down or stop, release the throttle and gently squeeze the brake lever on the handlebar. The scooter features both electronic and drum brakes for effective stopping power.
6.5 App Control
Download the dedicated EGGKING app from your smartphone's app store. Pair your scooter via Bluetooth to access additional features such as ride statistics, customizable settings, and remote locking/unlocking.
7. Maintenance
7.1 Cleaning
Wipe the scooter with a damp cloth after each use. Avoid using high-pressure water or harsh chemicals. Ensure the charging port cover is closed to prevent water ingress.
7.2 Tire Care
The 8.5-inch honeycomb tires are maintenance-free and puncture-proof. Regularly inspect them for any signs of damage or wear.
7.3 Battery Care
To prolong battery life, avoid fully discharging the battery frequently. Store the scooter in a cool, dry place and charge it periodically if not in use for extended periods (at least once every three months).
7.4 General Inspection
Periodically check all screws, bolts, and connections to ensure they are tight. Inspect brake cables and levers for proper function.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not turn on | Low battery; loose connection | Charge the battery; check all connections. |
| Reduced range or speed | Low battery; heavy load; riding uphill; cold weather | Fully charge battery; reduce load; avoid steep inclines; operate in moderate temperatures. |
| Brakes not responsive | Brake cable loose; worn brake pads | Adjust brake cable tension; replace brake pads if necessary. Consult a professional if unsure. |
| App connection issues | Bluetooth off; app outdated; scooter not discoverable | Ensure Bluetooth is on; update app; restart scooter and phone; try pairing again. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | EGGKING |
| Model Name | V8 |
| Motor Power | 350W |
| Max Speed | 19 Mph |
| Max Distance Range | 21-22 Miles |
| Battery | 7.8Ah Lithium Battery |
| Charging Time | 5 Hours |
| Tire Type | 8.5-inch Honeycomb (Solid) |
| Suspension Type | Dual Suspension |
| Brake Style | Front Electronic, Rear Drum |
| Weight Limit | 265 Pounds |
| Product Dimensions | 43.3"L x 6.29"W x 42.5"H |
| Foldable | Yes |
| Frame Material | Aluminum |
| Color | Yellow |
10. Warranty and Support
All EGGKING electric scooters come with a 12-month quality warranty. This warranty covers manufacturing defects and ensures the product meets quality standards for one year from the date of purchase.
If you encounter any issues or require assistance, please do not hesitate to contact EGGKING customer support. Our professional support team aims to respond within 24 hours to resolve your problem promptly.
For support, please visit the official EGGKING store or contact us through the platform where you purchased the scooter.
