MOONCOOL Electric Folding Tricycle

Introduction

Thank you for choosing the MOONCOOL Electric Folding Tricycle, Model P1600260. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your electric tricycle. Please read this manual thoroughly before using the product to ensure proper function and safety.

Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Wear a Helmet: Always wear an approved bicycle helmet when riding.
• Pre-Ride Checks: Before each ride, inspect brakes, tire pressure, battery charge, and ensure all quick releases and fasteners are secure.
• Traffic Laws: Obey all local traffic laws, regulations, and signage.
• Weight Limit: Do not exceed the maximum load capacity of 450 lbs (204 kg).
• Weather Conditions: Exercise caution when riding in wet conditions, as braking distance may increase. Avoid riding in severe weather.
• Battery Safety: Use only the provided charger. Do not expose the battery to extreme temperatures or puncture it.
• Visibility: Use lights and reflective gear, especially when riding at dawn, dusk, or night.
• UL2849 Certified: This electric tricycle meets UL2849 safety standards.

Setup and Initial Assembly

The MOONCOOL Electric Folding Tricycle is designed for 95% pre-assembly. However, some final assembly steps are required. It is recommended to have appropriate tools (metric wrenches and Allen keys) for assembly, as provided tools may be basic.

Unpacking

1. Carefully remove all components from the packaging.
2. Inspect all parts for any damage during transit. Contact customer support immediately if any damage is found.
3. Ensure all parts listed in the packing list are present.

Assembly Steps

1. Unfold the Frame: Carefully unfold the main aluminum frame until it locks into place. Secure any folding latches.
2. Install Handlebars: Attach the handlebars to the stem and adjust to a comfortable riding position. Tighten all bolts securely.
3. Install Seat and Backrest: Insert the seat post into the frame and adjust the height. Attach the backrest to the saddle for comfort.
4. Install Front Wheel: Attach the front wheel, ensuring the disc brake rotor is correctly aligned with the caliper.
5. Install Rear Wheels: Attach the two rear wheels. Ensure they are securely fastened.
6. Install Pedals: Thread the pedals into the crank arms. Note that the left pedal (L) and right pedal (R) have different threading directions.
7. Install Baskets: Attach the front and rear baskets using the provided hardware.
8. Connect Chain: Ensure the chain is correctly routed through the gears and connected. This step may require careful attention.
9. Adjust Brakes: Adjust the disc brakes for proper function. Ensure brake levers engage smoothly and stop the wheels effectively without rubbing.

Image: The tricycle is 95% pre-assembled. This image illustrates the overall dimensions and key features, including the folding mechanism and load capacity.

Battery Installation and Initial Charge

1. Locate the battery compartment. Insert the 48V 20Ah removable battery pack.
2. Secure the battery in place.
3. Before first use, fully charge the battery using the provided 54.6V 3A fast charger. A full charge typically takes 6-8 hours.

Image: Detailed view of the 48V 20Ah removable battery, showing its capacity, charging time, and 3-year protection.

Operating Instructions

Powering On/Off

• To power on the tricycle, press and hold the power button on the control panel.
• To power off, press and hold the power button again.

Motor Assistance and Speed

• The tricycle features a 750W helical motor with a peak power of 1600W, providing electric assistance.
• Adjust the level of pedal assist using the control panel.
• The maximum assisted speed is approximately 15.5 MPH (25 km/h).
• The rear speed differential ensures a smooth riding experience and prevents startup slippage.

Image: Illustration of the 750W motor with 1500W peak power, highlighting 6-speed Shimano gears, 35° slope capability, 85Nm torque, and 15.5 MPH speed.

Gear Shifting

• Utilize the 6-speed Shimano gears to adapt to various terrains and riding conditions.
• Shift gears smoothly by pedaling lightly while operating the shifter.

Braking

• The tricycle is equipped with disc brakes for reliable stopping power.
• Apply both brake levers simultaneously for balanced and effective braking.

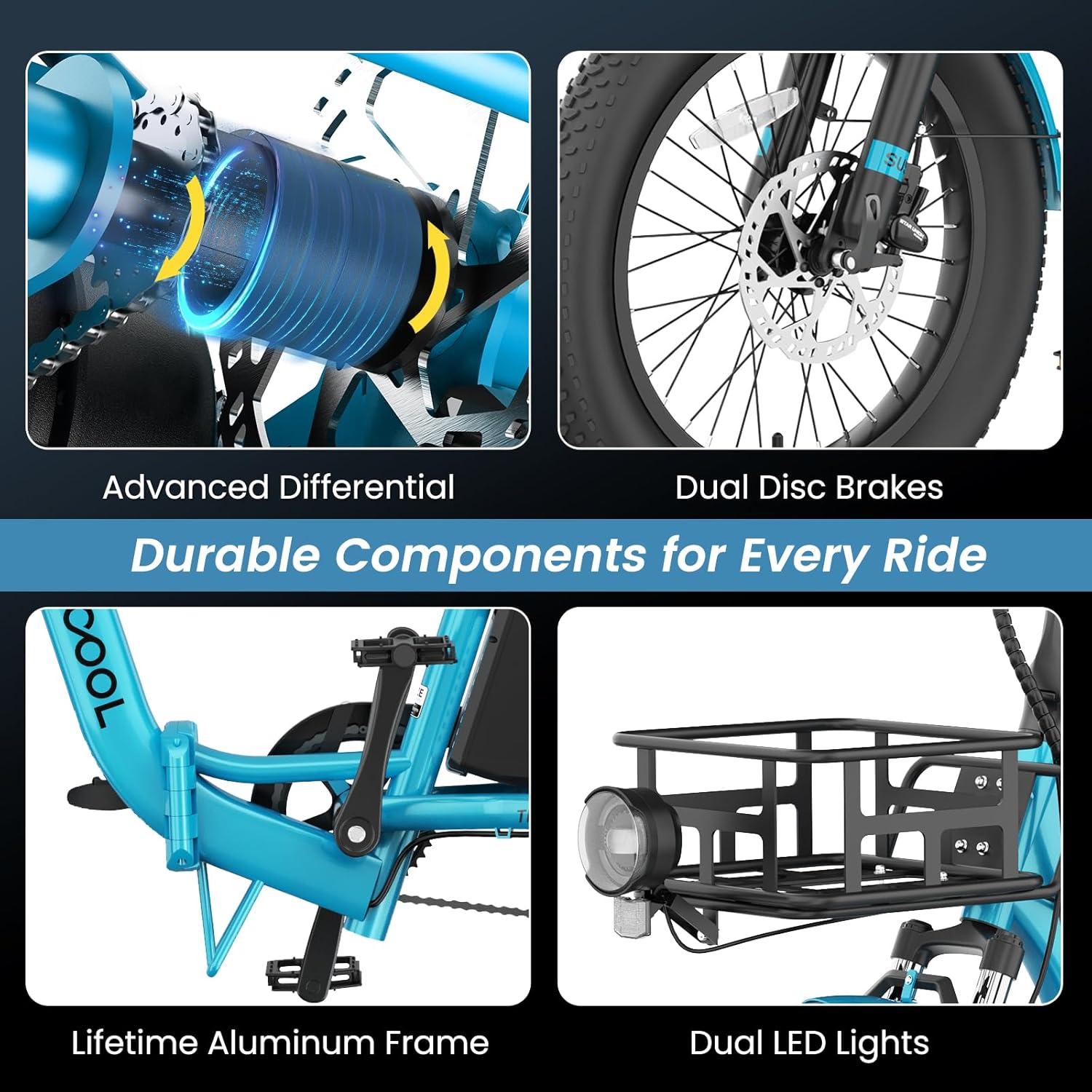

Image: Close-up of durable components including the advanced differential, dual disc brakes, lifetime aluminum frame, and dual LED lights.

Folding Mechanism

• To fold the tricycle for storage or transport, disengage the frame latch (refer to the specific mechanism on your tricycle).
• Carefully fold the frame until it is compact. Ensure all folding mechanisms are securely latched when unfolded for riding.

Basket Usage

• The tricycle includes spacious front and rear baskets for carrying items.
• Distribute weight evenly in the baskets to maintain stability. Do not exceed the recommended load capacity.

Image: The tricycle in use, highlighting comfort features such as the shock fork, 3-inch fat tires, 6-speed Shimano gears, and backrest saddle.

Maintenance

Regular maintenance ensures the longevity and safe operation of your MOONCOOL Electric Folding Tricycle.

Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid fully discharging the battery frequently.

Tires

• Check tire pressure before each ride. Maintain the recommended pressure for optimal performance and safety.
• Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.

Brakes

• Regularly inspect brake pads for wear and replace them as needed.
• Ensure brake cables are free from fraying and properly tensioned. Adjust for optimal braking response.
• Keep disc rotors clean and free from oil or grease.

Chain and Drivetrain

• Keep the chain clean and lubricated to ensure smooth gear changes and prevent wear.
• Inspect gears and derailleur for proper alignment and function.

Frame and Fasteners

• Clean the aluminum frame with a damp cloth and mild detergent. Avoid harsh chemicals.
• Periodically check all bolts, nuts, and quick releases to ensure they are tight and secure.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here or if solutions do not work, please contact customer support.

Specifications

Dimensions

• A: 65.7 inch
• B: 45.3 inch
• C: 29.9 inch
• D: 30-43.3 inch
• E: 13.3 inch
• F: 18.9 x 14.2 x 6.5 inch
• G: 12.6 x 11.8 x 5.7 inch
• H: 39.4 inch
• I: 29.5 inch
• J: 29.9 inch

Warranty and Support

Warranty Information

• Lifetime Aluminum Frame: The 6061 aluminum frame is covered by a lifetime warranty against manufacturing defects.
• 1-Year for Defective Parts: Components and parts are covered for one year against manufacturing defects.
• 3-Year Battery Protection: The battery pack is protected for three years against manufacturing defects.

Please retain your proof of purchase for warranty claims. Warranty terms may vary based on region and retailer.

Customer Support

For technical assistance, warranty claims, or any questions regarding your MOONCOOL Electric Folding Tricycle, please contact your retailer or the MOONCOOL customer service department. Refer to your purchase documentation for specific contact details.
