DOGTOOTH 21V Compact Cordless Reciprocating Saw Instruction Manual

1. Safety Instructions

Always prioritize safety when operating power tools. Read and understand all instructions before use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

General Power Tool Safety Warnings:

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.

Reciprocating Saw Specific Safety:

• Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
• Always ensure the workpiece is securely clamped or held to prevent movement during cutting.
• Keep hands away from the cutting area and the blade.
• Do not touch the blade immediately after use, as it may be hot.

2. Product Overview

The DOGTOOTH 21V Compact Cordless Reciprocating Saw is designed for versatile cutting of various materials, including wood, metal, and PVC. Its compact design and cordless operation provide excellent maneuverability and convenience for both indoor and outdoor projects.

Key Features:

• Compact Design: Lightweight and easy to handle, reducing user fatigue.
• Cordless Operation: Powered by a 21V lithium-ion battery for maximum portability.
• Variable Speed Trigger: Provides precise control over cutting speed for different materials.
• Tool-Free Blade Change: Quick and easy blade replacement without additional tools.
• LED Work Light: Illuminates the cutting area for improved visibility in low-light conditions.
• Safety Lock: Prevents accidental startup, enhancing user safety.

Included Components:

• DOGTOOTH 21V Compact Reciprocating Saw (Model SB002)
• 2 x 2.0Ah Lithium-Ion Batteries
• Fast Charger
• 4 x Saw Blades (for wood, metal, pruning)
• Durable Carrying Case

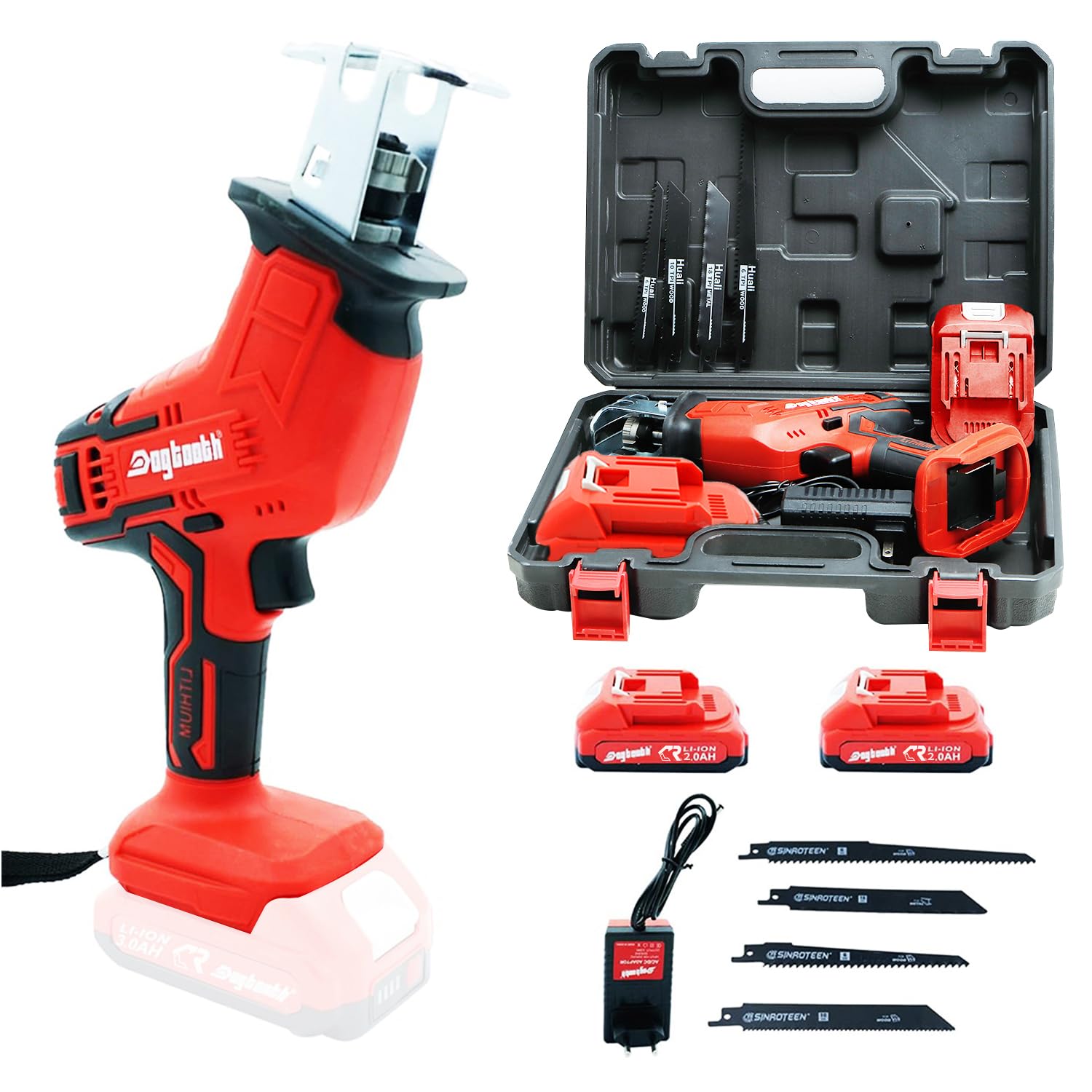

Figure 2.1: The DOGTOOTH 21V Compact Cordless Reciprocating Saw, featuring its ergonomic design and included battery.

3. Setup

3.1 Battery Installation and Charging

1. Ensure the saw's safety lock is engaged (trigger is locked).
2. Align the battery pack with the battery port on the bottom of the saw handle.
3. Slide the battery pack into the saw until it clicks securely into place.
4. To remove the battery, press the release button on the battery pack and slide it out.
5. To charge the battery, connect the charger to a power outlet and then connect the battery pack to the charger. The indicator light on the charger will show the charging status.

Figure 3.1: A 21V 2.0Ah lithium-ion battery, providing power for the cordless reciprocating saw. Ensure it is fully charged before use.

3.2 Blade Installation

1. Ensure the battery is removed from the saw before installing or changing blades.
2. Rotate the locking sleeve on the blade clamp counter-clockwise.
3. Insert the desired saw blade fully into the blade clamp. Ensure the blade teeth are facing the correct direction for cutting.
4. Release the locking sleeve. The blade will automatically lock into place. Gently pull on the blade to confirm it is securely fastened.
5. To remove the blade, rotate the locking sleeve counter-clockwise and pull the blade out. Be cautious as the blade may be hot if recently used.

Figure 3.2: Step-by-step guide for the tool-free blade installation. Rotate the clamp, insert the blade, and release to secure.

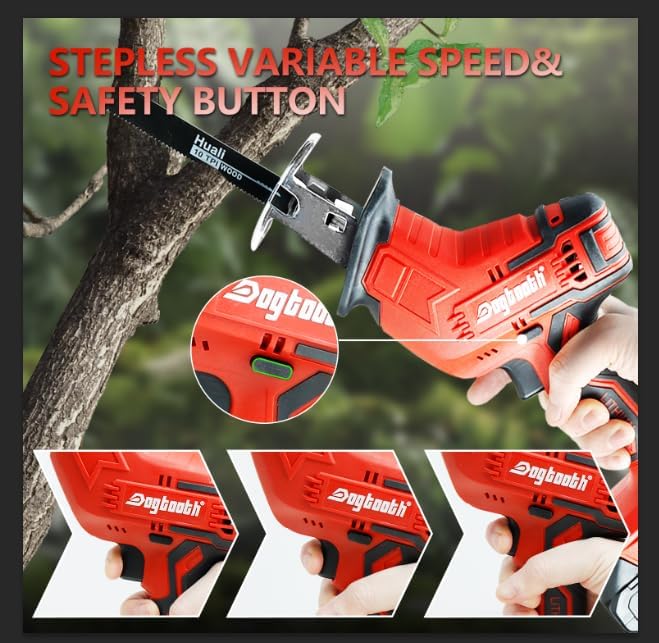

Figure 3.3: The reciprocating saw features a stepless variable speed trigger and a safety button for controlled operation.

4. Operating Instructions

4.1 Starting and Stopping the Saw:

1. Ensure the battery is installed and the correct blade is secured.
2. To start the saw, first disengage the safety lock by pushing it to the 'unlocked' position.
3. Press the variable speed trigger to start the saw. The harder you press the trigger, the faster the blade will move.
4. To stop the saw, release the trigger. Engage the safety lock when not in use.

4.2 Cutting Techniques:

• General Cutting: Place the shoe of the saw firmly against the workpiece. Start the saw before contacting the material. Maintain a firm grip and allow the saw to do the work.
• Wood Cutting: Use a coarse-toothed blade for faster cuts. For thicker wood, allow the blade to cool periodically.
• Metal Cutting: Use a fine-toothed blade. Apply cutting oil to the blade and workpiece to reduce heat and extend blade life.
• PVC/Plastic Cutting: Use a medium-toothed blade. Use a slower speed to prevent melting the material.
• Flush Cutting: The 4-position blade clamp allows for flush cuts against surfaces by flipping the blade upside down.

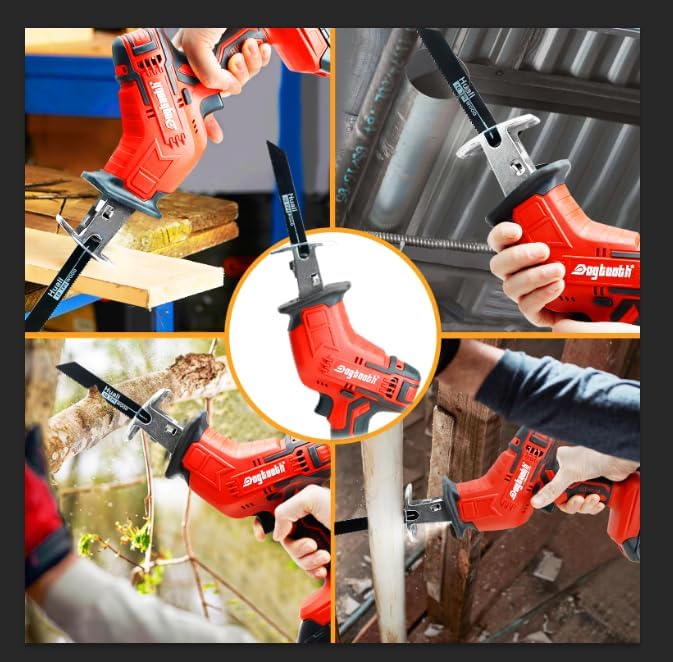

Figure 4.1: The DOGTOOTH reciprocating saw is capable of cutting various materials including wood, metal, and plastic, demonstrating its versatility.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your reciprocating saw.

• Cleaning: After each use, remove the battery and clean the saw with a soft, dry cloth. Use compressed air to clear dust and debris from ventilation openings. Do not use water or chemical cleaners.
• Blade Care: Inspect blades for wear, damage, or dullness before and after each use. Replace dull or damaged blades promptly to ensure efficient and safe cutting.
• Battery Care: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods.
• Storage: Store the saw and its accessories in the provided carrying case in a dry, secure location out of reach of children.

6. Troubleshooting

If you encounter issues with your saw, refer to the following troubleshooting guide:

7. Specifications

8. Warranty and Support

DOGTOOTH is committed to providing high-quality products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact our customer service team. Contact details can be found on the product packaging or our official website.
