Devoko Electric Height Adjustable Desk User Manual

Introduction

Thank you for choosing the Devoko Electric Height Adjustable Desk. This manual provides detailed instructions for the assembly, operation, and maintenance of your new desk. Please read this manual carefully before use to ensure proper function and safety. Keep this manual for future reference.

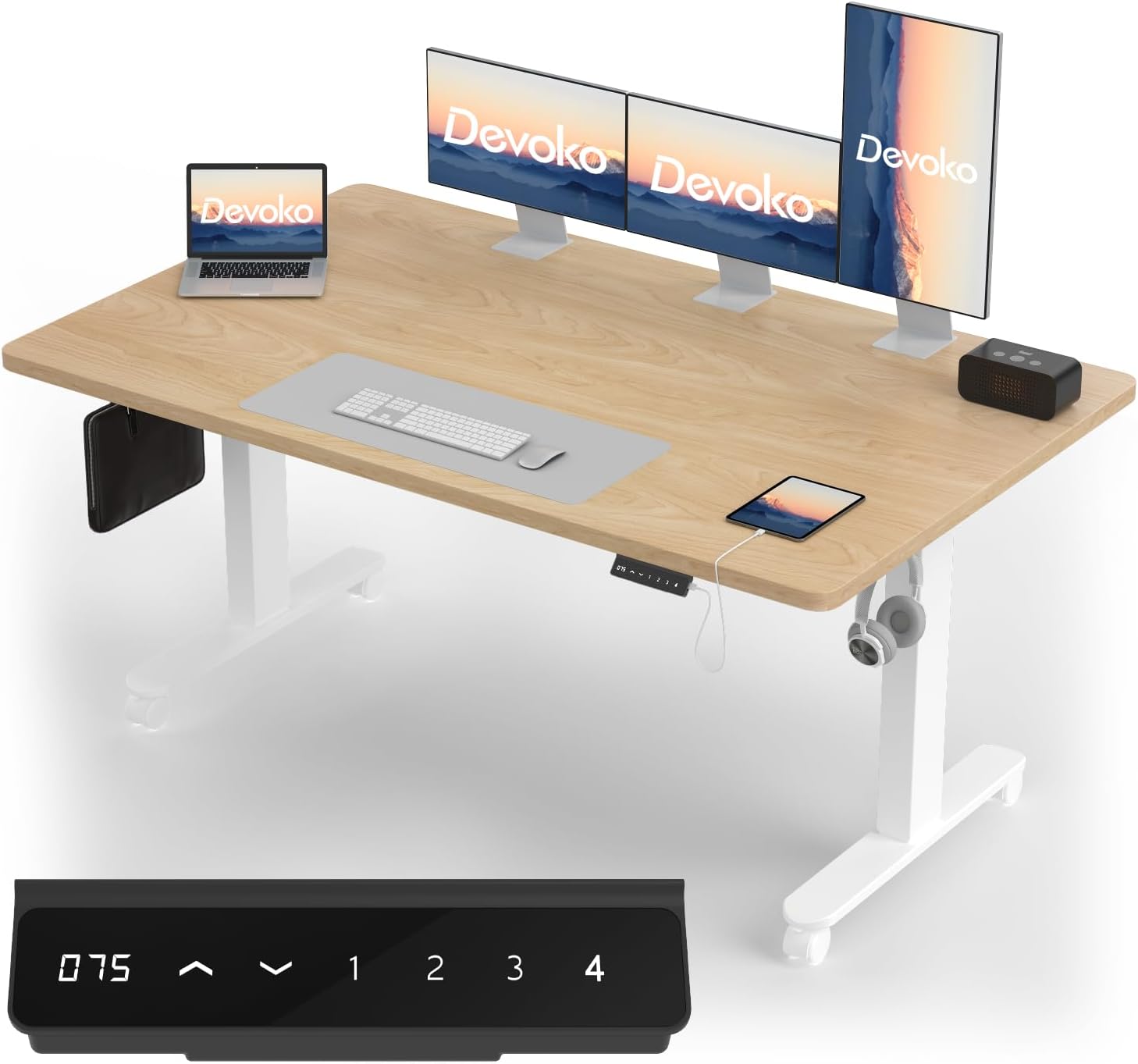

Image: The Devoko Electric Height Adjustable Desk in an office setup, showcasing its spacious surface, dual monitors, laptop, and the integrated control panel for height adjustment.

Product Features

• Dual-Motor Construction: Equipped with two motors for stable and smooth lifting and lowering, ensuring balance and extending product lifespan. Tested for over 6000 lift cycles.
• Solid One-Piece Tabletop: Made from a single, uncut board with a thickness of 20mm, enhancing load capacity and providing protection against moisture and pests. Easy to clean and durable.
• Height Adjustment & Memory Presets: Features a 6-button LCD touchscreen control panel with a height range of 72 cm to 120 cm. Includes 4 memory levels for personalized height settings.
• Integrated USB-A Port: Convenient USB-A charging port on the control panel for charging devices.
• Anti-Collision System: Detects objects during movement to ensure safety and prevent damage.
• High Load Capacity: Constructed from thick, high-quality cold-rolled steel, supporting a dynamic load of up to 100 kg.
• Cable Management: Includes two hooks and a cable storage box to keep your workspace tidy.
• Mobility: Equipped with four universal wheels for easy movement.

Image: A diagram illustrating the stable dual-motor system of the Devoko desk, highlighting its smooth and quiet operation compared to single-motor designs.

Image: A visual comparison showing the Devoko desk's one-piece tabletop (top) versus a multi-piece tabletop (bottom), emphasizing the seamless and robust design of the Devoko product.

Image: A cross-section view illustrating the 25mm thickness of the Devoko desk tabletop, highlighting its durability and waterproof properties compared to thinner alternatives.

Image: A woman standing on the Devoko desk, illustrating its impressive 100 kg load capacity and stability during movement.

Image: A comparison showing the integrated cable management tray of the Devoko desk (top) for an organized workspace versus a cluttered setup without proper cable management (bottom).

Setup Instructions

The Devoko Electric Desk is designed for easy assembly. A complete tool kit and detailed assembly instructions are included in the package. All parts feature pre-drilled holes for quick and precise installation.

Before You Begin:

• Unpack all components and verify against the parts list.
• Ensure you have enough space for assembly.
• Keep children and pets away from the assembly area.

Assembly Steps:

1. Attach the lifting columns to the tabletop using the provided screws and tools.
2. Secure the foot supports to the bottom of the lifting columns. You can choose between the standard feet or the universal wheels (both included).
3. Connect the control box and motor cables as indicated in the detailed diagram.
4. Install the control panel on the underside of the desk.
5. Mount the cable management tray and any accessory hooks.
6. Plug the desk into a power outlet.

Refer to the included graphical instructions for visual guidance on each step.

Operating Instructions

Control Panel Functions:

Image: A detailed view of the desk's control panel, showing the LCD display, up/down buttons, four memory preset buttons (1-4), and the convenient USB-A charging interface.

• LCD Display: Shows the current desk height in centimeters.
• Up/Down Buttons (▲ / ▼): Press and hold to adjust the desk height manually. Release to stop at the desired height.
• Memory Presets (1, 2, 3, 4): To save a height, adjust the desk to your preferred position, then press the 'M' button (if present, or hold the number button) followed by the desired number (1-4). To recall a saved height, simply press the corresponding number button.
• USB-A Charging Port: Located on the control panel, this port allows you to charge your mobile devices conveniently.

Height Adjustment Range:

The desk can be adjusted from a minimum height of 72 cm to a maximum height of 120 cm.

Image: A visual representation of the Devoko desk's height adjustment capabilities, showing the range from 75cm (sitting) to 120cm (standing) and its anti-collision feature.

Anti-Collision System:

The desk is equipped with an anti-collision system. If the desk encounters an obstacle during upward or downward movement, it will automatically stop and reverse slightly to prevent damage or injury. Ensure the area around the desk is clear before adjusting the height.

Maintenance

Cleaning:

• The tabletop is waterproof and easy to clean. Use a soft, damp cloth to wipe down the surface.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• For the frame and electrical components, use a dry cloth to remove dust. Do not spray liquids directly onto electrical parts.

General Care:

• Regularly check all screws and connections to ensure they are tight. Retighten if necessary.
• Avoid placing excessively heavy items on the desk, exceeding the 100 kg load capacity.
• Do not sit or stand on the desk.

Troubleshooting

If you encounter any issues with your Devoko Electric Height Adjustable Desk, please refer to the following common solutions:

System Reset Procedure:

If the desk is not functioning correctly, a system reset may resolve the issue. Consult your specific product manual for exact reset instructions, as procedures can vary. Typically, this involves:

1. Unplug the power cable from the wall outlet.
2. Wait for at least 30 seconds.
3. Plug the power cable back in.
4. Press and hold the 'Down' button (▼) until the desk reaches its lowest position and slightly rebounds, indicating a successful reset.

If problems persist after troubleshooting, please contact Devoko customer support.

Specifications

Warranty and Support

For warranty information, technical support, or any questions regarding your Devoko Electric Height Adjustable Desk, please contact Devoko customer service through the retailer where you purchased the product or visit the official Devoko website.

Please have your model number (0520) and purchase details ready when contacting support.
