1. Safety Information
Please read this manual carefully before operating your SAMEBIKE electric assist city cycle. Failure to follow these instructions may result in serious injury or damage to the product.
General Safety Guidelines
- Always wear a helmet and appropriate safety gear while riding.
- Obey all local traffic laws and regulations.
- Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
- Do not ride under the influence of alcohol or drugs.
- Avoid riding in heavy rain, snow, or icy conditions, as braking distance may increase and control may be reduced.
Battery Safety
- Use only the dedicated charger provided with your bicycle.
- Do not expose the battery to extreme temperatures or direct sunlight for extended periods.
- Avoid puncturing, dropping, or otherwise damaging the battery.
- Keep the battery away from children and pets.
2. Product Overview
The SAMEBIKE TDE10L is a 26-inch electric assist city cycle designed for comfortable and efficient urban commuting and leisure riding. It features a robust frame, powerful electric assist, and reliable components.
Key Features
- 26-inch City Cycle Design: Ideal for urban environments and daily use.
- 7.8Ah Lithium-ion Battery: Provides a range of approximately 60km on a single charge.
- Shimano 7-speed Gear: Ensures smooth and efficient pedaling across various terrains.
- Dual Disc Brakes: Offers strong and reliable stopping power in diverse conditions, including wet or muddy roads.
- High-Brightness LED Headlight & Tail Light: Enhances visibility and safety during night rides.
- Low Step-Through Frame: Designed for easy mounting and dismounting, suitable for various riders.
- Front Basket and Rear Carrier: Convenient for carrying groceries or personal items.
Components Diagram
Familiarize yourself with the main components of your electric assist bicycle.

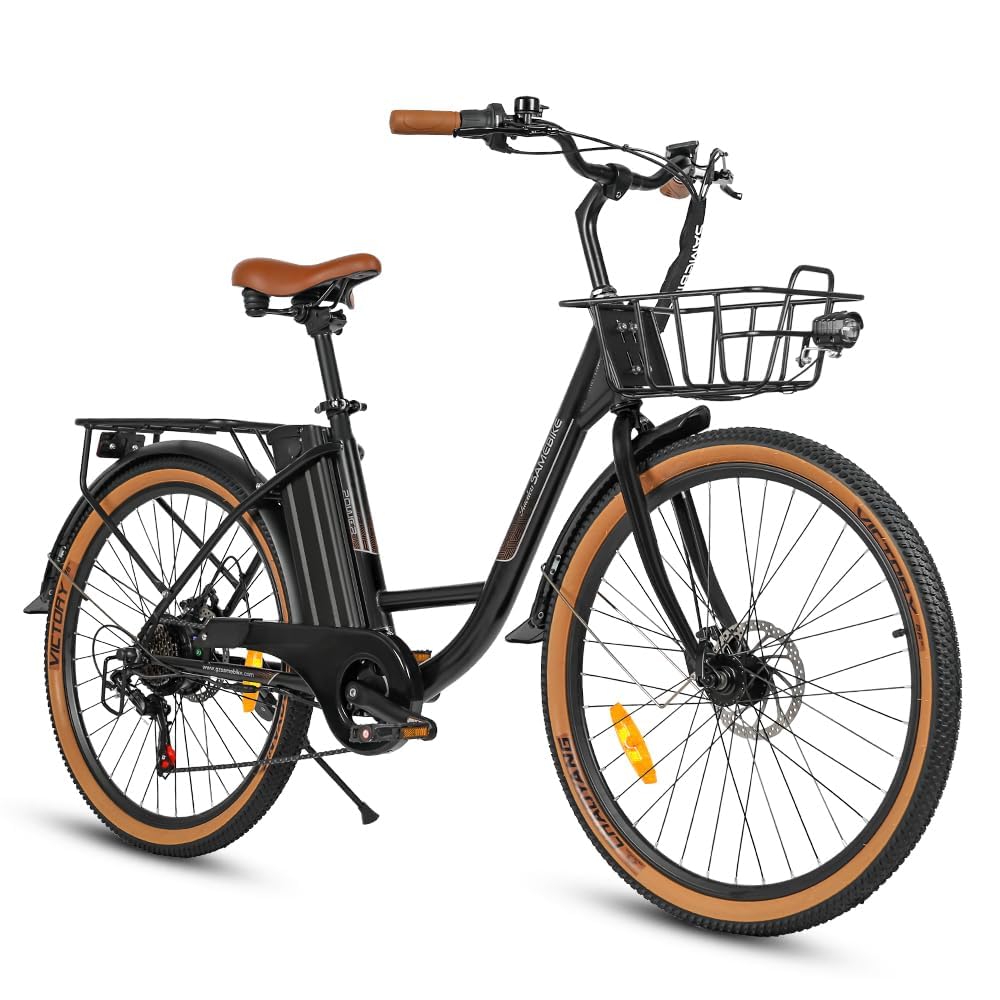

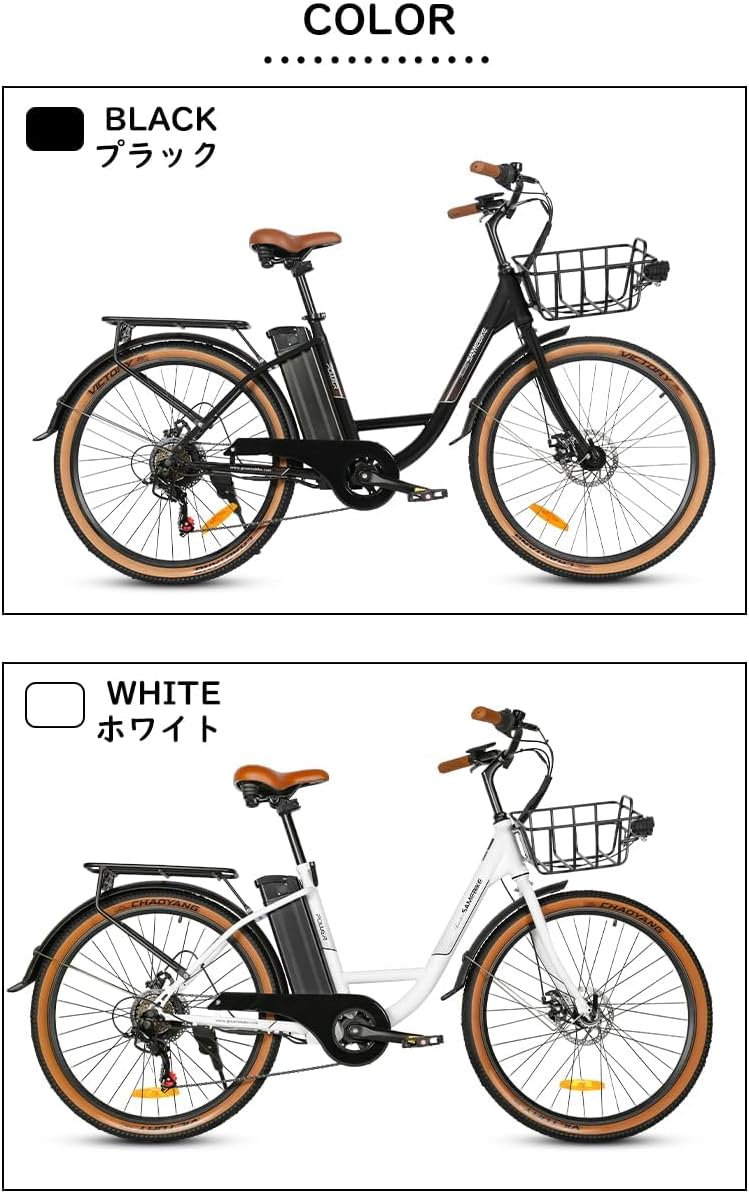

Figure 2.1: Overall view of the SAMEBIKE TDE10L electric assist city cycle.
Figure 2.2: The low step-through frame design allows for easy mounting and dismounting.
Figure 2.3: Front wheel assembly featuring a disc brake for enhanced stopping power.
Figure 2.4: Rear wheel assembly showing the Shimano 7-speed gear system and the rear-wheel drive motor.
3. Setup
3.1 Initial Battery Charge
Before your first ride, fully charge the battery. The battery can be charged directly on the bicycle or removed for charging indoors.
- Connect the dedicated charger to the battery charging port.
- Plug the charger into a standard electrical outlet.
- The charging indicator on the charger will show the charging status. A full charge typically takes 4-6 hours.
- Once fully charged, disconnect the charger.
Figure 3.1: The battery can be charged directly on the bike or removed for charging.
3.2 Saddle Adjustment
Adjust the saddle height for a comfortable and safe riding position.
- Locate the quick-release lever beneath the saddle.
- Open the lever to loosen the saddle post.
- Adjust the saddle to your desired height. Ensure your feet can comfortably touch the ground when stopped.
- Close the quick-release lever firmly to secure the saddle in place.
Figure 3.2: Adjusting the saddle height for optimal riding comfort and safety.
4. Operating Instructions
4.1 Powering On/Off
To power on the electric assist system, press and hold the power button on the handlebar display. To power off, press and hold the same button.
Figure 4.1: The handlebar display shows speed, battery level, and assist mode.
4.2 Assist Modes
Your SAMEBIKE TDE10L features 5 assist modes, allowing you to conserve battery or get more power as needed. Use the '+' and '-' buttons on the display to switch between modes.
- ECO Mode: Provides minimal assist, ideal for flat terrain and maximizing battery life.
- SMART Mode: Offers optimal assist based on your pedaling input, balancing power and efficiency.
- Power Modes (3 levels): Provides increasing levels of electric assist for hills or faster speeds.
4.3 Gear Shifting
The Shimano 7-speed gear system allows for smooth transitions between gears. Use the shifter on the handlebar to change gears according to terrain and desired speed.
- Shift to a lower gear when climbing hills to make pedaling easier.
- Shift to a higher gear on flat terrain or downhill for faster speeds.
- Always pedal lightly when shifting gears to ensure a smooth transition and prevent damage to the drivetrain.
4.4 Braking
Your bicycle is equipped with dual disc brakes for effective stopping. Apply both front and rear brakes simultaneously for balanced and controlled braking.
- The right lever controls the rear brake, and the left lever controls the front brake.
- Apply brakes gently at first, increasing pressure as needed.
- Avoid sudden, hard braking, especially with the front brake, as this can cause loss of control.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your electric assist bicycle.
5.1 Cleaning
- Wipe the frame and components with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
- Clean the chain regularly and apply appropriate chain lubricant.
5.2 Battery Care
- Charge the battery regularly, even if not in use, to maintain its health.
- Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
- If storing for an extended period, charge the battery to about 50-70% capacity.
5.3 Tire Pressure
- Check tire pressure before each ride. The recommended pressure is usually indicated on the tire sidewall.
- Proper tire pressure improves riding efficiency and reduces the risk of punctures.
5.4 Brake Inspection
- Regularly check brake pads for wear and replace them when necessary.
- Ensure brake levers are firm and responsive. If they feel spongy, the brakes may need adjustment or bleeding.
6. Troubleshooting
This section addresses common issues you might encounter with your electric assist bicycle.
| Problem | Possible Cause | Solution |
|---|---|---|
| Electric assist not working | Battery low or depleted Power not turned on Loose battery connection Sensor issue | Charge the battery Press and hold power button Ensure battery is securely seated Contact customer support |
| Battery not charging | Charger not connected properly Faulty charger or battery Power outlet issue | Check all connections Try a different outlet Contact customer support for charger/battery replacement |
| Brakes feel weak | Worn brake pads Brake cable adjustment needed Air in hydraulic system (if applicable) | Inspect and replace brake pads Adjust brake cable tension Consult a bicycle mechanic |
| Gears not shifting smoothly | Derailleur out of adjustment Dirty or rusty chain Damaged shifter cable | Adjust derailleur Clean and lubricate chain Consult a bicycle mechanic |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | SAMEBIKE |
| Model | TDE10L |
| Bike Type | Electric Assist City Cycle |
| Wheel Size | 26 inches |
| Applicable Height | 145 cm and above |
| Recommended Max Weight | 120 kg |
| Battery | 36V 7.8Ah Lithium-ion |
| Charging Time | Approx. 4-6 hours |
| Max Range | Approx. 60 km |
| Motor | Brushless DC Motor (Rear Wheel Drive) |
| Gears | Shimano 7-speed |
| Brakes | Dual Disc Brakes (Front & Rear) |
| Frame Material | High Carbon Steel |
| Lights | Battery-powered LED Headlight, Tail Light with Brake Warning Function |
| Stand | Double-leg Stand |
| Overall Length | 1895 mm |
| Overall Width | 585 mm |
| Handlebar Height (Min/Max) | 1040 mm / 1125 mm |
| Saddle Height (Min/Max) | 760 mm / 880 mm |
| Weight | 25 kg |
8. Warranty and Support
Warranty Information
SAMEBIKE offers a one-year free repair service for malfunctions not caused by consumable parts. This covers issues such as the electric assist not functioning or charging problems.
Customer Support
For any questions, technical assistance, or warranty claims, please contact SAMEBIKE customer support through the retailer where you purchased the product. Please have your model number (TDE10L) and purchase details ready.
