GUSGU Transparent Case with Wireless Keyboard User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your GUSGU Transparent Case with Wireless Keyboard. Please read this manual thoroughly to ensure proper use and to maximize the functionality of your device.

Compatibility

This keyboard case is designed for specific iPad models:

• iPad Air 13-inch (M3, 2025)
• iPad Air 13-inch (M2, 2024)
• iPad Pro 12.9-inch (6th Generation, 2022)
• iPad Pro 12.9-inch (5th Generation, 2021)
• iPad Pro 12.9-inch (4th Generation, 2020)
• iPad Pro 12.9-inch (3rd Generation, 2018)

To verify your iPad model, check the back of your device for the model number (e.g., A2898).

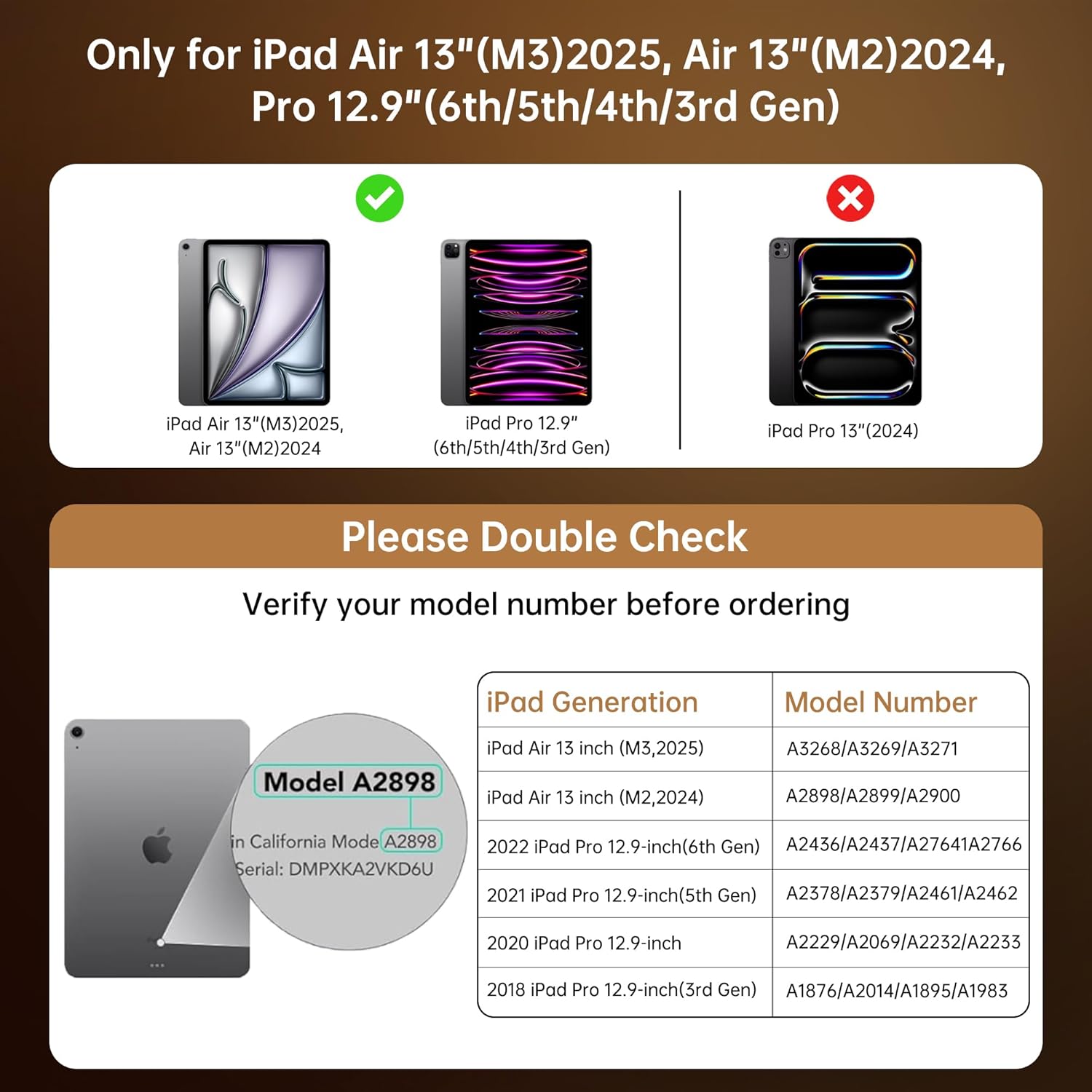

This chart provides essential compatibility information, detailing the specific iPad Air 13-inch (M3/M2) and iPad Pro 12.9-inch (6th/5th/4th/3rd Gen) models that are compatible with this keyboard case. It includes a visual guide on where to find your iPad's model number for verification.

Setup Instructions

1. Insert Your iPad: Gently align your iPad with the case and press it into the protective frame until it is securely seated. Ensure all ports and buttons are accessible. The case provides secure, form-fit protection.
2. Charge the Keyboard: Before first use, fully charge the keyboard. Connect the provided USB-C cable to the keyboard's charging port and to a power source. A full charge takes approximately 2 hours and provides up to 30 days of power.

This graphic illustrates the efficient power management of the keyboard, showing that a 2-hour charge provides up to 30 days of usage, ensuring extended productivity.
3. Pair the Keyboard via Bluetooth:
   • Turn on the keyboard by sliding the power switch. The indicator light will flash, indicating it's in pairing mode.
   • On your iPad, go to Settings > Bluetooth.
   • Turn on Bluetooth.
   • Select "GUSGU Keyboard" (or similar name) from the list of available devices.
   • Follow any on-screen prompts to complete the pairing process. The indicator light will turn solid when successfully paired.

Operating Instructions

360° Rotating Stand & Multi-Angle Viewing

The case features a 360° swivel stand and offers 5 adjustable viewing angles. This allows for seamless transitions between typing, sketching, and media viewing modes.

This image displays the GUSGU Transparent Keyboard Case with an iPad, illustrating its versatile design. The main view shows the iPad attached to the keyboard, with smaller insets demonstrating how the case can rotate 360 degrees and be adjusted to multiple viewing angles for typing, drawing, or media consumption.

• Typing Mode: Position the iPad upright for a laptop-like experience.
• Sketch Mode: Lay the iPad flat or at a low angle for comfortable drawing or writing.
• Viewing Mode: Adjust the iPad to various angles for watching videos or presentations.

This image illustrates three practical ways to use the keyboard case: 'Sketch' mode, where the iPad is laid flat for drawing; 'Watch Videos' mode, with the iPad angled for comfortable viewing; and 'Video Call' mode, positioning the iPad upright for communication.

Keyboard Backlight

The keyboard features 7 colors of backlight and 3 brightness levels for comfortable typing in various lighting conditions.

• Press the Light Bulb key to cycle through backlight colors.
• Press the Fn + Light Bulb keys to adjust backlight brightness (3 levels).

A visual representation of the keyboard's customizable backlight feature, showcasing the seven distinct colors and three adjustable brightness levels available to personalize the typing experience.

A close-up view of hands typing on the keyboard, emphasizing the comfortable and responsive typing experience provided by the backlit keys and scissor-switch mechanism with 1mm key travel.

Precision Trackpad

The integrated trackpad supports multi-touch gestures for intuitive navigation, similar to a laptop. Familiar gestures include:

• Swipe: Move your finger across the trackpad to navigate.
• Scroll: Use two fingers to scroll up or down.
• Pinch: Use two fingers to zoom in or out.
• Double-tap: Select items or open applications.
• Switch Apps: Use three or four fingers to swipe between open applications (iPadOS dependent).

This image shows a hand interacting with the precision multi-touch trackpad, illustrating its responsiveness and support for various gestures, enhancing navigation and control.

Apple Pencil Holder

The case includes a dedicated magnetic holder for your Apple Pencil, ensuring it is securely stored and readily accessible without needing to remove the case.

This image highlights two key features: the robust, form-fitting protection provided by the case, particularly around the iPad's edges, and the convenient, integrated holder designed to securely store an Apple Pencil.

Auto Sleep/Wake Function

The case supports the iPad's auto sleep/wake function. Closing the case will put your iPad to sleep, and opening it will wake it up, conserving battery life.

Maintenance

• Cleaning the Case: Use a soft, damp cloth to wipe the exterior of the case. Avoid harsh chemicals or abrasive materials.
• Cleaning the Keyboard: Use a soft, dry cloth or a can of compressed air to clean between the keys. Do not spray liquid directly onto the keyboard.
• Storage: When not in use for extended periods, ensure the keyboard is turned off to conserve battery. Store the case in a cool, dry place.

Troubleshooting

• Keyboard Not Connecting:
  • Ensure the keyboard is turned on and fully charged.
  • Check your iPad's Bluetooth settings to confirm Bluetooth is enabled and the keyboard is paired. If not, try re-pairing.
  • Restart both your iPad and the keyboard.
• Keys Not Responding:
  • Ensure the keyboard is connected via Bluetooth.
  • Check the keyboard's battery level.
  • Clean any debris from around the keys.
• Trackpad Not Working:
  • Ensure the keyboard is connected.
  • Check iPadOS settings for trackpad functionality.
  • Restart your iPad.
• Backlight Not Working/Changing:
  • Ensure the keyboard is powered on.
  • Press the Light Bulb key or Fn + Light Bulb keys to cycle through options.
  • Check battery level, as low battery might disable backlighting.

Specifications

Warranty and Support

GUSGU provides lifetime customer support for this product. If you encounter any issues or have questions, please contact GUSGU customer service for assistance.

For further assistance, please visit the GUSGU Store on Amazon.
