JOYMOR Low Loft Bed Twin Size with LED Lights and Storage Shelves Instruction Manual

1. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury.

• Guardrails: The bed is equipped with a 15-inch-tall upper guardrail to provide reliable protection and prevent accidental falls. Ensure guardrails are securely installed at all times.
• Ladder: The 2-step ladder is designed to be widened and deepened for easier and safer climbing. Always use the ladder for entry and exit from the bed.
• Weight Limit: The bed has a weight limit of 350 pounds. Do not exceed this limit.
• Jumping: Do not jump on the bed. This can cause damage to the bed structure and lead to injury.
• Mattress: Use a mattress within a 4-6 inch thickness range for optimal safety and guardrail effectiveness.
• Ventilation: The under-bed play area includes viewing windows to provide ventilation.

2. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Bed Frame Components
• Headboard
• Guardrails
• Slats
• 2-Step Ladder/Stairs
• Bookcase/Storage Shelves
• LED Lighting Strip and Remote/APP Controller
• Two Detachable Curtains
• Assembly Hardware (screws, bolts, etc.)

3. Setup (Assembly)

Assembly is required for this product. It is recommended to have two adults for assembly. Follow the detailed assembly instructions provided in the separate assembly guide. Ensure all connections are tightened securely before use.

Figure 3.1: Product Dimensions and Key Features. This diagram illustrates the overall size of the low loft bed, including its length, width, and height, as well as the height of the safety guardrail. It also highlights the 350 lbs weight capacity and the recommended mattress thickness.

Important Assembly Tips:

• Lay out all parts and hardware before starting.
• Do not fully tighten screws until all components are loosely assembled.
• Ensure the bed is placed on a flat, stable surface during assembly.
• The ladder can be removed if not needed, providing flexibility for room arrangement.

4. Operating Instructions

4.1 LED Lights Operation

The integrated LED light strip offers customizable lighting options for both aesthetic appeal and functional illumination of the under-bed play area.

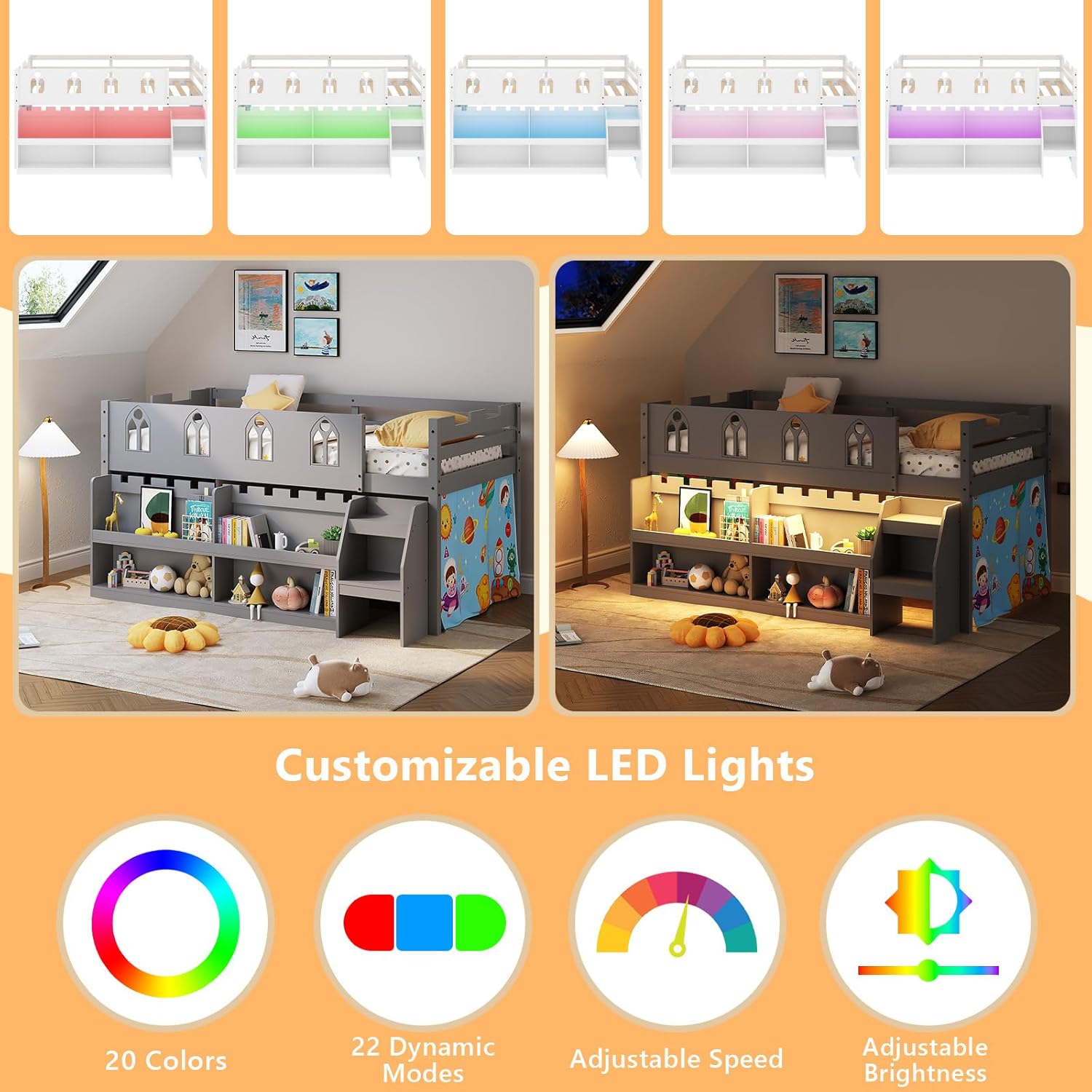

Figure 4.1: Customizable LED Lights Features. This image displays the various customization options for the LED lights, including a spectrum of 20 colors, 22 dynamic lighting modes, adjustable speed for dynamic effects, and adjustable brightness levels.

• Control: The LED lights can be controlled via a remote control (if included) or a dedicated smartphone application. Refer to the LED light kit's specific instructions for pairing and usage.
• Customization: Adjust colors (20 options), dynamic modes (22 options), speed of effects, and brightness levels to create desired ambiance.
• Under-Bed Illumination: The lights are designed to illuminate the under-bed play space, enhancing visibility and creating a cozy environment.

4.2 Storage Shelves

The bed features 4 open storage shelves integrated into the design, providing convenient space for various items.

Figure 4.2: Integrated Storage Shelves. This image shows the open storage shelves built into the bed frame, illuminated by blue LED lights, and filled with various items such as books and toys, demonstrating their utility.

• Organization: Use the shelves to store daily essentials, books, toys, blankets, or decorative items.
• Accessibility: The open design allows for easy access to stored items.

4.3 Removable Curtains

Two detachable curtains are included to create a private space under the bed.

Figure 4.3: Detachable Curtains. This close-up image highlights the colorful, universe-themed detachable curtain, showing how it attaches to the bed frame to create an enclosed space.

• Attachment: The curtains attach to the bed frame using a simple mechanism, allowing for easy installation and removal.
• Privacy: When installed, the curtains enclose the under-bed area, providing a private hideaway.

4.4 Under-Bed Play Area

The space beneath the loft bed is designed as a versatile play area.

Figure 4.4: Ample Under-Bed Play Space. This image demonstrates the spacious area beneath the loft bed, configured as a play zone with a small tent, a child's chair, and various toys, illustrating its potential for imaginative play or storage.

• Versatility: This area can be used for play, reading, or additional storage.
• Design: Features castle-inspired design elements and viewing windows for an engaging environment.

5. Maintenance

Proper care will ensure the longevity of your JOYMOR Low Loft Bed.

• Cleaning: Wipe the bed frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
• Hardware: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain structural integrity.
• LED Lights: If LED lights malfunction, refer to the specific troubleshooting guide for the LED light kit.

6. Troubleshooting

This section addresses common issues you might encounter with your low loft bed.

• Wobbly Frame: If the bed frame feels wobbly, check all assembly hardware. Ensure all bolts and screws are fully tightened. Uneven flooring can also contribute to wobbling; consider using furniture pads to level the bed.
• LED Lights Not Working: Verify that the LED light strip is properly connected to its power source and controller. Check the remote control's battery or ensure the smartphone app is correctly paired and updated.
• Damaged Parts: If any parts arrive damaged or become damaged during assembly, do not proceed with assembly. Contact JOYMOR customer service for replacement parts.

7. Specifications

8. Warranty and Support

This JOYMOR product comes with a limited warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your purchase or contact JOYMOR customer service.

For any questions, missing parts, or support needs, please contact JOYMOR customer service through your retailer or the official JOYMOR website.
