LKHFOAQM 24H055M020 DC 12V Brushless Servo Motor Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the LKHFOAQM 24H055M020 DC 12V Brushless Servo Motor. This motor features a built-in drive board, signal encoder feedback, and supports PWM speed regulation, making it suitable for various precision control applications. Please read this manual thoroughly before using the product to ensure safe and optimal performance.

2. Safety Instructions

• Always disconnect power before installation, maintenance, or troubleshooting.
• Ensure the power supply voltage matches the motor's specified voltage (DC 12V). Incorrect voltage can damage the motor.
• Avoid exposing the motor to moisture, dust, or extreme temperatures.
• Do not attempt to disassemble the motor or its built-in drive board, as this may void the warranty and cause damage.
• Handle the motor shaft and encoder carefully to prevent damage to precision components.
• Ensure proper ventilation around the motor during operation to prevent overheating.

3. Package Contents

Verify that all items are present in the package:

• 1 x LKHFOAQM 24H055M020 DC 12V Brushless Servo Motor with Built-in Drive Board
• 1 x Signal Encoder Feedback Cable (integrated or separate, depending on model variant)
• 1 x User Manual (this document)

4. Setup and Wiring

Follow these steps to properly set up and wire your brushless servo motor.

4.1 Motor Overview

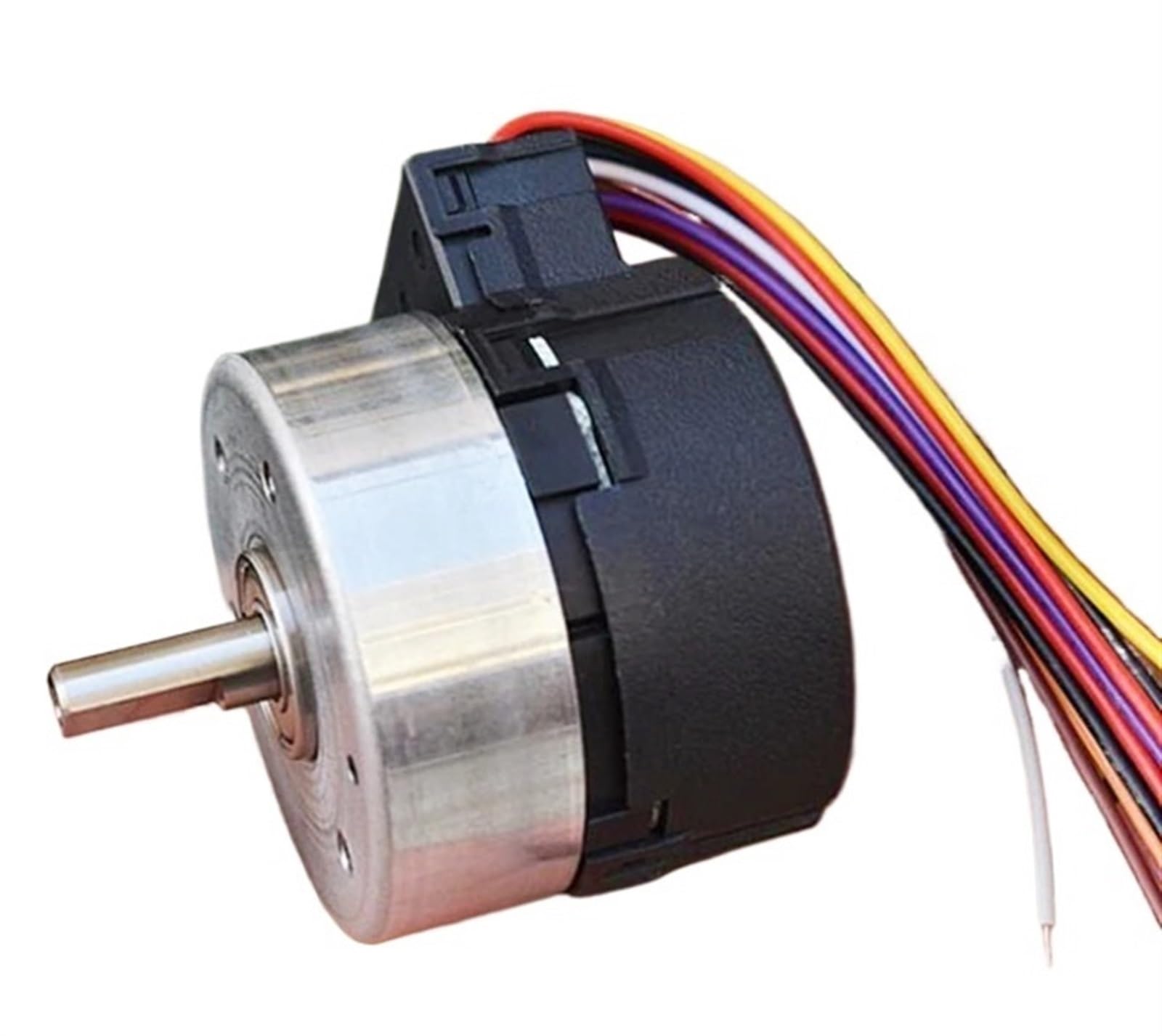

Figure 1: Overview of the LKHFOAQM 24H055M020 DC 12V Brushless Servo Motor. This image shows the compact design, including the motor body, output shaft, and integrated wiring for power and control signals.

4.2 Wiring Connections

The motor features a built-in drive board and requires specific connections for power, PWM speed control, and encoder feedback. Refer to the wiring diagram (if provided separately or on the motor itself) for exact pin assignments.

• Power Supply: Connect a stable DC 12V power source to the designated power input terminals. Ensure correct polarity (+ and -).
• PWM Input: Connect your PWM signal source (e.g., microcontroller, PLC) to the PWM input pin. This signal controls the motor's speed.
• Encoder Feedback: The integrated encoder provides feedback on the motor's rotational position and speed. Connect the encoder output pins (typically A, B, and Z phases, plus VCC and GND) to your control system's encoder input. The motor has a 100-line encoder.
• Ground: Ensure all ground connections are common and properly secured.

Note: Incorrect wiring can damage the motor or control system. If unsure, consult a qualified technician.

5. Operating Instructions

Once properly wired, the motor can be operated using a PWM signal.

• PWM Speed Regulation: The motor's speed is directly proportional to the duty cycle of the input PWM signal. A higher duty cycle generally results in higher motor speed.
• Direction Control: The direction of rotation may be controlled by a separate digital input pin or by the polarity of a specific signal, depending on the drive board's design. Refer to the motor's specific pinout for details.
• Encoder Feedback: Monitor the encoder output signals to precisely track the motor's position and verify its speed. The 100-line encoder provides high-resolution feedback for closed-loop control systems.
• Initial Test: Start with a low PWM duty cycle and gradually increase it to observe motor response. Ensure the motor rotates smoothly without unusual noise or vibration.

6. Maintenance

The LKHFOAQM 24H055M020 brushless motor is designed for long-term, low-maintenance operation.

• Cleaning: Keep the motor free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquids or solvents.
• Inspection: Periodically inspect wiring connections for looseness or damage. Check the motor shaft for any signs of wear or obstruction.
• Ventilation: Ensure that the motor's operating environment allows for adequate airflow to prevent heat buildup.
• Lubrication: This brushless motor typically does not require external lubrication. Do not apply lubricants unless specifically instructed by the manufacturer.

7. Troubleshooting

8. Specifications

9. Warranty and Support

This LKHFOAQM product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact LKHFOAQM customer support.

For technical assistance, troubleshooting, or warranty claims, please contact your retailer or the manufacturer directly.
