1. Introduction
Thank you for choosing the MekedeTech DUDUAUTO DUDU7 Car Multimedia Head Unit. This intelligent navigation system is designed to enhance your driving experience with advanced features and seamless integration into your Mazda CX-5 (2008-2015). This manual provides essential information for proper installation, operation, and maintenance of your new head unit.
2. Safety Information
- Warning: Installation should be performed by a qualified professional to prevent damage to the vehicle or the head unit.
- Do not operate the device in a manner that distracts you from driving. Always prioritize road safety.
- Ensure all wiring is correctly connected and secured to prevent short circuits or electrical hazards.
- Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Use only approved accessories and replacement parts.
- Disconnect the vehicle's battery before beginning installation to prevent electrical shock.
3. Setup and Installation
The MekedeTech DUDUAUTO DUDU7 head unit is designed for a plug-and-play installation in Mazda CX-5 models from 2008 to 2015. However, professional installation is highly recommended.
3.1 Compatibility Note
If your Mazda CX-5 is equipped with a Harmon Sound System, an additional power cable with CANBUS functionality is required to ensure proper audio output. Please search for ASIN B0CTJRJVMQ to obtain the necessary cable.
3.2 General Installation Steps (Consult a professional)
- Disconnect the vehicle's battery.
- Carefully remove the factory radio and trim panels.
- Connect the wiring harness from the DUDU7 unit to the vehicle's wiring. Ensure all connections are secure.
- If applicable, connect the external GPS antenna, USB cables, and any other peripheral accessories.
- Mount the DUDU7 head unit into the dashboard opening.
- Reconnect the vehicle's battery and test the unit's functionality before fully reassembling the dashboard.
This image illustrates the appearance of the Mazda CX-5 dashboard before and after the installation of the MekedeTech DUDUAUTO DUDU7 head unit. The top image shows the unit installed, displaying a navigation map. The bottom left shows the original factory radio, and the bottom right shows the DUDU7 unit installed in the same vehicle.
4. Operating Instructions
The DUDUAUTO DUDU7 operates on Android 13, providing a familiar and intuitive user interface. The 9.5-inch 2K (2000x1200) QLED IPS touch screen offers clear visuals and responsive control.
4.1 Basic Operation
- Power On/Off: Press and hold the power button (location varies by vehicle integration) or use the on-screen power controls.
- Touch Screen: Navigate menus, select applications, and control functions by touching the screen.
- Volume Control: Adjust audio volume using the physical buttons (if available) or on-screen controls.
- Home Screen: Access your installed applications and widgets from the customizable home screen.
4.2 Key Features
- Wireless & Wired CarPlay / Android Auto: Connect your smartphone for seamless integration of navigation, music, calls, and messages. Supports both wireless and wired connections.
- Navigation (Dual Band GPS L1+L5): Utilize the built-in dual-band 6-mode positioning chip for highly accurate and fast GPS navigation, supporting lane-level positioning.
- Bluetooth 5.0 (Qualcomm 3031): Enjoy high-quality audio streaming and clear hands-free calls with the Qualcomm 3031 Bluetooth chip, supporting aptX HD protocol.
- Digital Noise Cancelling Microphone: Ensures clear voice transmission during calls, even in noisy environments or at high speeds.
- Audio System: Features a TDA7808 Digital AB type power amplifier and AKM7739 Velvet Audio Technology DSP for enhanced sound quality. Supports Optical + Coaxial and RCA 5.1 Channel audio outputs.
- Wi-Fi Connectivity: Supports 802.11a/b/g/n/ac standards, including 5G Wi-Fi, for internet access and app downloads.
- DUDU OS 3.0: Experience a customized Android interface with dynamic wallpapers and optimized performance.
This image illustrates the benefits of Dual Band GPS (L1+L5) for improved positioning accuracy and speed, alongside the functionality of the Digital Noise Cancelling Microphone for clear voice transmission.
This image showcases the internal audio components, specifically the AKM7739 DSP Velvet Audio Technology and the TDA7808 Digitally Enhanced AB type amplifier, which contribute to the enhanced sound quality of the head unit.
This image displays various aspects of the DUDU OS 3.0 interface, including different application layouts, system settings, and examples of dynamic wallpapers in both daytime and night modes.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the screen and exterior. For stubborn smudges, a slightly damp cloth with a mild, non-abrasive cleaner suitable for electronics can be used. Avoid harsh chemicals.
- Software Updates: Periodically check for system updates through the device's settings menu to ensure optimal performance and access to the latest features.
- Avoid Liquids: Keep the unit away from liquids to prevent damage.
- Temperature: Do not expose the unit to extreme temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Loose power connection, blown fuse, vehicle battery issue. | Check all power connections. Inspect vehicle fuses. Ensure vehicle battery is charged. |
| No sound output. | Volume too low, incorrect audio source selected, wiring issue, Harmon Sound System compatibility. | Increase volume. Select correct audio source. Verify speaker wiring. If your car has a Harmon Sound System, ensure the correct CANBUS power cable is installed (ASIN B0CTJRJVMQ). |
| GPS signal is weak or inaccurate. | GPS antenna not properly installed or obstructed, environmental interference. | Ensure GPS antenna is securely connected and placed in a clear line of sight to the sky. Avoid areas with tall buildings or heavy foliage. |
| Bluetooth connection issues. | Device not in pairing mode, interference, incorrect pairing procedure. | Ensure your phone's Bluetooth is on and in pairing mode. Delete previous pairings and try again. Move closer to the head unit. |
| Touch screen unresponsive. | Temporary software glitch, screen protector interference. | Restart the head unit. If a screen protector is installed, ensure it is applied correctly and not interfering with touch sensitivity. |
7. Specifications
| Model Name | DUDU7-12-256-9.5 |
| Operating System | Android 13 |
| CPU | 8 Core UIS7870 Customized version A76 2.7Ghz 6nm processor |
| Memory (RAM/ROM) | 12GB RAM / 256GB ROM (UFS 3.1) |
| Display Size | 9.5 inches |
| Display Resolution | 2000x1200 |
| Display Type | QLED IPS Touch Screen (Capacitive) |
| GPS | Dual Band 6 mode L1 L5 B1 B2a E1 E5a |
| Microphone | Digital Noise Cancellation Microphone |
| USB Ports | USB 3.2 GEN1*1 (TYPE-C), USB2.0*3 |
| Power Amplifier | TDA7808 Digital AB type |
| DSP | AKM7739 Velvet Audio Technology |
| Bluetooth Chip | Qualcomm 3031 (Supports aptX HD protocol, BT5.0) |
| Audio Output | Optical + Coaxial, RCA 5.1 Channel Outputs |
| WiFi Type | 802.11a/b/g/n/ac (Support 5G WIFI) |
| Radio IC | TDA7708 |
| Work Voltage | 9V~16V |
| CarPlay & Android Auto | Wired and Wireless support |
| 360 Panorama Support | Yes (requires additional 360 chip) |
This image details the performance specifications, including the UIS7870 8-core 2.7GHz 6nm processor and UFS 3.1 storage, emphasizing a 7x faster read speed for application loading and boot times.

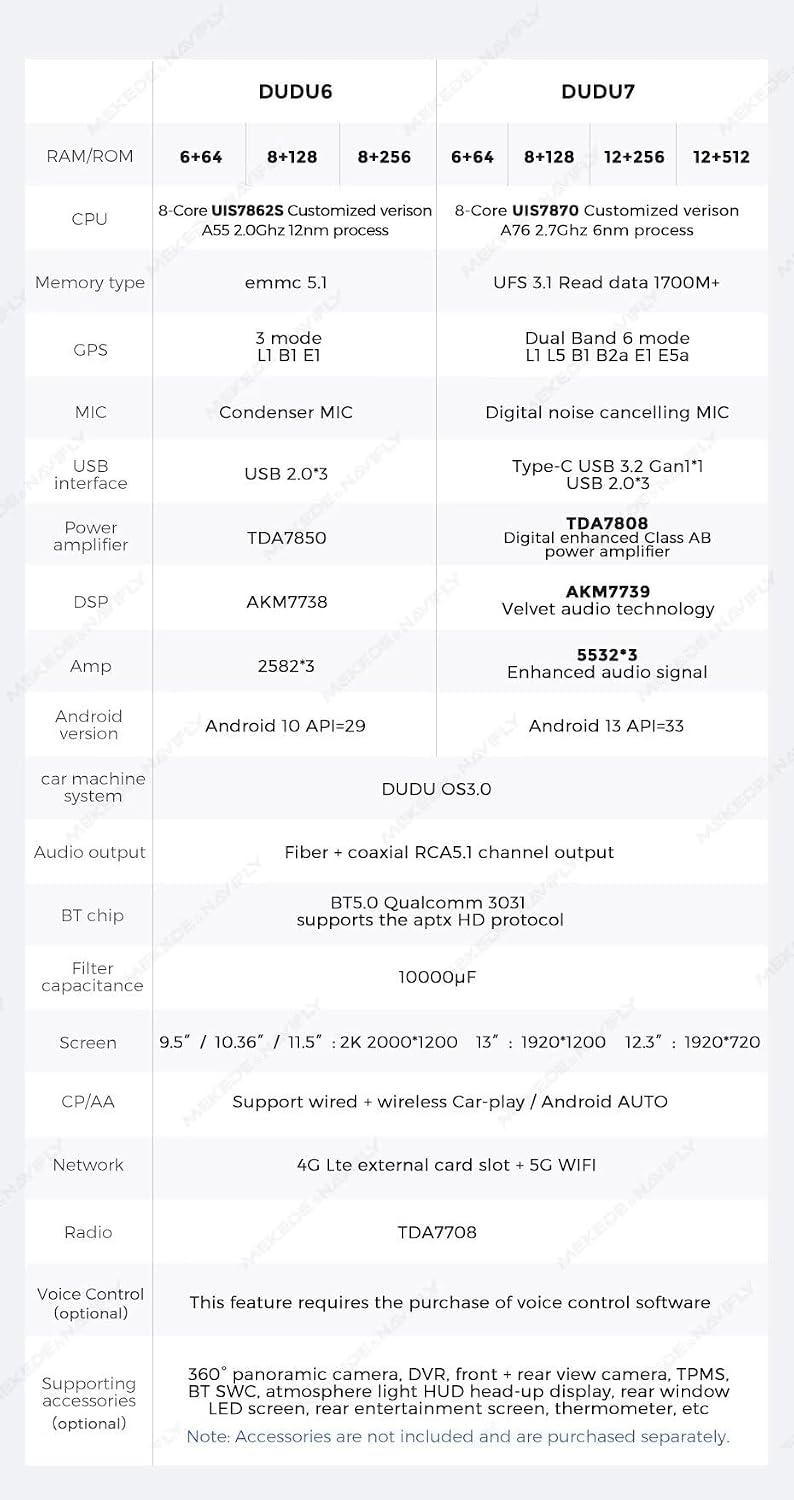

This image provides a detailed specification comparison table between the DUDU6 and DUDU7 models, highlighting differences in RAM/ROM, CPU, memory type, GPS, microphone, USB interface, power amplifier, DSP, Android version, audio output, Bluetooth chip, filter capacitance, screen size, CarPlay/Android Auto support, network, radio, voice control, and optional supporting accessories.
8. Warranty Information
The MekedeTech DUDUAUTO DUDU7 Car Multimedia Head Unit comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or normal wear and tear.
9. Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact MekedeTech customer support. Refer to the contact information provided with your product packaging or visit the official MekedeTech website for support resources.
You can also visit the MekedeTech Store on Amazon for additional product information and support.
