1. Product Overview
The ABUS 83/60 Rock Series 2 Steel Padlock Body is engineered for high security applications. It is designed to be integrated into existing keying systems by accepting a standard 40mm half euro cylinder (10/30). The padlock features a robust 12mm diameter shackle and a 60mm wide body, both constructed from hardened special steel. A specialized Nano Protect coating enhances its resistance to corrosion, ensuring durability in various environments.

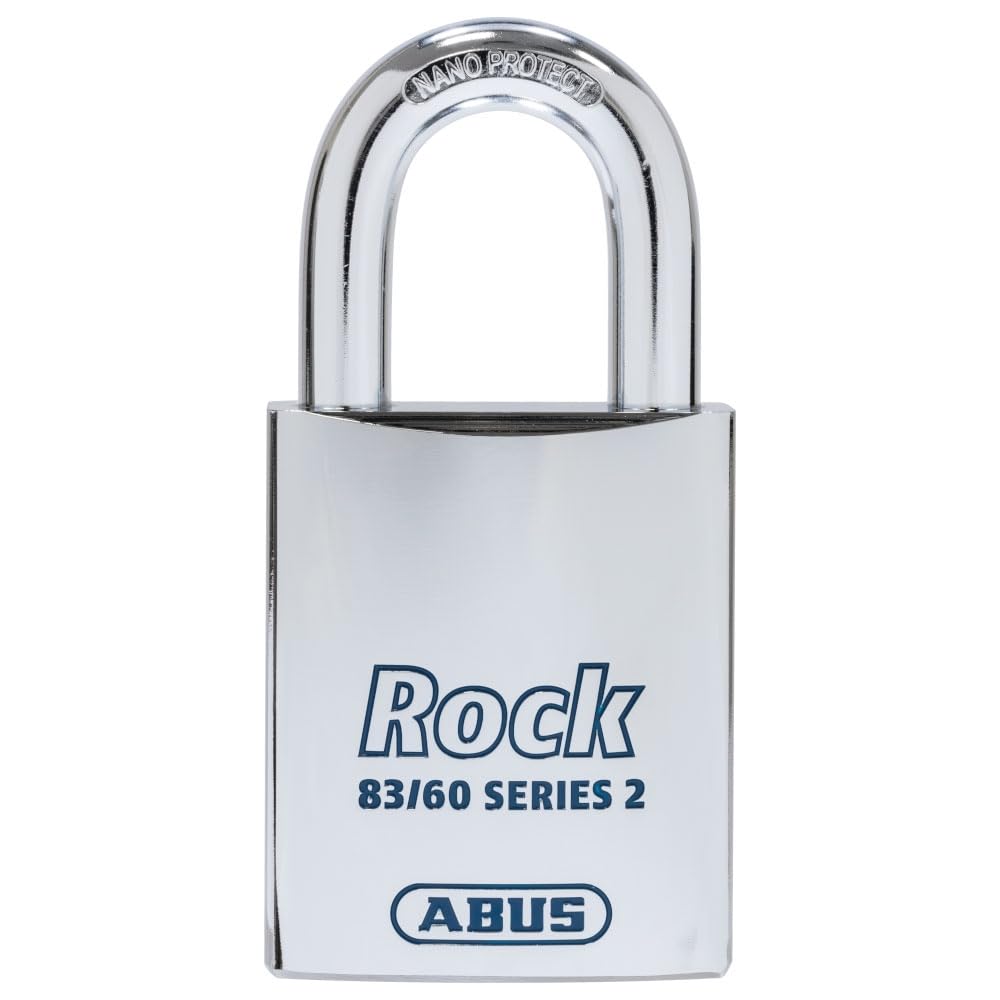

Image 1.1: The ABUS 83/60 Rock Series 2 Steel Padlock Body, shown without a cylinder. This image illustrates the robust steel construction and shackle design.
Key Features:
- Accepts 40mm half euro cylinder (10/30) for integration into existing keying systems.
- 12mm diameter shackle made of hardened special steel for enhanced security.
- 60mm wide body constructed from hardened special steel.
- Nano Protect coating provides superior corrosion resistance.
- CEN grade 5 security rating.
- Double bolted mechanism for increased resistance against forced entry.
- Coreless design, requiring a separate cylinder for operation.
2. Setup and Cylinder Installation
The ABUS 83/60 padlock body is supplied without a cylinder. A compatible 40mm half euro cylinder (10/30) must be purchased separately and installed before the padlock can be used.
Installation Steps:
- Prepare the Padlock Body: Ensure the padlock body is clean and free from debris.
- Insert the Cylinder: Align the 40mm half euro cylinder with the cylinder opening on the side of the padlock body. Gently push the cylinder into place.
- Secure the Cylinder: Once the cylinder is fully inserted, it should sit flush with the padlock body. The retaining screw (if applicable to your cylinder type) should be tightened to secure the cylinder. Refer to your specific euro cylinder's instructions for precise securing methods.
- Test Operation: Insert the key into the newly installed cylinder and turn it to ensure smooth locking and unlocking action. The shackle should open and close freely.
Note: Incorrect cylinder installation may compromise the padlock's security and functionality. If you encounter difficulty, consult a professional locksmith.
3. Operation
Once the euro cylinder is correctly installed, operating the ABUS 83/60 padlock is straightforward.
Locking the Padlock:
- Ensure the shackle is in the open position.
- Position the shackle around the item(s) to be secured.
- Push the shackle firmly into the padlock body until it clicks into place.
- Insert the key into the cylinder and turn it to the locked position. Remove the key. The shackle should now be securely locked.
Unlocking the Padlock:
- Insert the correct key into the cylinder.
- Turn the key to the unlocked position.
- The shackle will spring open or can be pulled open.
- Remove the key.
Always ensure the key is fully inserted before turning to prevent damage to the cylinder mechanism.
4. Maintenance
Proper maintenance will extend the lifespan and ensure the reliable operation of your ABUS 83/60 padlock.
- Cleaning: Periodically wipe the padlock body and shackle with a clean, damp cloth to remove dirt and grime. Avoid abrasive cleaners.
- Lubrication: For optimal performance, especially in harsh environments, apply a small amount of graphite-based lubricant or a specialized lock lubricant into the keyway of the cylinder and around the shackle mechanism once or twice a year. Do not use oil-based lubricants as they can attract dust and debris.
- Corrosion Protection: The Nano Protect coating provides excellent corrosion resistance. However, if the padlock is exposed to extreme weather conditions or corrosive substances, inspect it regularly for any signs of wear or damage to the coating.
- Inspection: Regularly check the shackle and body for any signs of damage, bending, or tampering. Ensure the shackle moves freely and the locking mechanism engages securely.
Important: Do not attempt to disassemble the padlock body beyond cylinder installation, as this may void any potential warranty and compromise its security features.
5. Troubleshooting
This section addresses common issues you might encounter with your ABUS 83/60 padlock.
| Problem | Possible Cause | Solution |
|---|---|---|
| Key is stiff or difficult to turn. | Lack of lubrication in the cylinder; dirt or debris in the keyway. | Apply a small amount of graphite-based or specialized lock lubricant into the keyway. Gently work the key in and out. Avoid forcing the key. |
| Shackle does not open or close smoothly. | Dirt or corrosion in the shackle mechanism; lack of lubrication. | Clean the shackle and its entry points. Apply lock lubricant to the shackle legs where they enter the body. |
| Padlock does not lock securely. | Cylinder not fully engaged; internal mechanism obstruction; damaged cylinder. | Ensure the cylinder is correctly installed and secured. Check for any visible obstructions. If the cylinder is damaged, it may need replacement. |
| Key breaks inside the cylinder. | Excessive force; worn key; faulty cylinder. | Do not attempt to extract the broken key yourself if it's deeply lodged. Contact a professional locksmith for extraction and cylinder replacement if necessary. |
If the problem persists after attempting these solutions, please contact ABUS customer support or a qualified locksmith.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | ABUS |
| Model Name | 83-60-5-EPZ |
| Item Model Number | 83-60-5-EPZ |
| Material | Hardened Special Steel |
| Color | Silver |
| Item Dimensions (L x W x H) | 3.94 x 3.15 x 1.18 inches |
| Shackle Diameter | 12mm |
| Body Width | 60mm |
| Special Features | Anti-Corrosion (Nano Protect), CEN grade 5, Coreless (accepts 40mm half euro cylinder), Double bolted mechanism |
| Recommended Uses | General-purpose padlock uses requiring high security and cylinder integration. |
| Included Components | 1 x Padlock Body (cylinder not included) |
7. Warranty and Support
Warranty Information:
ABUS products are manufactured to high-quality standards. For specific warranty details regarding your ABUS 83/60 Rock Series 2 Steel Padlock Body, please refer to the warranty documentation provided with your purchase or visit the official ABUS website. Warranty terms typically cover manufacturing defects under normal use.
Customer Support:
If you have any questions, require technical assistance, or need to report an issue with your ABUS padlock, please contact ABUS customer support. You can find contact information, including phone numbers and email addresses, on the official ABUS website or through your authorized ABUS dealer.
ABUS Official Website: www.abus.com
When contacting support, please have your product model number (83-60-5-EPZ) and purchase details readily available.
