unho Heavy TV Wall Mount Instruction Manual

1. Product Overview

The unho Heavy TV Wall Mount is engineered for large flat-panel televisions, accommodating sizes from 55 to 100 inches and supporting weights up to 264 lbs. Its full-motion design provides exceptional flexibility, allowing you to adjust your TV for the perfect viewing experience. The robust construction ensures long-lasting stability and safety for your valuable television.

Image 1: The unho Heavy TV Wall Mount, showcasing its sturdy design and full-motion capabilities.

2. Safety Information

WARNING: Improper installation may result in serious injury or damage. If you are unsure about the installation process, please consult a qualified professional.

• Ensure the wall structure can safely support the combined weight of the mount and your TV.
• Do not exceed the maximum weight capacity of 264 lbs (120 kg).
• Always use the provided hardware and follow all installation steps precisely.
• Keep all components out of reach of children.

3. Package Contents

Verify that all components are present before beginning installation:

• TV Wall Mount Assembly
• Mounting Hardware Kit (screws, anchors, washers)
• Instruction Manual

4. Specifications

Image 2: Detailed dimensions and VESA compatibility patterns for the TV wall mount.

Image 3: Illustrates the wide compatibility of the mount with various TV sizes (55-100 inches) and wall types (brick, concrete).

5. Installation Guide

This section provides a general guide for installing your unho TV wall mount. For detailed, step-by-step instructions, please refer to the included printed manual.

5.1 Key Features for Installation

• Robust Design: Our panels are formed in one piece with a thickness of 2.2 mm, providing superior strength compared to other products with 1.5 mm thickness.
• Optimized Support: Support rods extend from both ends of the mount, ensuring a more distributed and scientific force bearing area for increased stability.
• Secure Fastening: The mount utilizes metal expansion bolts designed to drive securely into walls, offering long-term durability and preventing decay.

Image 4: Comparison highlighting the integrated one-piece panels with 2.3mm thickness (ours) versus thinner, non-one-piece panels (others).

Image 5: Visual comparison of support pole extension: our design extends from two ends for wider force bearing, while others extend from the middle only, which is less stable.

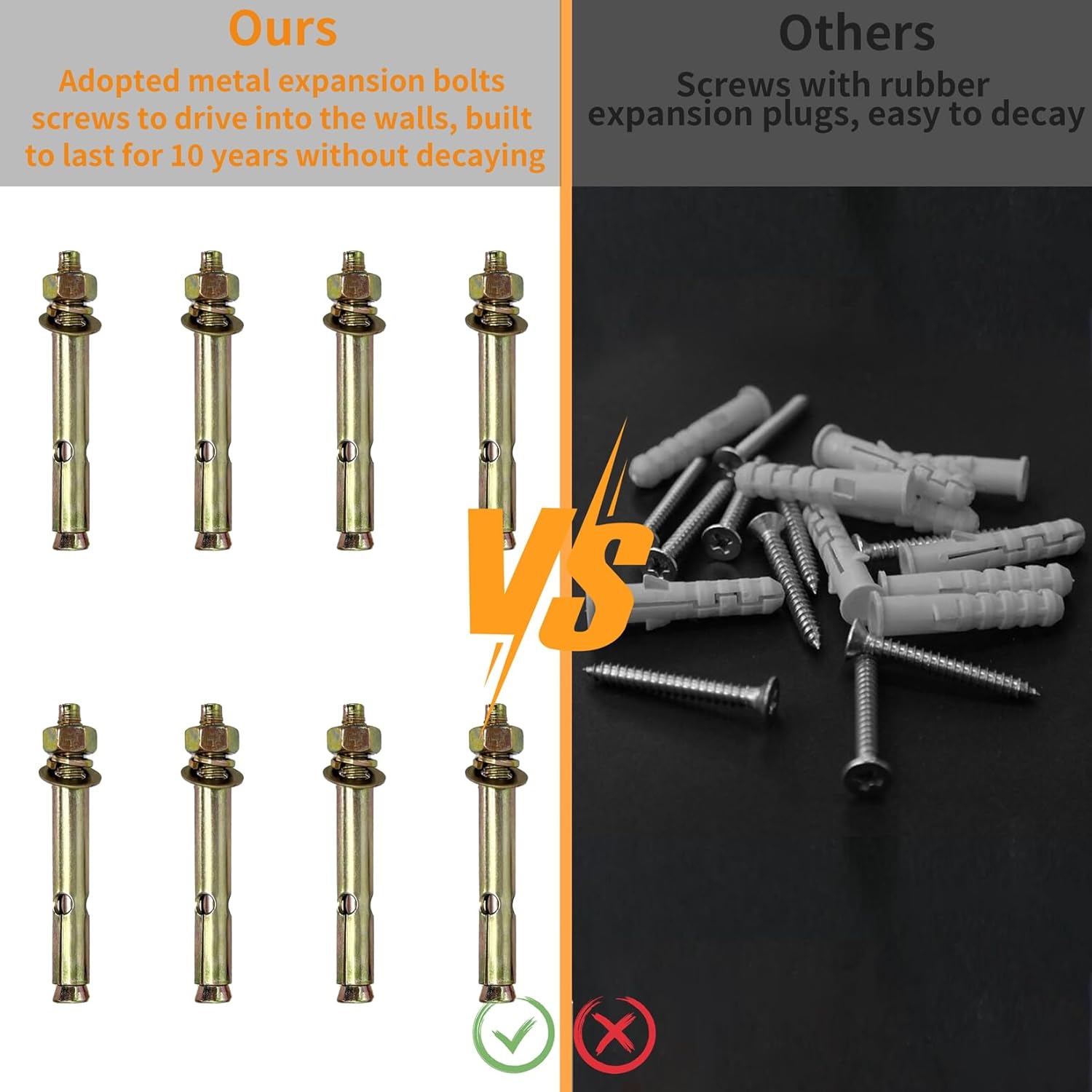

Image 6: Illustrates the superior metal expansion bolts used in our mount for secure wall attachment, compared to less durable rubber expansion plugs.

5.2 Installation Steps (Overview)

1. Prepare the Wall: Locate suitable mounting studs or use appropriate wall anchors for your wall type (concrete, brick, etc.).
2. Attach Wall Plate: Secure the wall plate to the wall using the provided screws and tools. Only four screws are typically needed for secure fixation.
3. Attach TV Brackets: Secure the vertical brackets to the back of your TV using the appropriate VESA screws.
4. Mount TV to Wall Plate: Carefully lift the TV and hook the TV brackets onto the wall plate. Secure the TV to the mount using the locking mechanisms.

6. Operating Instructions

Once installed, your unho TV wall mount offers versatile adjustments for optimal viewing.

6.1 Swivel Adjustment

The wall mount features a swivel mechanism that allows you to rotate the television screen left or right by up to 30 degrees. This ensures you can achieve the perfect viewing angle from various positions in your room.

6.2 Extension and Retraction

The extendable arms enable you to smoothly pull the TV away from the wall by up to 30cm (approximately 11.8 inches). This provides maximum versatility and flexibility, allowing you to adjust the distance for an enhanced viewing experience or to access cables behind the TV.

Image 7: A lifestyle image showing the TV wall mount installed in a modern living room, demonstrating its sleek appearance and how it integrates with home decor.

Image 8: This image emphasizes the mount's capability to support large-screen TVs, providing an immersive visual impact for home entertainment.

7. Care and Maintenance

To ensure the longevity and optimal performance of your unho TV wall mount, follow these simple care guidelines:

• Cleaning: Use a soft, dry cloth to wipe down the mount. Avoid abrasive cleaners or solvents that could damage the finish.
• Periodic Inspection: Periodically check all screws and connections to ensure they remain tight and secure. Over time, vibrations or adjustments may cause slight loosening.
• Lubrication: If the swivel or extension mechanisms become stiff, apply a small amount of silicone-based lubricant to the moving parts.

8. Troubleshooting

If you encounter any issues with your unho TV wall mount, please refer to the following common problems and solutions:

• TV is not level: Check the leveling adjustments on the mount. Ensure the wall plate is installed perfectly level.
• Mount feels loose: Re-tighten all mounting screws on both the wall plate and the TV brackets. Ensure you are using the correct type and size of wall anchors for your wall material.
• Difficulty swiveling/extending: Check for any obstructions. Ensure the TV's weight is within the specified limit. Apply a small amount of silicone lubricant to the moving joints if stiffness persists.
• Missing parts: If any parts are missing from the package, please contact unho customer support immediately.

9. Warranty and Support

For product support, technical assistance, or warranty inquiries, please contact unho customer service through the retailer where you purchased the product or visit the official unho store online. Keep your purchase receipt as proof of purchase for any warranty claims.
