FiveWillowise 55-inch Natural Fluted TV Stand Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your FiveWillowise 55-inch Natural Fluted TV Stand. Designed to accommodate TVs up to 65 inches, this media console features tambour slatted sliding doors, adjustable shelving, and integrated cable management. Please read this manual thoroughly before assembly and use to ensure proper setup and longevity of your product.

Figure 1: FiveWillowise 55-inch Natural Fluted TV Stand

2. Safety Information

• Always follow assembly instructions carefully.
• Ensure all screws and fasteners are securely tightened before use.
• Do not overload the TV stand or shelves beyond their recommended weight capacity.
• Utilize the provided anti-tipping device to secure the TV stand to a wall, especially in households with children or pets, to prevent accidental tipping.
• Keep small parts and hardware away from children during assembly.

Figure 2: Anti-Tipping Device for Enhanced Stability

3. Package Contents

Before beginning assembly, verify that all components and hardware are present. Refer to the detailed parts list included in your physical instruction manual. The package typically includes:

• Top and Bottom Panels
• Side Panels and Dividers
• Sliding Tambour Doors with Handles
• Metal Legs with Adjustable Foot Pads
• Adjustable Shelves
• Assembly Hardware (screws, dowels, Allen key)
• Anti-Tipping Device

Figure 3: Various Views of the TV Stand

4. Assembly Instructions

Assembly is designed to be straightforward. It is recommended to have a clean, flat surface for assembly. All necessary tools, including an Allen key, are provided. A screwdriver may also be helpful.

1. Prepare Components: Unpack all parts and lay them out. Identify each piece using the labels and diagrams in your manual.
2. Attach Legs: Secure the metal legs to the bottom panel using the provided screws. Ensure the adjustable foot pads are facing downwards.
3. Construct Frame: Assemble the side panels and internal dividers to the bottom panel, following the numbered steps in your manual.
4. Install Shelves: Insert the adjustable shelf pins into the desired height holes and place the shelves.
5. Attach Top Panel: Secure the top panel to the assembled frame.
6. Install Sliding Doors: Carefully insert the tambour sliding doors into their tracks. Attach the handles to the doors.
7. Apply Anti-Tipping Device: Secure the anti-tipping device to the back of the TV stand and to a wall stud as per the instructions.

For a visual guide, please refer to the official assembly videos:

5. Operating Instructions

• Sliding Doors: The tambour slatted doors slide smoothly along their tracks. Gently push or pull the handles to open or close the compartments.
• Adjustable Shelves: The internal shelves can be adjusted to three different height levels. To adjust, remove the shelf, reposition the shelf pins to the desired holes, and reinsert the shelf.
• Cable Management: Utilize the pre-drilled holes in the back panel to route cables and wires from your electronic devices, maintaining a tidy appearance.

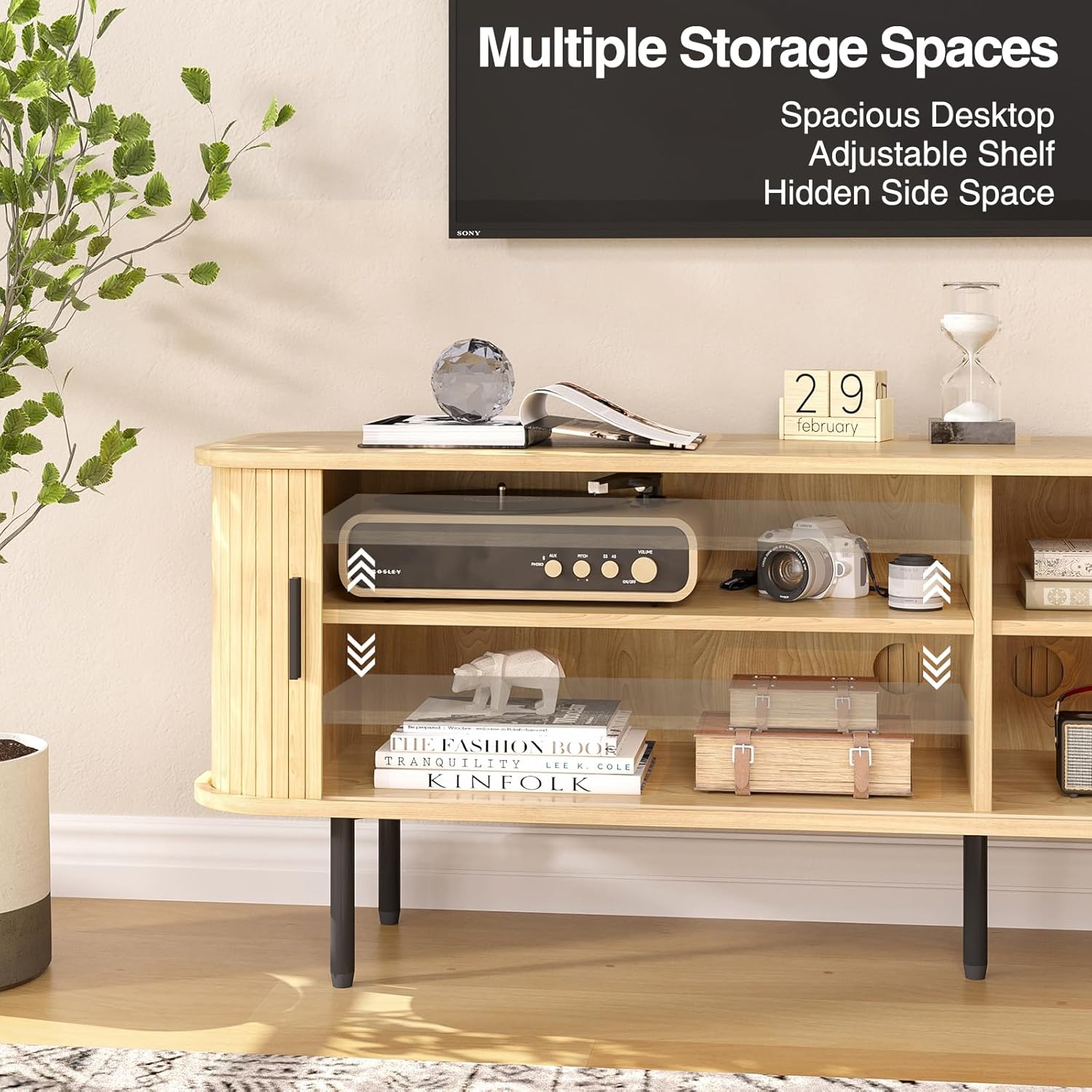

Figure 4: Interior Storage with Adjustable Shelves

Figure 5: Adjustable Shelf and Sliding Door Mechanism
