1. Introduction
Thank you for choosing the Baishun Smart Video Doorbell D9. This device enhances your home security by providing real-time video monitoring, two-way audio communication, and instant notifications directly to your smartphone. Please read this manual carefully before installation and operation to ensure proper use and optimal performance.

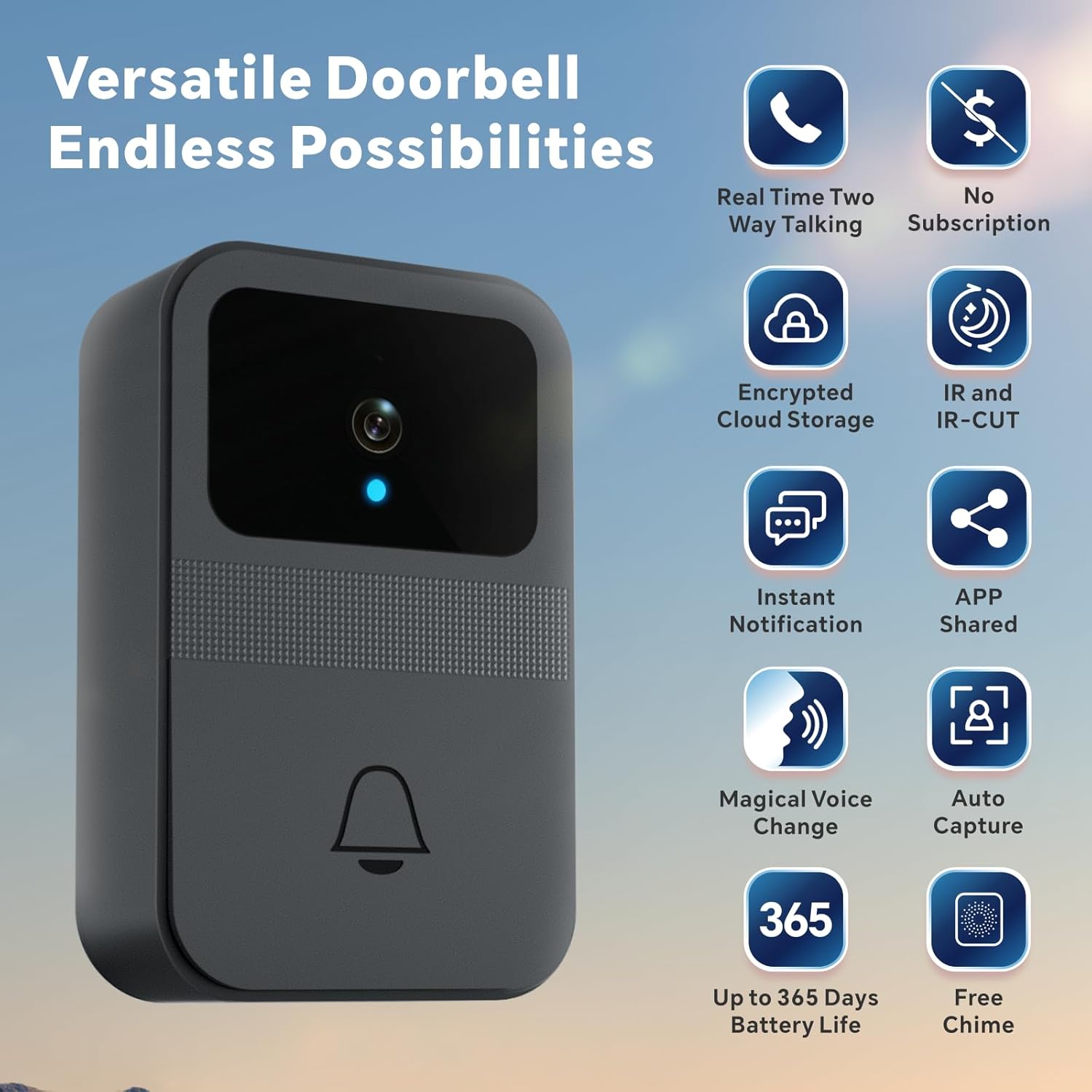

Image 1.1: Overview of Baishun Smart Video Doorbell D9 features.
2. Package Contents
Ensure all items are present in the package:
- Baishun Smart Video Doorbell D9
- Wireless Chime Unit
- Strong Adhesive Pad
- Mounting Screws and Wall Anchors
- User Manual
- Small Screwdriver (for battery compartment)
Note: 3xAA batteries are required for the doorbell and are not included in the package.
Image 2.1: Package contents and dimensions of the Baishun Smart Video Doorbell D9.
3. Product Features
- Real-time Two-Way Talk & Night Vision: The doorbell camera provides clear video and audio. Engage in real-time conversations with visitors or delivery personnel from anywhere. Integrated infrared lamps and smart IR technology enable automatic night mode for clear visibility even in darkness.
- Voice Change Function & Free Chime: Maintain privacy and security with the unique voice change feature, allowing you to disguise your voice during two-way audio conversations. The package includes a wireless chime with multiple ringtones, which can be placed up to 30 meters from the doorbell for instant alerts throughout your home.
- Easy Installation & Long Battery Life: This wireless doorbell operates on 2.4GHz Wi-Fi, eliminating the need for complex wiring. Installation takes approximately five minutes using the strong adhesive pad or included screws. Powered by 3xAA batteries (not included), the doorbell offers up to 90 days of normal use and up to 365 days in standby mode.
- Free Encrypted Cloud Storage & App Sharing: Enjoy free encrypted cloud storage with a continuous 3-day loop recording. No monthly subscription fees are required. The X Smart Home app allows you and up to 10 family members to view real-time activity at your door.
Image 3.1: Real-time two-way communication and voice change feature.
Image 3.2: IR Night Vision capability of the doorbell.
Image 3.3: The wireless chime provides alerts throughout the home.
Image 3.4: Encrypted cloud storage and app sharing capabilities.
4. Setup & Installation
4.1 Battery Installation
- Locate the battery compartment on the back of the doorbell unit.
- Use the provided screwdriver to open the battery compartment cover.
- Insert 3xAA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover and secure it with the screw.
4.2 App Download & Pairing
- Download the "X Smart Home" app from Google Play Store (for Android) or Apple App Store (for iOS).
- Register or log in to your account within the app.
- Follow the in-app instructions to add a new device. The quick start guide included in the package provides step-by-step pairing instructions.
- Ensure your smartphone is connected to a 2.4GHz Wi-Fi network during the pairing process. The doorbell does not support 5GHz Wi-Fi.
4.3 Doorbell Mounting
Choose a suitable location near your door, ensuring a clear view and good Wi-Fi signal.
- Adhesive Installation: Peel off the protective film from the strong adhesive pad and firmly press the doorbell onto the desired surface.
- Screw Installation: Mark the drilling points using the doorbell as a template. Drill holes, insert wall anchors, and secure the doorbell with the provided screws.
4.4 Chime Setup
Plug the wireless chime into a power outlet in a central location within your home, such as the kitchen, dining room, or bedroom. The chime will automatically pair with the doorbell. You can select your preferred ringtone through the chime unit's controls.
5. Operating Instructions
5.1 Receiving Notifications
When a visitor presses the doorbell, you will receive an instant notification on your smartphone via the X Smart Home app. The doorbell camera will automatically capture an image of the visitor.
5.2 Two-Way Communication
Upon receiving a notification, open the app to view the live video feed. Tap the microphone icon to initiate two-way audio communication with the visitor at your door.
5.3 Voice Change Function
During a two-way conversation, activate the voice change feature within the app to alter your voice for added privacy and security. This is particularly useful for children, seniors, or individuals living alone.
5.4 App Sharing
You can share access to your doorbell's live feed and notifications with up to 10 family members through the X Smart Home app. This allows multiple users to monitor and interact with visitors.
5.5 Night Vision
The doorbell automatically switches to night vision mode in low-light conditions, ensuring clear video surveillance around the clock.
6. Maintenance
6.1 Battery Replacement
When the doorbell's battery is low, you will receive a notification via the app. Replace the 3xAA batteries as described in Section 4.1. Ensure to use fresh, high-quality batteries for optimal performance and battery life.
6.2 Cleaning
Wipe the doorbell's exterior with a soft, damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners, as these may damage the device. Ensure the camera lens is clean for clear video quality.
6.3 Firmware Updates
Periodically check the X Smart Home app for available firmware updates. Keeping your doorbell's firmware updated ensures you have the latest features and security enhancements.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doorbell not connecting to Wi-Fi | Incorrect Wi-Fi password; 5GHz Wi-Fi network; weak signal. | Ensure correct 2.4GHz Wi-Fi password. Move doorbell closer to router. Restart router. |
| No notifications on phone | App permissions denied; phone in Do Not Disturb mode; doorbell in standby. | Check app notification settings. Disable Do Not Disturb. The camera wakes up when the doorbell is pressed. |
| Poor video quality | Dirty camera lens; weak Wi-Fi signal. | Clean the camera lens. Improve Wi-Fi signal strength. |
| Chime not ringing | Chime unplugged; out of range; not paired. | Ensure chime is plugged in. Move chime closer to doorbell (within 30m). Re-pair if necessary (refer to app instructions). |
| Short battery life | Frequent activity; low-quality batteries. | Use high-quality alkaline batteries. Reduce motion detection sensitivity if applicable (check app settings). |
8. Specifications
- Brand: Baishun
- Connectivity Technology: Wireless
- Special Features: Night Vision, Two-Way Audio, Voice Changer, Cloud Storage
- Indoor/Outdoor Use: Outdoor
- Compatible Devices: Smartphone (iOS & Android)
- Power Source: Battery Powered (3xAA, not included)
- Communication Protocol: Wi-Fi (2.4GHz only)
- Controller Type: iOS, Android App
- Mounting Type: Wall Mount (Adhesive or Screws)
- Video Capture Resolution: 480p
9. Warranty & Support
Baishun is committed to providing quality products and excellent after-sales service. For any issues, questions, or support needs regarding your Smart Video Doorbell D9, please refer to the contact information provided on the product packaging or the official Baishun website. Keep your purchase receipt for warranty claims.
While specific warranty details are not provided here, standard manufacturer warranties typically cover defects in materials and workmanship for a limited period from the date of purchase. Please consult your retailer or Baishun's customer service for detailed warranty terms.
