POPOSOAP Pond Lights 6-in-1 Warm White Underwater LED Landscape Spotlights Instruction Manual

Introduction

Thank you for choosing POPOSOAP Pond Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your 6-in-1 Warm White Underwater LED Landscape Spotlights. These lights are designed for various outdoor applications, including ponds, gardens, patios, fountains, pools, and waterfalls, offering bright, warm white illumination with an IP68 waterproof rating.

What's in the Box

Upon opening the package, please verify that all components are present and undamaged:

6 x LED Light units
1 x Power Adapter with 13ft cable
4 x 4.2ft interconnecting cables (pre-attached to lights)
1 x Instruction Manual

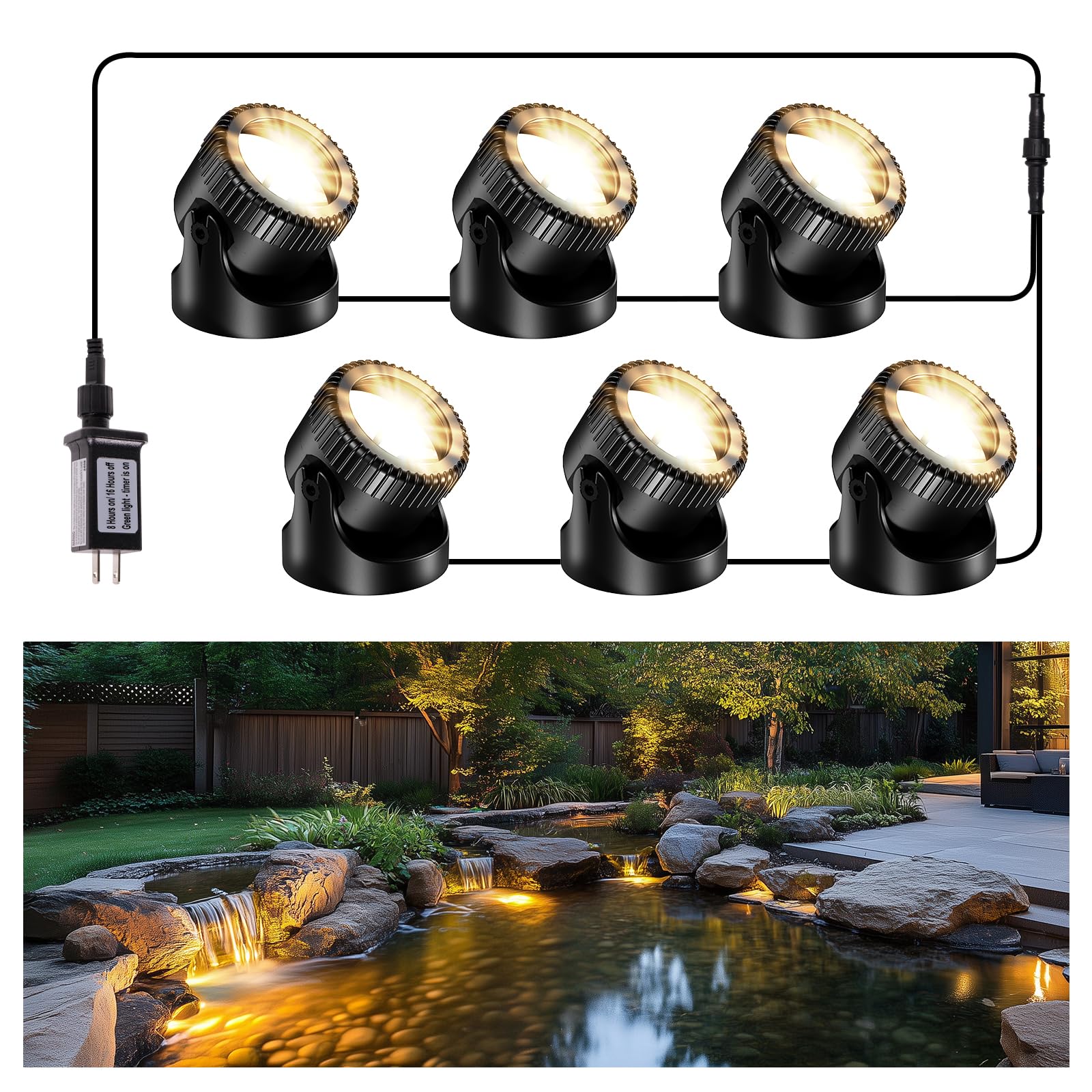

POPOSOAP 6-in-1 Warm White Underwater Pond Lights product image — Image: The POPOSOAP 6-in-1 Warm White Underwater Pond Lights, representing the product included in the box.

Specifications

Brand	POPOSOAP
Model Number	6 Headlamp
Color	Warm White
Material	Acrylonitrile Butadiene Styrene (ABS)
Water Resistance Level	IP68 Waterproof
Power Source	AC (Corded Electric)
Voltage	110 Volts
Wattage	2 Picowatts (per light, implied)
Number of Light Sources	6
Light Source Type	LED
Product Dimensions	1"L x 1"W x 1"H (each light unit, approximate)
Cable Length (Adapter to first light)	13 ft
Cable Length (Between lights)	4.2 ft
Control Method	Plug and Play (with integrated timer)
Special Feature	Low Voltage, Rotatable Design

Setup and Installation

The POPOSOAP Pond Lights are designed for easy installation. Follow these steps to set up your lights:

Unpack Components: Carefully remove all lights, cables, and the power adapter from the packaging.
Position Lights: Place the individual light units in your desired locations within your pond, garden, or other water feature. The self-weight of the lights allows them to sink into the water without additional fixing. For land use, ensure they are stable.
Connect Cables: The lights are pre-connected with 4.2ft cables between each unit. Connect the main 13ft cable from the power adapter to the first light unit. Ensure all connections are secure.
Adjust Light Direction: Each light unit features a 90-degree rotatable design. Adjust the angle of each light to achieve the desired illumination effect.
Power Connection: Plug the power adapter into a suitable outdoor-rated electrical outlet.

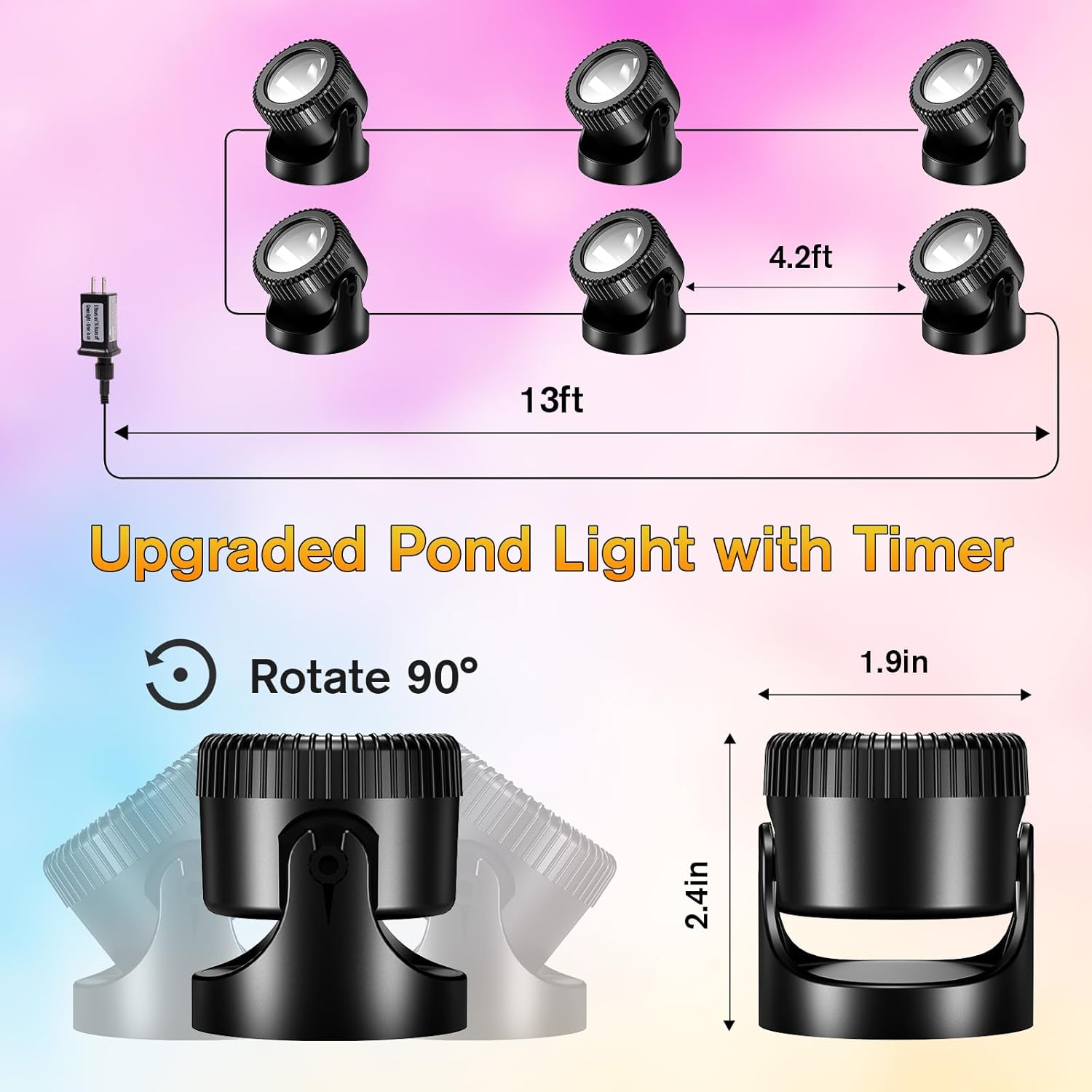

Diagram showing the connection of 6 pond lights with cable lengths — Image: An illustration demonstrating the wiring setup for the 6-light system, showing the 13ft cable from the adapter to the first light, and 4.2ft cables connecting subsequent lights. Also shows the rotatable design and dimensions of the light units.

Close-up of a pond light showing 90-degree rotatable design, LED anti-lumen beads, and high-quality ABS material — Image: A detailed view of a single light unit, highlighting its 90-degree rotatable design for directional lighting, the LED anti-lumen beads for bright output, and the durable high-quality ABS construction.

Underwater pond light demonstrating IP68 waterproof rating and strong sealing performance — Image: An underwater light unit submerged, illustrating its IP68 waterproof rating and strong sealing performance, suitable for aquatic environments.

Operating Instructions

The POPOSOAP Pond Lights are designed for simple operation:

Power On/Off: Once connected to power, the lights will turn on. The system operates on a "plug and play" principle.
Timer Function: The power adapter includes a built-in timer. When activated, the lights will operate for 8 hours and then turn off for 16 hours, repeating the cycle. A green light on the adapter indicates the timer is active.
Adjusting Illumination: Adjust the direction of each light unit by rotating it up to 90 degrees to achieve the desired lighting effect for your specific application.

Pond lights with timer design showing 8 hours ON and 16 hours OFF cycle — Image: A visual representation of the timer function, indicating an 8-hour ON cycle followed by a 16-hour OFF cycle. The power adapter with a "Working Mode Setting" is also shown.

Collage of pond lights used in various settings: outdoor decor, fountain, aquarium, waterfall, and pond — Image: A collage showcasing the versatility of the pond lights in different environments, including outdoor landscaping, fountains, aquariums, waterfalls, and ponds, demonstrating their wide application.

Collage demonstrating amphibious use of pond lights in a pond and a garden — Image: A collage illustrating the amphibious nature of the lights, showing them effectively illuminating both a pond environment and a garden pathway.

Video: This video demonstrates the POPOSOAP Warm White Underwater Pond Lights in various pond settings, showcasing their illumination and effect in a water environment.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your pond lights:

Cleaning: Periodically clean the light lenses to remove any algae, dirt, or debris that may accumulate, especially if submerged. Use a soft cloth and mild soap if necessary, then rinse thoroughly with clean water.
Cable Inspection: Regularly inspect all cables for any signs of wear, cuts, or damage. Ensure all connections remain secure and watertight.
Power Adapter: Keep the power adapter in a dry, protected location, away from direct exposure to heavy rain or extreme weather conditions, even though it is designed for outdoor use.
Winterization: In areas with freezing temperatures, it is recommended to remove submerged lights from the water during winter to prevent potential damage from ice expansion.

Troubleshooting

If you encounter issues with your POPOSOAP Pond Lights, refer to the following common troubleshooting steps:

Lights Not Turning On:
- Check if the power adapter is securely plugged into a working electrical outlet.
- Verify that all cable connections between the adapter and the lights are firm.
- Ensure there is power to the outlet by testing it with another device.
Lights Flickering or Dim:
- Inspect cables for damage or loose connections.
- Clean the light lenses to remove any obstructions that might be reducing light output.
- Ensure the power supply is stable and not experiencing fluctuations.
Timer Not Functioning Correctly:
- Unplug the power adapter for a few minutes, then plug it back in to reset the timer.
- Ensure the green indicator light on the adapter is on, signifying the timer is active.

If these steps do not resolve the issue, please contact customer support.

Safety Information

Please read and adhere to the following safety guidelines:

Always disconnect power before performing any installation, maintenance, or cleaning.
Do not attempt to modify or repair the light units or power adapter. Contact qualified personnel for service.
Ensure the electrical outlet used is suitable for outdoor use and protected by a Ground Fault Circuit Interrupter (GFCI).
Keep children and pets away from electrical components during installation and operation.
Avoid submerging the power adapter; only the light units are designed for underwater use.

Warranty and Support

Your POPOSOAP Pond Lights come with a One Year Warranty. For any questions, concerns, or support needs, please contact POPOSOAP customer service. We are committed to assisting you with any issues you may encounter.
