Aiuyesuo Queen Size Murphy Folding Bed with Sofa Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aiuyesuo Queen Size Murphy Folding Bed with Sofa. Please read all instructions carefully before assembly and use to ensure safe and proper functionality. This product is designed to offer a comfortable sleeping space and a functional sofa, optimizing space in smaller rooms.

2. Safety Information

• Age Recommendation: This product is recommended for users aged 6 years and older.
• Weight Capacity: The bed has a maximum weight capacity of 600 LBS. Do not exceed this limit.
• Mattress Thickness: A mattress thickness of 6 inches is recommended for optimal performance and safety.
• Assembly: Assembly requires multiple steps and should be performed by at least two adults. Ensure all parts are securely fastened before use.
• Wall Mounting: The Murphy bed mechanism requires secure wall mounting. Ensure the wall structure can support the weight of the unit. Consult a professional if unsure.
• Moving Parts: Keep hands and fingers clear of moving parts when folding or unfolding the bed.
• Regular Checks: Periodically check all bolts and connections to ensure they remain tight.

3. Product Overview

The Aiuyesuo Queen Size Murphy Folding Bed with Sofa is a versatile furniture piece designed for space efficiency. It features a queen-size bed that folds into a wall cabinet, revealing a comfortable sofa when stowed. The unit is constructed from plywood, MDF, and linen fabric.

Key Features:

• Multifunctional design combining a queen bed and a sofa.
• Space-saving solution for small apartments or studios.
• Easy-to-use dual piston metal folding mechanism for smooth operation.
• Durable construction with industrial-grade laminated MDF and plywood.

Dimensions:

Overall Product Dimension: 87"L x 66.8"W x 87.8"H

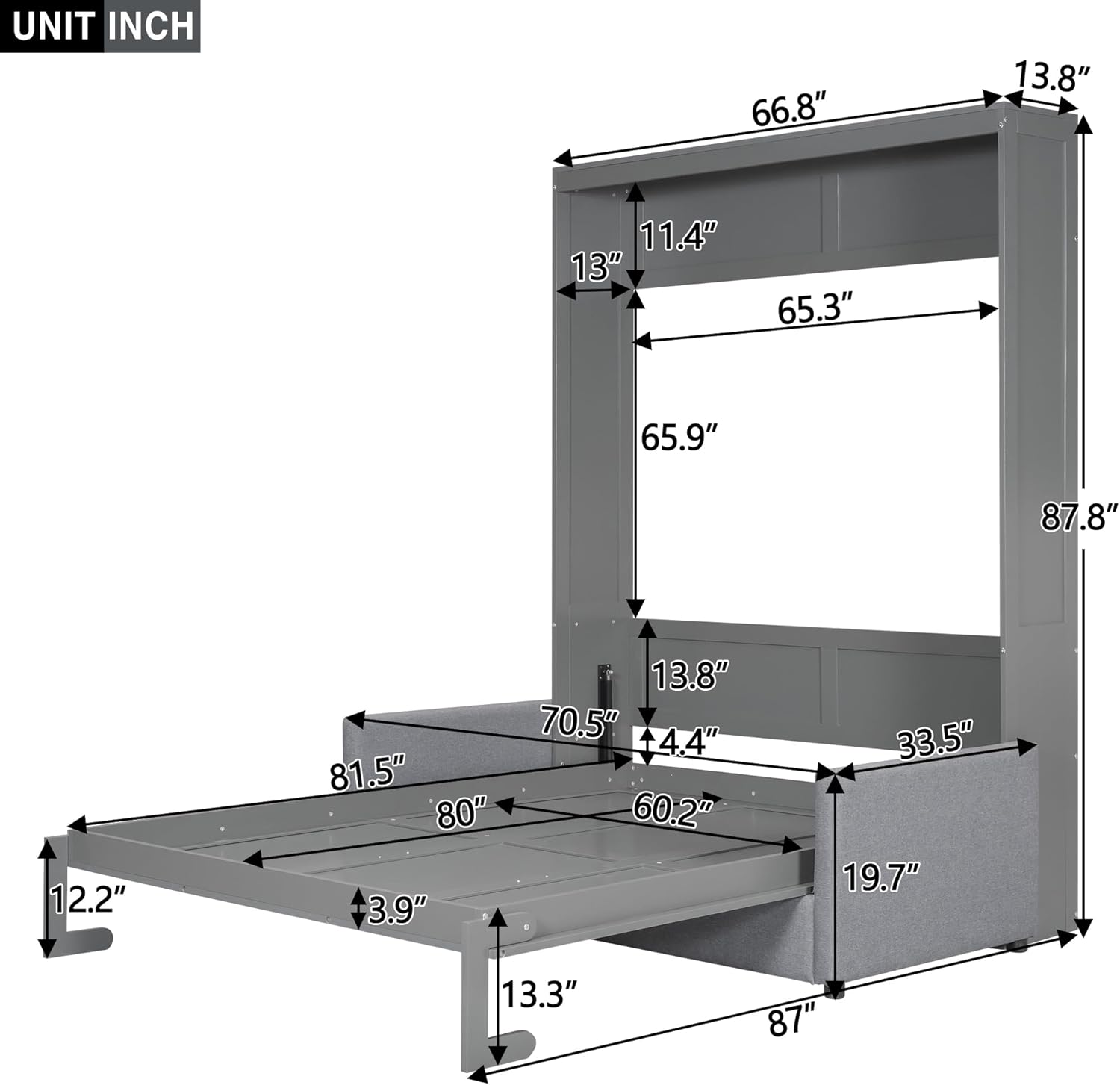

Figure 3.1: Detailed dimensions of the Murphy bed unit, showing height, width, and depth in both folded and extended configurations.

Figure 3.2: The Aiuyesuo Queen Size Murphy Folding Bed with Sofa shown in its extended bed configuration, with the sofa cushions visible beneath the bed frame.

4. Setup (Assembly)

The Aiuyesuo Queen Size Murphy Folding Bed with Sofa requires assembly. The product is shipped in 3 separate packages. Please ensure all packages have arrived and all components are present before beginning assembly.

Required Tools:

All necessary tools and instructions are included with the product. You may need a Phillips head screwdriver and a level (not included) for optimal installation.

Assembly Steps:

1. Unpack Components: Carefully unpack all components from the three packages. Verify all parts against the included parts list.
2. Assemble Cabinet Frame: Follow the step-by-step instructions to assemble the main wall cabinet frame. Ensure all connections are tight and the frame is square.
3. Install Piston Mechanism: Attach the dual piston metal folding mechanism to the cabinet frame as directed. This mechanism assists in lifting and lowering the bed.
4. Assemble Bed Frame: Construct the bed frame according to the instructions.
5. Attach Bed Frame to Cabinet: Securely attach the assembled bed frame to the cabinet frame using the piston mechanism.
6. Assemble Sofa Unit: Put together the sofa components and attach them to the base of the Murphy bed unit.
7. Wall Mounting: This is a critical step. Securely mount the entire unit to a sturdy wall using the provided hardware. Ensure the wall studs are located and used for maximum stability. Use a level to ensure the unit is plumb.
8. Final Checks: Once assembled and mounted, perform a thorough check of all connections and ensure the bed folds and unfolds smoothly.

Figure 4.1: The internal bed frame structure of the Murphy bed, shown extended and ready for a mattress.

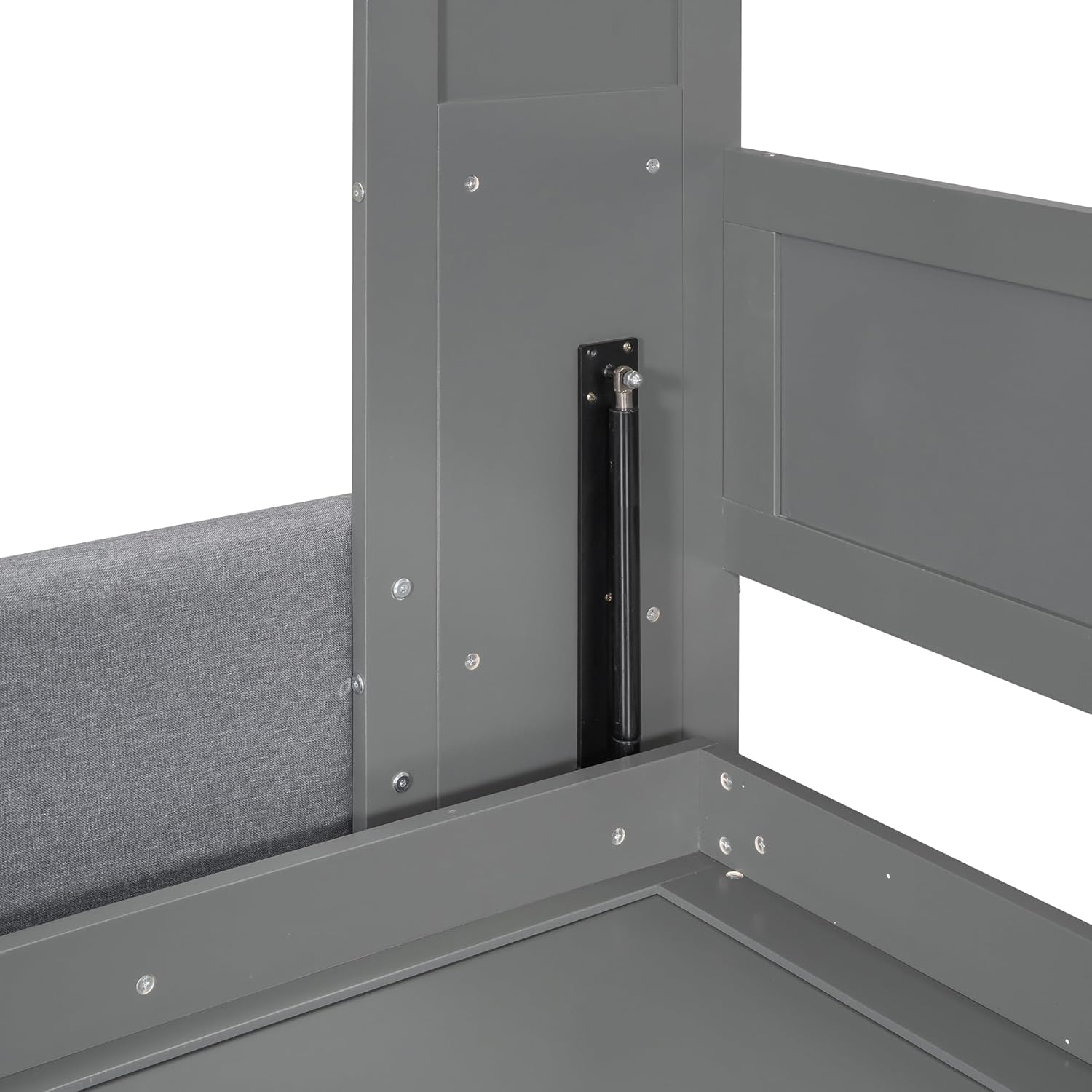

Figure 4.2: A close-up view of the dual piston metal folding mechanism, essential for the bed's smooth operation.

5. Operating Instructions

5.1. Extending the Bed

1. Ensure the area in front of the cabinet is clear of obstructions.
2. Gently pull on the handles located on the front panel of the cabinet.
3. As the bed begins to lower, guide it smoothly towards the floor. The piston mechanism will assist in this movement.
4. Once the bed frame is fully extended, flip the support legs down onto the floor to secure the bed in place.

Figure 5.1: Close-up of the bed's support leg, which must be flipped down to stabilize the extended bed.

5.2. Folding the Bed (Using the Sofa)

1. Remove any bedding or pillows from the bed surface.
2. Lift the support legs and fold them back into their stowed position.
3. Grasp the handles on the bed frame and gently lift the bed upwards. The piston mechanism will assist in lifting the bed back into the cabinet.
4. Guide the bed smoothly until it is fully retracted into the wall cabinet. Ensure it latches securely.
5. The sofa will now be fully accessible for use.

Figure 5.2: The Aiuyesuo Queen Size Murphy Folding Bed with Sofa in its folded position, showcasing the integrated sofa.

Figure 5.3: A close-up view of the sofa cushions and armrest, highlighting the linen fabric.

6. Maintenance

6.1. Cleaning

• Wood Surfaces (MDF/Plywood): Wipe with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. Dry immediately to prevent moisture damage.
• Linen Fabric (Sofa): Spot clean with a mild fabric cleaner and a soft cloth. Test in an inconspicuous area first. Do not saturate the fabric.
• Metal Components: Wipe with a dry cloth to remove dust. Avoid moisture to prevent rust.

6.2. General Care

• Regularly inspect all bolts, screws, and connections to ensure they are tight. Tighten as needed.
• Check the piston mechanism periodically for smooth operation. Do not lubricate unless specifically instructed by the manufacturer.
• Avoid placing heavy objects on the top of the cabinet or on the bed frame when it is folded, as this can strain the mechanism.
• Ensure the floor beneath the support legs is clear and level when the bed is extended.

7. Troubleshooting

7.1. Bed is difficult to fold/unfold:

• Check for obstructions around the bed frame or within the cabinet.
• Ensure all assembly bolts are properly tightened. Loose connections can affect the mechanism's alignment.
• Verify that the piston mechanism is correctly installed and functioning. If the issue persists, contact customer service.

7.2. Bed feels unstable when extended:

• Ensure the support legs are fully extended and firmly on the floor.
• Check that the unit is securely mounted to the wall. Re-tighten wall anchors if necessary.
• Verify that the floor surface is level.

7.3. Sofa cushions appear uneven:

• Adjust the cushions to ensure they are properly seated on the sofa base.
• Minor variations may occur due to packaging; gentle patting can help restore shape.

8. Specifications

9. Warranty and Support

This product comes with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the seller directly. If you encounter any quality problems or require assistance with assembly or operation, please contact our customer service team. We aim to respond to all inquiries within 12 hours.

For customer service, please refer to the contact information provided at the point of purchase or on the product packaging.
