IBELL YO1800 High Pressure Washer Instruction Manual

1. Safety Information

This section contains important safety instructions. Read all warnings and instructions before using the appliance. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Keep the pressure washer away from children.
• Always wear appropriate personal protective equipment, such as safety glasses and gloves, when operating the pressure washer.
• Ensure all connections are secure before starting the machine to prevent leaks and pressure loss.
• Do not direct the water jet at people, animals, electrical equipment, or the appliance itself.
• Never operate the pressure washer without a water supply. Dry running can cause damage to the pump.
• Disconnect the power supply before performing any maintenance or cleaning.
• Use only original replacement parts and accessories.

2. Product Overview

The IBELL YO1800 is a high-performance pressure washer designed for efficient cleaning of various surfaces, including vehicles, decks, and home exteriors. It features a powerful induction motor and a robust design for durability.

Key Features:

• Powerful 1800W Induction Motor: Provides strong and consistent pressure for effective cleaning.
• 120 Bar Max Pressure: Delivers high-pressure water to tackle stubborn dirt and grime.
• 6.5 L/Min Flow Rate: Ensures efficient water usage while maintaining cleaning power.
• 8-Meter Outlet Hose: Offers extended reach and flexibility during cleaning tasks.
• Adjustable Spray Nozzle: Allows for versatile cleaning from a concentrated jet to a wide fan spray.
• Advanced Total Stop System: Automatically shuts off the pump when the trigger is released, prolonging motor life and saving energy.
• Portable Design: Easy to move and store.

Specifications:

Product Visuals:

Image: The IBELL YO1800 High Pressure Washer main unit, showcasing its compact and portable design.

Image: Detailed diagram illustrating the components of the 1800W induction motor, including the pump, rotor, copper coil, motor main body, motor housing, and cooling fan.

3. Included Components

The IBELL YO1800 High Pressure Washer comes with the following components:

• Pressure Washer Main Unit
• Spray Gun & Nozzle
• 8-Meter Outlet Hose
• 3-Meter Inlet Hose
• Inlet Connector
• Inlet Filter
• Tap Connector
• Foam Bottle
• User Manual
• Warranty Card

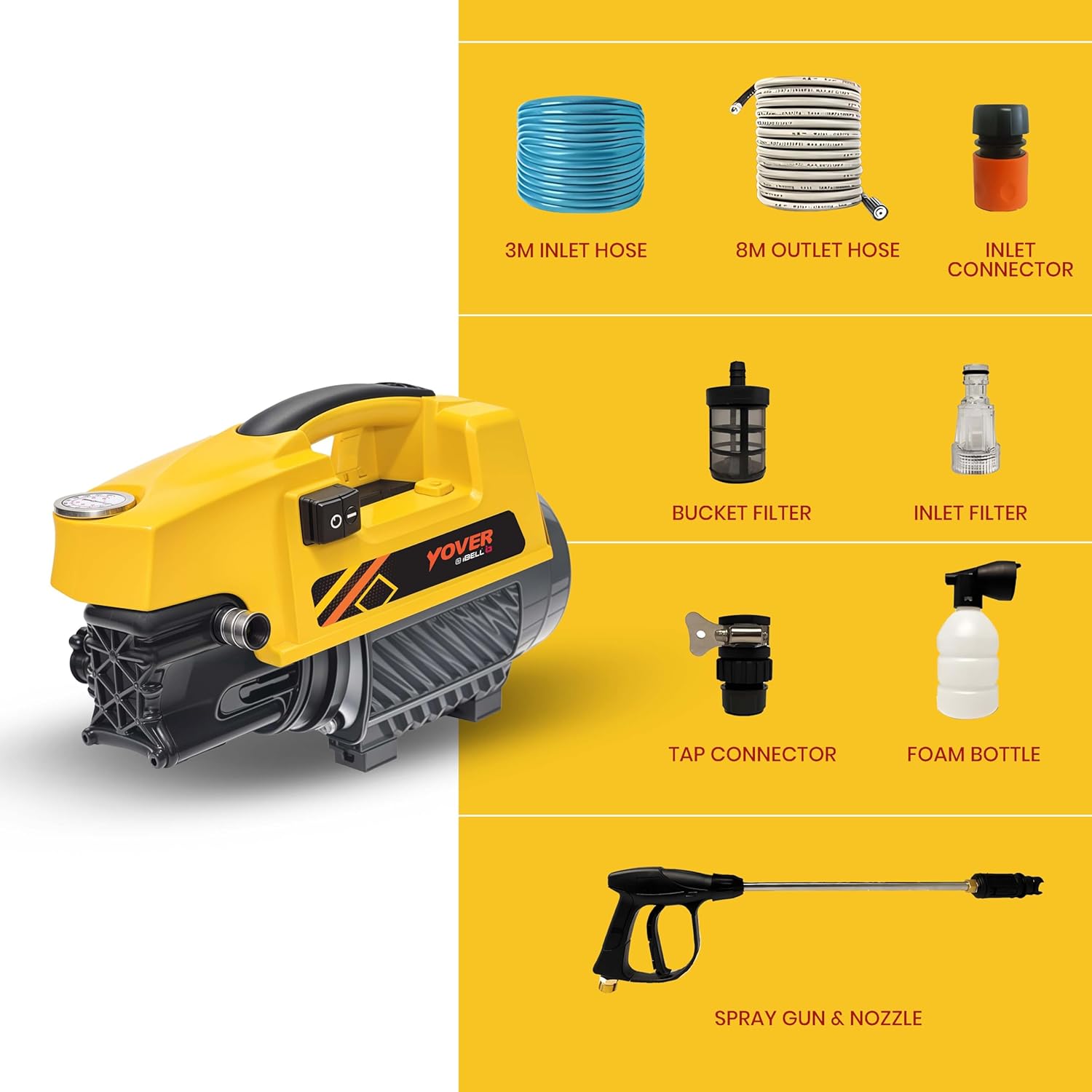

Image: A visual representation of all components included with the IBELL YO1800 High Pressure Washer, such as hoses, connectors, spray gun, and foam bottle.

4. Setup and Assembly

Follow these steps to correctly assemble and set up your IBELL YO1800 High Pressure Washer:

Assembly Steps:

1. Connect Inlet Pipe to Tap Connector: Attach the 3-meter inlet pipe to the tap connector. If needed, connect the bucket filter to the inlet pipe.
2. Attach Inlet Pipe to Inlet Connector: Securely connect the inlet pipe to the inlet connector.
3. Screw Inlet Filter onto Main Unit: Screw the transparent inlet filter onto the main pressure washer unit's water inlet.
4. Attach Inlet Connector to Inlet Filter: Connect the inlet connector (with the inlet pipe) to the inlet filter on the main unit.
5. Connect Outlet Hose to Main Unit: Push and screw the 8-meter outlet hose pipe with its outlet connector onto the main unit's high-pressure outlet.
6. Assemble Spray Gun:
   • Connect the spray gun extension rod to the spray gun.
   • Attach the nozzle to the spray gun extension rod.
7. Connect Outlet Hose to Spray Gun: Attach the other end of the 8-meter outlet hose pipe to the spray gun.
8. Attach Foam Bottle (Optional): If using the foam bottle, fill it with appropriate pressure washer detergent. Attach it to the spray gun and apply foam to the surface before rinsing.
9. Release Air: Before starting, turn on the water supply and then turn on the machine without connecting the hose pipe to the gun to release any trapped air.

Image: A visual guide demonstrating the step-by-step assembly process for the pressure washer, including connecting hoses, filters, and the spray gun.

Setup Video Guide:

5. Operating Instructions

Once the pressure washer is assembled and connected to a water source and power supply, follow these steps for operation:

1. Ensure Water Supply: Make sure the water tap is fully open and there is a steady flow of water to the pressure washer.
2. Connect Power: Plug the power cord into a suitable electrical outlet.
3. Turn On: Switch the power button on the main unit to the "ON" position. The motor will start.
4. Adjust Nozzle: Rotate the adjustable nozzle on the spray gun to select the desired spray pattern (e.g., narrow jet for tough stains, wide fan for general cleaning).
5. Begin Cleaning: Squeeze the trigger on the spray gun to start the water flow. Maintain a safe distance from the surface being cleaned, typically 15-30 cm, adjusting as needed for different materials.
6. Apply Detergent (Optional): If using the foam bottle, fill it with appropriate pressure washer detergent. Attach it to the spray gun and apply foam to the surface before rinsing.
7. Stop Operation: Release the trigger to stop the water flow. The Total Stop System will automatically shut off the pump. For extended breaks, turn off the power switch and disconnect the water supply.

Usage Examples:

Image: A person using the IBELL YO1800 High Pressure Washer to clean a car, demonstrating its effectiveness for vehicle washing.

Image: The pressure washer in action, cleaning a wooden deck, highlighting its versatility for outdoor surfaces.

Image: Visual representation of the adjustable nozzle, showing different spray patterns from low to high speed, and foam application.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pressure washer.

• Clean Filters: Regularly check and clean the inlet filter to prevent debris from entering the pump.
• Drain Water: After each use, disconnect the water supply and run the machine for a few seconds to drain any remaining water from the pump and hoses. This is especially important in freezing temperatures.
• Store Properly: Store the pressure washer in a dry, frost-free area. Coil hoses neatly and store accessories in a designated place.
• Check for Leaks: Periodically inspect all hoses and connections for signs of wear or leaks. Replace damaged parts immediately.
• Nozzle Cleaning: If the nozzle becomes clogged, use the included nozzle cleaning tool (if applicable) to clear any obstructions.

7. Troubleshooting

Refer to this section for common issues and their solutions:

8. Warranty and Support

Your IBELL YO1800 High Pressure Washer comes with a comprehensive warranty and dedicated customer support.

• Warranty: 1 Year (6 Months Standard + 6 Months Additional warranty on Registration). Registration should be done within 30 days from the date of purchase.
• Customer Service Support: For any queries, technical assistance, or warranty claims, please contact IBELL customer service.
• Contact Number: +91 98956 00055

Image: Customer service contact details for IBELL, including a phone number for support.
