ZEBRONICS Envy 2 Wireless Over-Ear Headphone Instruction Manual

1. Introduction

Thank you for purchasing the ZEBRONICS Envy 2 Wireless Over-Ear Headphone. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read it carefully before use and retain it for future reference.

2. Package Contents

• Headphone - 1 Unit
• Aux cable - 1 Unit
• External MIC - 1 Unit
• QR code guide - 1 Unit
• Charging cable (Type-C) - 1 Unit

3. Product Overview

The ZEBRONICS Envy 2 features a comfortable over-ear design with intuitive controls and versatile connectivity options.

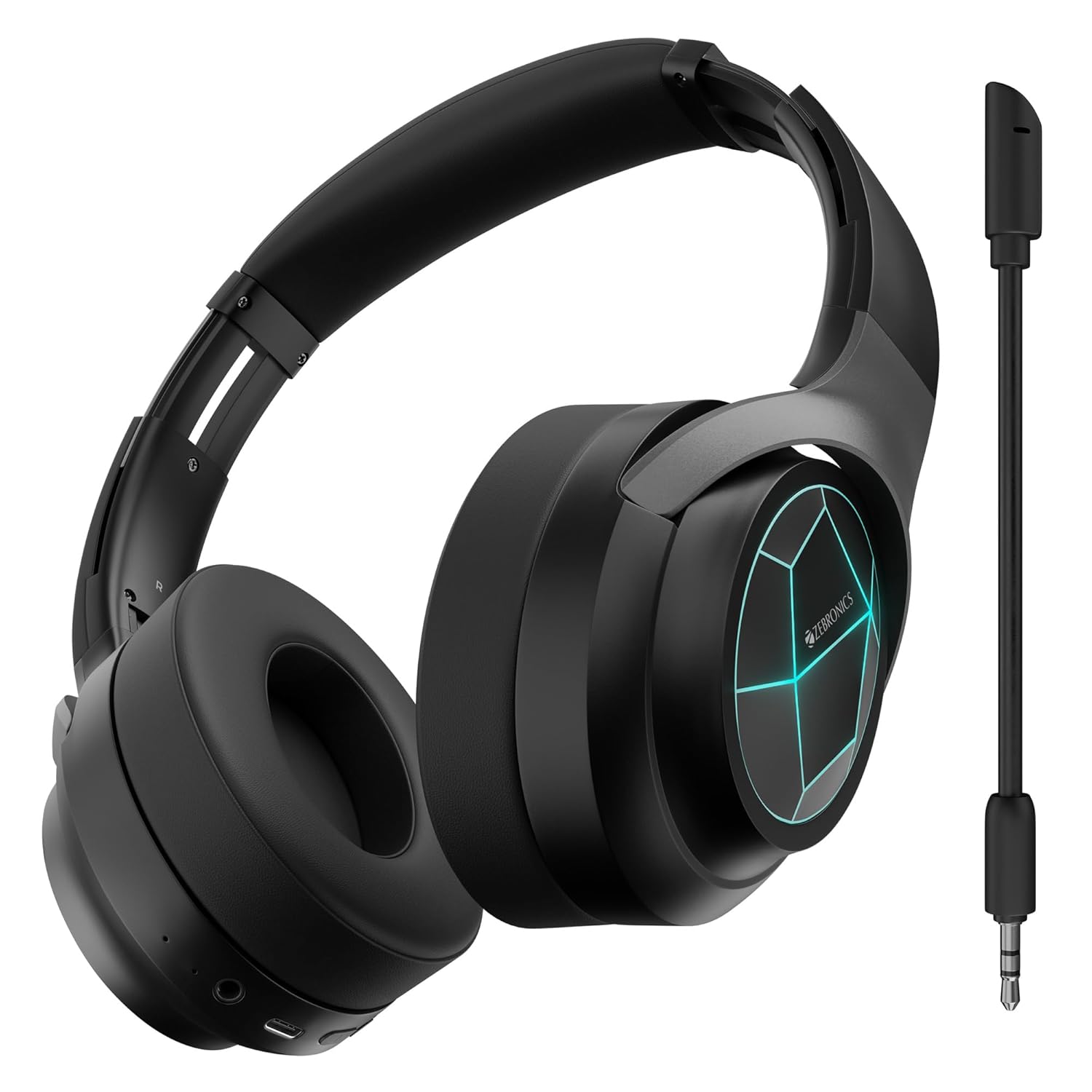

Figure 1: Front view of the ZEBRONICS Envy 2 Wireless Over-Ear Headphone, showcasing its sleek black design and illuminated earcups.

3.1 Components and Controls

• Earcups: Padded for comfort, housing 40mm drivers.
• Headband: Adjustable and foldable for portability.
• Power/Multi-function Button: For power on/off, play/pause, call management.
• Volume Up/Next Track Button: Adjust volume or skip tracks.
• Volume Down/Previous Track Button: Adjust volume or go to previous tracks.
• Mode Button: To switch between modes (e.g., Gaming Mode).
• Type-C Charging Port: For charging the internal battery.
• 3.5mm AUX Input: For wired audio connection.
• Microphone Port: For attaching the detachable microphone.
• LED Indicators: For power, pairing, and charging status.

Figure 2: Close-up showing the 40mm drivers for deep bass, media and volume controls, foldable design, and LED lights on the earcups.

4. Key Features

• Dynamic Bass: Equipped with dual 40mm powerful drivers for enhanced audio experience.
• Wireless Connectivity: Utilizes Bluetooth v5.3 for stable and efficient wireless connection.
• Wired Connectivity: Supports 3.5mm AUX input for universal compatibility.
• Detachable Microphone: Includes a flexible, detachable microphone for clear communication, especially during gaming.
• Environmental Noise Cancellation (ENC): Reduces ambient noise for clearer calls.
• Long Playback Time: Offers up to 65 hours of playback on a single charge (at 50% volume with LED off).
• Gaming Mode: Provides a low-latency audio experience optimized for gaming.
• Dual Pairing: Allows simultaneous connection to two devices, enabling seamless switching.
• Voice Assistant Support: Compatible with voice assistants for hands-free control.
• Foldable Design: Enhances portability and ease of storage.
• Soft Ear Cushions: Designed for extended comfort during long listening sessions.
• LED Lights: Integrated LED lights on the earcups for a distinctive visual appeal.

5. Charging the Headphone

Before first use, fully charge the headphone. Use the provided Type-C charging cable.

1. Connect the Type-C end of the charging cable to the headphone's charging port.
2. Connect the USB-A end of the charging cable to a compatible USB power adapter (not included) or a computer's USB port.
3. The LED indicator will show charging status (e.g., red while charging, off when fully charged).
4. A full charge typically takes approximately X hours (refer to product specifications for exact time).

Figure 3: Illustration highlighting the headphone's impressive battery life of up to 65 hours and its built-in rechargeable battery.

6. Bluetooth Pairing

Follow these steps to pair your ZEBRONICS Envy 2 headphone with a Bluetooth-enabled device.

1. Ensure the headphone is fully charged and turned off.
2. Press and hold the Power/Multi-function button until the LED indicator flashes blue and red alternately, indicating pairing mode.
3. On your device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
4. Select "Zeb-Envy 2" from the list of found devices.
5. Once paired, the LED indicator will flash blue slowly.

6.1 Dual Pairing

The headphone supports dual pairing, allowing connection to two Bluetooth devices simultaneously.

1. Pair the headphone with the first device as described above.
2. Disable Bluetooth on the first device. The headphone will re-enter pairing mode.
3. Pair the headphone with the second device.
4. Re-enable Bluetooth on the first device. The headphone should automatically connect to both devices.

Figure 4: The headphone connected to both a laptop and a smartphone, illustrating the dual pairing feature with Bluetooth v5.3.

7. Wired Connection (AUX)

For a wired connection, use the provided 3.5mm AUX cable.

1. Plug one end of the 3.5mm AUX cable into the headphone's AUX input port.
2. Plug the other end into the 3.5mm audio output jack of your audio source (e.g., smartphone, computer, gaming console).
3. The headphone will automatically switch to AUX mode.

Figure 5: The headphone showing the detachable and flexible microphone, along with the AUX input port for wired audio.

8. Using the Detachable Microphone

The ZEBRONICS Envy 2 comes with a detachable microphone for clear voice input.

1. Locate the microphone port on the headphone.
2. Insert the detachable microphone firmly into the port.
3. Adjust the flexible microphone arm to position it optimally for your voice.
4. To remove, gently pull the microphone out of the port.

9. Call Function and Voice Assistant

Manage calls and activate your device's voice assistant with ease.

9.1 Call Function (ENC)

• Answering/Ending Calls: Press the Power/Multi-function button once.
• Rejecting Calls: Press and hold the Power/Multi-function button for 2 seconds.
• Environmental Noise Cancellation (ENC): The built-in ENC technology helps reduce background noise during calls for clearer conversations.

Figure 6: Visual representation of the Environmental Noise Cancellation (ENC) feature, showing the headphone surrounded by a noise-reducing field.

9.2 Voice Assistant

• Activating Voice Assistant: Press the Voice Assistant button (if available, or typically a double-press of the Multi-function button) to activate your device's voice assistant (e.g., Siri, Google Assistant).

Figure 7: The headphone highlighting soft ear cushions for comfort, the call function, and support for voice assistants like Siri and Google Assistant.

10. Gaming Mode

The ZEBRONICS Envy 2 features a dedicated Gaming Mode for a low-latency audio experience, crucial for competitive gaming.

• Activating Gaming Mode: Press the Mode button (or refer to the QR code guide for specific button press).
• Benefit: Reduces audio delay, ensuring synchronized sound with on-screen action.

Figure 8: The headphone illustrating its Gaming Mode, emphasizing low latency for an immersive gaming experience.

11. Maintenance and Care

• Clean the headphone with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Avoid exposing the headphone to extreme temperatures, humidity, or direct sunlight.
• Store the headphone in a cool, dry place when not in use. The foldable design aids in compact storage.
• Do not attempt to disassemble or modify the headphone, as this will void the warranty.

12. Troubleshooting

13. Specifications

14. Safety Information

• Do not use the headphone at high volume for extended periods to prevent hearing damage.
• Do not use the headphone while driving or in situations where ambient sounds are necessary for safety.
• Keep the device away from water, moisture, and flammable substances.
• Dispose of the product responsibly according to local regulations.

15. Warranty and Support

Your ZEBRONICS Envy 2 headphone is covered by a manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the QR code guide included in your package or visit the official ZEBRONICS website.
