ForeverPRO W11536793 Control Board for Whirlpool Range User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the ForeverPRO W11536793 Control Board, designed as a replacement part for compatible Whirlpool Ranges. Please read this manual thoroughly before attempting any installation or repair to ensure safe and correct usage.

2. Safety Information

WARNING: To reduce the risk of electric shock, fire, or injury to persons, observe the following:

• Always disconnect power to the appliance at the circuit breaker or fuse box before attempting any service or installation.
• Installation and servicing should be performed by a qualified technician.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Ensure all wiring connections are secure and correctly installed according to the appliance's service manual.
• Do not operate the appliance if the control board is damaged or improperly installed.

3. Product Overview

The ForeverPRO W11536793 Control Board is an electronic component responsible for managing various functions of your Whirlpool Range. It features a user interface with buttons for different cooking modes, timers, and settings.

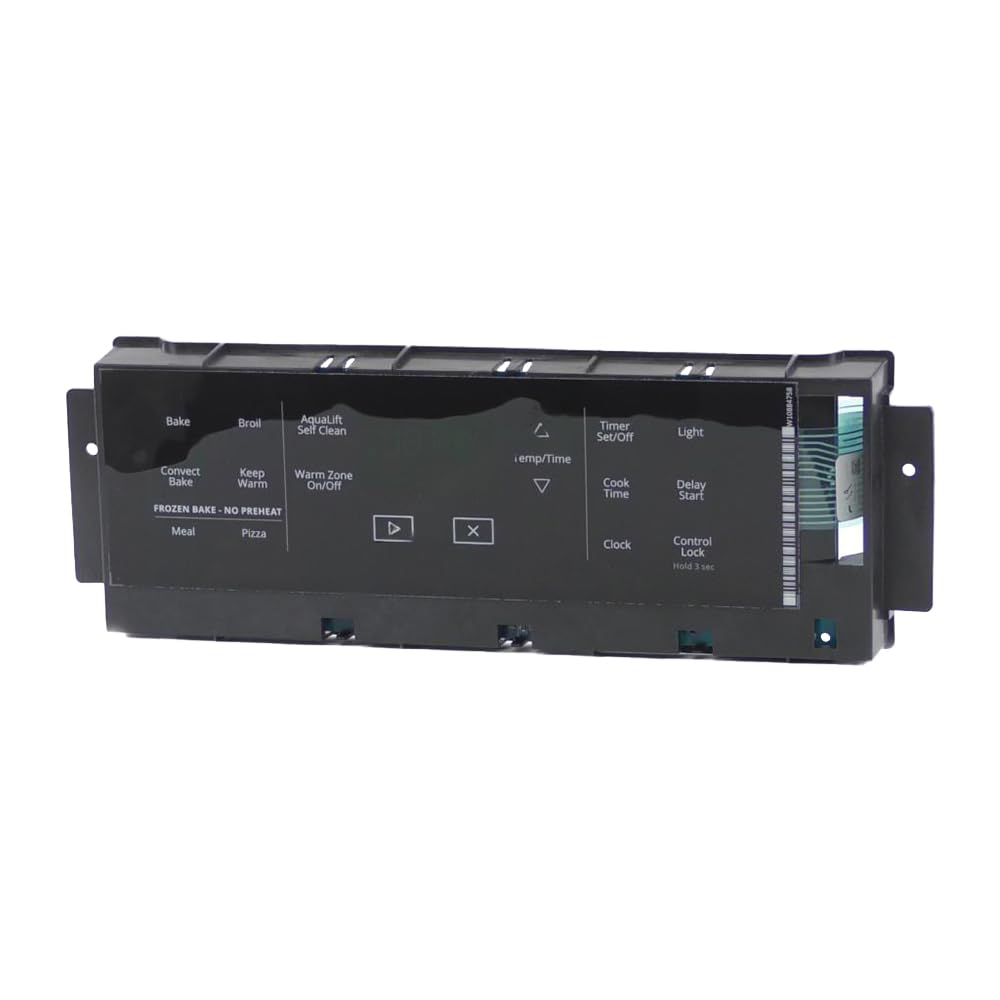

Image 1: ForeverPRO W11536793 Control Board. This image displays the black electronic control board with various function buttons labeled in white text. Visible functions include Bake, Broil, AquaLift Self Clean, Convect Bake, Keep Warm, Warm Zone On/Off, Frozen Bake (Meal, Pizza), Timer Set/Off, Light, Temp/Time adjustment arrows, Cook Time, Delay Start, Clock, and Control Lock. A barcode and part number W10884758 are visible on the right side.

4. Installation Instructions

Replacing a range control board requires careful attention to detail and electrical safety. It is highly recommended that this procedure be performed by a qualified appliance repair technician.

1. Disconnect Power: Before beginning, ensure the range is completely disconnected from its power source by unplugging it or turning off the circuit breaker.
2. Access the Control Board: Depending on your specific range model, you may need to remove the back panel or the control panel assembly to access the existing control board. Refer to your appliance's service manual for exact instructions.
3. Document Connections: Carefully photograph or diagram the wiring connections to the old control board before disconnecting them. This will aid in correct reassembly.
4. Remove Old Board: Disconnect all wires and mounting screws securing the old control board.
5. Install New Board: Position the new ForeverPRO W11536793 Control Board in place and secure it with the mounting screws.
6. Reconnect Wiring: Using your documentation, carefully reconnect all wires to the corresponding terminals on the new control board. Ensure all connections are firm and correct.
7. Reassemble Appliance: Reattach any panels or covers that were removed.
8. Restore Power and Test: Restore power to the range and test all functions of the control board to ensure proper operation.

5. Operation

The control board provides various functions for your range. Below is a general guide to the buttons and their typical uses:

• Bake: Initiates the standard baking function.
• Broil: Activates the broiler for high-heat cooking.
• AquaLift Self Clean: Starts the AquaLift self-cleaning cycle, which uses water and low heat to clean the oven cavity.
• Convect Bake: Engages the convection baking feature for more even cooking.
• Keep Warm: Maintains a low temperature to keep cooked food warm.
• Warm Zone On/Off: Controls the warming zone on the cooktop (if applicable).
• Frozen Bake - Meal / Pizza: Dedicated settings for baking frozen meals or pizzas without preheating.
• Temp/Time (Up/Down Arrows): Used to adjust temperature settings or set cooking times.
• Timer Set/Off: Sets or cancels the kitchen timer.
• Light: Turns the oven interior light on or off.
• Cook Time: Sets the duration for a cooking cycle.
• Delay Start: Allows you to program the oven to start cooking at a later time.
• Clock: Used to set the current time of day.
• Control Lock (Hold 3 sec): Locks the control panel to prevent accidental operation. Hold for approximately 3 seconds to activate or deactivate.

Note: Specific operational details may vary slightly based on your range model. Refer to your appliance's user manual for comprehensive instructions.

6. Maintenance

The electronic control board generally requires minimal maintenance. To ensure its longevity:

• Keep the control panel clean and free from food spills or debris. Use a soft, damp cloth for cleaning.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the surface and electronic components.
• Ensure the control panel is dry after cleaning.

7. Troubleshooting

If you experience issues after installing the control board, consider the following basic troubleshooting steps:

• No Power to Control Panel: Check the circuit breaker for the range. Ensure the range is properly plugged into the wall outlet.
• Buttons Unresponsive: Verify that the "Control Lock" feature is not activated. If it is, hold the "Control Lock" button for 3 seconds to deactivate it.
• Incorrect Functionality: Double-check all wiring connections to the control board to ensure they are secure and correctly matched.
• Error Codes: If the display shows an error code, consult your specific Whirlpool Range's service manual for the meaning of the code and recommended solutions.

If problems persist, it is advisable to contact a qualified appliance repair technician for further diagnosis and repair.

8. Specifications

9. Compatible Models

This ForeverPRO W11536793 Control Board is compatible with a range of Whirlpool models, including but not limited to:

• WFE775H0HB1, WFE775H0HB2, WFE775H0HB4
• WFE775H0HV1, WFE775H0HV2, WFE775H0HV4
• WFE775H0HW1, WFE775H0HW2, WFE775H0HW4
• WFE775H0HZ1, WFE775H0HZ2, WFE775H0HZ4
• YWFE775H0HB0, YWFE775H0HB1, YWFE775H0HB2, YWFE775H0HB4
• YWFE775H0HV0, YWFE775H0HV1, YWFE775H0HV2, YWFE775H0HV4
• YWFE775H0HW0, YWFE775H0HW1, YWFE775H0HW2, YWFE775H0HW4
• YWFE775H0HZ0, YWFE775H0HZ1, YWFE775H0HZ2, YWFE775H0HZ4

This part may also be compatible with certain models from Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper. Always verify compatibility with your specific appliance model before purchase and installation.

10. Warranty and Support

This product comes with a 90-day manufacturer's warranty. For warranty claims or technical support, please contact ForeverPRO directly through their official channels or the retailer from whom the product was purchased.
