1. Introduction
This manual provides essential instructions for the safe and efficient assembly, operation, and maintenance of your FORZA XL Sports Equipment Storage Cabinet & Cart. Please read this manual thoroughly before use and retain it for future reference.
The FORZA XL Sports Equipment Storage Cabinet & Cart is designed for organizing and transporting various sports equipment in environments such as schools, gyms, and sports centers. It features a durable steel frame, mesh shelves, and lockable doors for secure storage, along with non-marking castor wheels for portability.
2. Safety Information
- Always ensure the cart is assembled correctly according to the instructions before use.
- Do not exceed the maximum load capacity of 90kg (199lbs) per shelf. Overloading can cause instability and damage.
- Distribute weight evenly across shelves to maintain stability.
- Engage the brakes on the castor wheels when the cart is stationary to prevent unintended movement.
- Exercise caution when moving the cart, especially on uneven surfaces or ramps.
- Keep hands and fingers clear of moving parts, such as wheels and door hinges, during operation.
- Do not allow children to climb on or play with the storage cart.
- Regularly inspect the cart for any signs of wear, damage, or loose components. Do not use if damaged.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Main Cabinet Frame (pre-assembled sections)
- Mesh Shelves (4 units)
- Castor Wheels (4 units, 2 with brakes)
- Handles (2 units)
- Assembly Hardware (bolts, nuts, washers, wrench)
4. Assembly Instructions
Assembly typically requires two people. Ensure you have adequate space and the necessary tools (a wrench is usually included).
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Compare with the package contents list to ensure everything is present.
- Attach Castor Wheels: Turn the main cabinet frame upside down. Attach the four castor wheels to the designated mounting points on the bottom of the frame using the provided bolts and nuts. Ensure the two wheels with brakes are installed on the same side for easier access. Tighten all fasteners securely.
- Install Shelves: Turn the cabinet upright. Insert the mesh shelves into the desired positions within the cabinet. The shelves are removable and can be adjusted to accommodate different equipment sizes. Ensure each shelf is securely seated in its supports.
- Attach Handles: Secure the two handles to the exterior sides of the cabinet doors using the provided hardware. Ensure they are firmly attached for safe maneuvering.
- Final Check: Verify that all bolts are tightened, shelves are stable, and doors open and close smoothly.

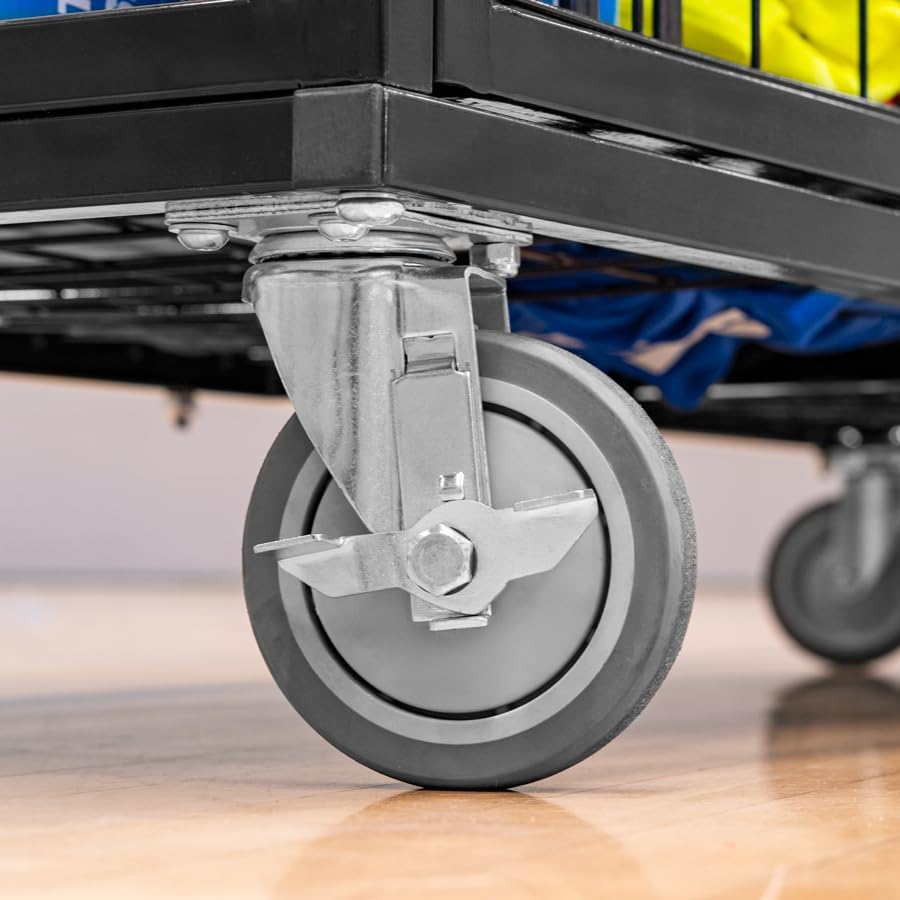

Image: Close-up view of a non-marking castor wheel with an engaged brake mechanism, attached to the base of the storage cart.
Image: Detailed view of a black, ergonomic handle securely fastened to the mesh door of the storage cabinet.
5. Operating Instructions
5.1 Moving the Cart
- Unlock Wheels: Before moving, ensure that the brakes on the castor wheels are disengaged.
- Use Handles: Grasp the handles firmly and push or pull the cart to its desired location. The non-marking wheels are designed for smooth movement on various indoor surfaces.
- Engage Brakes: Once the cart is in position, engage the brakes on the two castor wheels to prevent accidental movement.
Image: A person pushing the FORZA XL Sports Equipment Storage Cart, filled with various sports balls and cones, across a gymnasium floor.
5.2 Loading and Storing Equipment
- Open Doors: Unlock and open the hinged doors to access the interior shelves.
- Distribute Weight: Place equipment evenly on the shelves, ensuring not to exceed the maximum weight capacity per shelf.
- Adjust Shelves: The shelves are removable, allowing for flexible storage configurations to accommodate different sizes of equipment. To adjust, carefully lift and reposition the shelves into the desired slots.
- Secure Doors: After loading, close the doors and engage the locking mechanism to secure the contents.

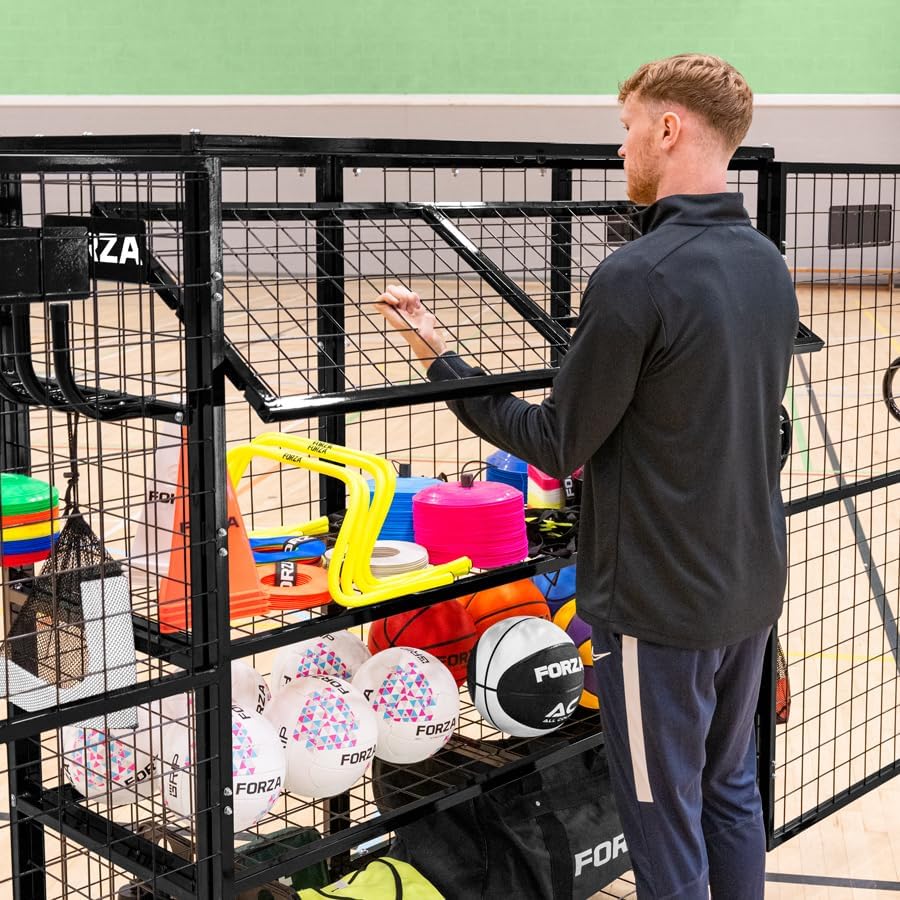

Image: A person demonstrating the adjustment of a mesh shelf inside the FORZA XL Sports Equipment Storage Cart, which is filled with various sports items.
Image: A person opening the wide hinged doors of the FORZA XL Sports Equipment Storage Cart, revealing multiple shelves filled with sports balls, cones, and hoops.
6. Maintenance
- Cleaning: Wipe down the steel frame and mesh surfaces with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the powder coating.
- Wheel Inspection: Periodically check the castor wheels for any accumulated debris (e.g., hair, string) that might hinder smooth movement. Clean as necessary. If wheels become stiff, a small amount of lubricant can be applied to the axle.
- Hardware Check: Regularly inspect all bolts, nuts, and other fasteners to ensure they remain tight. Tighten any loose hardware to maintain the structural integrity of the cart.
- Lock Mechanism: Ensure the door locking mechanism operates smoothly. Lubricate with a graphite-based lubricant if it becomes stiff.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart is difficult to move. | Wheels are locked; debris in wheels; wheels require lubrication. | Disengage wheel brakes. Remove any debris from wheels. Apply lubricant to wheel axles. |
| Doors do not close or lock properly. | Misalignment; obstruction; damaged lock mechanism. | Check for obstructions. Ensure the cart is on a level surface. Inspect hinges and lock for damage. |
| Shelves are unstable or sag. | Improper installation; overloaded shelf; uneven weight distribution. | Ensure shelves are correctly seated in their supports. Reduce weight on the shelf. Redistribute equipment evenly. |
| Loose components or rattling. | Loose bolts or fasteners. | Inspect all assembly hardware and tighten any loose bolts or nuts. |
8. Specifications
- Product Dimensions (D x W x H): 26"D x 68"W x 68"H (68cm D x 172cm W x 172cm H)
- Frame Material: Alloy Steel
- Shelf Material: Heavy-gauge wire mesh
- Color: Black
- Number of Shelves: 4 (removable)
- Max Load Capacity per Shelf: 90kg (199lbs)
- Wheels: 4 non-marking castor wheels (2 swivel with brakes)
- Special Features: Lockable hinged doors, non-marking castor wheels, removable shelves
- Recommended Use: Indoor
Image: A visual representation of the FORZA XL Sports Equipment Storage Cart with its key dimensions labeled: 172cm (68in) width, 172cm (68in) height, and 68cm (26in) depth. The total weight is indicated as 119kg (262lbs).
9. Warranty and Support
9.1 Warranty Information
This product is subject to a 30-day return policy from the date of purchase. Please refer to your purchase documentation for specific terms and conditions regarding returns and warranty claims.
9.2 Customer Support
For any questions, missing parts, or support needs, please contact the manufacturer, Net World Sports, or the seller, Net World Sports USA, through the platform where the product was purchased.
