1. Safety Information
Please read and understand all safety warnings before assembly and use of this gazebo.
- Professional Assembly Recommended: This gazebo requires careful assembly. For optimal safety and stability, professional installation is recommended.
- Local Regulations: Always consult local building codes and regulations before installation. Permits may be required.
- Use Safety Gear: Wear appropriate safety gear, including gloves and eye protection, during assembly.
- Secure Installation: Ensure the gazebo is securely anchored to the ground to prevent wind damage.
- Weather Conditions: In extreme weather conditions (heavy snow, strong winds), it is advisable to remove curtains and netting and take necessary precautions to prevent damage.
2. Product Overview
The PURPLE LEAF 12' x 12' Patio Aluminum Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a galvanized steel double roof for enhanced weather resistance and airflow, a sturdy aluminum frame, and privacy curtains with netting.

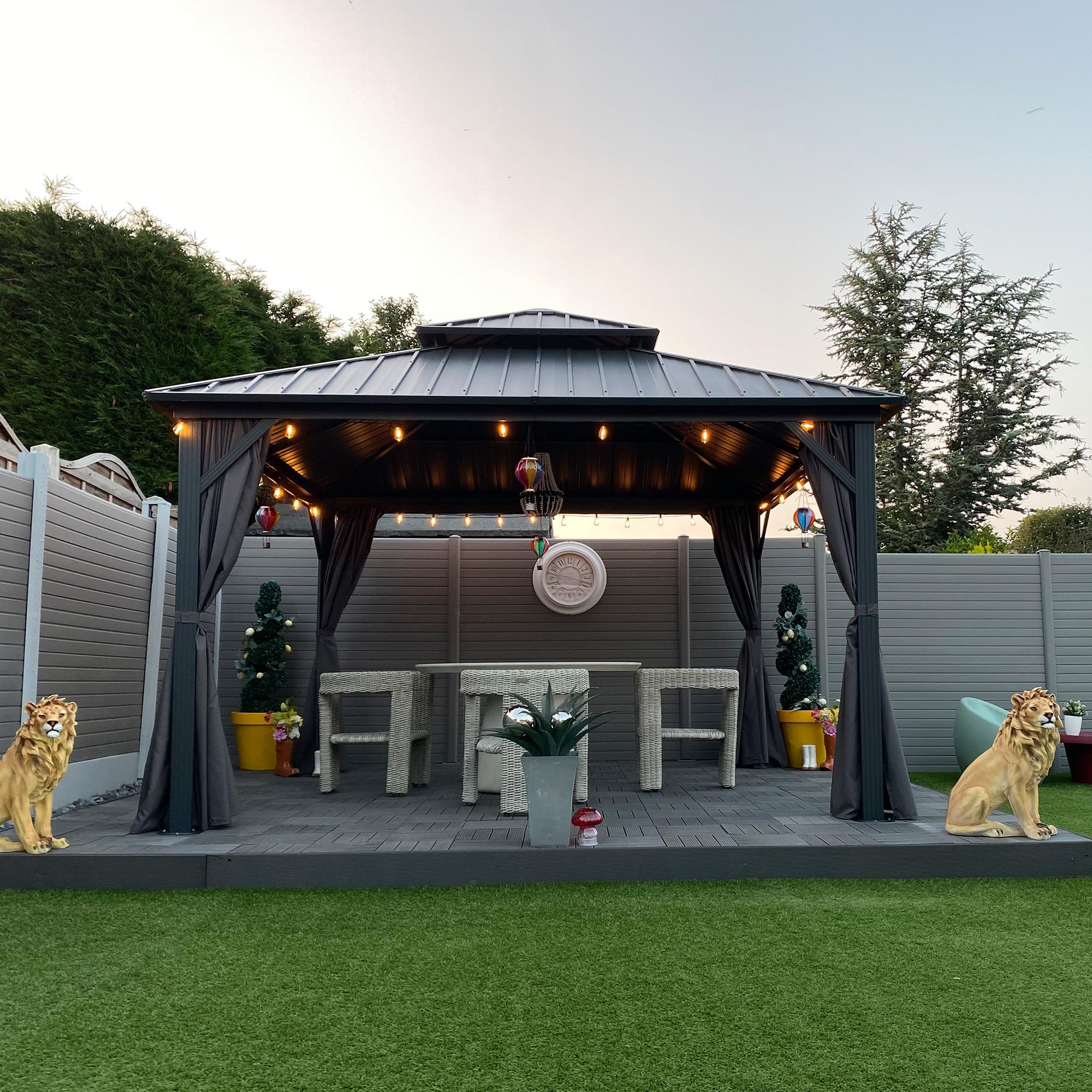

Image: The PURPLE LEAF 12' x 12' Hardtop Gazebo providing shade and privacy in an outdoor setting.
Image: Illustration of the gazebo as a permanent aluminum garden canopy, highlighting its waterproof design.
3. Features
- Galvanized Steel Double Roof: The roof features a double-top vented design for optimal airflow and comfort. Galvanized steel construction provides UV resistance and durability.
- Removable Netting and Curtains: Includes 160/gsm yarn-dyed polyester curtains for privacy and sun blockage, and 110/gsm Teslin fabric netting for breathability and insect protection. Both are durable and easy to clean.
- Powder-coated Aluminum Frame: Constructed with a sturdy and lightweight aluminum framework, ensuring exceptional strength, durability, and resistance to rust and corrosion for long-term outdoor use.
- Ceiling Hooks: Built-in, high-quality ceiling hooks are included for hanging decorative items or lighting.
- Thickened Posts: Features 3.9" thick posts for superior support and stability.
- Reinforced Beams: Upgraded thicker structural beams provide 50% stronger load capacity, designed to withstand 40 MPH winds and up to 1700 lbs of snow load.
- Stainless Steel Screws: Designed for long-lasting durability and exceptional rust resistance.
Image: Detail of the galvanized steel double roof, showing the vented design and protective netting for air circulation.
Image: Detailed view of the 110 GSM Textilene netting, highlighting its fine mesh for insect protection.
Image: Close-up of the yard-dyed polyester curtain, emphasizing its waterproof, light-blocking, and fade-proof qualities.
Image: Visual comparison showing the superior rust resistance of stainless steel screws used in the gazebo compared to ordinary iron screws.
Image: Diagram illustrating the 3.9-inch thickened posts of the gazebo, highlighting their robust construction compared to standard thinner posts.
Image: Comparison showing the upgraded thicker reinforced structural beams of the PURPLE LEAF gazebo, designed for higher load capacity and wind resistance, contrasted with thinner beams prone to bending.
Image: Illustration of the multi-purpose ceiling hooks, demonstrating their use for hanging various items like lights, fans, or decorative elements.
4. Setup
Assembly of the PURPLE LEAF gazebo requires careful attention to detail. While instructions are provided, having an additional person for certain steps is highly recommended for ease and safety.
General Assembly Guidelines:
- Two-Person Assembly: Many steps, especially roof panel installation, are significantly easier and safer with two people.
- Estimated Time: Assembly can take approximately 8-14 hours for two people. Plan accordingly.
- Review Instructions: Read the entire instruction manual thoroughly before beginning assembly.
- Organize Parts: Lay out all parts and hardware, ensuring everything is accounted for. Hardware is typically packaged in separate, labeled bags.
- Initial Fastening: When attaching roof panels and other structural components, leave screws slightly loose until all pieces are in place and properly aligned. This allows for adjustments and prevents stripping or misalignment. Tighten all screws securely once alignment is confirmed.
- Tool Recommendation: While an Allen wrench is provided, using a hexagon bit kit with a drill on a low-speed setting can significantly speed up the process. Exercise caution to avoid overtightening.
- Online Resources: Consider watching official YouTube assembly videos for visual guidance, if available.
Assembly Videos:
Video: Overview of the PURPLE LEAF Outdoor Aluminum Gazebo, showcasing its heavy-duty construction. (Duration: 0:12)
Video: A look at the PURPLE LEAF Patio Hardtop Gazebo, highlighting its design and features. (Duration: 0:13)
Video: Detailed presentation of the PURPLE LEAF Patio Hardtop Gazebo. (Duration: 0:28)
5. Operating the Gazebo
The gazebo is designed for versatile use, offering options for open-air enjoyment or enclosed privacy.
Curtains and Netting:
- Fully Open: Slide back both the netting and curtains to enjoy an unobstructed view and maximum ventilation.
- Semi-Open: Close only the Textilene netting to keep insects out while maintaining good ventilation and air circulation.
- Fully Closed: Close both the netting and the yarn-dyed polyester curtains for enhanced privacy and effective blockage of sunlight.
Image: Visual guide demonstrating the gazebo in fully-open, semi-open (netting closed), and fully-closed (curtains and netting closed) configurations.
6. Maintenance
Regular maintenance will extend the lifespan and preserve the appearance of your gazebo.
Cleaning and Care:
- Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Roof: Periodically inspect the galvanized steel roof for debris accumulation. Clean with water and a soft brush if necessary. Ensure proper drainage.
- Curtains and Netting: The polyester curtains and Textilene netting are easy to clean. Hand wash with mild soap and water, or follow specific care instructions on the fabric tags. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.
- Hardware: Regularly check all screws and bolts for tightness. Tighten as needed to maintain structural integrity. The stainless steel screws are designed for rust resistance, but occasional inspection is still recommended.
- Winter Storage: In areas with heavy snow, consider removing the curtains and netting for winter storage to prolong their life. While the roof is designed for snow load, clearing excessive snow is always a good practice.
7. Troubleshooting
This section addresses common issues you might encounter during assembly or use.
| Problem | Possible Cause | Solution |
|---|---|---|
| Parts are bent or misaligned during assembly. | Shipping damage or slight manufacturing variations. | Carefully use pliers to gently straighten bent components. If parts are severely damaged, contact customer support for replacements. |
| Difficulty fitting roof panels or other components. | Screws were tightened prematurely. | Loosen all screws on the related section, adjust components for proper fit, then gradually tighten all screws. |
| Zipper on curtains/netting is stuck or broken. | Wear and tear, or manufacturing defect. | Attempt to realign the zipper pull. If the zipper is broken or the bottom stop is missing, contact customer support for a replacement curtain or netting. |
If you encounter issues not listed here or require further assistance, please contact PURPLE LEAF customer support.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model | 12' x 12' Hardtop Gazebo |
| Material | Aluminum Frame, Galvanized Steel Roof, Polyester Curtains, Textilene Netting |
| Color | Gray |
| Product Dimensions (L x W x H) | 131.89"L x 131.89"W x 119.25"H (approx. 11' x 11' x 9.9') |
| Floor Area | 144 square feet |
| Item Weight | 250.2 pounds |
| Water Resistance Level | Waterproof |
| UV Protection | UV Resistant |
| Post Thickness | 3.9 inches |
| Wind Resistance | Withstands up to 40 MPH winds |
| Snow Load Capacity | Up to 1700 lbs |
Image: Technical drawing showing the precise dimensions of the 12' x 12' gazebo, including height, width, and post base measurements.
9. Warranty & Support
PURPLE LEAF stands behind the quality of its products with a comprehensive warranty and dedicated customer support.
Warranty Information:
- Top Panel: 5-year warranty
- Curtains & Netting: 2-year warranty
- Frame: 1-year warranty
For warranty claims or any product-related inquiries, please contact PURPLE LEAF customer support. They offer 24/7 support to assist with your needs.
