Introduction
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Donner DMT-66 Solid Body Electric Guitar. Please read these instructions carefully to ensure optimal performance and longevity of your instrument.
The Donner DMT-66 is a full-size 39-inch electric guitar featuring HSS pickups, a poplar body, and a maple neck. It is designed for both beginners and experienced players, offering a comfortable playing experience and versatile tonal options.
Included Accessories:
- Gig Bag
- Strap
- Whammy Bar Arm
Product Features
- Classic Design with Distinctive Personality: The DMT-66 features a classic body shape with vibrant gradient gloss finishes and a matching headstock.
- Efficient Pickups with Balanced Tone: Equipped with DONNER LAB's self-developed DMT Midout Set pickups in HSS configuration, providing stable output suitable for various genres.
- Comfortable Playability: Designed with a slim C-shaped neck optimized for fast, comfortable playing, combined with carefully crafted contours.
- Premium Materials for Full-Bodied Sound: Constructed from well-seasoned poplar wood for the body, and an Indian laurel fingerboard with 22 medium frets.
- Upgraded Details with Professional Features: Includes a 6-point tremolo system, dual-action truss rod, and durable chrome hardware.
Visual Features Overview
Image: Close-up of the S-Style Tremolo Bridge with chrome-plated die-cast hardware and independent block saddles.
Image: Diagram illustrating the dual-action truss rod, highlighting its role in neck adjustment and maintenance.

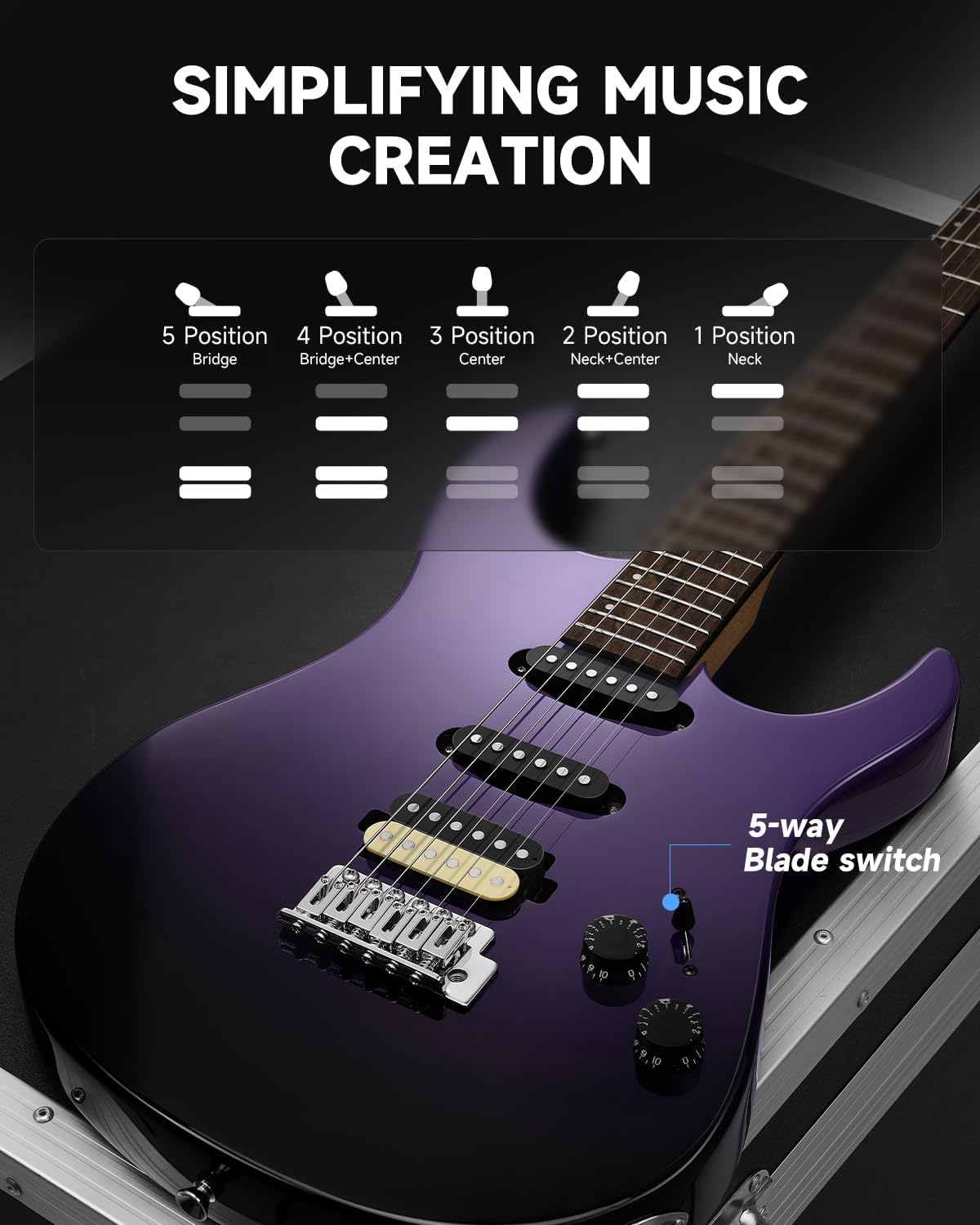

Image: Graphic showing the 5-position blade switch for pickup selection, simplifying music creation by offering various tonal options.
Image: Close-up of the DMT Midout Set HSS pickups, showing the humbucker and single-coil configuration, with a frequency response graph in the background.

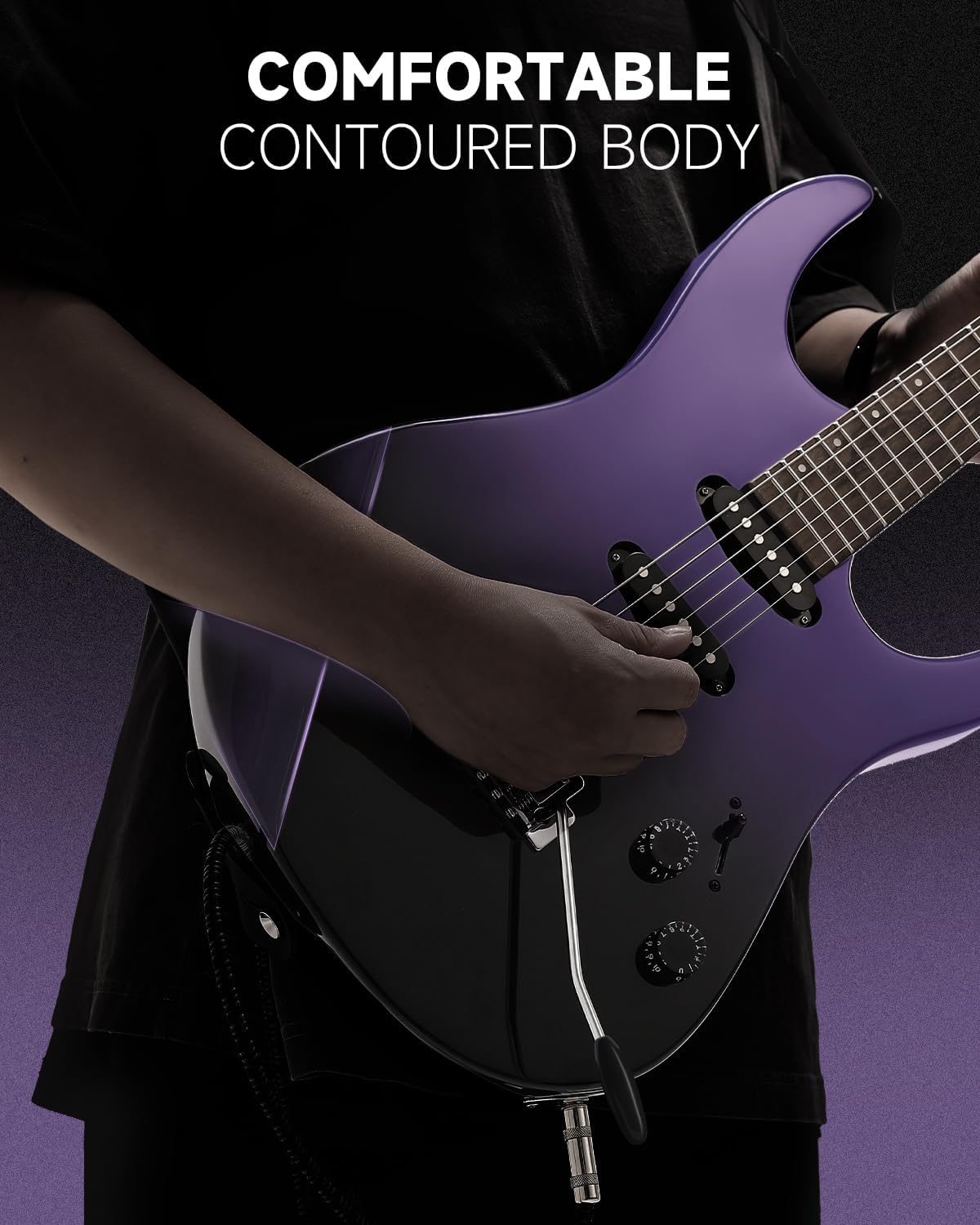

Image: Side profile view of the guitar body and neck, illustrating the comfortable contoured design and slim C-shaped neck for enhanced playability.
Setup
1. Unpacking and Initial Inspection
Carefully remove the guitar and accessories from the packaging. Inspect the guitar for any visible damage. Ensure all included accessories (gig bag, strap, whammy bar arm) are present.
Video: Donner DMT-66 Electric Guitar Unboxing. This video demonstrates the unboxing process and initial presentation of the guitar.
2. Tuning the Guitar
Before playing, tune your guitar. Standard tuning from thickest to thinnest string is E-A-D-G-B-e. Use an electronic tuner for accuracy. Gently stretch new strings after initial tuning to help them settle and hold pitch better.
3. Connecting to an Amplifier
Connect one end of a standard instrument cable (not included) to the output jack on your guitar and the other end to the input of your amplifier. Ensure your amplifier is turned on and volume settings are appropriate before playing.
4. Adjusting Action and Intonation
The guitar is factory-set, but environmental changes can affect action (string height) and intonation. If adjustments are needed, string height can be altered at the bridge saddles. Intonation, which ensures notes are in tune across the fretboard, is adjusted by moving the bridge saddles forward or backward. For complex adjustments like truss rod tension, it is recommended to consult a qualified guitar technician.
Operating Instructions
1. Pickup Selector (5-Way Blade Switch)
The DMT-66 features an HSS (Humbucker-Single-Single) pickup configuration with a 5-way blade switch. This switch allows you to select different pickup combinations for varied tones:
- Position 1 (Bridge): Activates the bridge humbucker pickup for a powerful, high-output tone, ideal for rock and metal.
- Position 2 (Bridge + Middle): Combines the bridge humbucker and middle single-coil for a brighter, fuller sound.
- Position 3 (Middle): Activates the middle single-coil pickup for a balanced, clear tone.
- Position 4 (Middle + Neck): Combines the middle and neck single-coil pickups for a warm, articulate tone.
- Position 5 (Neck): Activates the neck single-coil pickup for a smooth, warm tone, often used for blues and jazz.
2. Volume and Tone Controls
- Volume Knob: Controls the overall output level of the guitar. Turn clockwise to increase volume, counter-clockwise to decrease.
- Tone Knobs: The DMT-66 typically has two tone knobs. One usually controls the neck pickup tone, and the other controls the middle pickup tone. Turning a tone knob clockwise brightens the sound, while turning it counter-clockwise rolls off high frequencies for a warmer tone.
3. Using the Tremolo System
The 6-point tremolo system allows for pitch bending effects. Insert the whammy bar arm into its receptacle on the bridge. Gently push down on the bar to lower the pitch or pull up (if set up for it) to raise the pitch. Excessive use or aggressive manipulation can affect tuning stability. Ensure the tremolo springs are properly tensioned for your preferred playing style.
Video: Donner DMT-66 Electric Guitar Demo. This video showcases the guitar's sound and playability, including the use of the tremolo system.
Maintenance
1. Cleaning the Guitar
- Body: Wipe the body with a soft, lint-free cloth after each use to remove sweat and fingerprints. For a deeper clean, use a guitar-specific polish.
- Neck and Fretboard: Wipe the neck and fretboard with a clean cloth. Periodically, use a fretboard conditioner (especially for laurel wood) to prevent drying and cracking.
- Strings: Wipe down strings after playing to remove oils and prolong their life.
2. String Replacement
Replace strings regularly, typically every 1-3 months depending on playing frequency. Old strings lose their tone and intonation. Replace one string at a time to maintain neck tension. Use nickel-plated steel strings of appropriate gauge (e.g., .009-.042 or .010-.046).
3. Fretboard Care
The Indian laurel fretboard benefits from occasional conditioning. After removing old strings, apply a small amount of lemon oil or a dedicated fretboard conditioner to a cloth and wipe down the fretboard. Allow it to soak in for a few minutes, then wipe off any excess. This helps keep the wood hydrated.
4. Truss Rod Adjustment
The dual-action truss rod allows for neck relief adjustments. This should only be done if you understand the process, as improper adjustment can damage the neck. If you notice excessive fret buzz or high action that cannot be resolved by bridge adjustments, the neck relief may need attention. It is highly recommended to have truss rod adjustments performed by a professional guitar technician.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from amplifier | Loose cable connection, amplifier off, guitar volume down, faulty cable/pickup. | Check all connections, ensure amplifier is on and volume is up. Verify guitar volume knob is not at zero. Test with a different cable or amplifier if possible. |
| Fret buzz | Low action, uneven frets, incorrect neck relief, improper playing technique. | Check string height at the bridge. Adjust if too low. Ensure proper finger placement when fretting notes. If persistent, consult a technician for fret leveling or truss rod adjustment. |
| Poor tuning stability | New strings not stretched, worn strings, faulty tuning machines, nut issues, tremolo use. | Stretch new strings thoroughly. Replace old strings. Apply graphite to nut slots. Use tremolo gently. If tuners are slipping, they may need tightening or replacement. |
| Weak or inconsistent output | Dirty pickup selector switch, loose wiring, low battery (not applicable for passive pickups). | Toggle the pickup selector switch several times to clean contacts. Check cable connections. If issues persist, professional inspection may be required. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Donner |
| Model | DMT-66 |
| Body Material | Poplar Wood |
| Neck Material | Maple |
| Fretboard Material | Indian Laurel Wood |
| Pickup Configuration | H-S-S (Humbucker-Single-Single) |
| Bridge System | 6-point Tremolo |
| Number of Strings | 6 |
| Hand Orientation | Right |
| Color (Current Variant) | Purplish Black Gradient |
Warranty and Support
Warranty Information
The Donner DMT-66 Electric Guitar comes with a 1-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Donner website or contact customer service.
Customer Support
Donner provides comprehensive customer support. For assistance with your product, including technical questions or service requests, please utilize the following resources:
- 24/7 Services: Around-the-clock phone chat and email assistance are available.
- Online Resources: Visit the official Donner website for FAQs, product registration, and additional support materials.
Return Policy
This product is eligible for a 30-day free return. Please refer to the retailer's return policy for specific conditions and procedures.
