1. Product Overview
The BODIOO 16-inch Kids Bike is designed for young riders aged 4 to 8, with a recommended height range of 41 to 46 inches. It features a sturdy frame, adjustable seat, and dual braking system for safety and comfort. This manual provides essential information for assembly, operation, maintenance, and troubleshooting.
Figure 1.1: BODIOO 16-inch Kids Bike (Blue)
2. Safety Information
Always ensure your child wears a helmet and appropriate safety gear while riding. Regular inspection of the bike's components is crucial for safe operation. Do not ride in low light conditions without proper lighting and reflectors. Ensure all bolts and quick releases are securely fastened before each ride.
- Always wear a helmet.
- Check brakes, tires, and chain before each ride.
- Ensure training wheels (if used) are securely attached.
- Supervise young riders.
3. Parts List
The BODIOO Kids Bike comes 85% pre-assembled. The package includes the following main components and tools:
- Bike Frame with rear wheel and chain guard
- Front Wheel
- Handlebars
- Saddle (Seat)
- Pedals (Left and Right)
- Training Wheels (optional)
- Kickstand (optional, for use without training wheels)
- Front and Rear Fenders
- Bell
- Reflectors
- Basic Assembly Tools (Hex Key, Spanner, Screwdriver)
- Bicycle Pump
4. Setup and Assembly
The bike is 85% pre-assembled. Follow these steps for final assembly. A visual guide is provided in the video below.
Figure 4.1: 7-Steps Easy Assembly Diagram
Assembly Steps:
- Install Training Wheels or Kickstand: Attach the training wheels to the rear axle if desired for beginners. Alternatively, install the kickstand for independent riders.
- Install the Pedals: Identify left (L) and right (R) pedals. Thread them into the crank arms. Note that the left pedal threads counter-clockwise.
- Install the Saddle (Seat): Insert the seat post into the frame's seat tube. Adjust the height using the quick-release clamp.
- Install the Rear Fender: Attach the rear fender above the rear wheel.
- Install the Handlebars: Insert the handlebar stem into the fork tube. Align and tighten the stem bolt. Attach the bell and adjust the handbrake lever.
- Install the Front Wheel: Secure the front wheel into the fork dropouts.
- Adjust the Front Caliper Brake: Ensure the front brake pads are properly aligned with the rim and provide adequate stopping power.
Assembly Video Guide:
Video 4.2: Step-by-step assembly guide for the BODIOO Kids Bike, demonstrating the installation of training wheels, pedals, saddle, rear fender, handlebars, and adjustment of the clamp brake.
5. Operating Instructions
Braking System:
The bike is equipped with two braking systems for enhanced safety:
- Handbrake: Located on the handlebars, this lever activates the front caliper brake for immediate stopping power.
- Coaster Brake: Activated by pedaling backward, this brake provides reliable stopping for young riders who may not have the hand strength for the handbrake alone.
Figure 5.1: Dual Hand and Coaster Brakes for Safe Stopping
Adjustable Seat:
The saddle height can be easily adjusted to accommodate your child's growth. Use the quick-release lever on the seat post to raise or lower the seat. Ensure the child's feet can comfortably touch the ground when seated.
Figure 5.2: Adjustable Seat for Growing Kids
Riding Modes:
The BODIOO Kids Bike supports two riding modes:
- Balance Kid Mode: For beginners, the training wheels provide stability, allowing children to learn balance and pedaling at their own pace.
- Bicycle Mode: Once your child gains confidence and balance, the training wheels can be removed, and the kickstand can be installed for traditional bicycle riding.
Figure 5.3: Two Riding Modes: Balance Kid Mode and Bicycle Mode
6. Maintenance

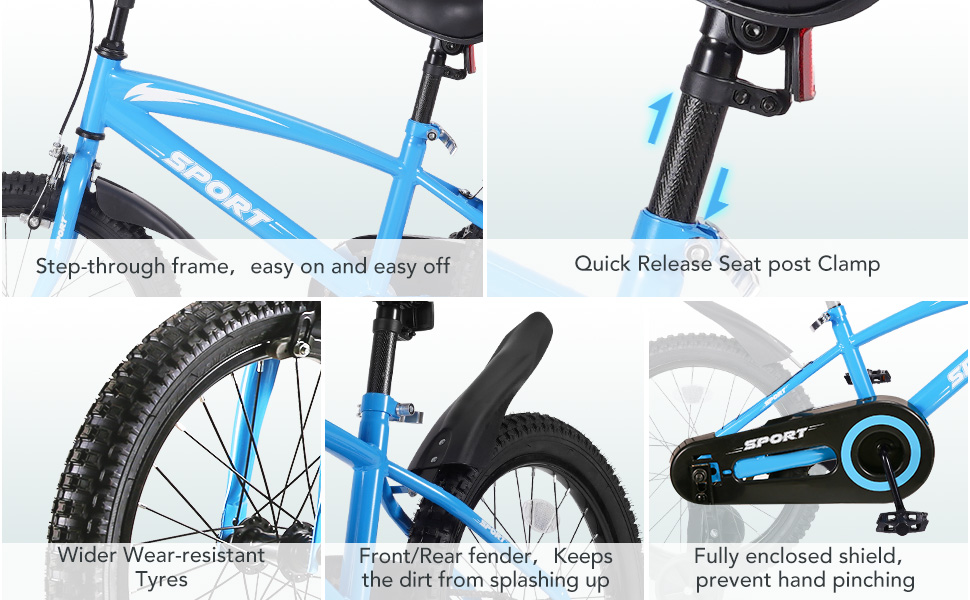

The BODIOO Kids Bike is designed for low maintenance due to its simple structure and durable steel frame. Regular checks will ensure longevity and safe operation.
- Tire Pressure: Regularly check tire pressure to ensure optimal riding performance and prevent flats. The wide anti-slip tires provide better grip and stability.
- Chain Care: The fully-enclosed chain guard helps prevent clothing from getting caught and reduces the need for frequent chain lubrication. Periodically check the chain for proper tension and lubricate if necessary.
- Brake Inspection: Ensure brake levers are responsive and brake pads make full contact with the wheel rim. Adjust as needed.
- General Cleaning: Wipe down the bike with a damp cloth to remove dirt and debris. Avoid using harsh chemicals.
Figure 6.1: Anti-Slip Wide Tires for Enhanced Grip
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tires go flat quickly | Low tire pressure, puncture | Inflate tires to recommended pressure. Check for punctures and repair or replace inner tube if necessary. |
| Chain falls off or breaks | Loose chain, damaged chain link, improper installation | Re-seat chain on sprockets. Check chain tension and adjust if too loose. Inspect for damaged links and replace chain if broken. |
| Brakes are not effective | Brake pads worn, cable loose, improper adjustment | Adjust brake cable tension. Ensure brake pads are aligned and not worn out; replace if necessary. Refer to assembly video for brake adjustment. |
| Bike feels unstable (with training wheels) | Training wheels not properly installed or adjusted | Ensure training wheels are securely tightened and set at the correct height, allowing for slight tilt. |
8. Specifications
| Feature | Detail |
|---|---|
| Bike Type | Kids Bike |
| Age Range (Description) | Little Kid |
| Brand | BODIOO |
| Wheel Size | 16 Inches |
| Frame Material | Alloy Steel |
| Brake Style | Coaster, Rear Pedal Brake |
| Special Features | Adjustable Seat, Lightweight, Portable |
| Included Components | Kickstand, Pump |
| Item Weight | 24.7 Pounds |
| Maximum Weight Recommendation | 77.2 Pounds |
| Minimum User Height | 41 Inches |
| Assembly Required | Yes (85% pre-assembled) |
9. Warranty and Support
The BODIOO Kids Bike comes with a 1-Year Limited Warranty. For warranty claims, technical support, or assembly assistance, please contact BODIOO customer service. If you have problems about assembly the bike, please contact us.
For further assistance, please refer to the contact information provided with your purchase or visit the official BODIOO store on Amazon: BODIOO Store
