Water Pulse V300 Professional Water Flosser Instruction Manual

Introduction

The Water Pulse V300 Professional Water Flosser is designed to provide effective oral hygiene by using a powerful water stream to clean teeth, gums, and braces. This manual provides detailed instructions for the safe and efficient use of your device, ensuring optimal dental care.

Regular use of a water flosser can help remove plaque bacteria, food debris, and improve gum health, contributing to fresher breath and a healthier mouth.

Important Safety Information

Please read all instructions carefully before using this product. Keep this manual for future reference.

• Do not immerse the unit in water or other liquids.
• Do not use this product if you have an open wound on your tongue or in your mouth.
• Keep out of reach of children. This product is not intended for use by children without supervision.
• Use only as directed in this manual.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified service agent to avoid hazards.
• Ensure the power source matches the voltage specified on the unit.
• Do not direct water under the tongue, into the ear, nose, or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Consult your dentist before use if you have had oral surgery or have severe periodontal disease.

Package Contents

Verify that all items are present in the package:

• Water Pulse V300 Main Unit
• Classic Tips (x3)
• Orthodontic Tip (x1)
• Tongue Cleaner (x1)
• Instruction Manual

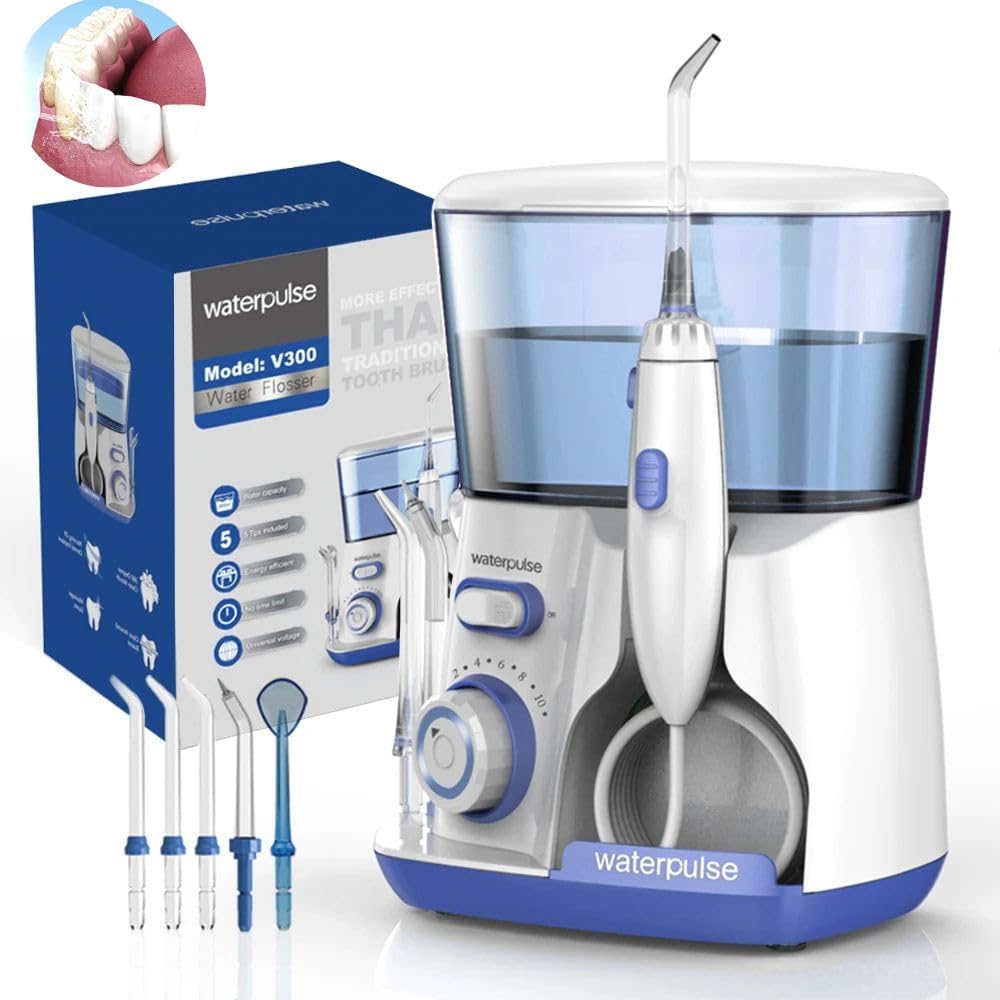

Image: The Water Pulse V300 water flosser unit, its packaging, and the included set of five nozzles.

Product Overview

Familiarize yourself with the components of your Water Pulse V300 Water Flosser:

Image: A diagram illustrating the key components of the Water Pulse V300, including the water tank, jet tip, nozzle storage, 360-degree rotation, pause button, ON/OFF switch, and pressure dial.

• Water Tank: Holds up to 800ml of water for continuous use.
• Jet Tip: The nozzle through which the water stream is delivered.
• Nozzle Storage: Convenient holder for additional tips.
• 360 Degree Rotation: Allows for easy adjustment of the tip angle.
• Pause Button: Temporarily stops the water flow.
• ON/OFF Switch: Powers the unit on or off.
• Pressure Dial: Adjusts water pressure from 20 to 120 PSI.

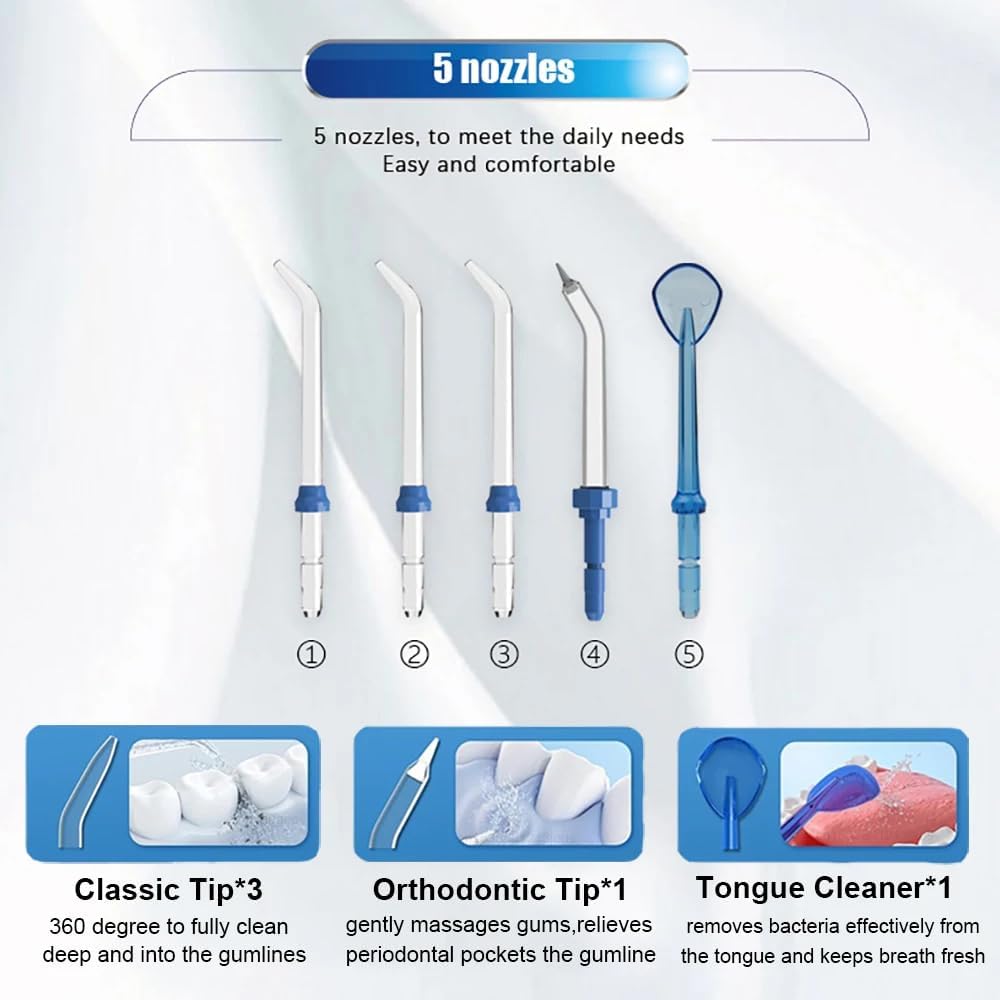

Image: A display of the five interchangeable nozzles included with the Water Pulse V300: three Classic Tips for general cleaning, one Orthodontic Tip for braces, and one Tongue Cleaner for bacteria removal.

Nozzle Types and Functions:

• Classic Tip (x3): Designed for general daily cleaning, reaching deep into gumlines and between teeth.
• Orthodontic Tip (x1): Specifically designed for cleaning around braces and orthodontic appliances.
• Tongue Cleaner (x1): Helps remove bacteria from the tongue for fresher breath.

Setup Instructions

1. Place the Unit: Position the water flosser on a flat, stable surface near a power outlet and a sink.
2. Fill the Water Tank: Lift the lid of the water tank and fill it with lukewarm water. You may also add mouthwash if desired. Ensure the tank is securely placed back on the unit.


   Image: Close-up of the Water Pulse V300's 800ml high-volume water tank, indicating its capacity and providing at least 2 minutes of continuous use.

3. Insert Nozzle: Select the desired nozzle and insert it into the handle until it clicks into place.
4. Connect Power: Plug the power cord into a grounded electrical outlet.
5. Prime the Unit (First Use):
   • Set the pressure dial to the highest setting.
   • Direct the tip into the sink.
   • Turn the unit ON until water flows from the tip.
   • Turn the unit OFF.

Operating Instructions

1. Adjust Pressure: Set the pressure dial to the lowest setting for first-time use or sensitive gums. Gradually increase the pressure to a comfortable level.
2. Position the Tip: Lean over the sink and place the tip in your mouth, aiming the water stream at your gumline at a 90-degree angle.
3. Start Flossing: Turn the unit ON. Close your lips slightly to prevent splashing, but allow water to flow from your mouth into the sink.
4. Guide the Water Stream: Start with your back teeth and work your way forward. Pause briefly between teeth, allowing the water to clean the gumline and between teeth. Follow the gumline and pause between teeth.
5. Clean All Areas: Continue until you have cleaned the inside and outside of both your upper and lower teeth. The 360-degree rotating tip allows for easy access to all areas.
6. Tongue Cleaning (Optional): If using the tongue cleaner, set the pressure to a low setting. Place the tongue cleaner on your tongue and gently pull forward, rinsing the tip after each pass.
7. Finish: Turn the unit OFF when finished. Empty any remaining water from the tank.

Image: A person demonstrating the use of the Water Pulse V300 water flosser, highlighting its effectiveness in addressing common oral health concerns such as bad breath, braces, food stains, and sensitive teeth.

Maintenance

Daily Cleaning:

• After each use, turn off the unit and unplug it.
• Empty any remaining water from the tank.
• Rinse the tank with clean water and wipe it dry.
• Remove the nozzle and rinse it under running water. Store it in the nozzle storage.
• Wipe the exterior of the unit with a soft, damp cloth.

Deep Cleaning (Monthly):

• To prevent mineral deposits, add 2 tablespoons of white vinegar to a full tank of warm water.
• Run the unit until half the tank is empty, then pause for 20 minutes.
• Run the remaining solution through the unit.
• Rinse by filling the tank with clean water and running it through the unit until empty.

Troubleshooting

Specifications

• Model: V300
• Power Source: Corded Electric
• Water Tank Capacity: 800ml
• Pressure Settings: 20 to 120 PSI (Adjustable)
• Special Features: Multiple Pressure Settings, Multiple Tips, Non-Slip Grip, Rotatable Tip
• Product Benefits: Gum Health, Prevents Bad Breath, Prevents Cavities
• Unit Count: 1 Count
• Package Dimensions: 8.62 x 6.5 x 5.12 inches
• Item Weight: 2.2 Pounds
• Manufacturer: WaterPulse
• Certifications: CE Certified

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official WaterPulse website. Keep your proof of purchase for any warranty claims.
