1. Introduction

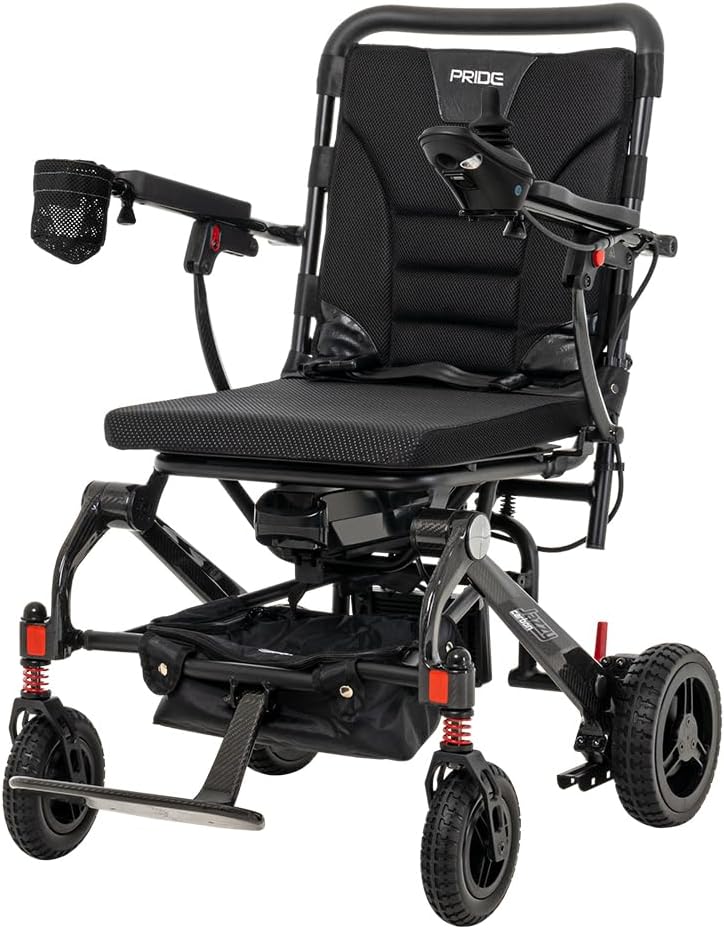

This manual provides essential instructions for the safe and effective use, setup, operation, and maintenance of your Pride Mobility Jazzy Carbon Power Wheelchair. The Jazzy Carbon is an ultra-light, foldable electric wheelchair designed for adults, offering enhanced mobility and convenience. It features a durable carbon fiber frame, a 300 lb weight capacity, a top speed of 3.7 mph, and a range of up to 10 miles on a single charge. It is also airline compliant, making it suitable for travel.
Your purchase includes the Jazzy Travel Bag Kit for convenient storage and transport, a battery bag, a standard cup holder, and an Extended Service Warranty for peace of mind. Please read this manual thoroughly before operating the wheelchair.
2. Setup and Unfolding
The Jazzy Carbon Power Wheelchair is designed for quick and easy setup. Follow these steps to unfold and prepare your wheelchair for use.
2.1 Unfolding the Wheelchair
- Place the folded wheelchair on a flat, stable surface.
- Release any securing latches or straps that hold the wheelchair in its folded position.
- Gently pull the backrest upwards and outwards until the frame locks into place.
- Ensure all locking mechanisms are securely engaged before sitting in or operating the wheelchair.
- Adjust the footplate to a comfortable position.
2.2 Jazzy Travel Bag Kit
The included Jazzy Travel Bag Kit provides protective bags for the wheelchair and its battery, facilitating easier transport and storage. The bags attach securely with Velcro and straps, allowing them to be handled as a single unit.
3. Operating Instructions
Understanding the controls and features of your Jazzy Carbon Power Wheelchair is crucial for safe and efficient operation.
3.1 Joystick Control
The wheelchair is controlled via a removable joystick, which also features a built-in USB charger for convenience. The joystick allows for precise steering and speed adjustment.
- Power On/Off: Press the power button to turn the wheelchair on or off.
- Speed Adjustment: Use the speed control buttons (usually + and -) to increase or decrease your travel speed.
- Directional Control: Gently push the joystick in the desired direction of travel. Releasing the joystick will automatically engage the brakes.
- Battery Indicator: Monitor the battery level displayed on the joystick.
3.2 Battery and Charging
The Jazzy Carbon uses a fast-charging lithium-ion battery. Ensure the battery is fully charged before initial use and after each period of significant use.
- Connect the charger to the charging port on the wheelchair and then to a standard electrical outlet.
- The charging indicator on the charger will show the charging status.
- Do not interrupt the charging cycle until the battery is fully charged.
- The lithium-ion battery is airline compliant, but always check with your airline for specific regulations regarding battery transport.
3.3 Free-Wheel Levers
The wheelchair is equipped with free-wheel levers, allowing it to be manually pushed when the power is off or in case of a power failure. Locate the levers near the drive wheels.
- To engage free-wheel mode, push the levers to the disengaged position (refer to your wheelchair for specific lever direction).
- To re-engage the drive motors, return the levers to the engaged position. The wheelchair will not operate under power if the levers are disengaged.
4. Maintenance
Regular maintenance ensures the longevity and safe operation of your Jazzy Carbon Power Wheelchair.
4.1 Cleaning
- Wipe down the frame and seating surfaces with a damp cloth and mild detergent. Avoid harsh chemicals.
- Do not spray water directly onto electrical components.
4.2 Battery Care
- Charge the battery regularly, even if the wheelchair is not in frequent use, to maintain battery health.
- Store the battery in a cool, dry place.
4.3 General Inspection
- Periodically check all nuts, bolts, and fasteners for tightness.
- Inspect tires for wear and tear.
- Ensure all electrical connections are secure.
5. Troubleshooting
This section addresses common issues you might encounter with your Jazzy Carbon Power Wheelchair.
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheelchair does not power on. | Battery is discharged or not connected. Power button not pressed. | Charge the battery. Ensure battery connections are secure. Press the power button firmly. |
| Wheelchair does not move when joystick is pushed. | Free-wheel levers are disengaged. Battery is low. Joystick connection is loose. | Engage free-wheel levers. Charge the battery. Check joystick connection. |
| Erratic movement or loss of power. | Low battery. Loose electrical connection. Overload. | Charge the battery. Check all visible electrical connections. Reduce load if exceeding weight capacity. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.
6. Specifications
Below are the technical specifications for the Pride Mobility Jazzy Carbon Power Wheelchair.
| Feature | Specification |
|---|---|
| Model | Jazzy Carbon |
| Product Dimensions (Unfolded) | 37"D x 24"W x 19"H |
| Product Dimensions (Folded) | 28.3"H x 24"W x 12.2"D |
| Item Weight (without batteries) | 39 lbs |
| Weight Capacity | 300 lbs |
| Top Speed | 3.7 mph |
| Range Per Charge | Up to 10 miles |
| Turning Radius | 24 inches |
| Battery Type | Lithium-ion (Airline Compliant) |
| Frame Material | Carbon Fiber |
| Manufacturer | Pride Mobility |
7. Warranty and Support
Your Pride Mobility Jazzy Carbon Power Wheelchair comes with an Extended Service Warranty, providing additional coverage and support for your product.
7.1 Customer Support
For technical assistance, warranty claims, or any questions regarding your wheelchair, please contact Mobility Yours customer support:
- Phone: 1-888-423-3159
- Provider: Mobility Yours, powered by SCOTT MEDICAL EQUIPMENT
Please have your model number (Jazzy Carbon) and purchase information ready when contacting support.
