NV Sight II LE Reflex Sight User Manual

Model: NV 1x25 OS sight II plus LE 3.5 MOA

Brand: NOBLEX

Product Overview

The NOBLEX NV Sight II LE Reflex Sight is engineered for demanding use by law enforcement, military, and special units. Its design incorporates features for robust performance in challenging environments, such as a protective glass panel for the red dot LED and a housing recess for rapid water drainage.

This reflex sight prioritizes operational reliability, practicality, durability, and intuitive use, making it an essential tool for critical missions. It is specifically developed for quick target acquisition and serves effectively as a backup sight.

NOBLEX NV Sight II LE Reflex Sight

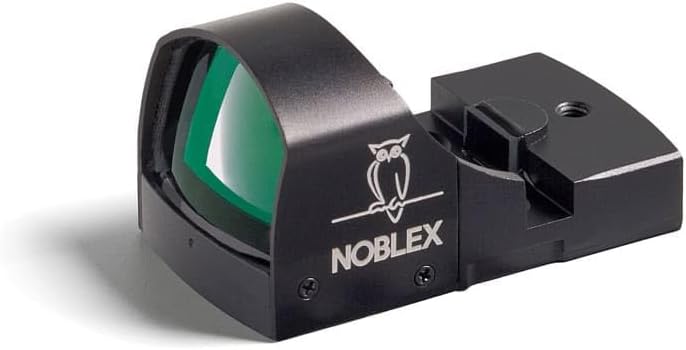

Image: The NOBLEX NV Sight II LE Reflex Sight, a compact black optical device with a green-tinted lens and the NOBLEX owl logo. This image shows the overall design and size of the reflex sight.

  • High Performance Optics: Features a patented optical system (21 x 15 mm) for distortion-free imaging and optimal target detection, ideal for rapid shots.
  • Compact Assembly: Designed for compact mounting on various short and long weapons, suitable for heavy-duty applications.
  • Precision Viewing: NOBLEX multitop optical coating ensures reflection-free observation. The red dot is fine, bright, and visible even on light surfaces.
  • Intelligent Illumination: The red dot features automatic control of illuminated dot intensity and auto-adjusted brightness for optimal visibility in varying light conditions.
  • Maximum Vision: Allows for two-eyed sighting and is set to be parallax-free at 40 meters, enhancing situational awareness and accuracy.

Setup and Installation

Before installation, ensure all components are present and undamaged. Refer to the included components list below.

Included Components:

  • T10 hexagon wrench key (TORX) for fastening screws
  • Adjusting wrench with adjusting scale specific for the device
  • Protective cap
  • 2 M3x8 countersunk socket screws (TORX) for mounting plate attachment
  • Allen key for tightening fastening screws
  • Lithium battery (3 V, CR 2032)
  • Cleaning cloth

Mounting Instructions:

  1. Identify the appropriate mounting plate for your weapon system. The sight is designed for compatibility with various short and long weapons.
  2. Position the NV Sight II LE onto the mounting plate.
  3. Secure the sight to the mounting plate using the provided 2 M3x8 countersunk socket screws (TORX). Use the T10 hexagon wrench key to tighten these screws firmly, but do not overtighten.
  4. Once mounted, ensure the sight is stable and properly aligned.
  5. Insert the CR 2032 lithium battery into the designated battery compartment. Ensure correct polarity.

For specific weapon system mounting, consult your weapon's manual or a qualified gunsmith.

Operating the Reflex Sight

Red Dot Illumination:

The NV Sight II LE features automatic control of the illuminated dot intensity. The brightness of the red dot adjusts automatically to ambient light conditions, ensuring optimal visibility without manual intervention. This auto-adjustment feature helps maintain a clear and bright aiming point in various lighting scenarios.

Parallax-Free Operation:

The sight is set to be parallax-free at 40 meters. This means that within this range, the red dot will remain on target regardless of minor head movements or eye position, providing consistent accuracy.

Aiming and Target Acquisition:

Utilize the sight with both eyes open for maximum situational awareness and faster target acquisition. The clear, distortion-free image provided by the optical system aids in quick and precise aiming.

Adjustments:

Use the provided adjusting wrench with its specific scale for any necessary windage and elevation adjustments. Make small, incremental adjustments and verify zero after each change.

Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your NOBLEX NV Sight II LE.

Cleaning the Lenses:

Use the provided cleaning cloth to gently wipe the lenses. For stubborn smudges, a small amount of lens cleaning solution designed for optical surfaces can be applied to the cloth, not directly to the lens. Avoid using abrasive materials or harsh chemicals that could damage the coatings.

Battery Replacement:

When the red dot illumination appears dim or inconsistent, it may be time to replace the CR 2032 lithium battery. Refer to the battery compartment for specific instructions on replacement, ensuring correct polarity.

Storage:

Store the sight in a dry, cool place, away from direct sunlight and extreme temperatures. Use the protective cap when the sight is not in use to prevent dust and scratches.

Environmental Considerations:

The sight is designed to drain accumulated water quickly in extreme weather. After exposure to moisture, ensure the sight is thoroughly dried before storage.

Troubleshooting

This section addresses common issues you might encounter with your NOBLEX NV Sight II LE. For more complex problems, please contact customer support.

Red Dot Not Visible or Dim:

  • Check Battery: Ensure the CR 2032 battery is correctly inserted and has sufficient charge. Replace if necessary.
  • Clean Lens: A dirty lens can obscure the red dot. Clean the lens gently with the provided cloth.
  • Ambient Light: While the sight has auto-adjusting brightness, extremely bright or dark conditions might affect initial visibility. Allow the sensor to adjust.

Inaccurate Aiming:

  • Mounting Stability: Verify that the sight is securely mounted to your weapon. Loose screws can cause inconsistencies.
  • Zeroing: Ensure the sight has been properly zeroed for your specific weapon and ammunition at the desired distance. Re-zero if accuracy issues persist.
  • Parallax: Remember the sight is parallax-free at 40 meters. At significantly different distances, minor parallax might be observed.

Physical Damage:

If the sight sustains physical damage, do not attempt to repair it yourself. Contact NOBLEX customer support or an authorized service center.

Specifications

FeatureDetail
BrandNOBLEX
Model NameNV 1x25 OS sight II plus LE 3.5 MOA
ColorBlack
StyleRed Dot
Product Dimensions (L x W x H)1.81"L x 1"W x 0.93"H
Item Weight0.9 Ounces
MaterialRed Dot Sight
Reticle TypeMil Dot
Parallax SettingParallax-free at 40 meters
Illumination ControlAutomatic dot intensity and brightness adjustment
Battery TypeLithium battery (3 V, CR 2032)
ManufacturerNoblex
Part Number55723

Warranty and Support

Warranty Information:

The NOBLEX NV Sight II LE Reflex Sight comes with a 30 Year TAC Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, warranty claims, or service inquiries, please contact NOBLEX customer support. Refer to the official NOBLEX website for the most current contact information.

Note: Unauthorized disassembly or modification of the product may void the warranty.
