Sujata MG03 Mixer Grinder Instruction Manual

Introduction

Welcome to the Sujata MG03 Mixer Grinder instruction manual. This document provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Instructions

General Safety Precautions

• Read all instructions before using the appliance.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not immerse the motor unit, cord, or plug in water or any other liquid.
• Keep hands and utensils out of the jar while blending to reduce the risk of severe injury or damage to the blender. A scraper may be used but only when the blender is not running.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Always operate the appliance on a flat, stable surface.
• Do not fill jars beyond the maximum fill line.
• Ensure the lid is securely locked in place before operating the appliance.

Product Overview

The Sujata MG03 Mixer Grinder is designed for efficient grinding, blending, and juicing tasks. It features a powerful motor and a versatile set of jars to cater to various kitchen needs.

Key Components

• Motor Unit: The main power unit housing the 1000-watt double ball bearing motor.
• Liquidizer Jar (1.75L): Transparent jar for blending liquids, shakes, and includes a coconut milk extractor.
• Dome-Shaped Stainless Steel Jar (1.5L): For wet grinding batters and includes changeable blades for whisking, mincing, and grating.
• Dry Grinding Jar (1.0L): For grinding dry spices and coffee beans.
• Chutney Jar (0.5L): Compact jar for small quantities like chutneys and pastes.
• Blades: Food-grade, high-tensile stainless steel blades.
• Tamper Tool: For pushing ingredients down in the blender jar.

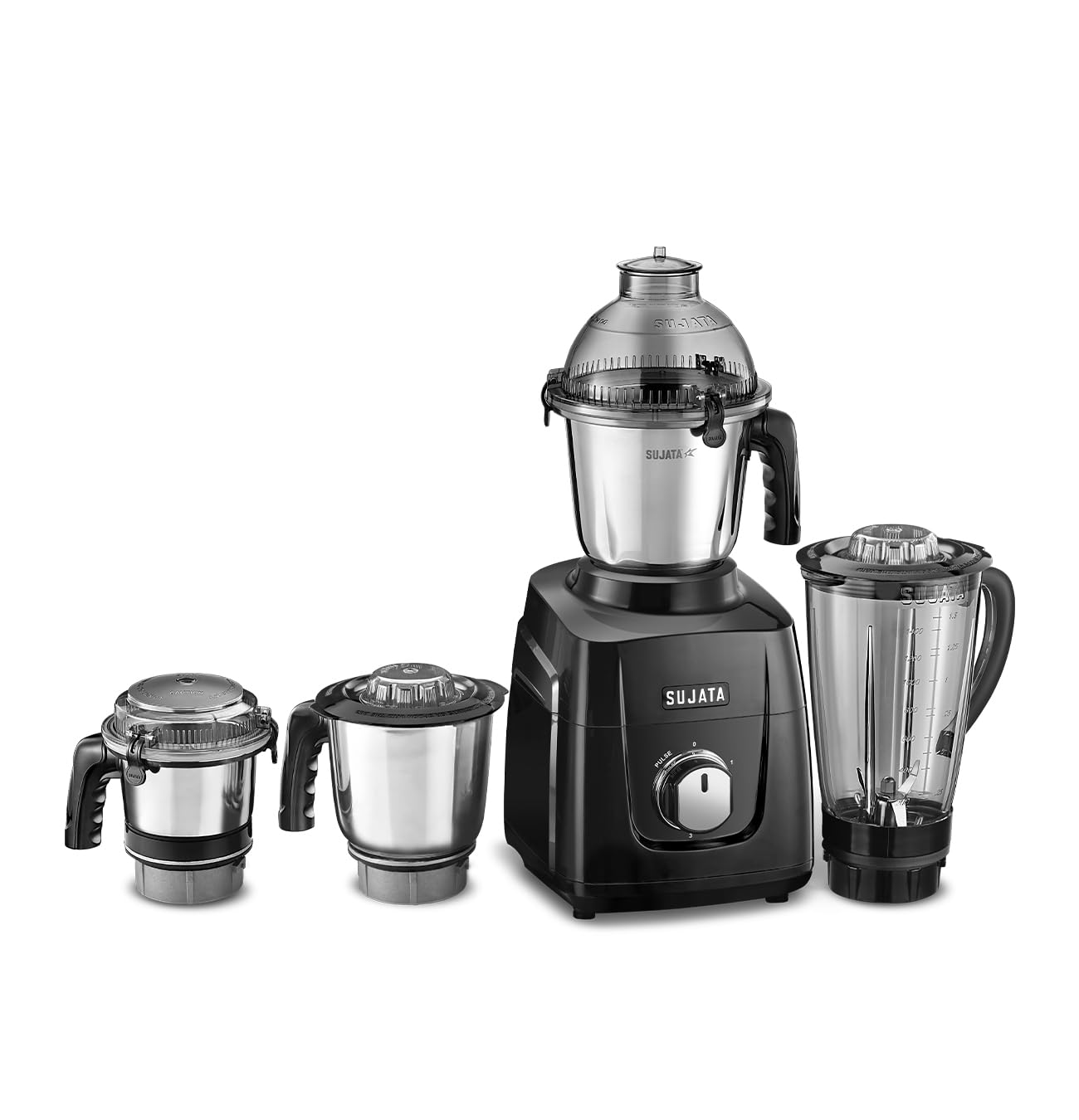

Figure 1: Sujata MG03 Mixer Grinder with its four accompanying jars.

Figure 2: The four durable jars included with the Sujata MG03: 500ml, 1000ml, 1.5L stainless steel, and 1.75L unbreakable clear jar.

Figure 3: Detailed view of key features: 6-point blade for smooth blending, tamper for stirring, ergonomic handle grip, and the coconut milk extractor.

Figure 4: The specialized coconut milk and puree extractor attachment for efficient separation.

Figure 5: Overview of the 3F benefits: Faster operation with 25,000 RPM, Finer grinding with research-based blade design, and Longer life with double ball bearings.

Figure 6: Features highlighting continuous operation for 90 minutes, efficient 3-way cooling vents, and a durable 100% copper wire motor with H-class insulation.

Figure 7: Advanced design features including a self-draining system, 3-way cooling vents, and automatic jar-to-motor alignment for enhanced safety and performance.

Setup and First Use

Unpacking

• Carefully remove all components from the packaging.
• Inspect the appliance for any damage. Do not use if damaged.
• Remove all packaging materials, stickers, and labels.
• Clean all removable parts (jars, lids, blades) with warm soapy water before first use. Rinse thoroughly and dry.
• Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water.

Assembly

• Place the motor unit on a stable, flat, and dry surface.
• Select the appropriate jar for your task.
• Ensure the blade assembly is securely fitted inside the jar.
• Place the ingredients into the jar, ensuring not to exceed the maximum fill line.
• Secure the lid onto the jar.
• Place the assembled jar onto the motor unit, aligning the locking tabs. Turn clockwise until it locks securely into place.
• Ensure the jar is properly seated and locked before plugging in the appliance.

Operating Instructions

General Operation

• Plug the mixer grinder into a suitable power outlet.
• Turn the speed selector knob to the desired speed setting (1, 2, or 3).
• For short bursts of power, use the Pulse function by turning the knob to 'P' and releasing. This is ideal for whipping or precise blending.
• The Sujata MG03 is designed for non-stop operation for up to 90 minutes, ensuring consistent performance for longer tasks.
• If ingredients stick to the sides of the jar during operation, switch off the appliance, unplug it, remove the lid, and use the tamper tool or a spatula to push the ingredients down. Never use your hands or other utensils while the appliance is running.
• After use, turn the speed selector to 'OFF' and unplug the appliance.

Specific Applications

Blending (1.75L Liquidizer Jar)

Use for shakes, cold coffee, mocktails, buttermilk, and other liquid preparations. The coconut milk extractor mesh can be inserted for efficient coconut milk separation.

Wet Grinding (1.5L Dome-Shaped Stainless Steel Jar)

Ideal for preparing thick batters like dosa, hummus, and gravies. Utilize the changeable blades for specific tasks such as egg whisking, meat mincing, or grating.

Dry Grinding (1.0L Dry Grinding Jar)

Suitable for grinding dry spices such as turmeric, coffee beans, and garam masala.

Chutney Grinding (0.5L Chutney Jar)

Perfect for small quantities of chutneys, ginger-garlic paste, and tamarind.

Figure 8: Examples of ingredients ground to perfection, such as coffee and turmeric, demonstrating the grinder's efficiency.

Care and Maintenance

Cleaning

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse it in water. The self-drainage design helps prevent water accumulation, enhancing motor safety.
• Jars and Lids: Wash jars, lids, and blades with warm soapy water immediately after use to prevent food from drying on. Use a brush for hard-to-reach areas. Rinse thoroughly and dry completely before storing.
• Blades: Handle blades with extreme care as they are sharp.
• Do not wash any parts in a dishwasher unless explicitly stated in the product specifications.

Storage

• Store the mixer grinder and its accessories in a clean, dry place.
• Ensure the cord is neatly wrapped and not kinked.

Troubleshooting

Common Issues and Solutions

Technical Specifications

• Brand: Sujata
• Model: MG03
• Power: 1000 Watts
• Motor Type: Double Ball Bearing Motor with 100% Copper Windings
• RPM: 25,000
• Operating Time: Non-Stop 90 Minutes
• Jars Included:
  • 1.75 L Unbreakable Transparent Liquidizer Jar (with Coconut Milk Extractor)
  • 1.5 L Dome-Shaped Stainless Steel Jar (with 3 changeable blades)
  • 1.0 L Dry Grinding Jar
  • 0.5 L Chutney Jar
• Blade Material: Food-grade, High-tensile Stainless Steel
• Container Material: Stainless Steel, Polycarbonate
• Number of Speeds: 3 + Pulse
• Voltage: 240 Volts (AC)
• Product Dimensions: 55D x 28W x 42H Centimeters
• Item Weight: 7 kg 580 g
• Special Features: Changeable Blades, Self-Drainage Design, 3-Way Cooling Vents

Warranty and Customer Support

Warranty Information

The Sujata MG03 Mixer Grinder comes with a full warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.

Customer Support

For any queries, service requests, or technical assistance, please contact Sujata customer support. You can find contact details on the official Sujata website or on the warranty card.

Figure 9: Sujata offers nationwide doorstep service. For support, contact Sujata Care at 1800-1022-758.
