1. Introduction
This manual provides essential information for the assembly, operation, and maintenance of your Kappesberg CB01M569 Double Wardrobe. This wardrobe features a robust MDP structure, 6 hinged doors, 2 drawers with metal slides, 6 shelves, 3 metal hanger rods, and 2 central mirrors. It is designed to offer ample storage and organization for your clothing and personal items.
2. Safety Information
- Always follow the assembly instructions carefully to ensure structural integrity.
- Do not overload shelves or drawers beyond their specified weight limits.
- Keep small parts and assembly tools out of reach of children.
- Ensure the wardrobe is placed on a level surface to prevent tipping.
- For added stability, consider securing the wardrobe to a wall using appropriate anti-tip hardware (not included, consult a professional if unsure).
3. Components List
Before assembly, verify that all components listed below are present. Refer to the detailed assembly diagram in your physical manual for specific part identification.
- MDP Panels (various sizes for structure, doors, shelves, drawers)
- 6 Hinged Doors (2 with integrated mirrors)
- 2 Drawers
- 6 Shelves
- 3 Metal Hanger Rods
- Wooden Handles
- Metal Slides for Drawers
- Feet
- Assembly Hardware (Philips screws, dowels, hinges, etc.)
4. Setup and Assembly
Assembly of the Kappesberg CB01M569 Double Wardrobe is required. It is recommended to have two people for assembly. Please follow the step-by-step instructions provided in the physical assembly manual included with your product. A Philips head screwdriver is required for assembly.
General Assembly Steps:
- Unpack all components and verify against the components list.
- Assemble the base structure of the wardrobe.
- Install the internal partitions and shelves.
- Assemble the drawers and install their metal slides.
- Attach the metal hanger rods.
- Mount the doors, ensuring proper alignment and hinge adjustment.
- Attach the wooden handles to the doors and drawers.
- Install the feet at the base of the wardrobe.
Figure 1: Internal dimensions and layout of the wardrobe, showing shelf and hanger rod placement.
5. Operating Instructions
The Kappesberg CB01M569 wardrobe is designed for intuitive use.
- Doors: The 6 hinged doors open outwards. Use the wooden handles for smooth operation. The two central doors feature integrated mirrors.
- Drawers: The two drawers operate on metal slides, ensuring smooth opening and closing. Avoid forcing them if they feel stiff.
- Shelves: Utilize the 6 internal shelves for folded clothing, accessories, or storage boxes. Ensure weight limits are respected.
- Hanger Rods: The 3 metal hanger rods are suitable for hanging shirts, dresses, coats, and other garments.
Figure 2: Example of organized internal compartments, demonstrating use of shelves, drawers, and hanger rods.
6. Maintenance
Proper care will extend the life and appearance of your wardrobe.
- Cleaning: Clean the wardrobe surfaces with a dry, soft cloth to remove dust.
- Avoid Abrasives: Do not use abrasive cleaning products, chemical solvents, or harsh detergents, as these can damage the finish.
- Spills: Immediately wipe any liquid spills with a dry cloth to prevent moisture absorption.
- Hardware: Periodically check and tighten any loose screws or fittings to maintain stability.
- Mirrors: Clean mirrors with a glass cleaner and a soft, lint-free cloth.
7. Troubleshooting
If you encounter any issues with your wardrobe, consider the following:
- Wobbly Wardrobe: Ensure the wardrobe is on a level surface. Adjust the feet if necessary. Check all assembly screws for tightness.
- Doors Not Aligning: Adjust the hinges on the doors. Refer to the assembly manual for hinge adjustment instructions.
- Drawers Sticking: Check if the drawer slides are clean and free of obstructions. Ensure the drawer is correctly seated on the slides.
- Damaged Parts: If any part is damaged during assembly or use, contact Kappesberg customer support for replacement options.
8. Specifications

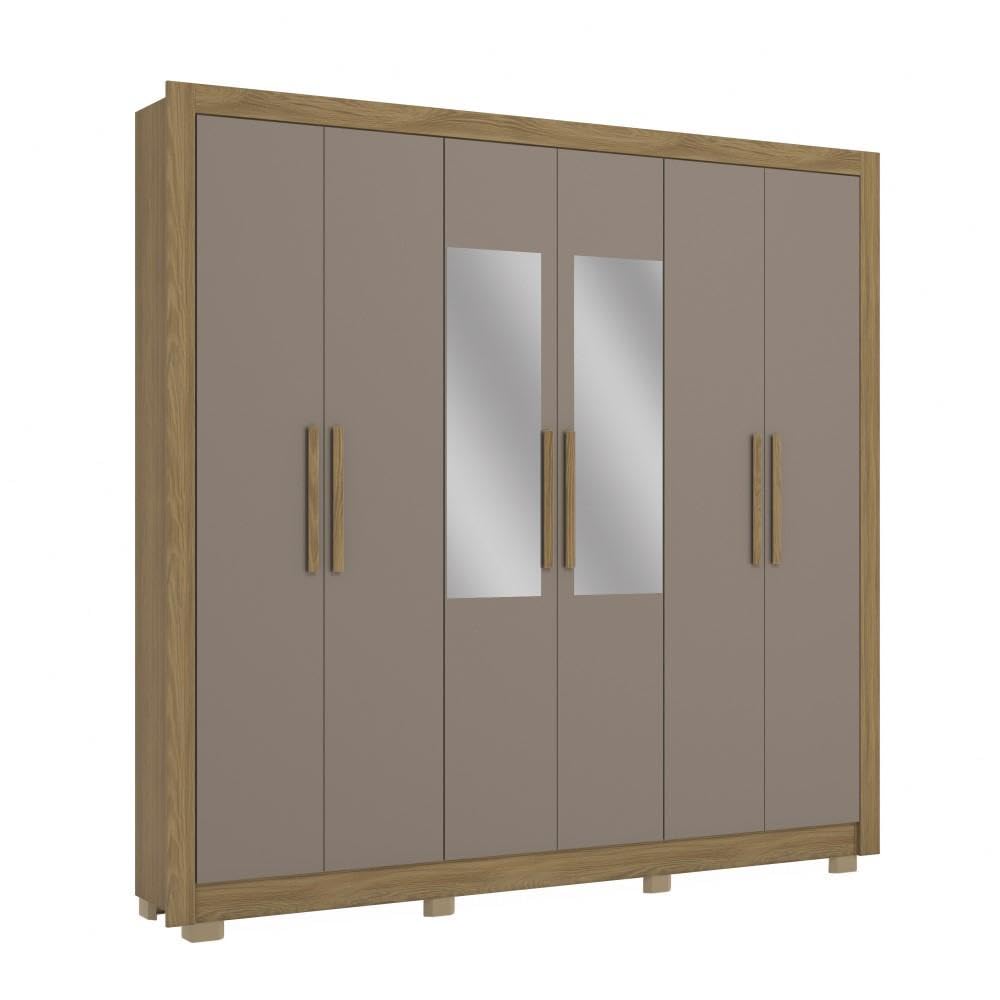

Figure 3: The Kappesberg CB01M569 Double Wardrobe in Walnut Brown and Fendi Grey.
| Feature | Detail |
|---|---|
| Model | CB01M569 |
| Brand | Kappesberg |
| Material | MDP (Medium Density Particleboard) |
| Color | Walnut Brown (structure) and Fendi Grey (doors) |
| Dimensions (Height x Width x Depth) | 223 cm x 232 cm x 47 cm |
| Number of Doors | 6 (Hinged type) |
| Mirrors | 2 (integrated into central doors) |
| Number of Drawers | 2 (with metal slides) |
| Number of Shelves | 6 |
| Hanger Rods | 3 (metal) |
| Handles | Wooden |
| Feet | Included |
| Weight Supported per Shelf | 7 kg |
| Weight Supported per Drawer | 6 kg |
| Product Weight | 148.95 kg |
| Assembly Required | Yes |
| Assembly System | Philips Screw |
9. Warranty and Support
For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Kappesberg website. For technical support, missing parts, or assembly assistance, please contact Kappesberg customer service through their official channels.
Kappesberg Official Website: www.kappesberg.com.br
